Side 1/2

Locate

Alarm

Silence

Alarm

Test

Alarm

Fire Alarms

Control Switch

The Remote Control is recommended for use in

systems comprising of three or more

interconnected Alarms.

The Remote Control should be wall mounted at

standard light switch level (1.2m from floor

level) to allow easy access.

LOCATE ALARM:

SILENCE ALARM:

TEST ALARM:

MAINS CHECK:

If alarms sound, press to allow the source of alarm to be

identified audibly.

Press to silence nuisance alarms.

Operate weekly to test the alarms. Can also be used to

give a manual alarm

TheTest Alarm switch will not sound the alarms in the

absence of mains power.

Position the Remote Control in a location that will allow it

to be easily accessed. In the majority of installations this

will be in a hallway, possibly next to the master bedroom.

It should be installed at the standard light switch height

(1.2m from floor level).

The Remote Control can be surface mounted using the

mounting box provided or alternatively it can be

recessed into a standard back-box (not included).

If a metal back-box is used it must have a minimum depth of 35mm.

Up to four Ei1529RC System Remote Controls can be used in a system.

REMOTE CONTROL

SWITCH

INSTRUCTIONS

Model

Ei1529RC

1. Press the Test Alarm switch

Now check all the alarms sound and the red lights

on the covers flash rapidly. Then turn off the Test

Alarm switch.

This is equivalent to pressing the test button on all

alarms simultaneously.

It also checks that the remote control is receiving

mains power.

2. If the alarms do not sound

Check for the green mains light on the front cover

of the alarms.

If all alarms do not have the green mains light on,

check fuses, circuit breakers etc. (see Smoke/Heat

Alarm instructions for further details).

• Test Alarm – use to test the Smoke/Heat Alarms remotely.

Ei Electronics guarantees this product for five years from date of purchase against any defects that are

due to faulty materials or workmanship. This guarantee only applies to normal conditions of use and

service, and does not include damage resulting from accident, neglect, misuse, unauthorised

dismantling, or contamination howsoever caused. This guarantee excludes incidental and

consequential damage. If this product should become defective within the guarantee period, it must be

returned, with proof of purchase, carefully packaged, with the problem clearly stated (see addresses

below). We shall at our discretion repair or replace the faulty unit. Do not interfere with the product or

attempt to tamper with it. This will invalidate the guarantee, but more importantly may expose the user

to shock or fire hazards.This guarantee is in addition to your statutory rights as a consumer.

FIVE YEAR GUARANTEE

4 1

The crossed out wheelie bin symbol that is on your

product indicates that this product should not be disposed

of via the normal household waste stream. Proper

disposal will prevent possible harm to the environment or

to human health. When disposing of this product please

separate it from other waste streams to ensure that it can

be recycled in an environmentally sound manner. For

more details on collection and proper disposal, please

contact your local government ofce or the retailer where

you purchased this product.

WEEKLY TESTING

Aico Ltd. Mile End Business Park,

Maesbury Rd, Oswestry,

Shropshire SY10 8NN, U.K

Tel: 0870 758 4000

www.aico.co.uk

Ei Electronics. Shannon, Ireland.

Tel: +353 (0)61 471277

www.eielectronics.com

Bedroom Landing

Hallway

Bedroom

WARNING: For use only with the following models:

Smoke/Heat/CO Alarms - 2100 Series, 160RC Series, Ei261ENRC & Ei261DENRC

Accessories - Ei128RBU, Ei169/160, MCP401RC

DO NOT use any other models with this remote control

SITING

B16112-R1-Ei1529RC3-U&C BOOK 17/8/10 9:42 AM Page 1

WARNING: This Remote Control should be installed by a qualified electrician in

accordance with the Requirements for Electrical Installations published by the

IET as BS7671:2001.

1. Disconnect the AC mains power supply from the circuit that is going to be

used to power the Smoke/Heat Alarms and the Remote Control.

2. Locate and install the Alarms as per the ‘Installer Instructions’ included with

the alarms.

3. Select a suitable location for the Remote Control as per the ‘SITING’ section

on page 1 of this leaflet.

4. Route the wiring (Live, Neutral, Interconnect/Control and Earth) to this point.

A minimum 0.75mm2cable should be used.

5. Fix the mounting box provided to the wall for surface mounting or alternately,

fix a back box (not included) into the wall if recessed mounting is required.

6. Pass the wiring through an appropriate knockout in the mounting box or back-box.

7. Connect the wiring as shown in Figures 1 & 2 below.

(N.B. The Remote Control does not need to be earthed. However the terminal

marked with the earth symbol is provided for the convenience of the installer so that

any copper earth wire or cable coloured green & yellow, can be safely terminated).

8. Fix the Remote Control to the mounting

box or back-box.

9. Reconnect the AC mains power to the

circuit and check that the green mains

indicator lights on the Alarms are on.

10. Test the function of the Remote Control

as outlined in the ‘WEEKLY TESTING’

section on of this leaflet.page 4

Ensure all wiring is correctly connected otherwise the Control Switch

and all connected units may be damaged.

Do not apply the high voltage insulation test to the wiring as all connected

units may be damaged. If it is necessary to check insulation, temporarily

remove all Alarms and the Ei1529RC switch.

If a metal back-box is used (for recessed mounting) it must have a minimum

depth of 35mm.

Live

Neutral

Earth

Interconnect/Control

Locate

Alarm

Silence

Alarm

Tes t

Alarm

Fire Alarms

Control Switch

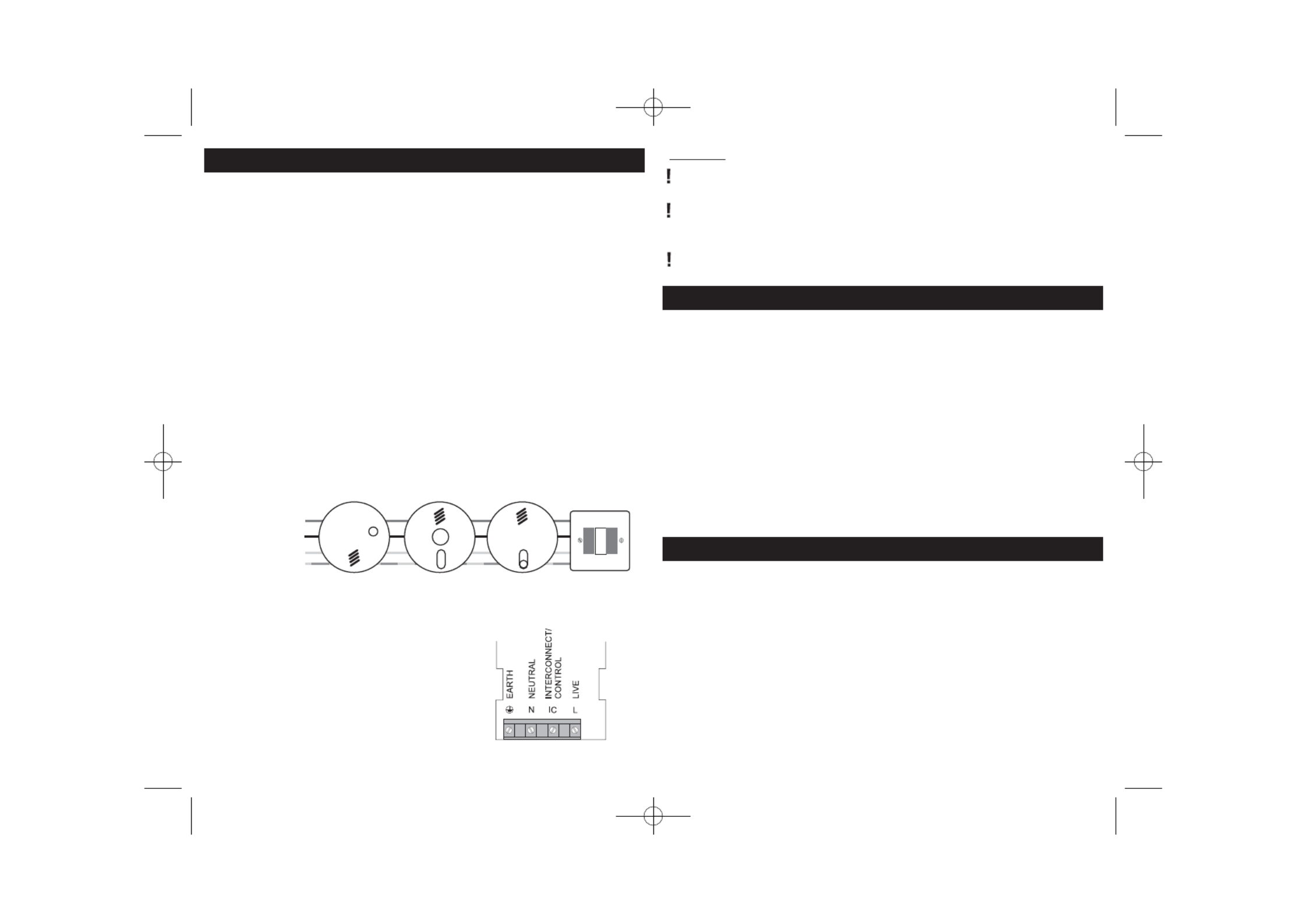

WIRING

2 3

Figure 1

Figure 2

Note: The Ei1529RC Remote Control can be

wired from any location within the system.

CAUTION

• Locate Alarm – primarily used to identify the Alarm sensing fire.

When all the alarms are sounding due to a fire (or nuisance alarm):

Press and release the spring loaded switch. This will silenceLocate Alarm

all the alarms except those sensing fire / CO.

This is a very useful feature. For example, consider twelve alarms sounding

simultaneously, then the unit sensing the fire can be identified audibly and

the premises evacuated or the problem quickly resolved.

• Silence Alarm - used to silence nuisance alarms. This should only be

pressed after the Locate switch has been used to identify the alarm that

triggered the system, and it is determined that no fire is present.

Do not Silence the alarms unless you are sure there is no fire.

To Silence the alarms, press and release the Silence Alarm switch.

What to do when the Alarms are sounding

1.If there is a fire, immediately evacuate the premises and telephone the fire

brigade from outside.

2. When the alarms are sounding and the cause is not obvious,

immediately press the ‘ ’ switch. This will silence all theLocate Alarm

alarms except those sensing fire themselves.

3. Locate the alarm(s) sensing fire audibly. Be careful, check doors are not

warm and that there is no sign of smoke before you open them (See

escape plan in Smoke/Heat Alarm instructions for further details).

4. If you are fully satisfied that there is no fire, but the smoke/heat alarm is

still continuing to alarm then press the ‘Silence Alarm’ switch.

‘LOCATE’ & ‘SILENCE ALARM’ FUNCTIONS

WHEN ALARMS ARE SOUNDING

B16112-R1-Ei1529RC3-U&C BOOK 17/8/10 9:42 AM Page 2

Produkt Specifikationer

Mærke:	Ei Electronics
Kategori:	Skifte
Model:	Ei1529
Bredde:	89 mm
Dybde:	89 mm
Højde:	47 mm
Vægt:	200 g
Produktfarve:	Red, White
Opbevaringstemperatur (T-T):	0 - 35 °C
Relativ luftfugtighed ved drift (H-H):	0 - 90 %
Driftstemperatur (T-T):	0 - 40 °C
Forbindelsesteknologi:	Trådløs
Strømkilde type:	Vekselstrøm
Kan forbindes indbyrdes:	Ja
Indgangsspænding:	230 V
Mængde af sammenkoblede alarmer (maks):	12
Kompatible produkter:	Ei161RC, 164RC, 166RC, Ei141RC, 144RC, 146RC, Ei261ENRC, 261DENRC, Ei128RBU
Indgangsfrekvens:	50 Hz
Monteringssæt:	Ja
