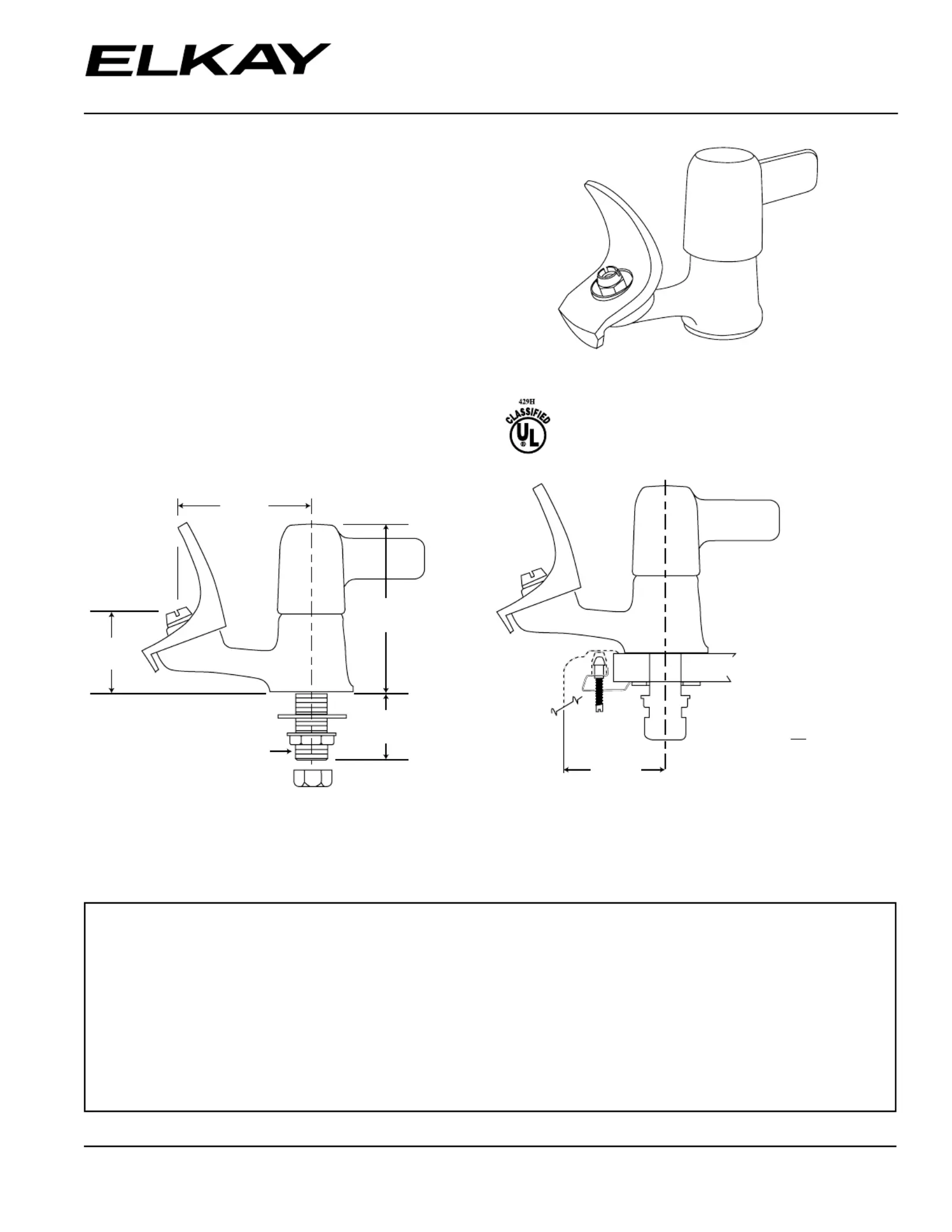

Side 1/2

3-1/8"

(79mm)

1-7/8"

(48mm)

3-15/16"

(100mm)

(52mm)

1/2" (13mm) STRAIGHT

PIPE THREAD

COUNTERTOP

2-5/8"

(66.6mm)

Installation Note: For countertop

installations, do not exceed 2-5/8"

from centerline of bubbler hole to

edge of sink bowl as shown.

GENERAL

Lever activated bubbler, self closing, with built-in adjustable

volume control which controls flow from 20 p.s.i. to 105 p.s.i.

LKBH1141A – Flexi-Guard®Bubbler*. Lever activated bubbler

designed so that water never comes in contact with lead-

containing materials. Built-in adjustable water volume control.

Heavy chrome plated body with a 1/2" (13mm) straight pipe

thread connection. Requires single faucet hole. Ship. Wt. 3-1/4 lbs.

LKVRBH1141A – Metal Bubbler. Same as LKBH1141A except

with metal mouth guard. Model includes (2) anti-rotation pins

for field installation. Four hole bubbler body drilling allows

installer to match anti-rotation pins to the anti-rotation sink

bubbler hole slot configuration. Ship. Wt. 3-1/2 lbs.

*Exclusive Flexi-Guard mouth guard utilizes a pliable polyester

elastomer to prevent mouth injuries. Guard flexes on impact

and then returns to original position. Strong, abrasion resistant,

anti-sweat and meets sanitary requirements.

Complies with ANSI A-117.1 and A.D.A. regulations which

require less than 5 lbs to operate.

Model LKVRBH1141A

Classified to NSF/ANSI 61 by Underwriters Labora-

tories Inc.

Elkay 2222 Camden Court

Oak Brook, IL 60523

A55326

Printed in U.S.A.

(Rev. 11/04) 15-18A

www.elkayusa.com

No Lead Bubbler

For Classroom Drinking Fountain Sink

Model LKBH1141A and LKVRBH1141A

S P E C I F I C AT I O N S

Elkay warrants its faucets to be free of defects in workmanship and material for a period of

one year from the date of purchase. Replacement parts are available from Elkay for a nom-

inal charge. Upon return of a defective part to Elkay during the warranty period with written

notice of the claimed defect, Elkay will refund the replacement charge.

WASTE FITTINGS AND ACCESSORIES ARE NOT WARRANTED; OTHER WARRANTY

CONDITIONS:

Our warranty does not cover product failure caused by abusive treatment, misuse, or dam-

age due to handling or faulty installations. This warranty is extended only to the original con-

sumer purchaser of the product. This warranty does not cover shipping costs, labor costs,

or any other charges for such items as installation or replacement of the sink, diagnosis or

replacement of any faucet or component part, or any other expense or loss.

ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES ARE SPECIFICALLY EXCLUDED. NO

ADDITIONAL WARRANTIES, EXPRESS OR IMPLIED, ARE GIVEN. ANY IMPLIED WAR-

RANTY, INCLUDING ONE OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PUR-

POSE, IS LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages

or limitations on how long an implied warranty lasts, so the above limitations or exclusions

may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary

from state to state.

TO OBTAIN SERVICE UNDER WARRANTY

1. Write to: Elkay

Attention: Consumer Service

2222 Camden Court

Oak Brook, Illinois 60523

2. Include a letter containing the following information:

a. Date of purchase and installation

b. Description of nature of defect

c. Model number or description of model and/or component part if possible.

ELKAY FAUCET LIMITED WARRANTY

BODY ASSEMBLY

NOT AVAILABLE AS

SERVICE PART

A55293

HANDLE

A54765 (3)

SET SCREW

REQUIRES 1/16"

HEX KEY

61314C

REGULATOR

CARTRIDGE

A54888

SCREEN

ANTI-ROTATION PINS

FOR LKVRBH1141A

NOT FACTORY

INSTALLED

A54883

ANTI-ROTATION

WASHER

LKVR1141A ONLY

A54870

WASHER

A51266

NUT

A51438

COUPLING NUT

A54874

ORIFICE

ASSEMBLY

A54735

FLEXI-GUARD

A55066

ADAPTER

TO ADJUST WATER FLOW:

1. LOOSEN KNOB SET SCREWS.

2. REMOVE KNOB, ROLLER BEARINGS AND CAM PLATE.

3. INSERT SCREWDRIVER THROUGH SUPPORT INTO

TOP OF REGULATOR CARTRIDGE AND ADJUST

FLOW BY SLIGHT ROTATION OF SCREW. TURN

CLOCKWISE FOR ADDITIONAL FLOW. TURN

COUNTER CLOCKWISE FOR REDUCED FLOW.

4. PRESS STEM TO TEST WATER FLOW.

5. REASSEMBLE KNOB.

HOLDING

NUT ANTI-ROTATION

WASHER

DETERMINE 2 HOLES

TO BE USED FOR

INSTALLATION.

TAP 2 PINS IN PLACE

WITH HAMMER.

LKVRBH1141A ANTI-ROTATION

INSTALLATION INSTRUCTIONS

PINS

A55265

ORIFICE

ADAPTER

A55259

METAL GUARD

LKVRBH1141A

LKBH1141A

ROLLER BEARING

ADJUSTER SCREW

CAM PLATE

REPLACEMENT

PACK

A55299

WAVE SPRING

WEAR WASHER

A55295

HANDLE SUPPORT

Elkay 2222 Camden Court

Oak Brook, IL 60523

www.elkayusa.com

Printed in U.S.A.

15-18A (Rev. 11/04) A55326

No Lead Bubbler

For Classroom Drinking Fountain Sink

Model LKBH1141A and LKVRBH1141A

PA RT S L I S T
