Side 1/2

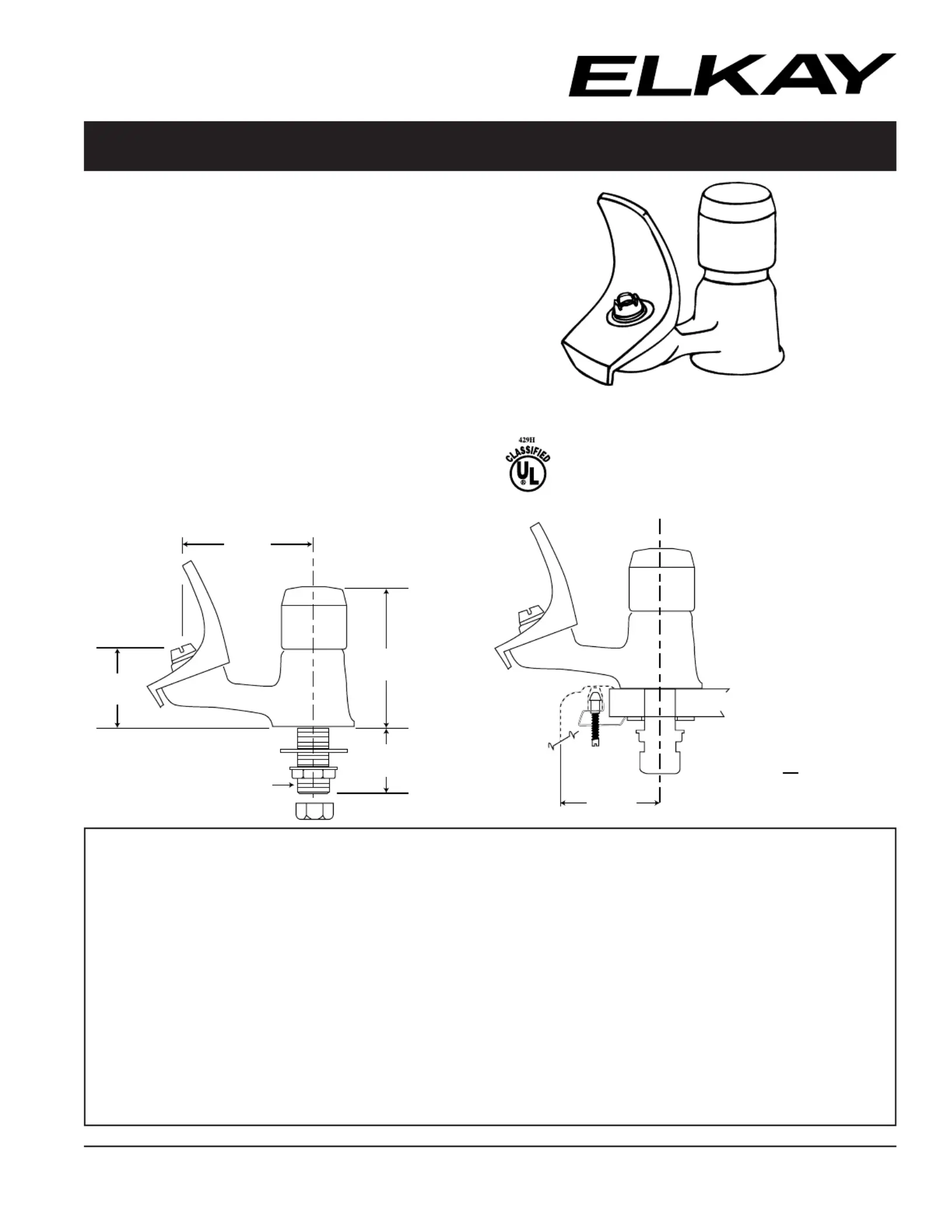

3-1/4"

(83mm)

1-7/8"

(48mm)

3-11/16"

(94mm)

(52mm)

1/2" (13mm) STRAIGHT

PIPE THREAD

COUNTERTOP

2-5/8"

(66.6mm)

Installation Note: For countertop

installations, do not exceed 2-5/8"

from centerline of bubbler hole to฀

edge of sink bowl as shown.

No Lead Bubbler

For Classroom Drinking Fountain Sink

Model LK1141A and LKVR1141A

SPECIFICATIONS

GENERAL

Push-button bubbler, self closing, with built-in adjustable

volume control which controls flow from 20 p.s.i. to 105 p.s.i.

LK1141A – Flexi-Guard®Bubbler*. Push-button valve bubbler

designed so that water never comes in contact with lead-

containing materials. Built-in adjustable water volume control.

Heavy chrome plated body with a 1/2" (13mm) straight pipe

thread connection. Requires single faucet hole. Ship. Wt. 2.3 lbs.

LKVR1141A – Metal Bubbler. Same as LK1141A except with

metal mouth guard. Model includes (2) anti-rotation pins for

field installation. Four hole bubbler body drilling allows installer

to match anti-rotation pins to the anti-rotation sink bubbler hole

slot configuration.

*Exclusive Flexi-Guard mouth guard utilizes a pliable polyester

elastomer to prevent mouth injuries. Guard flexes on impact

and then returns to original position. Strong, abrasion resistant,

anti-sweat and meets sanitary requirements.

Complies with ANSI A-117.1 and A.D.A. regulations which

require less than 5 lbs to operate.

Elkay Manufacturing Company 2222 Camden Court

Oak Brook, IL 60523

A55068 (Rev. G)

Printed in U.S.A.

(Rev. 5/02) 15-12G

www.elkay.com

Elkay warrants its faucet and water dispensers to be free of defects in work-

manship and material for a period of one year from the date of purchase.

Replacement parts are available from Elkay for a nominal charge. Upon return

of a defective part to Elkay during the warranty period with written notice of

the claimed defect, Elkay will refund the replacement charge.

WASTE FITTINGS AND ACCESSORIES ARE NOT WARRANTED; OTHER

WARRANTY CONDITIONS:

Our warranty does not cover product failure caused by abusive treatment,

misuse, or damage due to handling or faulty installations. This warranty is

extended only to the original consumer purchaser of the product. This war-

ranty does not cover shipping costs, labor costs, or any other charges for

such items as installation or replacement of the sink, diagnosis or replacement

of any faucet or component part, or any other expense or loss.

ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES ARE SPECIFICALLY

EXCLUDED. NO ADDITIONAL WARRANTIES, EXPRESS OR IMPLIED, ARE

GIVEN. ANY IMPLIED WARRANTY, INCLUDING ONE OF MERCHANTABILITY

OR FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED TO THE DURATION

OF THIS WRITTEN WARRANTY.

Some states do not allow the exclusion or limitation of incidental or

consequential damages or limitations on how long an implied warranty lasts,

so the above limitations or exclusions may not apply to you.

This warranty gives you specific legal rights, and you may also have other

rights which vary from state to state.

TO OBTAIN SERVICE UNDER WARRANTY

1. Write to: Elkay Manufacturing Company

Attention: Consumer Service

2222 Camden Court

Oak Brook, Illinois 60523

2. Include a letter containing the following information:

a. Date of purchase and installation

b.Description of nature of defect

c. Model number or description of model and/or component part if

possible.

ELKAY FAUCET/WATER DISPENSERS LIMITED WARRANTY

Model LK1141A

Classified to by Underwriters Labora-ANSI/NSF61

tories Inc.

No Lead Bubbler

For Classroom Drinking Fountain Sink

Model LK1141A and LKVR1141A

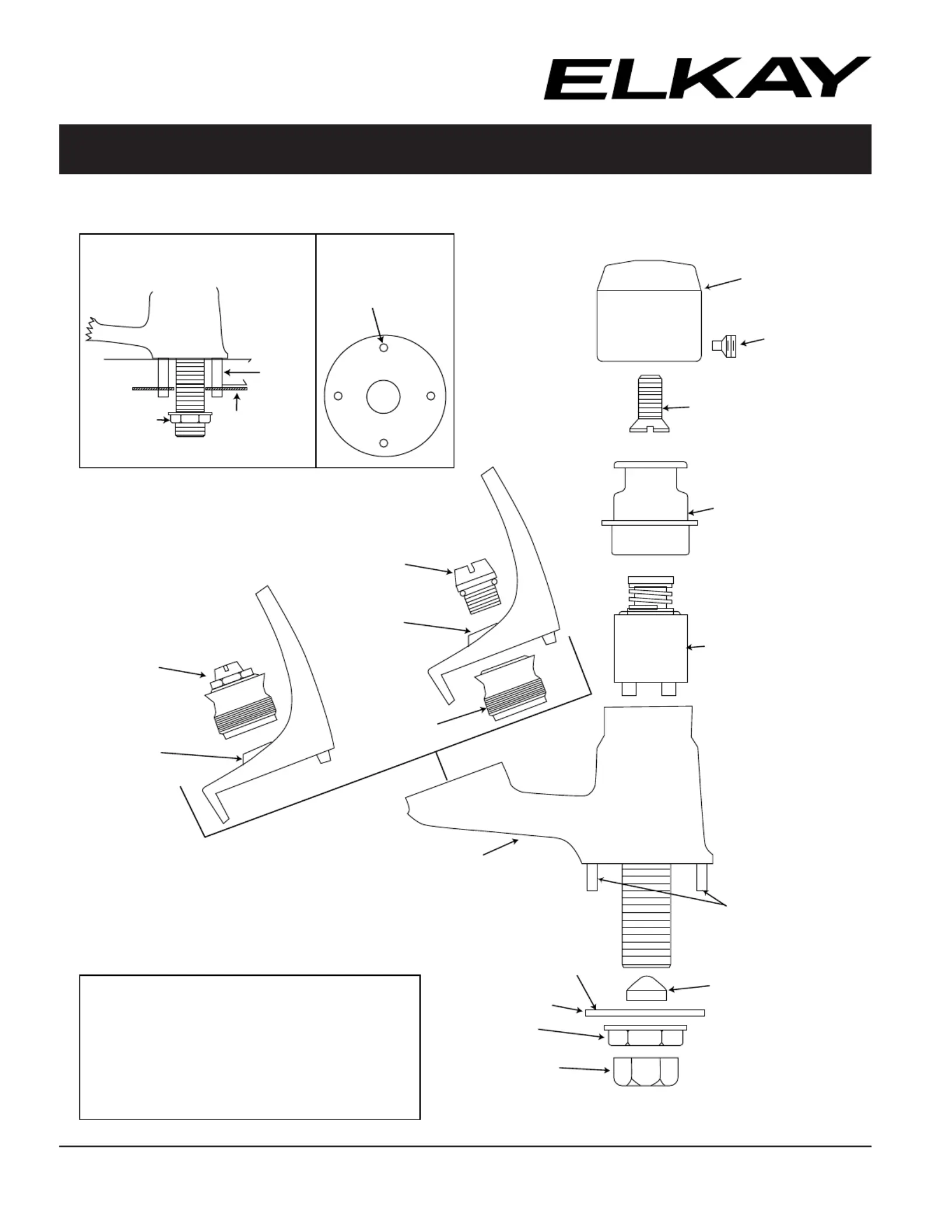

PARTS LIST

Elkay Manufacturing Company 2222 Camden Court

Oak Brook, IL 60523

Printed in U.S.A.

A55068 (Rev. G)15-12G (Rev. 5/02)

BODY ASSEMBLY

NOT AVAILABLE AS

SERVICE PART

A55044

STEM

A55043

KNOB

A54765

SET SCREW

REQUIRES 1/16"

HEX KEY

A55042

SUPPORT

61313C

REGULATOR

CARTRIDGE

A54888

SCREEN

ANTI-ROTATION PINS

FOR LKVR1141A ONLY

NOT FACTORY

INSTALLED

A54883

ANTI-ROTATION

WASHER

LKVR1141A ONLY

A54870

WASHER

A51266

NUT

A51438

COUPLING NUT

A54874

ORIFICE

ASSEMBLY

A54735

FLEXI-GUARD

A55066

ADAPTER

TO ADJUST WATER FLOW:

1.฀LOOSEN KNOB SET SCREW.

2.฀REMOVE KNOB.

3.฀INSERT SCREWDRIVER THROUGH SUPPORT INTO

฀ TOP OF REGULATOR CARTRIDGE AND ADJUST

฀ FLOW BY SLIGHT ROTATION OF SCREW. TURN

฀ CLOCKWISE FOR ADDITIONAL FLOW. TURN

฀ COUNTER CLOCKWISE FOR REDUCED FLOW.

4.฀PRESS STEM TO TEST WATER FLOW.

5.฀REASSEMBLE KNOB.

HOLDING

NUT ANTI-ROTATION

WASHER

DETERMINE 2 HOLES฀

TO BE USED FOR฀

INSTALLATION.฀

TAP 2 PINS IN PLACE฀

WITH HAMMER.

LKVR1141A ANTI-ROTATION฀

INSTALLATION INSTRUCTIONS

PINS

A55265

ORIFICE

ADAPTER

A55259

METAL GUARD

LKVR1141A

LK1141A
