GENERAL
Push-button bubbler, self closing, with built-in adjustable
volume control which controls flow from 20 p.s.i. to 105 p.s.i.
LKSS1141A – Flexi-Guard®Bubbler*. Stainless steel body
with a 1/2" (13mm) straight pipe thread connection. Requires
single faucet hole. Ship. Wt. 2.3 lbs.
LKSSVR1141A – Metal Bubbler. Same as LKSS1141A
except with metal mouth guard. Model includes (2) anti-
rotation pins for field installation. Four hole bubbler body
drilling allows installer to match anti-rotation pins to the anti-
rotation sink bubbler hole slot configuration.
*Exclusive Flexi-Guard mouth guard utilizes a pliable poly-
ester elastomer to prevent mouth injuries. Guard flexes on
impact and then returns to original position. Strong, abrasion
resistant, anti-sweat and meets sanitary requirements.
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice.
This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not
overlooked.
Stainless Steel Constructed Bubbler
For Classroom Drinking Fountain Sink
Model LKSS1141A and LKSSVR1141A
®
S P E C I F I C AT I O N S
Elkay 2222 Camden Court
Oak Brook, IL 60523
A56210
Printed in U.S.A.
©2006 Elkay
(5/06) 15-33
elkayusa.com

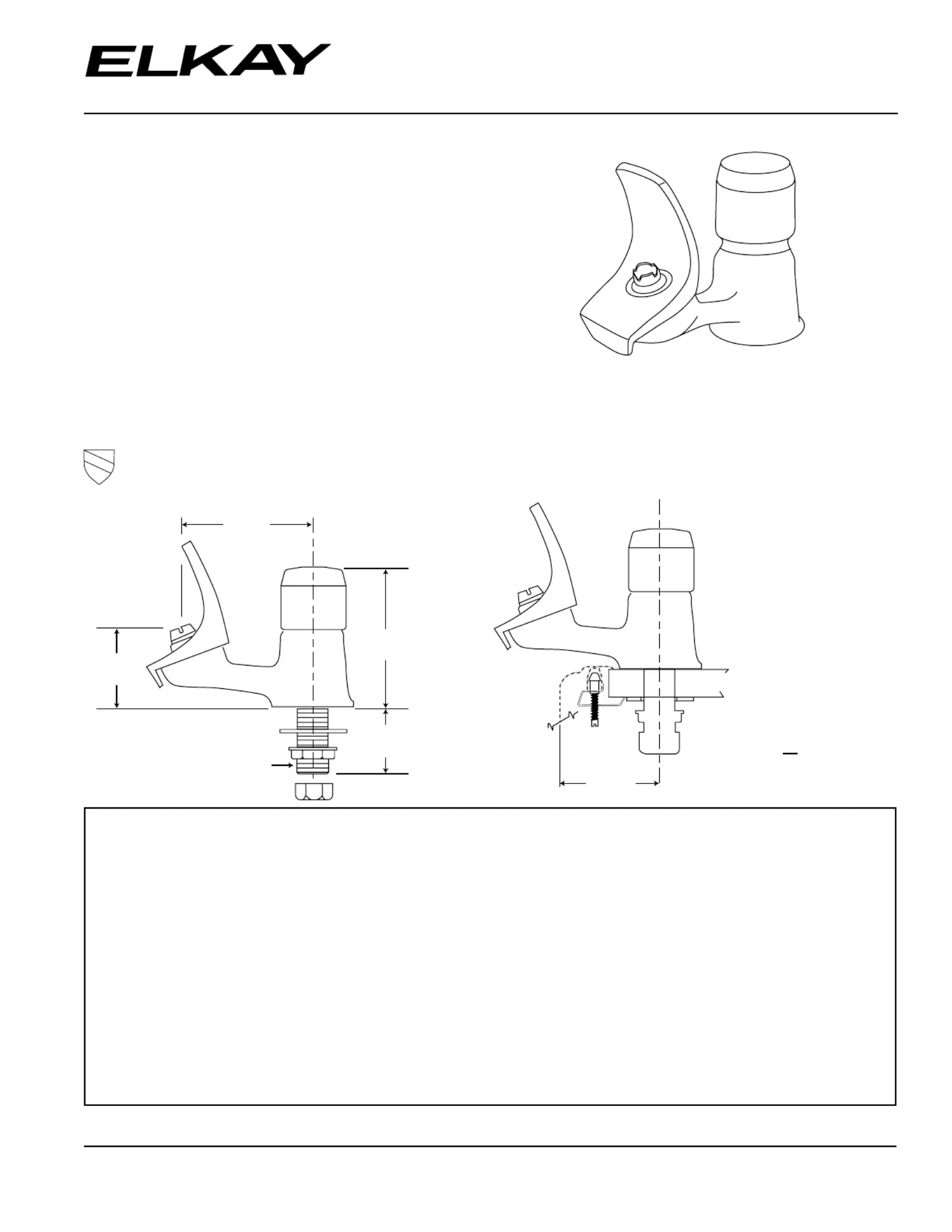

Model LKSS1141A
3-1/4"
(83mm)
1-7/8"
(48mm)
3-11/16"
(94mm)
2"
(52mm)
1/2" (13mm) STRAIGHT
PIPE THREAD
COUNTERTOP
2-5/8"
(66.6mm)
Installation Note: For countertop
installations, do not exceed 2-5/8"
from centerline of bubbler hole to
edge of sink bowl as shown.
Elkay warrants its faucet and water dispensers to be free of defects in work-
manship and material for a period of one year from the date of purchase.
Replacement parts are available from Elkay for a nominal charge. Upon return
of a defective part to Elkay during the warranty period with written notice of
the claimed defect, Elkay will refund the replacement charge.
WASTE FITTINGS AND ACCESSORIES ARE NOT WARRANTED; OTHER
WARRANTY CONDITIONS:
Our warranty does not cover product failure caused by abusive treatment,
misuse, or damage due to handling or faulty installations. This warranty is
extended only to the original consumer purchaser of the product. This war-
ranty does not cover shipping costs, labor costs, or any other charges for
such items as installation or replacement of the sink, diagnosis or replacement
of any faucet or component part, or any other expense or loss.
ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES ARE SPECIFICALLY
EXCLUDED. NO ADDITIONAL WARRANTIES, EXPRESS OR IMPLIED, ARE
GIVEN. ANY IMPLIED WARRANTY, INCLUDING ONE OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED TO THE DURATION
OF THIS WRITTEN WARRANTY.
Some states do not allow the exclusion or limitation of incidental or
consequential damages or limitations on how long an implied warranty lasts,
so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
TO OBTAIN SERVICE UNDER WARRANTY
1. Write to: Elkay Manufacturing Company
Attention: Customer Service
2222 Camden Court
Oak Brook, Illinois 60523
2. Include a letter containing the following information:
a. Date of purchase and installation
b. Description of nature of defect
c. Model number or description of model and/or component part if
possible.
ELKAY FAUCET/WATER DISPENSERS LIMITED WARRANTY
COMPLIES WITH:
ASME A112.18.1M
CSA B125-01
NSF/ANSI 61
ADA
UPC
C®
Stainless Steel Constructed Bubbler
For Classroom Drinking Fountain Sink
Model LKSS1141A and LKSSVR1141A
®
PA RT S L I S T
Elkay 2222 Camden Court
Oak Brook, IL 60523
elkayusa.com
Printed in U.S.A.
©2006 Elkay
A56210
15-33 (5/06)
A54883
ANTI-ROTATION
WASHER
LKSSVR1141A ONLY
A54870
WASHER
LKSS1141A ONLY
BODY ASSEMBLY
NOT AVAILABLE AS
SERVICE PART
A55044
SCREW
A56202
KNOB
A54765
SET SCREW
REQUIRES 1/16"
HEX KEY
A55042
SUPPORT
61313C
REGULATOR
CARTRIDGE
A54888
SCREEN
ANTI-ROTATION PINS
FOR LKSSVR1141A ONLY
NOT FACTORY
INSTALLED
A51266
NUT
A51438
COUPLING NUT
A56205
ORIFICE
BUBBLER
A54735
FLEXI-GUARD
TO ADJUST WATER FLOW:
1. LOOSEN KNOB SET SCREW.
2. REMOVE KNOB.
3. INSERT SCREWDRIVER THROUGH SUPPORT INTO
TOP OF REGULATOR CARTRIDGE AND ADJUST
FLOW BY SLIGHT ROTATION OF SCREW. TURN
CLOCKWISE FOR ADDITIONAL FLOW. TURN
COUNTER CLOCKWISE FOR REDUCED FLOW.
4. PRESS STEM TO TEST WATER FLOW.
5. REASSEMBLE KNOB.
HOLDING
NUT ANTI-ROTATION
WASHER
DETERMINE 2 HOLES
TO BE USED FOR
INSTALLATION.
TAP 2 PINS IN PLACE
WITH HAMMER.
LKSSVR1141A ANTI-ROTATION
INSTALLATION INSTRUCTIONS
PINS
A56204
ORIFICE
BUBBLER
A56203
METAL GUARD
LKSSVR1141A
LKSS1141A
