Side 1/2

GENERAL

Push-button bubbler, self closing, with built-in adjustable

volume control which controls flow from 20 p.s.i. to 105 p.s.i.

LKSS1141A – Flexi-Guard®Bubbler*. Stainless steel body

with a 1/2" (13mm) straight pipe thread connection. Requires

single faucet hole. Ship. Wt. 2.3 lbs.

LKSSVR1141A – Metal Bubbler. Same as LKSS1141A

except with metal mouth guard. Model includes (2) anti-

rotation pins for field installation. Four hole bubbler body

drilling allows installer to match anti-rotation pins to the anti-

rotation sink bubbler hole slot configuration.

*Exclusive Flexi-Guard mouth guard utilizes a pliable poly-

ester elastomer to prevent mouth injuries. Guard flexes on

impact and then returns to original position. Strong, abrasion

resistant, anti-sweat and meets sanitary requirements.

In keeping with our policy of continuing product improvement, Elkay reserves the right to change

product specifications without notice.

This specification describes an Elkay product with design, quality and functional benefits to the

user. When making a comparison of other producers’ offerings, be certain these features are not

overlooked.

Stainless Steel Constructed Bubbler

For Classroom Drinking Fountain Sink

Model LKSS1141A and LKSSVR1141A

S P E C I F I C AT I O N S

Elkay 2222 Camden Court

Oak Brook, IL 60523

A56210

Printed in U.S.A.

(5/06) 15-33

elkayusa.com

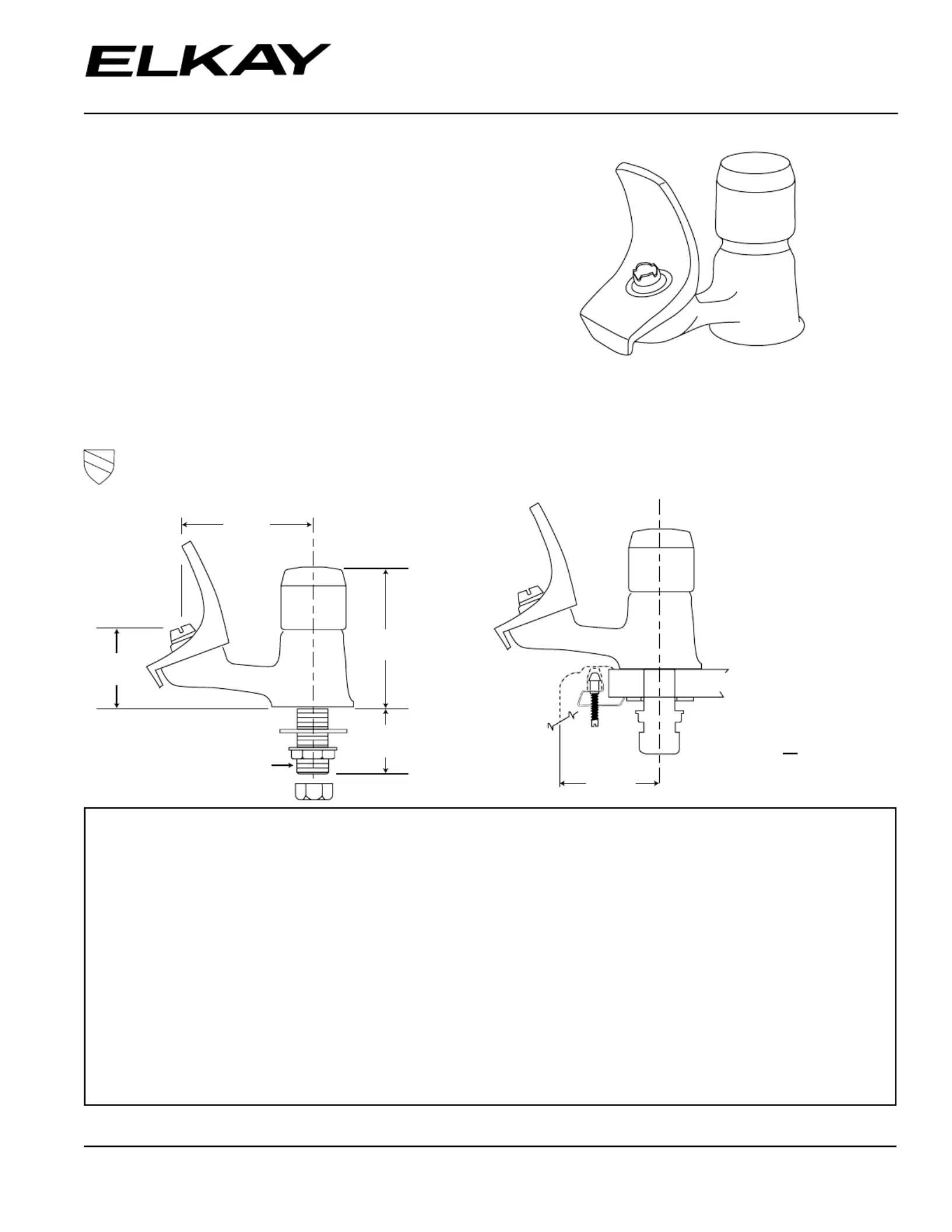

Model LKSS1141A

3-1/4"

(83mm)

1-7/8"

(48mm)

3-11/16"

(94mm)

(52mm)

1/2" (13mm) STRAIGHT

PIPE THREAD

COUNTERTOP

2-5/8"

(66.6mm)

Installation Note: For countertop

installations, do not exceed 2-5/8"

from centerline of bubbler hole to

edge of sink bowl as shown.

Elkay warrants its faucet and water dispensers to be free of defects in work-

manship and material for a period of one year from the date of purchase.

Replacement parts are available from Elkay for a nominal charge. Upon return

of a defective part to Elkay during the warranty period with written notice of

the claimed defect, Elkay will refund the replacement charge.

WASTE FITTINGS AND ACCESSORIES ARE NOT WARRANTED; OTHER

WARRANTY CONDITIONS:

Our warranty does not cover product failure caused by abusive treatment,

misuse, or damage due to handling or faulty installations. This warranty is

extended only to the original consumer purchaser of the product. This war-

ranty does not cover shipping costs, labor costs, or any other charges for

such items as installation or replacement of the sink, diagnosis or replacement

of any faucet or component part, or any other expense or loss.

ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES ARE SPECIFICALLY

EXCLUDED. NO ADDITIONAL WARRANTIES, EXPRESS OR IMPLIED, ARE

GIVEN. ANY IMPLIED WARRANTY, INCLUDING ONE OF MERCHANTABILITY

OR FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED TO THE DURATION

OF THIS WRITTEN WARRANTY.

Some states do not allow the exclusion or limitation of incidental or

consequential damages or limitations on how long an implied warranty lasts,

so the above limitations or exclusions may not apply to you.

This warranty gives you specific legal rights, and you may also have other

rights which vary from state to state.

TO OBTAIN SERVICE UNDER WARRANTY

1. Write to: Elkay Manufacturing Company

Attention: Customer Service

2222 Camden Court

Oak Brook, Illinois 60523

2. Include a letter containing the following information:

a. Date of purchase and installation

b. Description of nature of defect

c. Model number or description of model and/or component part if

possible.

ELKAY FAUCET/WATER DISPENSERS LIMITED WARRANTY

COMPLIES WITH:

ASME A112.18.1M

CSA B125-01

NSF/ANSI 61

ADA

UPC

C®

Stainless Steel Constructed Bubbler

For Classroom Drinking Fountain Sink

Model LKSS1141A and LKSSVR1141A

PA RT S L I S T

Elkay 2222 Camden Court

Oak Brook, IL 60523

elkayusa.com

Printed in U.S.A.

A56210

15-33 (5/06)

A54883

ANTI-ROTATION

WASHER

LKSSVR1141A ONLY

A54870

WASHER

LKSS1141A ONLY

BODY ASSEMBLY

NOT AVAILABLE AS

SERVICE PART

A55044

SCREW

A56202

KNOB

A54765

SET SCREW

REQUIRES 1/16"

HEX KEY

A55042

SUPPORT

61313C

REGULATOR

CARTRIDGE

A54888

SCREEN

ANTI-ROTATION PINS

FOR LKSSVR1141A ONLY

NOT FACTORY

INSTALLED

A51266

NUT

A51438

COUPLING NUT

A56205

ORIFICE

BUBBLER

A54735

FLEXI-GUARD

TO ADJUST WATER FLOW:

1. LOOSEN KNOB SET SCREW.

2. REMOVE KNOB.

3. INSERT SCREWDRIVER THROUGH SUPPORT INTO

TOP OF REGULATOR CARTRIDGE AND ADJUST

FLOW BY SLIGHT ROTATION OF SCREW. TURN

CLOCKWISE FOR ADDITIONAL FLOW. TURN

COUNTER CLOCKWISE FOR REDUCED FLOW.

4. PRESS STEM TO TEST WATER FLOW.

5. REASSEMBLE KNOB.

HOLDING

NUT ANTI-ROTATION

WASHER

DETERMINE 2 HOLES

TO BE USED FOR

INSTALLATION.

TAP 2 PINS IN PLACE

WITH HAMMER.

LKSSVR1141A ANTI-ROTATION

INSTALLATION INSTRUCTIONS

PINS

A56204

ORIFICE

BUBBLER

A56203

METAL GUARD

LKSSVR1141A

LKSS1141A
