PART NO. 37-7573B-EN
1535

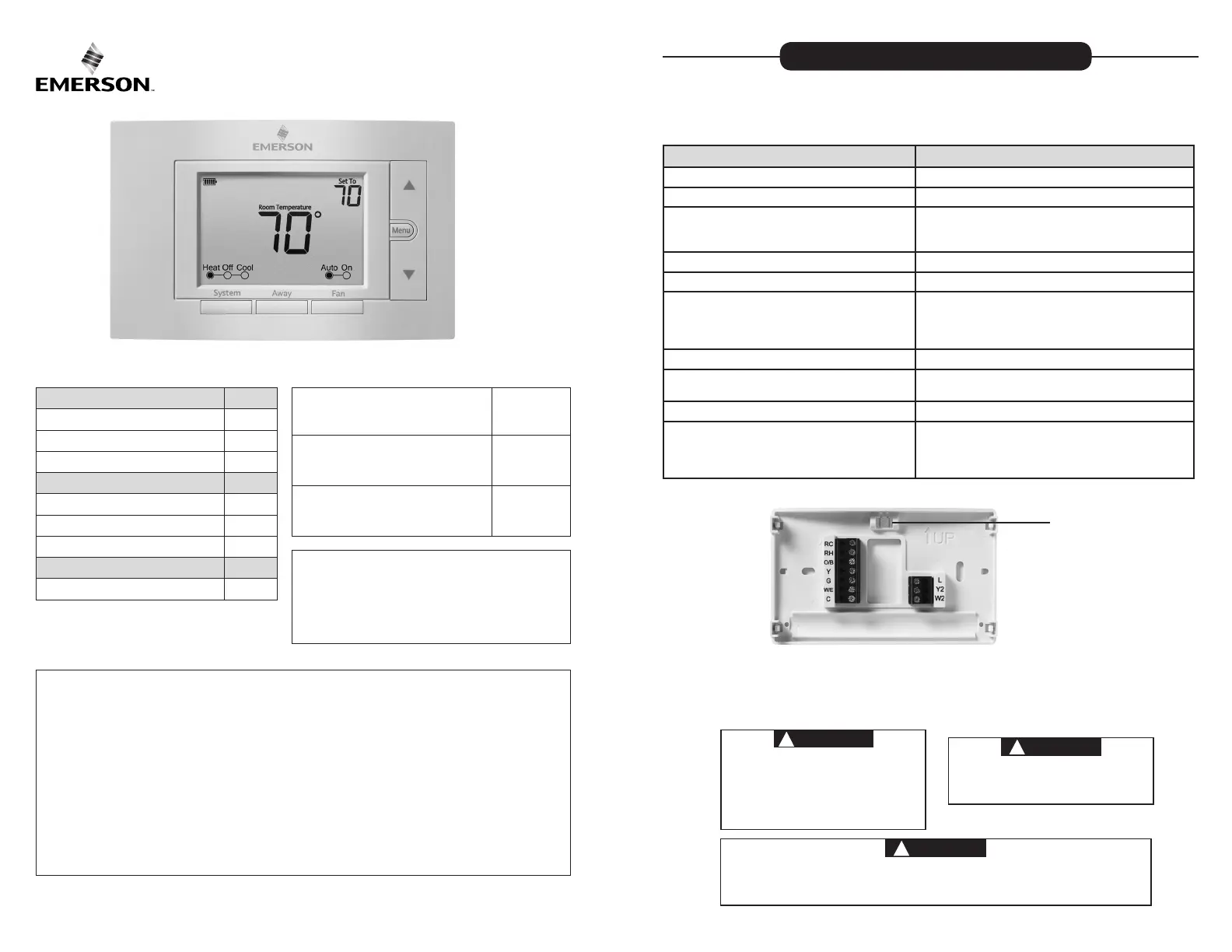

1F85U-42NP (Non-Programmable)
Installation and Operating Instructions
80 SeriesTM
Universal Thermostat
Battery Powered or Hardwired with Common
white-rodgers.com
emersonclimate.com
Thermostat Applications
Maximum
Stages
Heat/ Cool
Conventional Gas, Oil, Electric
(mV and V), Heat only, Cool only or 24
Heat/Cool Systems
2/2
Heat Pump (Air Source or Geothermal)
with Aux. Heat 4/2
Thermostat Installation 2-4
Wiring 2
Installer Menu 3-4
Test Equipment 4
Using the Thermostat 5-7
Thermostat Overview 5
User Menu 6
Thermostat Operation 6
Troubleshooting 7-8
Homeowner Help Line 8
INDEX
MERCURY NOTICE: This product does not contain
mercury. However, this product may replace a product
that contains mercury. Mercury and products containing
mercury must not be discarded in household trash.
Refer to www.thermostat-recycle.org for information
on disposing of products containing mercury.
Electrical Rating:
Battery Power to VAC, NEC Class II, Hz ..................................... mV 30 50/60
Input-Hardwire to VAC, NEC Class II, / Hz .................................... 20 30 50 60
Terminal Load A per terminal, A maximum all terminals combined .......................................... 1.5 2.5
Setpoint Range to F ( to ........................................ 45° 99° 7° 37° C)
Rated Dierentials (@ 6°F/ Hr): Fast Med Slow
Heat (Conventional Gas / Oil / Elect) ..... 0.5°F 0.75°F 1.9°F
Cool (Central Air) ................................. .0 9°F 1.2°F 1.7°F
Heat Pump (Heat and Cool) . ................ 0 9°F 1.2°F 1.7°F
Heat Pump Aux. .................................. 0.5°F 0.75°F 1.9°F
Operating Ambient .................................. 32°F to +105°F (0° to +41°C)
Display Temperature Range 32°F to +99°F (0 to 37°C) .......................
Operating Humidity % non-condensing maximum ................................. 90
Shipping Temperature Range ................... °F to + °F-20 150 (-29° to +65°C)
Thermostat Dimensions ........................... 3-3/4” H x 6” W x 1-1/8” D
SPECIFICATIONS
Optional Accessory: Wall Cover-Up Plate ” W x F61-2663 6-3/4, 4-1/2” H
Terminal Designations Terminal Function
RC Power (24V) - Cooling
RH Power ( V) - Heating 24
O/B
6 (not shown) - wire zone valve3
Reversing Valve or output for wire zone valves 3
Congurable as “O” or “B” Reversing Valve or 3 wire
zone heat (power close)
Y1st Stage Compressor
G Fan Relay
W/E
1st Stage Heat (conventional);
1st Stage Auxiliary Heat (heat pump)
Can operate as Emergency Heat only
(See Installer Menu #15)
C Common wire for (optional with batteries)24V
LHeat Pump Malfunction / Diagnostic terminal
(input signal requires common)
Y2 2nd Stage compressor
W2
2nd Stage Heat (Conventional)
2nd Stage Auxiliary Heat (Heat Pump)
Can operate as 1st Stage Auxiliary Heat
(See Installer Menu # )15
WIRING
Refer to equipment manufacturer’s instructions for specic system wiring information. After wiring, see
INSTALLER MENU for proper thermostat conguration. Wiring table shown are for typical systems and
describe the thermostat terminal functions. Wiring will change when dedicated emergency heat is on
(See Installer menu # 15).
THERMOSTAT INSTALLATION
Precautions
• Do not exceed the specication ratings.
• All wiring must conform to local and national electrical codes and ordinances.
• This control is a precision instrument, and should be handled carefully. Rough handing or
distorting components could cause the control to malfunction.
WARNING
!
Do not use on circuits exceeding specied voltage.
Higher voltage will damage control and could
cause shock or re hazard.
Do not short out terminals on gas valve or primary
control to test. Short or incorrect wiring will burn
out thermostat and could cause personal injury
and/or property damage.
CAUTION
!
To prevent electrical shock and/or equipment
damage, disconnect electrical power to system,
at main fuse or circuit breaker box,until
installation is complete.
Leveling Thermostat
Leveling is for appearance only and
will not aect thermostat operation.
CAUTION
!
To prevent compressor and/or property damage, if the outdoor temperature is below 50°F,
DO NOT operate the cooling system.
Do not allow the compressor to run unless the compressor oil heaters have been operational
for hours and the system has not been operational for at least minutes.6 5 2
3
INSTALLER MENU
To prevent changes that may aect system performance, this thermostat has an INSTALLER
MENU and a USER MENU. The INSTALLER MENU provides access to every option, while the
USER MENU provides access to items that will not aect system performance. To access the
INSTALLER MENU press the button for 8 seconds. The display will show item in the Menu 05
table below. Use Next Backand to navigate through menu items. Press or to change a
menu setting.
Installer Menu #
(Hold Menu 8 Seconds) Description Default Setting
(ashing icons)
Settings
(Press or )
05
Outdoor Equipment: selects air
conditioner (AC) or heat pump (HP)
equipment as well as the number of
stage
AC2
AC0
AC1
AC2
HP1
HP2
10 Indoor Equipment: selects whether
the equipment is a gas furnace, elec-
tric furnace or fan only
EL2
FAN
GA1
GA2
EL1
EL2
15 Dedicated Emergency: W/E only
operates in Emergency Aux mode. W2
becomes 1st stage Aux. Heat
OFF On
OFF
20 O,B or 3 Wire Zone Valve Selection O
O
B
3
30 Heat Cycle Rate: how often
the heat will turn on MEd
SLO – slow
MEd – medium
FAS – fast
32 Aux Cycle Rate: how often the
auxiliary heat will turn on MEd
SLO – slow
MEd – medium
FAS – fast
35 Cool Cycle Rate: how often
the cooling will turn on MEd
SLO – slow
MEd – medium
FAS – fast
50 Compressor Lockout:
protects the compressor
from short cycling
OFF On – minute delay 5
OFF – no delay
65 Max Heat Limit: maximum set point
for heat mode 99 47 to 99
66 Minimum Cool Limit: minimum set
point for cool mode 45 45 97to
RC/RH Jumper Wire
This thermostat electrically connects
the RC and RH terminals so a jumper
wire is not required. If the application
provides a separate wire for RC and
RH, clip the RC/RH jumper. This will
isolate both terminals so they can be
independently used.
Baery Locaon
Premium AA alkaline batteries are
required when C-wire is not available.
When C-wire is available, the batteries
provide a back-up source of power
(this will maintain the clock in the
event of a power outage).
4
TEST EQUIPMENT
Turn on power to the system.
Fan Operation
If your system does not have a G terminal connection, skip to . Heating System
1.) Press the fan button to select the On position. The blower should begin to operate.
2.) Press the fan button to select the Auto position. The blower should stop immediately.
Heating System
1.) Press the button to select the position. Heat Pumps only - if the auxiliary System Heat
heating system has a standing pilot, be sure to light it.
2.) 1° Press to adjust thermostat setting to above room temperature. The heating system
should begin to operate and the thermostat will indicate . Heat On
3.) For heat pumps with auxiliary- 3° above room Press to adjust thermostat setting to
temperature. The auxiliary heat should begin to operate and the thermostat will indicate
Heat On Aux.
4.) 1° Press to adjust thermostat setting below room temperature. The heating system
should stop operating and the icon will disappear.Heat On
Auxiliary System ( only for heat pumps with auxiliary)
1.) Press the system button to select the position. This bypasses the heat pump and Aux
runs auxiliary only heat.
2.) Press to adjust thermostat setting to above room temperature. The auxiliary heating 1°
system should begin to operate and the thermostat will indicate Heat On Aux.
3.) 1° Press to adjust thermostat setting below room temperature. The auxiliary heating
system should stop operating and the icon will disappear.Heat On Aux
Cooling System
1.) Press the system button to select the position. Cool
2.) 1° Press to adjust thermostat setting below room temperature. The blower should
come on immediately on high speed, followed by cold air circulation. The thermostat will
indicate There can be up to a minute delay. (see INSTALLER MENU, item Cool On. 5 50)
3.) 1° Press to adjust thermostat setting to above room temperature. The cooling system
should stop operating and the icon will disappear.Cool On
Installer’s Menu #
(Hold Menu 8 Seconds) Description Default Setting
(ashing icons)
Settings
(Press or )
79 Fahrenheit or Celsius °F °F – Fahrenheit
°C – Celsius
81
Temperature Display Adjustment:
adjust the displayed “Room
Temperature”
0 -5 to +5
83 Continuous Display Light: keep
the backlight always on – “C” wire
required
OFF On – always on
OFF – momentarily
88 Auto Changeover: thermostat
automatically switches between
heat and cool.
OFF On – enable auto
OFF – disable auto
99 Keypad Lock: prevent unwanted
changes to the thermostat OFF On – disable buttons
OFF – all buttons are active
INSTALLER MENU (C0ntinued)
Note: If is shown on the display, the compressor lockout feature is operating. There will Starting Soon
be up to a minute delay before the compressor turns on (see INSTALLER MENU, item ).5 50
