User’s Guide
NPD4829-01 EN
Copyrights and Trademarks
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without the prior written permission of Seiko Epson Corporation. The information contained herein is designed
only for use with this Epson printer. Epson is not responsible for any use of this information as applied to other printers.
Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses
incurred by the purchaser or third parties as a result of accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to
this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation’s operating and maintenance instructions.
Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any options or any consumable products other than those
designated as Original Epson Products or Epson Approved Products by Seiko Epson Corporation.
Seiko Epson Corporation shall not be held liable for any damage resulting from electromagnetic interference that occurs from the use of any interface cables
other than those designated as Epson Approved Products by Seiko Epson Corporation.
EPSON® is registered trademark, and EPSON EXCEED YOUR VISION or EXCEED YOUR VISION is a trademark of Seiko Epson Corporation.
Microsoft®, Windows®, and Windows Vista
® are registered trademarks of Microsoft Corporation.
Intel® is a registered trademark of Intel Corporation.
PowerPC® is a registered trademark of International Business Machines Corporation.
General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners. Epson disclaims any
and all rights in those marks.
© 2012 Seiko Epson Corporation. All rights reserved.
SC-F7000 Series User’s Guide
Copyrights and Trademarks
2
Contents
Copyrights and Trademarks
Introduction
Important Safety Instructions. . . . . . . . . . . . . . . . . 5
When choosing a place for this product. . . . . . . . 5
When setting up this product. . . . . . . . . . . . . . . 5
When using this product. . . . . . . . . . . . . . . . . . . 5
When handling the ink packs. . . . . . . . . . . . . . . 6
Notes on This Guide. . . . . . . . . . . . . . . . . . . . . . . . 6
Meaning of Symbols. . . . . . . . . . . . . . . . . . . . . . 6
Illustrations. . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Operating System Versions. . . . . . . . . . . . . . . . . 6
Printer Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

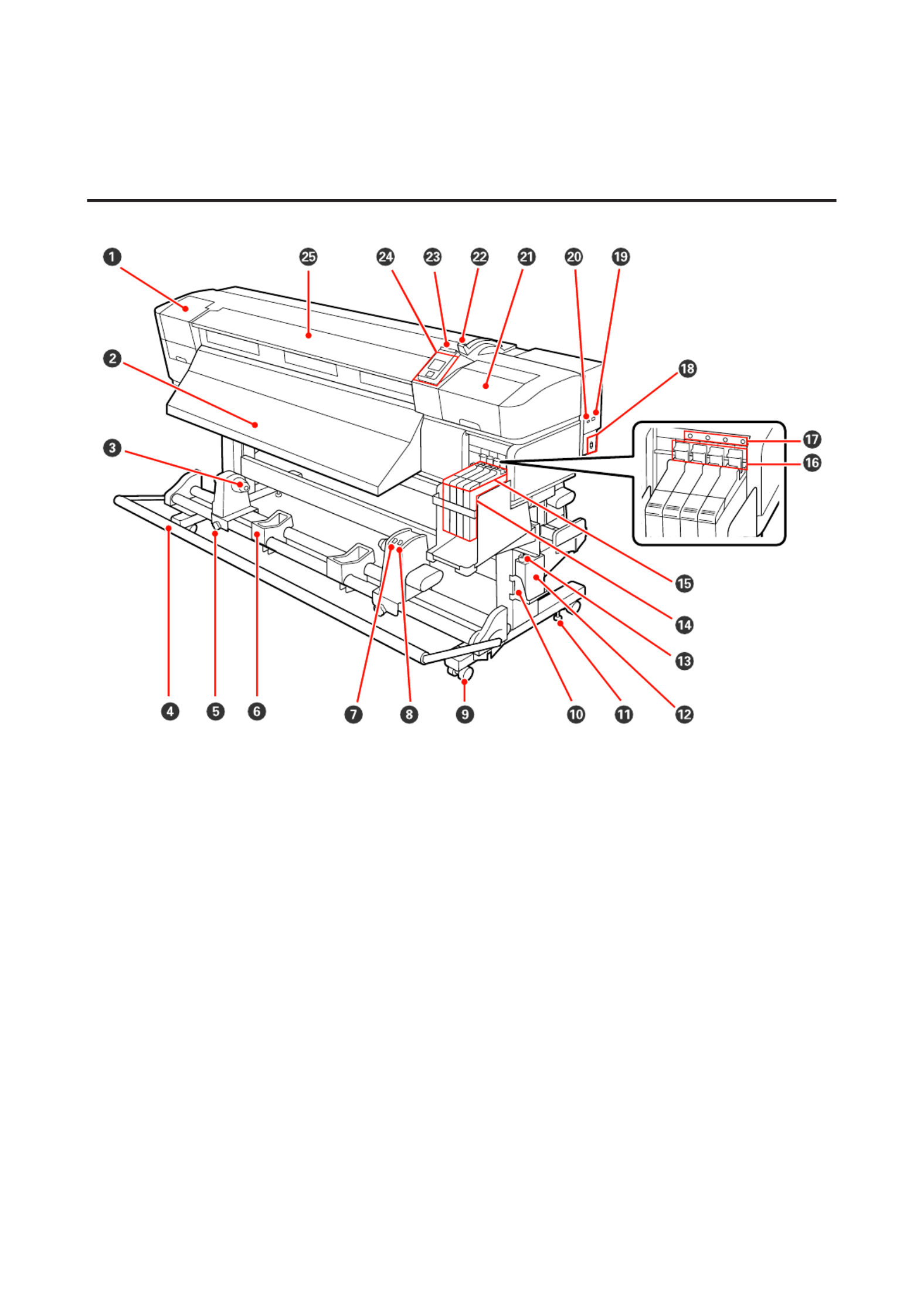

Front................................. 7
Slider. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

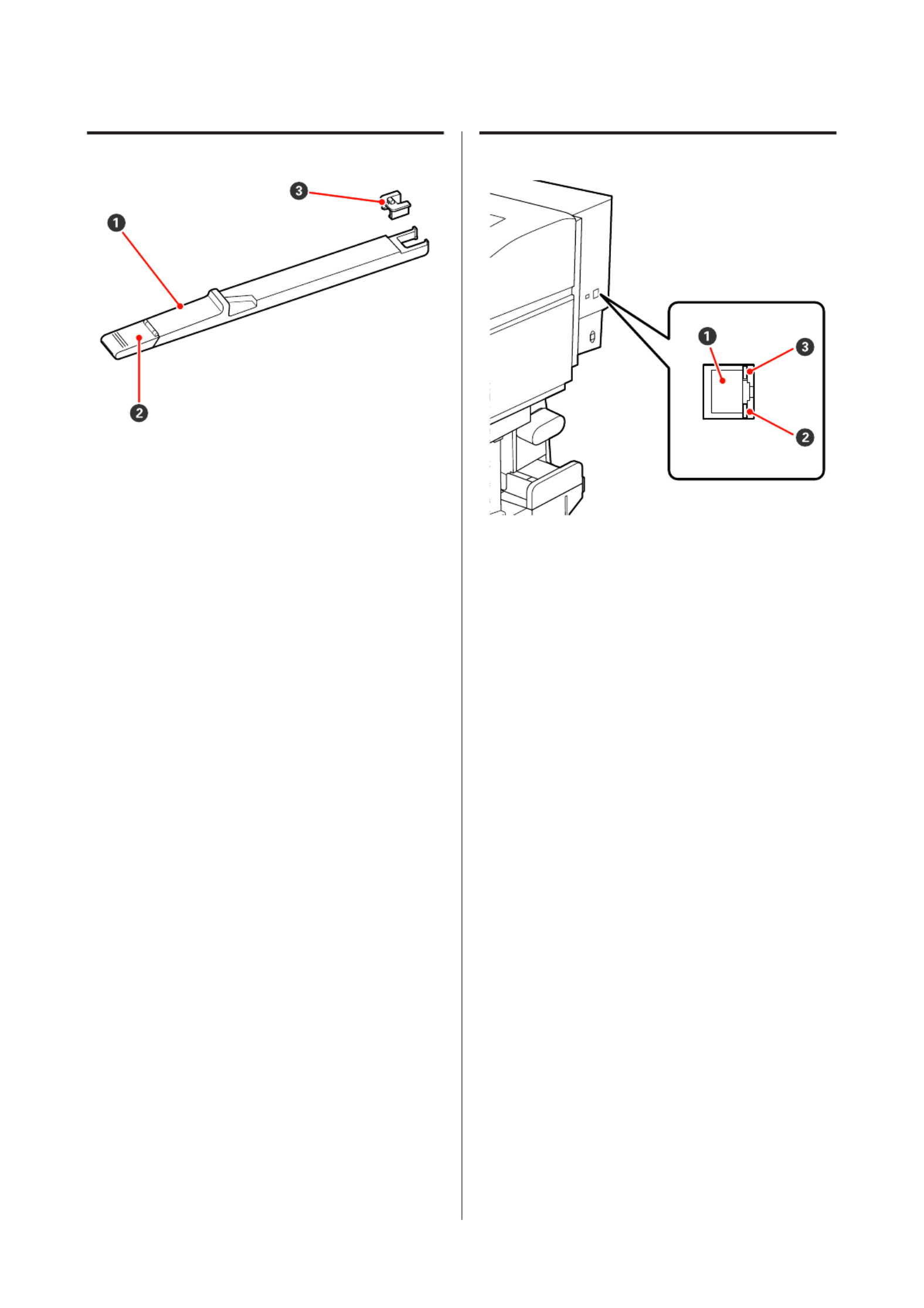

LAN port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

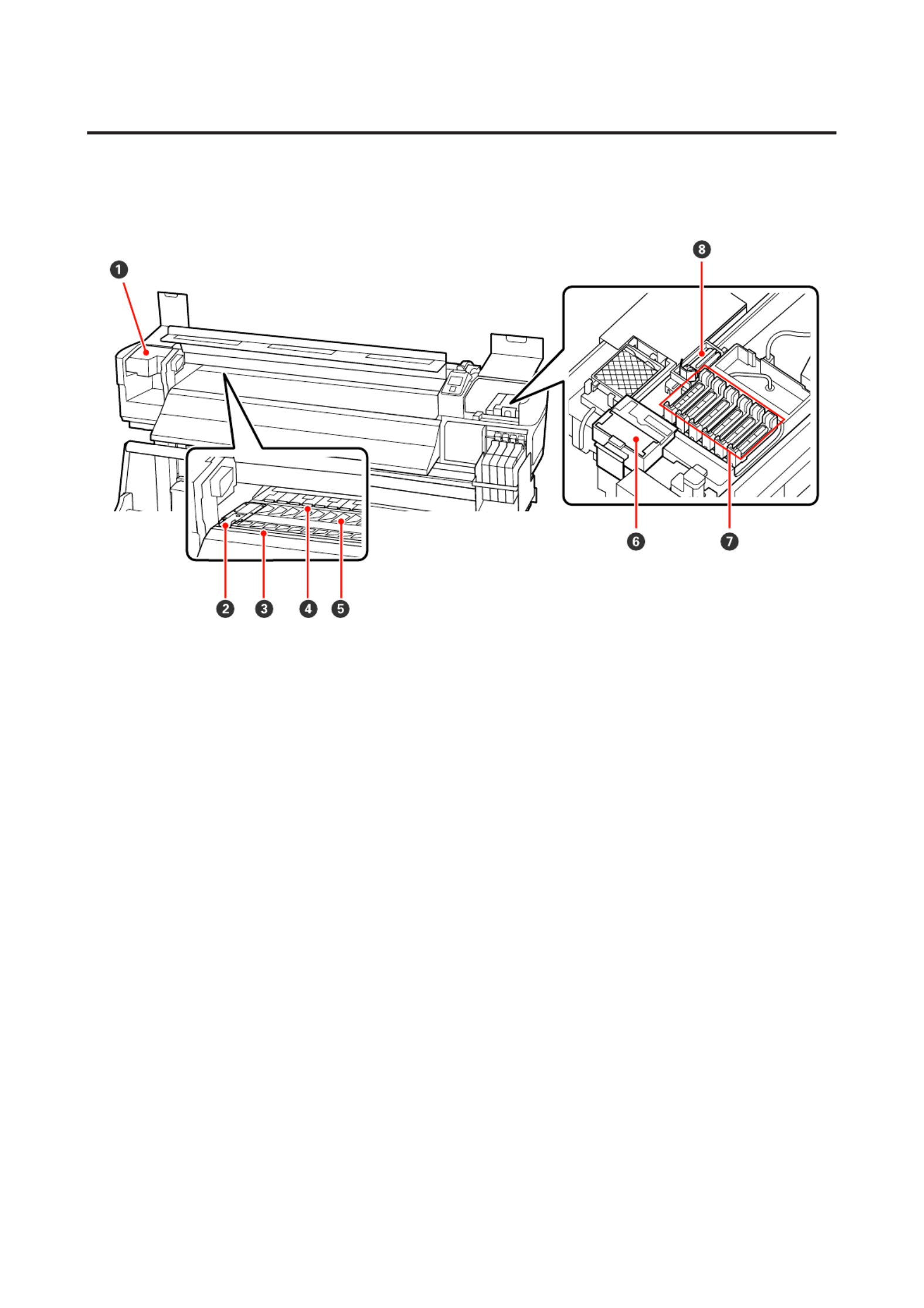

Inside................................ 11

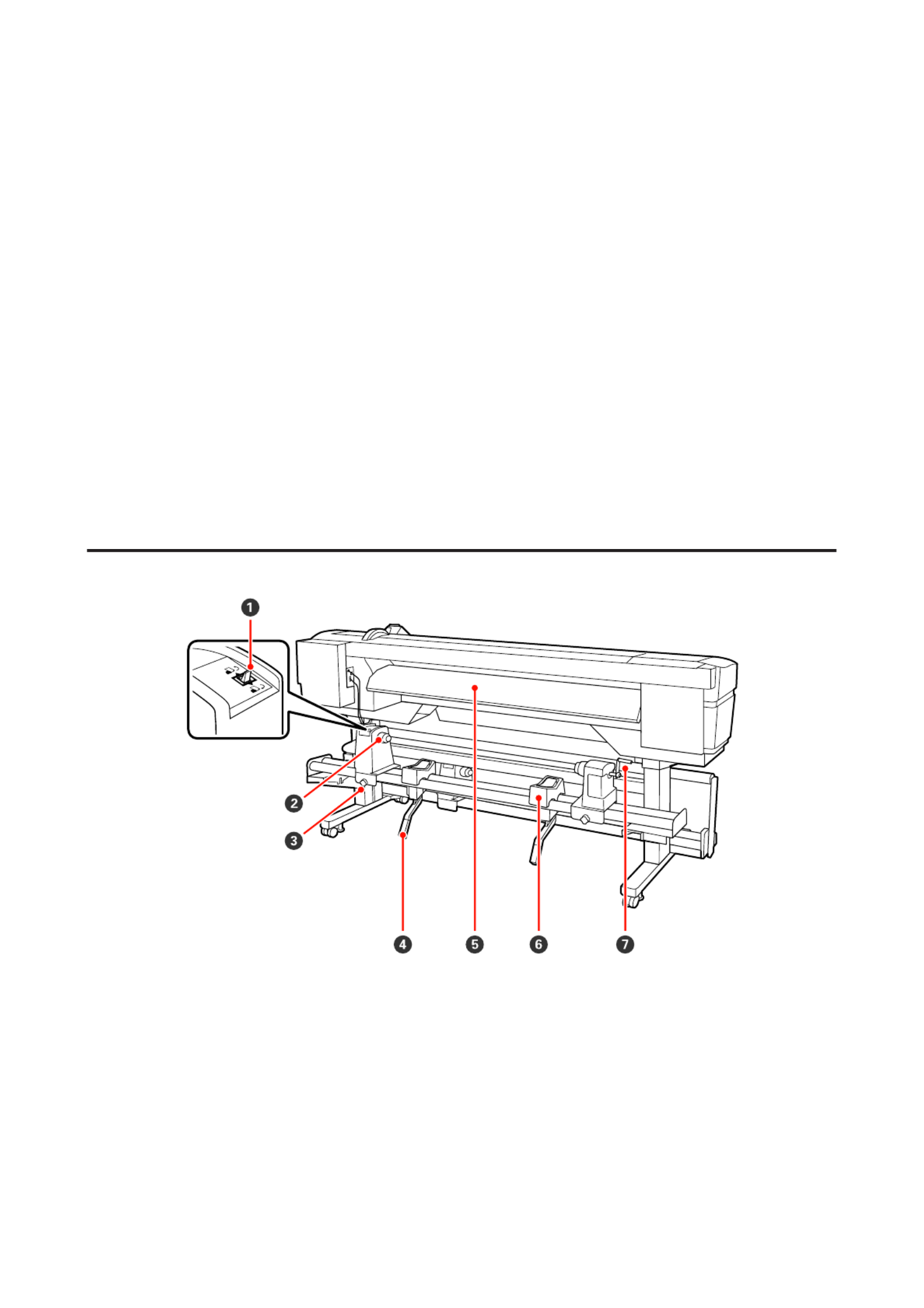

Back. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Control panel. . . . . . . . . . . . . . . . . . . . . . . . . . 14
Understanding the Display. . . . . . . . . . . . . . . . 15
Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Realizing High Productivity. . . . . . . . . . . . . . . . 16
Superior Ease of Use. . . . . . . . . . . . . . . . . . . . . 16
Notes on Usage and Storage. . . . . . . . . . . . . . . . . . 17
Installation space. . . . . . . . . . . . . . . . . . . . . . . 17
Notes when using the printer. . . . . . . . . . . . . . . 17
Notes when not using the printer. . . . . . . . . . . . 18
Notes on Handling Ink Packs and Ink Tanks
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Handling Media. . . . . . . . . . . . . . . . . . . . . . . . 19
Using the Supplied Software. . . . . . . . . . . . . . . . . 21
Contents of the Software Disc. . . . . . . . . . . . . . 21
Starting EPSON LFP Remote Panel 2. . . . . . . . . 22
Exiting EPSON LFP Remote Panel 2. . . . . . . . . 22
Uninstalling Software. . . . . . . . . . . . . . . . . . . . . . 22
Basic Operations
Loading and Exchanging Media. . . . . . . . . . . . . . . 23
Loading Media. . . . . . . . . . . . . . . . . . . . . . . . . 23
Viewing and Changing Media Settings. . . . . . . . 32
Exchanging Media. . . . . . . . . . . . . . . . . . . . . . 33
Using the Auto Take-up Reel Unit. . . . . . . . . . . . . 35
Media Loading and Take Up. . . . . . . . . . . . . . . 35
Removing the Take-up Roll. . . . . . . . . . . . . . . . 40
Before Printing. . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Saving Optimal Settings for the Current Media
(Print Media Settings). . . . . . . . . . . . . . . . . . . . . . 42
Parameters Stored in Media Setting Banks. . . . . 42
Saving Settings. . . . . . . . . . . . . . . . . . . . . . . . . 43
Correcting Print Misalignment (Head
Alignment). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Feed Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . 46
Using a Test Pattern. . . . . . . . . . . . . . . . . . . . . 47
Performing Feed Adjustment During Printing
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Printable area. . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Maintenance
Daily Maintenance. . . . . . . . . . . . . . . . . . . . . . . . 50
Cleaning the Platen, Pressure Rollers, and
Media Holding Plates. . . . . . . . . . . . . . . . . . . . 50
Checking for clogged nozzles. . . . . . . . . . . . . . . 51
Head Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . 51
Maintenance Around the Print Head. . . . . . . . . . . 53
Part Cleaning: Preparation and Notes. . . . . . . . 53
How to Clean. . . . . . . . . . . . . . . . . . . . . . . . . . 53
Disposing of Waste Ink. . . . . . . . . . . . . . . . . . . 57
Replacing the Wiper and Wiper Cleaner. . . . . . 59
Chip Unit Replacement and Ink Refills. . . . . . . . . . 61
Time Period for Chip Unit Replacements and
Ink Refills. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Procedure for Replacement and Ink Refills. . . . . 61
Disposal of Used Consumables. . . . . . . . . . . . . . . 64
Parts That Are Periodically Replaced. . . . . . . . . . . 65
Using the Control Panel Menu
Menu Operations. . . . . . . . . . . . . . . . . . . . . . . . . 66
Menu List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Details of the Menu. . . . . . . . . . . . . . . . . . . . . . . . 70
The Media Setup Menu. . . . . . . . . . . . . . . . . . . 70
Printer Setup Menu. . . . . . . . . . . . . . . . . . . . . . 73
The Maintenance Menu. . . . . . . . . . . . . . . . . . 75
The Print Logs Menu. . . . . . . . . . . . . . . . . . . . 75
The Printer Status Menu. . . . . . . . . . . . . . . . . . 76
The Network Setup Menu. . . . . . . . . . . . . . . . . 76
The Preference Menu. . . . . . . . . . . . . . . . . . . . 76
The Reset All Settings Menu. . . . . . . . . . . . . . . 77
Problem Solver
When a Message is Displayed. . . . . . . . . . . . . . . . 78
SC-F7000 Series User’s Guide
Contents
3
When a Maintenance Call/Service Call Occurs. . . . 79
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . 80
You cannot print (because the printer does not
work). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
The printer sounds like it is printing, but
nothing prints. . . . . . . . . . . . . . . . . . . . . . . . . . 80
The prints are not what you expected. . . . . . . . . 81
Media................................ 82
Others............................... 84
Appendix
Options and Consumable Products. . . . . . . . . . . . 85
Supported Media. . . . . . . . . . . . . . . . . . . . . . . . . 86
Moving and Transporting the Printer. . . . . . . . . . . 86
Moving the Printer. . . . . . . . . . . . . . . . . . . . . . 86
Transport. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
System Requirements. . . . . . . . . . . . . . . . . . . . . . 88
Specifications Table. . . . . . . . . . . . . . . . . . . . . . . . 88
Standards and Approvals. . . . . . . . . . . . . . . . . . 89
Where To Get Help
Technical Support Web Site. . . . . . . . . . . . . . . . . . 90
Contacting Epson Support. . . . . . . . . . . . . . . . . . . 90
Before Contacting Epson. . . . . . . . . . . . . . . . . . 90
Help for Users in North America. . . . . . . . . . . . 91
Help for Users in Europe. . . . . . . . . . . . . . . . . . 91
Help for Users in Australia. . . . . . . . . . . . . . . . 91
Help for Users in Singapore. . . . . . . . . . . . . . . . 92
Help for Users in Thailand. . . . . . . . . . . . . . . . 92
Help for Users in Vietnam. . . . . . . . . . . . . . . . . 92
Help for Users in Indonesia. . . . . . . . . . . . . . . . 92
Help for Users in Hong Kong. . . . . . . . . . . . . . 93
Help for Users in Malaysia. . . . . . . . . . . . . . . . . 93
Help for Users in India. . . . . . . . . . . . . . . . . . . 93
Help for Users in the Philippines. . . . . . . . . . . . 94
Software License Terms
Open Source Software Licenses. . . . . . . . . . . . . . . 95
Bonjour.............................. 95
Other Software Licenses. . . . . . . . . . . . . . . . . . . 100
Info-ZIP copyright and license. . . . . . . . . . . . . 100
SC-F7000 Series User’s Guide
Contents
4
Introduction
Important Safety
Instructions
Read all of these instructions before using the printer.
Also be sure to follow all warnings and instructions
marked on the printer.
When choosing a place for this
product
Place this product on a flat, stable surface that is
larger than this product. This product will not
operate properly if it is tilted or at an angle.
Avoid places subject to rapid changes in
temperature and humidity. Also keep it away from
direct sunlight, strong light, or heat sources.
Avoid places subject to shocks and vibrations.
Keep this product away from dusty areas.
Place this product near a wall outlet where the plug
can be easily unplugged.
When setting up this product
This product’s power cord is for use with this
product only. Use with other equipment may result
in fire or electric shock.
Connect all equipment to properly grounded
power outlets. Avoid using outlets on the same
circuit as copiers or air control systems that
regularly switch on and off.
Avoid electrical outlets controlled by wall switches
or automatic timers.
Keep the entire computer system away from
potential sources of electromagnetic interference,
such as loudspeakers or the base units of cordless
telephones.
Use only the type of power source indicated on the
product’s label.
Use only the power cord that comes with this
product. Use of another cord may result in fire or
electric shock.
Do not use a damaged or frayed power cord.
If you use an extension cord with this product,
make sure the total ampere rating of the devices
plugged into the extension cord does not exceed the
cord’s ampere rating. Also, make sure the total
ampere rating of all devices plugged into the wall
outlet does not exceed the wall outlet’s ampere
rating.
If you plan to use the printer in Germany, observe
the following:
To provide adequate short-circuit protection and
over-current protection for this printer, the
building installation must be protected by a 10 or 16
amp circuit breaker.
If damage occurs to the plug, replace the cord set or
consult a qualified electrician. If there are fuses in
the plug, make sure you replace them with fuses of
the correct size and rating.
When using this product
Do not block or cover the openings in this product’s
cabinet.
Do not insert objects through the slots. Take care
not to spill liquid on this product.
Do not attempt to service this product yourself.
Unplug this product and refer servicing to qualified
service personnel under the following conditions:
The power cord or plug is damaged; liquid has
entered the product; the product has been dropped
or the cabinet damaged; the product does not
operate normally or exhibits a distinct change in
performance.
Do not move the print heads by hand; otherwise
you may damage this product.
Always turn the product off using the Power button
on the control panel. When this button is pressed,
the Power light flashes briefly then goes off. Do not
unplug the power cord or turn off the product until
the Power light stops flashing.
SC-F7000 Series User’s Guide
Introduction
5
This device has two power systems. There is a risk of
electric shock unless the two power cables are
unplugged during the maintenance.
When handling the ink packs
Keep ink packs out of the reach of children and do
not drink.
Wear protective eyewear and gloves when refilling
ink tanks or replacing the waste ink bottle.
Should ink contact your skin or enter your eyes or
mouth, immediately take the following actions:
If fluid adheres to your skin, immediately
wash it off using large volumes of soapy
water. Consult a physician if the skin appears
irritated or is discolored.
If fluid enters your eyes, rinse immediately
with water. Failure to observe this
precaution could result in bloodshot eyes or
mild inflammation.
If swallowed, induce vomiting and consult a
physician immediately.
Notes on This Guide
Meaning of Symbols
!
Warning: Warnings must be followed to
avoid serious bodily injury.
!
Caution: Cautions must be followed to
avoid bodily injury.
c
Important: Important must be followed to
avoid damage to this product.
Note: Notes contain useful or
additional information on the
operation of this product.
Illustrations
The illustrations in this manual may differ slightly from
the actual objects they are intended to represent.
Operating System Versions
In this documentation, the following abbreviations are
used.
Windows refers to Windows 8, 7, Vista, XP.
Windows 8 refers to Windows 8, Windows 8 Pro,
and Windows 8 Enterprise.
Windows 7 refers to Windows 7 Home Basic,
Windows 7 Home Premium, Windows 7
Professional, and Windows 7 Ultimate.
Windows Vista refers to Windows Vista Home
Basic Edition, Windows Vista Home Premium
Edition, Windows Vista Business Edition,
Windows Vista Enterprise Edition, and Windows
Vista Ultimate Edition.
Windows XP refers to Windows XP Home Edition,
Windows XP Professional x64 Edition, and
Windows XP Professional.
SC-F7000 Series User’s Guide
Introduction
6
Printer Parts
Front
AMaintenance cover (left)
Open this cover to clean the area around the print head. Normally closed when using the printer.
U “Cleaning Around the Print Head” on page 54
BEject guide
Media is ejected along this guide.
CRoll core holder
Place the used roll core for media take-up on these holders. There are two holders: one on the left and one on the
right.
U “Media Loading and Take Up” on page 35
DTensioner
The tensioner maintains tension to prevent the media sagging as it is taken up.
ERoll core holder locking screw
The locking screws keep the roll core holders in place once they have been attached to the roll core. There are two
screws: one on the left and one on the right.
SC-F7000 Series User’s Guide
Introduction
7
UMaintenance cover (right)
Open this cover to perform maintenance around the print head. Normally closed when using the printer.
U “Maintenance Around the Print Head” on page 53
VMedia loading lever
After loading media, lower the media loading lever to keep the media in place. Raise the lever to release the media
prior to removal.
WAlert lamp
This lamp lights or flashes when an error occurs.
On
Flashing
: An error occurred; the type of error is indicated by how the lamp lights or flashes. Check the contents
of the error on the control panel’s screen.
Off : No error.
XControl panel
U “Control panel” on page 14
YFront cover
Open when loading media, cleaning the inside of the printer, or removing jammed media. Normally closed when
using the printer.
SC-F7000 Series User’s Guide
Introduction
9
Slider
ASlider
Attach the chip unit included with the ink pack
before refilling the ink.
U “Chip Unit Replacement and Ink Refills” on
page 61
BInk inlet cover
Open this cover to refill the ink tank with ink.
CChip unit
A unit that includes an IC chip.
This is included with the ink pack.
LAN port
ARJ-45 connector
Connects the LAN cable. Use a shielded twisted pair
cable (category 5 or higher).
BData lamp (orange)
Indicates the network connection status and data
receive status by flashing and/or turning on.
On : Connected.
Flashing : Receiving data.
CStatus lamp (green/red)
The color indicates the network connection speed.
Red : 100Base-TX
Green : 1000Base-T
SC-F7000 Series User’s Guide
Introduction
10
Inside
Dirt on any of the following parts may reduce print quality. Regularly clean or exchange these parts as described in the
chapters listed in the reference sections below.
APrint head
The print head prints by moving left and right while emitting ink. Cleaning may be required depending on the
status.
U “Cleaning Around the Print Head” on page 54
BMedia holding plate
The media holding plates prevent the media riding up and keeps fuzz on the cut edge of the media from touching
the print head. Position the plates at either side of the media before printing.
U “Loading Media” on page 23
CCutter groove
Pass the blade of a cutter (available in the market) down this groove to cut media.
DPressure rollers
These rollers press down on the media during printing.
U “Cleaning the Platen, Pressure Rollers, and Media Holding Plates” on page 50
EPlaten
This part suctions the media for printing.
U “Cleaning the Platen, Pressure Rollers, and Media Holding Plates” on page 50
SC-F7000 Series User’s Guide
Introduction
11
FWiper cleaner
The wiper cleaner removes ink from the wiper. It is a consumable; replacement may be required depending on the
status.
U “Replacing the Wiper and Wiper Cleaner” on page 59
GCaps
Except during printing, these caps cover the print head nozzles to prevent them drying out. Cleaning may be
required depending on the status.
U “How to Clean” on page 53
HWiper
The wiper removes ink from the print head nozzles. It is a consumable; cleaning or replacement may be required
depending on the status.
U “How to Clean” on page 53
U “Replacing the Wiper and Wiper Cleaner” on page 59
Back
ADrive switch
The drive switch is used to feed the media during loading and to rewind the media for replacement.
BRoll holder
Place media on these holders. There are two holders: one on the left and one on the right.
CRoll holder fixing screw
These screws fix the roll holders in place once the media has been installed. There are two screws: one on the left and
one on the right.
SC-F7000 Series User’s Guide
Introduction
12
Do not bend or tug the waste ink tube. Ink could
spill inside or around the printer.
We recommend performing maintenance on the
following components as required. Failure to
perform appropriate maintenance will shorten
print head life.
U “Maintenance Around the Print Head” on
page 53
Component to be
cleaned
Frequency
Print head When colors in the
printout are faint or
missing even after
head has been
cleaned.
When the printout
is smudged or not
clear.
Wiper
Caps
Wiper rail
Component requiring
replacement
Frequency
Wiper cleaner If the printout is faint or
smudged, or segments
are missing even after
cleaning.
Wiper
The print head may not be capped (the print head
may not return to the right side) if the printer is
turned off when the media is jammed or an error
has occurred. Capping is a function for
automatically covering the print head with a cap
(lid) to prevent the print head from drying out. In
this case, turn on the power and wait a while until
capping is performed automatically.
When the power is on, do not remove the power
plug or cut the power at the breaker. The print head
may not be capped properly. In this case, turn on the
power and wait a while until capping is performed
automatically.
The print head is automatically cleaned at a fixed
interval after printing to keep the nozzle from
clogging.
Be sure that the waste ink bottle is placed whenever
the printer is on.
Periodical Cleaning U “Printer Setup Menu” on
page 73
As well as being expended during printing, ink is
used during head cleaning and other maintenance
required to keep the print head in working order.
Notes when not using the printer
If you are not using it, note the following points when
storing the printer. If it is not stored correctly, you may
not be able to print properly the next time it is used.
If you do not print for a long time, the print head
nozzles may become clogged. Turn the printer on at
least once every two weeks to prevent the print head
clogging.
When the printer is turned on, head cleaning is
performed automatically. Do not turn the printer
off until cleaning is complete.
Leaving the printer for too long without turning it
on may result in a malfunction. Repair work for
such malfunction will be charged.
If you will not be using the printer for more than 2
weeks, maintenance must be performed by a service
engineer before and after this period. This
maintenance work will be charged.
Note that even if proper maintenance has been
done before leaving the printer for a long time,
repair may be necessary when doing maintenance
for reusing the printer, depending on the period
and conditions of storage. In such a case, the repair
work will also be charged.
Contact your dealer or Epson Support.
The pressure rollers may crease media left in the
printer. The media may also become wavy or
curled, causing jams or resulting in the media
coming into contact with the print head. Remove
the media before putting the printer in storage.
Store the printer after confirming that the print
head has been capped (the print head is positioned
at the far right). If the print head is left uncapped for
a long time, the print quality may decline.
Note:
If the print head is not capped, turn the printer on, and
then turn it off.
SC-F7000 Series User’s Guide
Introduction
18


Produkt Specifikationer

Mærke: Epson
Kategori: Printer
Model: SureColor SCF7000

Har du brug for hjælp?

Hvis du har brug for hjælp til Epson SureColor SCF7000 stil et spørgsmål nedenfor, og andre brugere vil svare dig
