BLACK 3109 VCF/VCA
THANK YOU FOR PURCHASING THIS
ERICA SYNTHS BLACK SERIES MODULE!
The Erica Black Series includes high-end modules with unique functionality
and superior build quality. Only the best, highest quality components are used,
all inputs and outputs are protected against undesired overvoltage. When
designing the Black Series, we placed an emphasis on usability with the goal
of providing an enjoyable user experience. Big knobs are assigned to functions
that make dierences in sound. The Erica Black Series consists of a range of
modules that are needed to put together an entire synth. Enjoy!
The Erica Synths Black 3109 VCF/VCA is a lowpass filter and voltage-con-
trolled amplifier combo built around the AS3109 VCF integrated circuit, a
contemporary version of the IR3109 chip, found on vintage Roland synths
such as the Jupiter series, Juno series and the SH-101. The 3109 VCF/VCA is our
attempt to recreate the iconic sound of these synths, but we also aim to
improve upon it. Filters based on IR3109 had several drawbacks, including
a volume drop when the resonance is increased so we added a volume drop
compensation as well as a built-in VCA for more versatility in compact setups.
Additionally, 1V/oct tuning is implemented so you can use this module for
perfect VCF keyboard tracking and also as a VCO.
FEATURES:
24dB/oct lowpass VCF
Volume drop compensation
Built-in VCA
Cuto level attenuverter
1V/oct tracking
SPECS:
Audio level 10Vptp
Cuto CV level (full span) -5V - +5V
VCA CV level 0 - +10V
Max power consumption 25mA@+12V, 25mA@-12V
Module width 10HP
Module depth 35mm

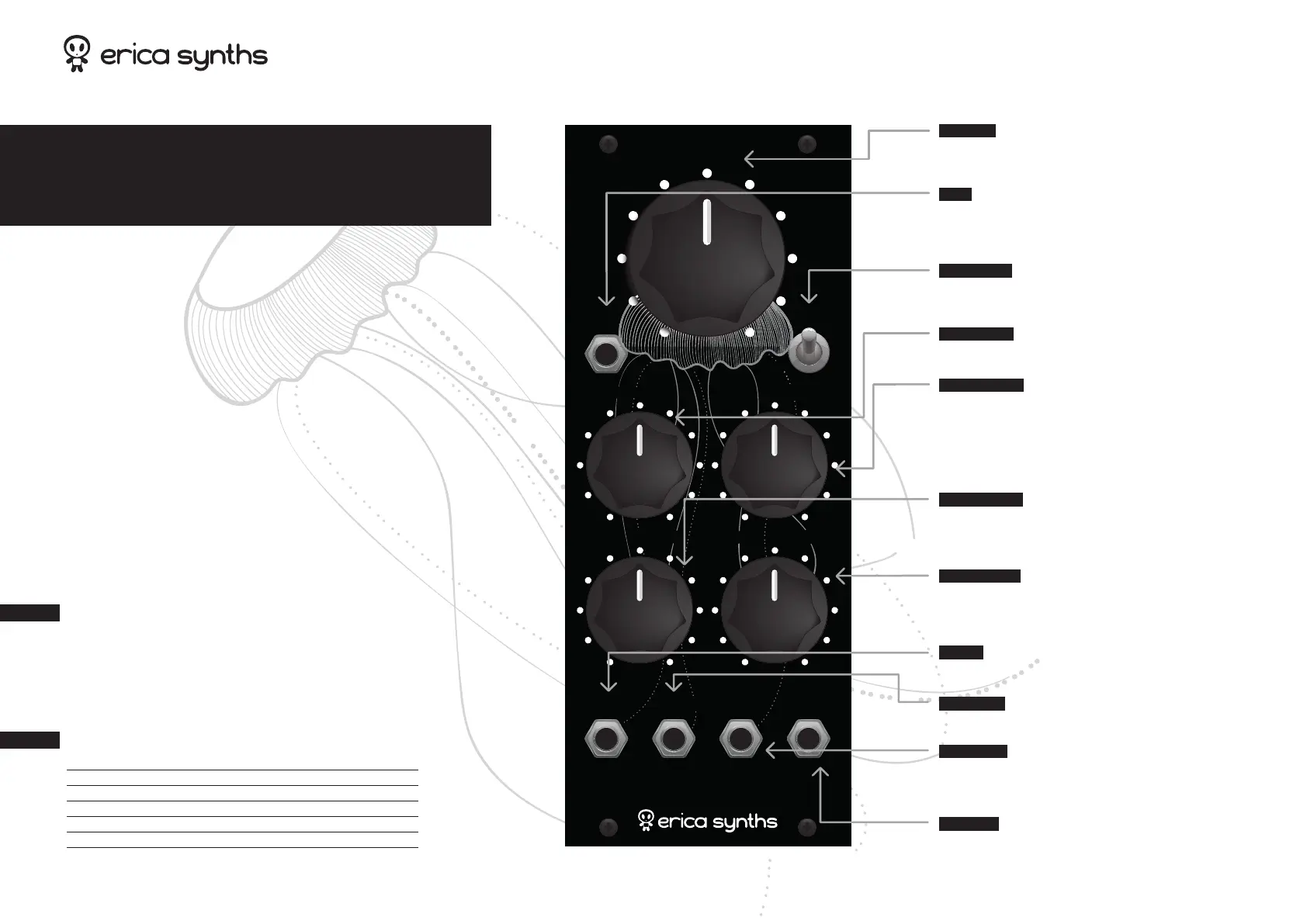

OUTPUTVCA CV INVCF CV ININPUT
CV2
CUTOFF
BLACK 3109 VCF/VCA
ON
OFF
VOL COMP
AUDIO LVL RESONANCE
VCF CV1 LVL VCA CV LVL
CUTOFF
This is the manual cuto control. An external CV is added
to the knob position.
CV2
This is the second cuto CV input. It applies the CV
without attenuation, therefore here you can connect the
CV for 1V/oct tracking.
VOL COMP
This is the volume drop compensation switch. When it is
ON, the volume will not drop when resonance is increased.
AUDIO LVL
This is the audio signal level attenuator.
RESONANCE
This is the resonance control. In “classic” mode (VOL COMP
switch set to OFF), the volume will drop slightly when the
resonance is increased. If you set the VCF to self-oscillate
and apply 1V/oct CV, you can use the module as a VCO. It
works particularly well as bass drum synthesizer when
punchy envelopes are applied to the CV input.
VCF CV1 LVL
This is the cuto CV attenuverter. At 12:00 no CV is applied,
turning the knob clockwise increases the CV amount,
turning it counter-clockwise, the incoming CV is inverted.
VCA CV LVL
This is the VCA CV attenuator. If nothing is patched
into VCA CV IN, it acts as VCA bias control – you need
to dial it all way clockwise in order to open the VCA.
VCF CV IN
This is the cuto CV input with the attenuverter.
OUTPUT
This is the audio output.
VCA CV IN
This is the VCA CV input. Please, note that the input is
normalled to +10V and you need a 0 - +10V envelope to
fully open the VCA.
INPUT
This is the audio input of the module.
Transport the instrument carefully, never let it drop or fall
over. Warranty does not apply to modules with visual
damages.
The module has to be shipped in the original packaging
only. Any module shipped to us for return, exchange and/or
warranty repair has to be in its original packaging. All other
deliveries will be rejected and returned to you. Make sure
you keep the original packaging and technical documentation.
This device complies to the EU guidelines and is manufac-
tured RoHS conforming without use of lead, mercury,
cadmium and chrome. Nevertheless, this device is special
waste and disposal in household waste is not recommended.
User manual by Girts Ozolins@Erica Synths.
Design by Ineta Briede@Black8.
Copying, distribution or any commercial use in any way is
prohibited and needs the written permission by Erica Synths.
Specifications are subject to change without notice.In case of
any questions, feel free to contact us through www.erica-
synths.lv.
You will find Erica Synths terms of warranty at
www.ericasynths.lv
Items for return, exchange and/or warranty repair have to
be registered at SUPPORT on www.ericasynths.lv and send
back to us according to instructions in the support page.
SAFETY INSTRUCTIONS
Please follow the instructions for use of the Erica Synths module below,
‘cause only this will guarantee proper operation of the module and
ensure warranty from Erica Synths.
Water is lethal for most of the electric devices, unless they are made
waterproof. This Erica Synths module is NOT intended for use in a
humid or wet environment. No liquids or other conducting
substances must get into the module. Should this happen, the
module should be disconnected from mains power immediately,
dried, examined and cleaned by a qualified technician.
Do not expose the module to temperatures above +50° C or below
-20° C. If you have transported module in extreme low temperatures,
leave it in room temperature for an hour before plugging it in.
CUTOFF
IN LEVEL
CV1 LEVEL
RESONANCE
RESO CV LEVEL
INPUT CV1 CV2 OUT
BLACK HIGH PASS VCF
RESO CV IN
ON
OFF
DRIVE
BW CVCF CV
OUTIN2IN1
BLACK VCF COUPLER
BR
OFF
BP
MODE
CENTER FREQ
CF CV LVL
BANDWIDTH
OUTPUTVCA CV INVCF CV ININPUT
CV2
CUTOFF
BLACK 3109 VCF/VCA
ON
OFF
VOL COMP
AUDIO LVL RESONANCE
VCF CV1 LVL VCA CV LVL
The Black 3109 VCF/VCA has a hidden feature – compatibility with the Black Filter Coupler connector.
The Erica Synths Black Filter Coupler is a satellite module for the Black High Pass and the Black Low
Pass VCFs and now also the Black 3109 VCF/VCA. Similar to classical Moog systems, it turns both
high-pass and low-pass filters in to Bandpass and Band Reject filters with adjustable and CV
controllable bandwidth and centre frequency and therefore significantly expands the functionality
of your modular system. Please note that the Black Filter Coupler works only with Erica Synths
modules and you need both the Black High Pass and Low Pass VCFs.
This is a Eurorack
standard PSU connector.
Remove the jumper and
connect the Erica Synths
Black Filter Coupler here.
2x5pin ribbon cable is
supplied with the Black Filter
Coupler module.
