Side 1/2
Erica Synths
Andrejostas St. 43
Riga, Latvia
LV-1045
U S E R M A N U A L
FEATURES
16 buffered, DC coupled inputs
16 independent, buffered, DC coupled outputs
“Piano” mode
Random pattern mode with definable randomization
area and density
254 pattern memory
Pattern change via MIDI program change messages
32 3,5mm jack sockets
4 6,3mm jack sockets
SAFETY INSTRUCTIONS
Please follow the instructions for the use of the Erica
Synths Matrix Mixer below, because only this will
guarantee the proper operation of the module and
ensure the warranty from Erica Synths.
Use the Matrix Mixer exclusively with the
power supply unit (PSU) supplied with the
system. Powering it with other PSU units may
cause permanent damage to the device.
Water is lethal for most electric devices unless
they have been rendered waterproof. The
Matrix Mixer is NOT intended for use in a humid
or wet environment. No liquids or other
conducting substances should be allowed into
the module. Should this happen, the module
should be disconnected from mains power
immediately, dried, examined and cleaned by a
qualified technician.
Do not expose the instrument to temperatures
above +50° C or below -20° C. If you have
transported the instrument in extremely low
temperatures, leave it at room temperature
for an hour before plugging it in.
Transport the instrument carefully. Never let it
drop or fall over. The Warranty does not apply
to instruments with visual damage.
Matrix Mixer must be shipped in the original
packaging only. Any instrument shipped to us
for return, exchange and/or warranty repair
must be in its original packaging. All other
deliveries will be rejected and returned to you.
Ensure that you keep the original packaging
and technical documentation.
DISPOSAL
This device complies with EU guidelines and is
manufactured and confront RoHS without the use of
lead, mercury, cadmium or chrome. Nevertheless, this
device is special waste and disposal in household
waste is not recommended.
User manual by Girts Ozolins@Erica Synths.
Design by Ineta Briede@Black8.
Copying, distribution or any commercial use in any way
is prohibited and needs the written permission of Erica
Synths.
The specifications are subject to change without
notice.
If you have any questions, feel free to contact us
on SUPPORT section on www.ericasynths.lv
You will find the Erica Synths terms
of warranty at www.ericasynths.lv
Items for return, exchange and/or warranty repair
should be sent us according to the guidelines on
SUPPORT section on www.ericasynths.lv
SPECS:
Audio level
Attenuation level
Power supply
Size of the instrument
Net mass
Size of the packaging
Mass with the packaging
10Vptp
1, 0.7, 0.3
12VDC (a universal AC/DC
converter included)
225 x 226 x 44mm
1.25kg
315x295x95
THANK YOU FOR PURCHASING THE ERICA SYNTHS MATRIX MIXER!
As Eurorack users may know, it can be challenging to change a patch radically during a performance, therefore diverse
performances require large systems or they end up being extremely experimental. But what if you could repatch your
system with the push of a single button? The Erica Synths Matrix Mixer is a 16 – input, 16 - output desktop patch matrix – it
can route and mix signals with high precision, create buffered multiples and random patches. It can also interface external
instruments with your Eurorack system, and – it’s not limited to Eurorack! You can use the Matrix Mixer with semi-modular
synthesizers, as well as through adapter cards with the EMS Synthi and Buchla Music Easel. Thanks to simple patch changes
via panel buttons or MIDI program change messages, the Matrix Mixer will be particularly useful in performances that
combine Eurorack and other performance instruments, such as drums, guitars, wind instruments, etc. Make your modular
performance stand out and enjoy the Matrix Mixer!
Power the Matrix Mixer exclusively with the external PSU, supplied with the instrument. Using other power supply units may
permanently damage the instrument.

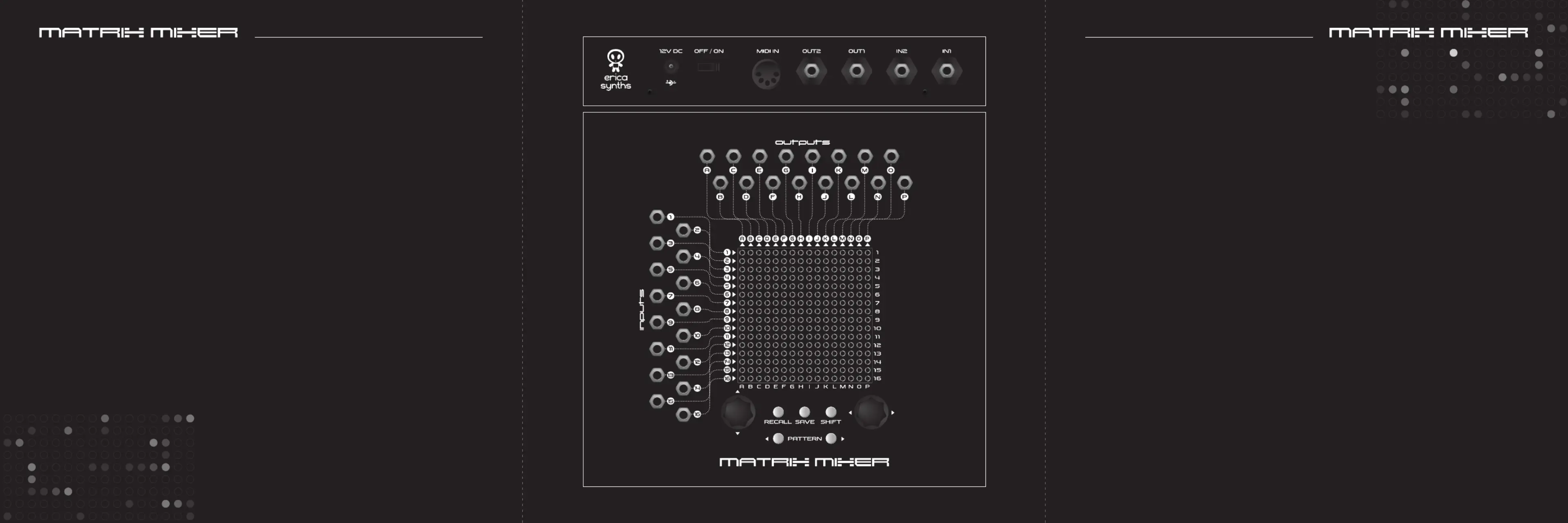

Use standard 3,5mm Eurorack patch cables to connect modules or instruments to the matrix. The matrix is unidirectional,
meaning, the signal will pass from the Inputs on the left to the Outputs on top. You can send a signal from one input to
several outputs simultaneously and likewise – you can mix several inputs to one output.
On the back of the Matrix Mixer, you’ll find two 6,3mm input and two 6,3mm output sockets. These duplicate Input 1, Input 2,
Output A and Output B, respectively. The 3,5mm sockets are prioritized– if something is patched in a 3,5mm socket, the
6,3mm one is automatically disconnected.
The PATCH MATRIX has 256 possible patch points, each with three levels of attenuation, and it has a memory of 254 patches.
CONFIGURATION SETTINGS.
Push and hold the SHIFT button and push both PATTERN buttons simultaneously to access the configuration settings. There
are four configuration options, each represented on the top four rows. Use the encoders to navigate a blinking patch point
through the settings and push the left encoder to confirm a selection.
The first row represents a MIDI channel for patch changes. The leftmost point (column A on the matrix) represents MIDI
channel 1, column B – channel 2, etc.
The second row sets randomization “density” – how many connections appear simultaneously when the Random mode is
selected. A patch point in column A represents 5% density (~5% of all patch points are activated in the random patch), and
each next column adds another 5% density. Column P represents 80% density. We think more density in a random patch
doesn’t make sense.
You might want to randomize a specific area of the matrix (X columns by Y rows), while another part of the matrix
remains unaltered by randomization, therefore a user defined randomization area is implemented. The top left corner (patch
point A1) is the reference point and the third row in the configuration settings sets the number of columns for the
randomization area.
The fourth row sets the number of rows in the randomization area.
CONNECTION PREVIEW/LIVE
performance (the equivalent of making experimental sounds on the EMS
Synthi by sticking a pin into the matrix and removing it) – navigate to the
desired connection point, push and hold SHIFT and push either one of the
encoders. While the encoder is pushed, the connection is active.
RANDOM PATCHES.
Push and hold the SHIFT button and push the right PATTERN button - the Matrix Mixer will generate a random patch based
on randomization density and randomization area settings.
SAVING PATCHES.
Once you are happy with the patch, push the SAVE button, and access the “saved patches” view. Use the X/Y encoders to
navigate to a desired position and push either one of the encoders to save the patch. Top left and bottom right NB!
positions (half dimmed) are reserved, and you can’t access them. If you change your mind, and do not want to save the
patch, just push SAVE or SHIFT to exit to the patch building mode. The matrix automatically saves the last patch every 30”
and after power cycling it will remember the last active patch.
RECALLING PATCHES.
Push the RECALL button to access the “saved patches” mode. Use the encoders to navigate to one of the saved patches and
push either one of the encoders to recall it.
DELETING PATCHES.
Push the SAVE button. Use the encoders to navigate to the patch you wish to delete. Push and hold RECALL for more than 5”
and the LED with the patch name will turn off.
INSTANT PATCH CHANGE.
You can navigate through saved patches sequentially by pushing PATTERN buttons. This is particularly useful during
performances, when you need to change patches instantly.
PATCH CHANGE VIA MIDI.
To change a patch via MIDI you need to send Program Change messages. Bank 1 Program 1 to 128 will change the patches 1
to 128 and Bank 2 program 1 to 128 will change the patches from 128 to 254. For example, if you want to access patch
number 1 you need to send a “Bank 1, Program 1” MIDI message and if you want to access patch number 300 you need to
send a “Bank 2, Program 44” MIDI message. Take note that the first patch is located in the 1-B slot and the last patch is NB!
located in the 16-O slot because the 1-A and 16-P slots are reserved for displaying when you are in the Patch Recall screen!
TO BUILD A PATCH, navigate the matrix via the X and Y encoders
and select a patch point. The left encoder allows you to make attenuated
connections. Push the encoder to make a connection. The first push,
makes a connection with a gain value of 1, the second – 0,7, the third –
0,3, and the fourth turns the connection off, and so on. The right encoder
makes a connection with a gain value of 1 and pushing it a second time
turns the connection off – basically, it works as a shortcut.
