OUT ROUT LDRY/WET CVIN RIN L

PATCH CVPARAM3 CVPARAM2 CVPARAM1 CV

BLACK HOLE DSP2

PARAM 1 PARAM 2 PARAM 3

IN LEVEL CRUSH CV LVL

CRUSH CV

PATCHCRUSH

BLACK HOLE DSP II

THANK YOU FOR CHOOSING ERICA

SYNTHS BLACK SERIES MODULE!

Erica Black Series include high-end,

unique functionality and superior quality

modules. Only the best, highest quality

components are used, all inputs and

outputs are protected against undesired

overvoltage. When designing Black

Series, we put design and usability

superior. Big knobs are assigned to key

functions of the module, which makes

Black Series ideal for live performances.

Enjoy!

If the doors of perception were cleansed

everything would appear to man as it is,

inﬁnite.

William Blake

Erica Synths Black Hole DSP II , an

updated version of Black Hole DSP features

24 custom eects, designed in close

co-operation of Erica Synths team rider

KODEK and creator of Spin CAD software

Gary Worsham. Each eect has 3 manually

and CV controllable parameters, manual

and CV control over sampling frequency

for spanning from 48kHz to really Lo-Fi

crunchy sound and full analogue dry/

wet control. All eect parameter settings

can be saved to the memory and instantly

recalled with the eect, which makes Black

Hole DSP II ideal for live performances.

FEATURES:

24 custom eects based on Spin FV-1 chip

Stereo INs and OUTs

3 manually and CV controllable parameters

CV controlled eect select

Manually and CV controllable clock rate

reduction for noisy bitcrush

Eect settings memory

Full analogue Dry/Wet control

Audio clipping LED

The display shows currently selected eect.

The eect is activated by pushing the

PATCH encoder promptly, and a dot in the

bottom left corner will appear –

this indicates that the eect is on.

When a Parameter knob returns to the

saved position, a dot will blink once.

The encoder

has several features.

Rotate the encoder to select

one of 24 eects.

Push the encoder promptly

to conﬁrm the selection and

activate the eect.

Push and hold the encoder

to save (a display will indicate

SA) all parameter settings

with the eect!

To recall parameter settings,

push the encoder twice (the

display will indicate RC)

This is Crush CV attenuator

This is manual Dry/Wet

control. If you want to use

the Black Hole DSP II as

send eect unit make sure

you set this knob all way CW

(full wet)

These are CV inputs for

each parameter control.

Patches will change on very

slow CV rates only, as the

module requires some time to

read patch from the memory

TECHNICAL SPECIFICATIONS:

Input signal amplitude ...........-5…+5V (or 0…+10V)

Output signal amplitude........................-10V - +10V

Max sampling rate.........................................48kHz

CV level (full span).....................................-5V - +5V

Power consumption…....................+170mA, -56mA

Module width…………………….............................16HP

Module depth……….........................................35mm

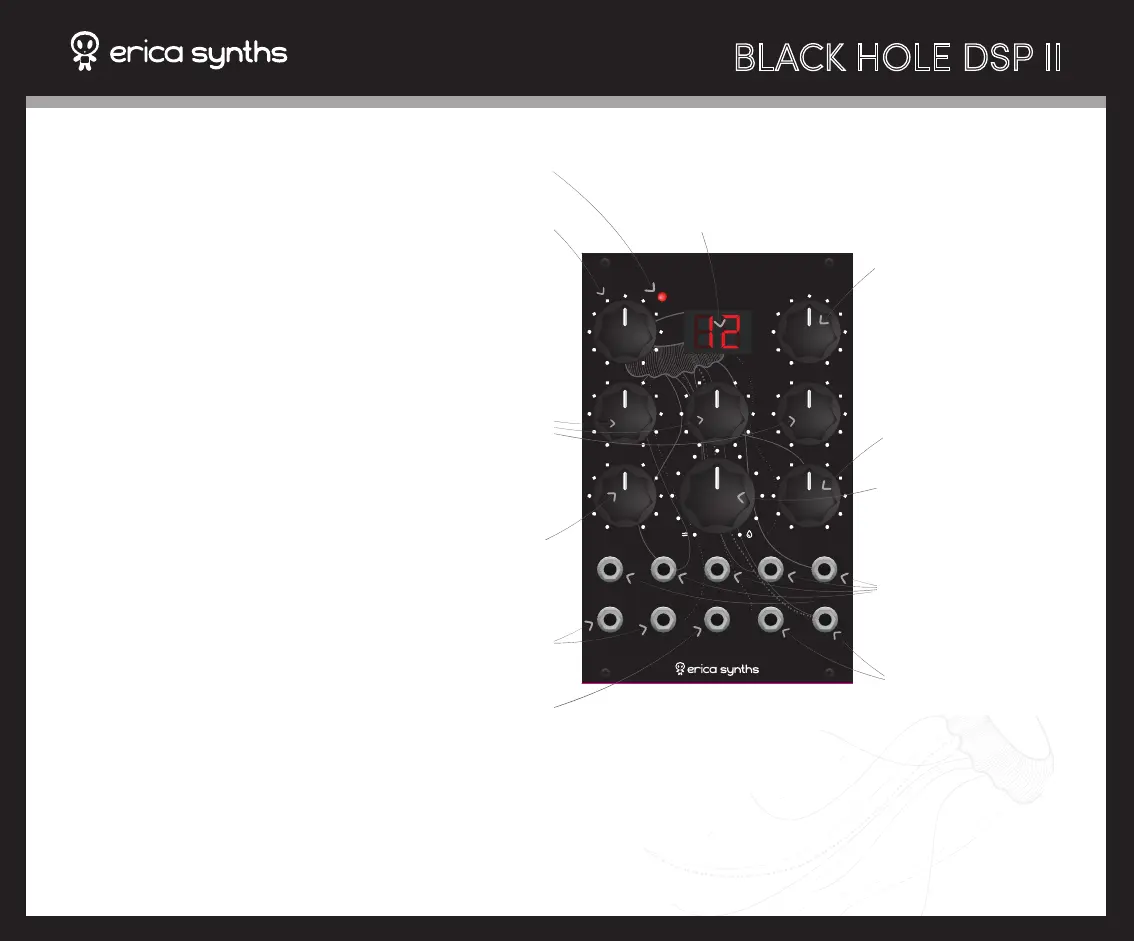

These are audio signal

inputs. The Left input is

normaled to the Right, so

you can input mono signal

and get impressive

stereo eect

This is Dry/Wet CV input.

The module has full

analogue dry/wet

circuit

Use these potentiometers

to adjust the eect

parameters!

Refer to the table below for

parameter description!

All parameter settings can

be saved with the eect

(PATCH) and recalled

instantly. If you wish to alter

saved parameter settings,

rotate the potentiometer

until the segments in the

patch number screen ﬂash

once – this means, you

have reached initial setting

of the parameter and you

start to altering it.

This is the input level

attenuator – make sure that

clipping LED is not lit

Clipping LED. Adjust the

input signal level so that

LED lights up accidentally

This is sample rate

knob. Turn it clockwise

to reduce clock rate and

get vintage tape echo

like eects and extreme

bitcrush

Signal outputs. All eects

are designed for stereo

outputs, but they sound

great also mono
