Side 1/2

CUTOF CUTOFF1 F2

IN1 LVL RESO1 CV C-OFF1 CV IN2 LVL RESO2 CV C-OFF2 CV

RESONANC RESONANCE1 E2

1kHz 7kHz 10kHz 16kHz

BLACK DUAL VCF

IN1 R1 CV C1 CV IN2 R2 CV C2 CV

HP1 OUT BP1 OUT LP1 OUT HP2 OUTSUM OUT BP2 OUT LP2 OUT

LINK

THANK YOU FOR CHOOSING ERICA

SYNTHS BLACK SERIES MODULE!

Erica Black Series include high-end, unique

functionality and superior quality modules.

Only the best, highest quality components

are used, all inputs and outputs are

protected against undesired overvoltage.

Erica Black series consist of range of

modules that are needed to put together

entire synth. Enjoy!

Erica Black VCF is dual multimode ﬁ lter

with CV control over cutoﬀ and resonance

for serious modular patches. The core of

the VCF is highly stable, custom multimode

VCF chip AS3320 (produced in Riga, btw).

It can be used as two independent VCFs

with simultaneous HP, BP and LP outputs,

controls can be linked for stereo application

and both VCFs can be chained in series or

parallel to the summing output for ultimate

modulations. Bonus feature – 16 band

spectrum analyser – gives visual feedback

on what happens on summing output.

FEATURES:

Two identical multimode VCFs

Simultaneous HP, BP and LP outputs

Summing output

Serial or parallel VCF routing to the

summing output

CV control over Cutoﬀ and Resonance

CV level attenuverters

Link switch for controlling both VCFs with

one cutoﬀ or resonance knob

16 band spectrum analyser

Skiﬀ -friendly design

TECHNICAL SPECIFICATIONS:

Audio output amplitude .......................10Vptp

CV input (full sweep) 10Vptp ............................

Panel width ...............................................18HP

Module depth 35mm .......................................

Power consumption .........................................

................................40mA@+12V, 36mA@-12V

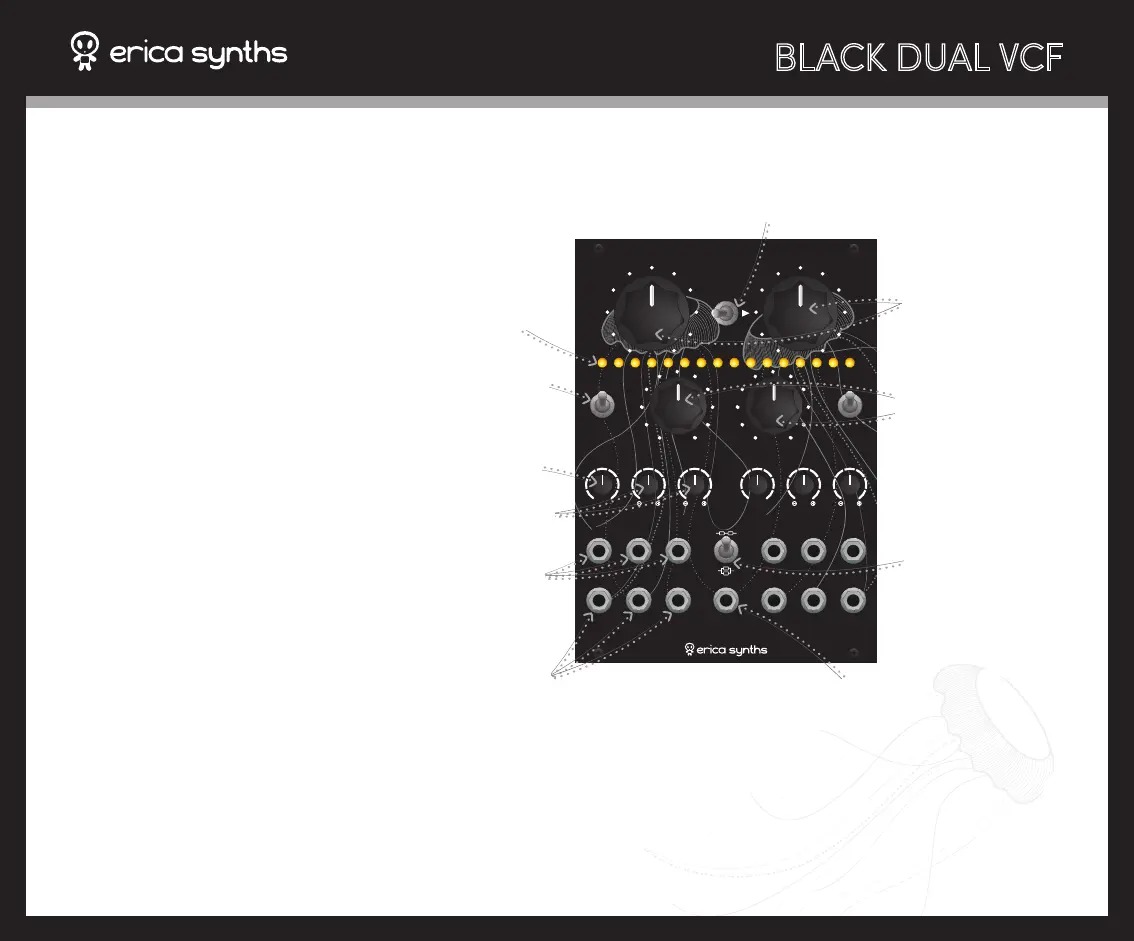

Adjust resonance for both

VCFs manually!

Adjust cutoﬀ frequency

manually for both VCFs!

This is output of both

VCFs summed

This switch deﬁ nes, how

VCFs are chained to the

SUM OUT – in series

or parallel

16 band spectrum analyser

gives visual feedback on

signal that passes through

VCFs and appears on

SUM OUT

Select what ﬁ lter mode

of VCF1 is assigned to

SUM OUT. Same goes with

the switch on the VCF2

Switch in LINK position allows to

control both VCFs with Cutoﬀ 1 and

Resonance1 knobs. Cutoﬀ 2 and

Resonance2 knobs are disabled

These are audio and

CV inputs

These are multimode

VCF outputs – signals

from them are available

simultaneously, and mode

switch doesn’t eﬀ ect these

Adjust audio input level

with this knob!

These are Resonance

and Cutoﬀ attenuverters

BLACK DUAL VCF

SAFETY INSTRUCTIONS

DISPOSAL

Please follow the instructions for use of this

Erica Synths module below, ‘cause only this

will guarantee proper operation of the module

and ensure warranty from Erica Synths.

Water is lethal for most of the electric devices,

unless they are made waterproof. Erica

Synths module is NOT intended for use in

a humid or wet environment. No liquids or

other conducting substances must get into

the module. Should this happen, the module

should be disconnected from mains power

immediately, dried, examined and cleaned by

a qualiﬁed technician.

Do not expose the module to temperatures

above +50° C or below -20° C.

Transport the instrument with modules

installed carefully, never let it drop or fall over.

Warranty does not apply to modules with

visual damages.

The module has to be shipped in the original

packaging only. Any module shipped to us

for return, exchange and/or warranty repair

has to be in its original packaging. All other

deliveries will be rejected and returned to you.

Make sure you keep the original packaging

and technical documentation.

You will ﬁnd Erica Synths terms of warranty at

http://ericasynths.lv/en/terms/

Items for return, exchange and/or warranty

repair have to be sent to: Erica Synths,

Andrejostas Str.12, Riga, Latvia, LV-1045

This device complies to the EU guidelines and is

manufactured RoHS conforming without use of

led, mercury, cadmium and chrome.

Nevertheless, this device is special waste and

disposal in household waste is not

recommended.

Designed and made in Latvia.

User manual by Girts Ozolins@Erica Synths.

Design by Baiba Stelle.

Copying, distribution or any commercial use in

any way is prohibited and needs the written

permission by Erica Synths.

Speciﬁcations are subject to change without

notice.

In case of any questions feel free to contact us

via e-mail info@ericasynths.lv

Check out other Erica Synths modules & devices

at www.ericasynths.lv

BLACK DUAL VCF
