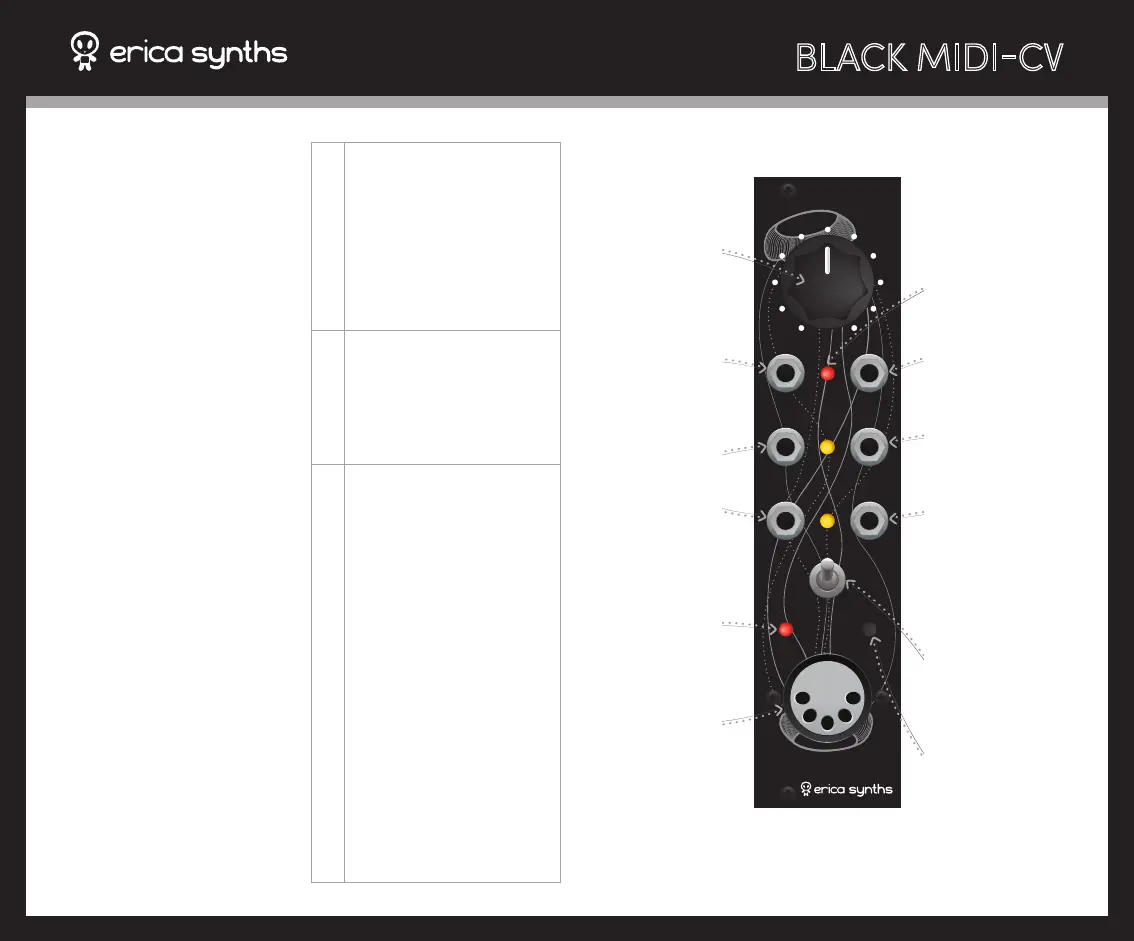

GLIDE

BLACK MIDI-CV

CV2 GATE2

GATE1CV1

CLK MOD

1 VOICE

2 VOICE

THANK YOU FOR PURCHASING

ERICA SYNTHS BLACK SERIES

MODULE!

Erica Black Series include high‑end,

unique functionality and superior

quality modules. Only the best,

highest quality components are

used, all inputs and outputs are

protected against undesired

overvoltage. When designing Black

Series, we put design and usability

superior. Big knobs are assigned to

key functions of the module, which

makes Black Series ideal for live

performances. Enjoy!

Erica Synths Black MIDI-CV

is compact, highly accurate and

easy to use duophonic MIDI

interface. It emulates classical

monophonic and duophonic

synth behaviour, as well as can

be conﬁgured for use in two

independent MIDI channels. Bonus

features – MIDI clock output

and analogue glide circuit on

both channels.

FEATURES:

Two CV and Gate outputs

MIDI clock output (4ppq –

sequencer friendly)

Conﬁgurable MOD output –

modulation wheel or velocity

Analogue glide on both MIDI

channels

One or two MIDI channel

conﬁguration

One or two voice switch

SPECS:

CV range ....................................... 0‑8V

Max CV deviation 0.001V; 1cent ..........

Gate and Clock level .......................5V

Glide time ....................................0 – 2”

Power consumption +40mA, ‑9mA ....

Module width ................................6HP

Module depth ........................... 30mm

Use this knob to set

the glide time on the

output CV! It aects both

channels simultaneously

This is 4ppq Clock

output – ready to control

your sequencers. In two

MIDI channel mode

make sure, only one MIDI

device has MIDI clock

activated

These are CV outputs.

In one voice mode CV2

duplicates CV1, in two

voice mode CV2 is highest

note priority; CV1 – lowest

note priority

This in MIDI activity and

conﬁguration indictor LED

This is MIDI input

In one MIDI channel

mode you can select

between one voice mode

(highest note priority) or

two voice mode (lowest

and highest note priority)

Push PROGRAMM button

promptly to send MIDI

panic message. Push and

hold the button and you

will enter conﬁguration

mode. Please, refer

to the table below on

conﬁguration settings

This is Gate output of the

ﬁrst channel

This is Modulation CV

output. You can conﬁgure

it for modulation wheel

CV output or key velocity.

Refer to the table below!

This is Gate output of

the second channel.

Classic mono‑ duophonic

synths had just only one

gate, therefore in single

MIDI channel mode it

duplicates Gate1, but in

two MIDI channel mode,

it works independently

This is clock rate LED

Setting MIDI channel

Connect MIDI keyboard to the module!

Push PROGRAMM button for “4”. MIDI LED

will start to blink slowly. Select midi channel

by pushing a key on the keyboard. C of any

octave corresponds to MIDI channel 1, C# ‑

channel 2, D – channel 3, etc. Channels 1‑12

can be assigned to send midi messages to

the module.

For two MIDI channel conﬁguration push

and hold two keys simultaneously.

CV1/Gate1 will be assigned to the lowest

midi channel, CV2/Gate2 – to highest.

Push the PROGRAMM button to advance

to MOD output conﬁguration.

MOD output

conﬁguration

In MOD output conﬁguration mode MIDI

LED starts to blink faster.

If you wish to assign a modulation wheel

to MOD output, simply rotate it on the midi

controller.

If you wish to assign key velocity to

the MOD output, push any key on the

keyboard.

Push PROGRAMM button to conﬁrm, and

the module will exit conﬁguration mode.

1V/OCT calibration (optional)

Black MIDI‑CV modules come precisely

calibrated, but you may wish to adjust

calibration to your modular system

speciﬁcs. To do so, connect midi keyboard

to the module, set VOICE switch to 1

Voice mode and connect CV1 output

to a calibrated VCO 1V/oct input and a

chromatic tuner to the output of the VCO.

Disconnect MIDI‑CV module from the PSU.

Then push and hold PROGRAMM button

and connect the module to PSU busboard!

MIDI LED will start to blink, which means

the module is in calibration mode.

Play C3 on the keyboard, and tune the VCO

so that tuner reads C3!

Play C4 on the keyboard and check the

reading on the tuner. If it reads something

higher than C4, play B3 on the keyboard

repeatedly until the tuner reads C4. If it

reads something lower than C4, play C#4

repeatedly until the tuner reads C4.

Play C5 on the keyboard and check the

tuner. If it reads something higher than C5,

play repeatedly B4 until the tuner reads C5,

etc. Continue until you have perfect tuning

along all octaves.

Push the PROGRAMM button to start

calibration of the second CV output.

The procedure is exactly same.

Once calibration is completed, push

PROGRAMM Button to exit calibration

mode.

BLACK MIDI-CV

SAFETY INSTRUCTIONS

DISPOSAL

Please follow the instructions for use of this

Erica Synths module below, ‘cause only this

will guarantee proper operation of the module

and ensure warranty from Erica Synths.

Water is lethal for most of the electric devices,

unless they are made waterproof. Erica

Synths module is NOT intended for use in

a humid or wet environment. No liquids or

other conducting substances must get into

the module. Should this happen, the module

should be disconnected from mains power

immediately, dried, examined and cleaned by

a qualiﬁed technician.

Do not expose the module to temperatures

above +50° C or below ‑20° C.

Transport the instrument with modules

installed carefully, never let it drop or fall over.

Warranty does not apply to modules with

visual damages.

The module has to be shipped in the original

packaging only. Any module shipped to us

for return, exchange and/or warranty repair

has to be in its original packaging. All other

deliveries will be rejected and returned to you.

Make sure you keep the original packaging

and technical documentation.

You will ﬁnd Erica Synths terms of warranty at

http://ericasynths.lv/en/terms/

Items for return, exchange and/or warranty

repair have to be sent to: Erica Synths,

Andrejostas Str.12, Riga, Latvia, LV‑1045

This device complies to the EU guidelines and is

manufactured RoHS conforming without use of

led, mercury, cadmium and chrome.

Nevertheless, this device is special waste and

disposal in household waste is not

recommended.

Designed and made in Latvia.

User manual by Girts Ozolins@Erica Synths.

Design by Baiba Stelle.

Copying, distribution or any commercial use in

any way is prohibited and needs the written

permission by Erica Synths.

Speciﬁcations are subject to change without

notice.

In case of any questions feel free to contact us

via e‑mail info@ericasynths.lv

Check out other Erica Synths modules & devices

at www.ericasynths.lv
