BLACK OUTPUT

PAN MASTERIN LEVEL

PHONES

OUT L

OUT R

IN4 L

PAN

IN1 IN2 IN3 IN4 R

THANK YOU FOR PURCHASING

ERICA SYNTHS BLACK SERIES

MODULE!

These are high-end modules with

unique functionality. Only the highest

quality components are used and

all inputs and outputs are protected

against undesired overvoltage.

When designing the Black Series,

we did not economise on the

module width, we put design and

usability ﬁrst. Big knobs are assigned

to functions that make dierence

in sound. The Erica Black series are

a range of modules that together

make an entire synthesizer.

Enjoy!

The Erica Black Output Module

is a high quality output mixer and

stereo panner with balanced

outputs and headphone

ampliﬁer for monitoring your

modular masterpieces. All inputs

are buered, we use stereo

potentiometers (found in high

quality studio mixers) for panning,

IN4 is stereo input with simultaneous

level adjustment for both channels,

IN3 has a CV controlled autopan

function. You will ﬁnd 6.3mm jack

for the balanced outputs and

headphones.

SPECS:

Input level ...............................-10V - +10V

Pan CV input level..................-10V - +10V

Phone amp out power................100mW

Power consumption......+52mA, -43mA

Module width...................................14HP

Module depth................................35mm

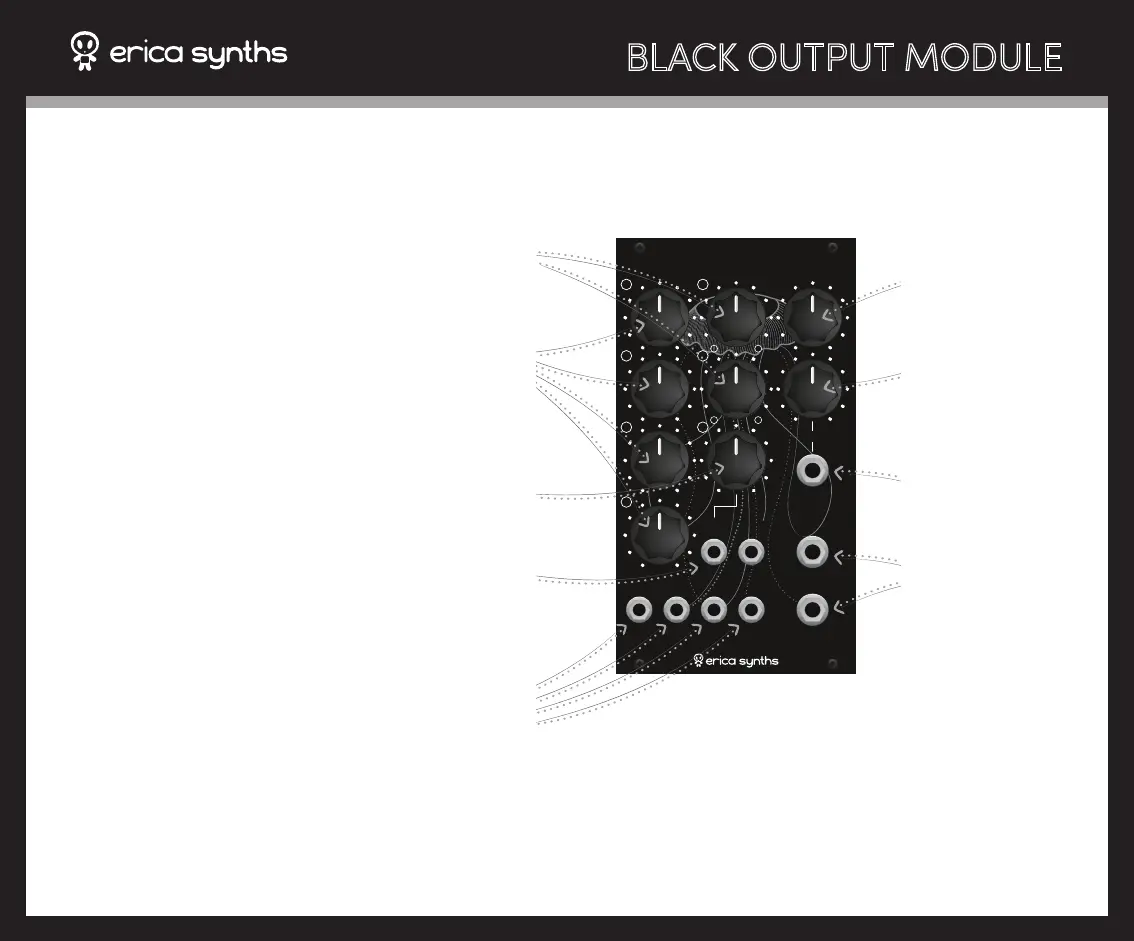

These knobs are

for manual stereo

panning for INPUT1

and INPUT2. Adjust the master output

level.

Adjust the phones

volume independently

from master level.

Plug monitor

headphones with

6.3mm jack here!

These are balanced

outputs for Left

and Right stereo

channels.

These knobs adjust

input signal level.

INPUT3 has CV

controlled autopan

option, and this knobs

attenuates panning

CV level.

Patch audio signals from

four dierent audio sources

here! INPUT4 is stereo

input, and if you patch only

Left channel, the signal is

automatically routed to the

Right channel

Apply INPUT3 panning

CV here!

BLACK OUTPUT MODULE

SAFETY INSTRUCTIONS

DISPOSAL

Please follow the instructions for use of this

Erica Synths module below, ‘cause only this

will guarantee proper operation of the module

and ensure warranty from Erica Synths.

Water is lethal for most of the electric devices,

unless they are made waterproof. Erica

Synths module is NOT intended for use in

a humid or wet environment. No liquids or

other conducting substances must get into

the module. Should this happen, the module

should be disconnected from mains power

immediately, dried, examined and cleaned by

a qualiﬁed technician.

Do not expose the module to temperatures

above +50° C or below -20° C.

Transport the instrument with modules

installed carefully, never let it drop or fall over.

Warranty does not apply to modules with

visual damages.

The module has to be shipped in the original

packaging only. Any module shipped to us

for return, exchange and/or warranty repair

has to be in its original packaging. All other

deliveries will be rejected and returned to you.

Make sure you keep the original packaging

and technical documentation.

You will ﬁnd Erica Synths terms of warranty at

http://ericasynths.lv/en/terms/

Items for return, exchange and/or warranty

repair have to be sent to: Erica Synths,

Andrejostas Str.12, Riga, Latvia, LV-1045

This device complies to the EU guidelines and is

manufactured RoHS conforming without use of

led, mercury, cadmium and chrome.

Nevertheless, this device is special waste and

disposal in household waste is not

recommended.

Designed and made in Latvia.

User manual by Girts Ozolins@Erica Synths.

Design by Baiba Stelle.

Copying, distribution or any commercial use in

any way is prohibited and needs the written

permission by Erica Synths.

Speciﬁcations are subject to change without

notice.

In case of any questions feel free to contact us

via e-mail info@ericasynths.lv

Check out other Erica Synths modules & devices

at www.ericasynths.lv

BLACK OUTPUT MODULE
