Side 1/2
IN4 RIN3 RIN2 RIN1 R
IN4 LIN3 LIN2 LIN1 L
OUT ROUT L
LEVEL2LEVEL1
LEVEL4LEVEL3
M
+
6
0
M
+
6
0

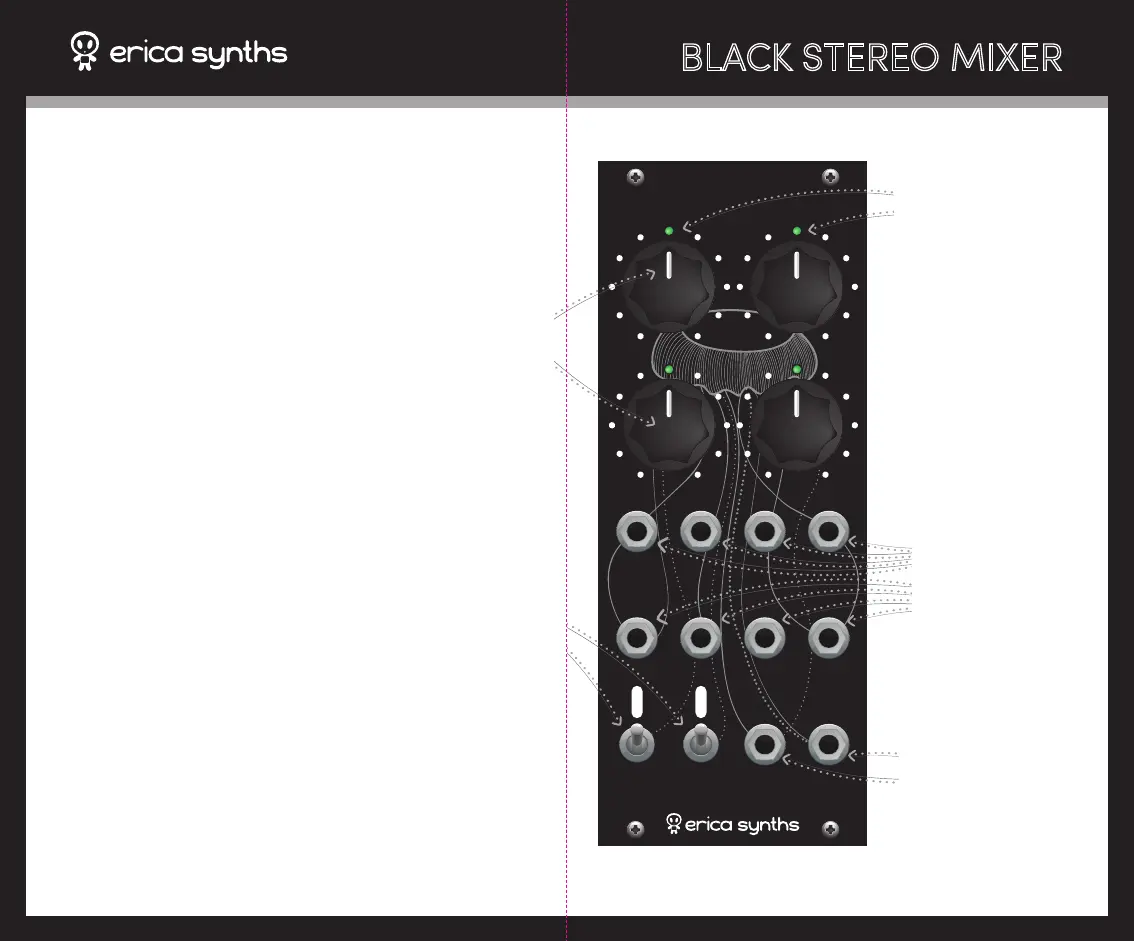

BLACK STEREO MIXER
THANK YOU FOR CHOOSING ERICA
SYNTHS BLACK SERIES MODULE!
Erica Black Series include high-end,
unique functionality and superior
quality modules. Only the best, highest
quality components are used, all inputs
and outputs are protected against
undesired overvoltage. Erica Black
series consist of range of modules
that are needed to put together entire
synth. Enjoy!
Erica Black Stereo Mixer is just what
you need, if your setup has several
nowadays gaining popularity modules
with stereo inputs or outputs, like
Black Hole DSP, Erica Fusion Delay, MI
Clouds or some other. In order to save
rack space, we designed compact
mixer with lot of cool, performance
oriented features.
FEATURES:
4x stereo inputs with simultaneous
volume adjustment on both channels
2 inputs with L and R channel merge
feature
Selectable +6dB boost for IN1 and IN2
L and R outputs
Signal level LEDs
TECHNICAL SPECIFICATIONS:
Input signal amplitude ......up to 20Vptp
Pan CV amplitude 20Vptp ........................
Mixer gain 1 ...............................................
Power consumption +25mA, -15mA .......
Module width ...................................10HP
Module depth 25mm ...............................
Set desired signal
level for each mixer
channel! Note that
these are stereo
potentiometers
and L and R
channels are altered
simultaneously
Small LEDs indicate
signal level in each
mixer channel. LED
is full on if the signal
level is 6Vptp
These are
L and R inputs
for mixer
channels
In M position these
switches merge L and
R channels for IN1 and
IN2 correspondingly.
This is very useful, if
you wish to mix two
drums at the same
level for left and
right output or, for
example, main output
and suboscillator
output on Back
Wavetable VCO. In +6
position L and R levels
are boosted for +6dB
Guess what! These
are Left and Right
outputs! You can
patch those into
the output module
on your modular or
directly in
BLACK STEREO MIXER
SAFETY INSTRUCTIONS
DISPOSAL
Please follow the instructions for use of this
Erica Synths module below, ‘cause only this
will guarantee proper operation of the module
and ensure warranty from Erica Synths.
Water is lethal for most of the electric devices,
unless they are made waterproof. Erica
Synths module is NOT intended for use in
a humid or wet environment. No liquids or
other conducting substances must get into
the module. Should this happen, the module
should be disconnected from mains power
immediately, dried, examined and cleaned by
a qualified technician.
Do not expose the module to temperatures
above +50° C or below -20° C.
Transport the instrument with modules
installed carefully, never let it drop or fall over.
Warranty does not apply to modules with
visual damages.
The module has to be shipped in the original
packaging only. Any module shipped to us
for return, exchange and/or warranty repair
has to be in its original packaging. All other
deliveries will be rejected and returned to you.
Make sure you keep the original packaging
and technical documentation.
You will find Erica Synths terms of warranty at
http://ericasynths.lv/en/terms/
Items for return, exchange and/or warranty
repair have to be sent to: Erica Synths,
Andrejostas Str.43, Riga, Latvia, LV-1045
This device complies to the EU guidelines and is
manufactured RoHS conforming without use of
led, mercury, cadmium and chrome.
Nevertheless, this device is special waste and
disposal in household waste is not
recommended.
Designed and made in Latvia.
User manual by Girts Ozolins@Erica Synths.
Design by Edmunds Pavlovskis.
Copying, distribution or any commercial use in
any way is prohibited and needs the written
permission by Erica Synths.
Specifications are subject to change without
notice.
In case of any questions feel free to contact us
via e-mail info@ericasynths.lv
Check out other Erica Synths modules & devices
at www.ericasynths.lv
BLACK STEREO MIXER
