THANK YOU FOR PURCHASING

ERICA SYNTHS MODULE!

Erica Black Series include high-end,

unique functionality and superior quality

modules. Only the best, highest quality

components are used, all inputs and

outputs are protected against undesired

overvoltage. Erica Black series consist of

range of modules that are needed to put

together entire synth. Enjoy!

Erica Black VC Clock is a beating

heart of your modular system. The

module generates several clock signals

simultaneously and has advanced

features (tap tempo, shue, divide) both

for controlled, rhythmic music production

and for experiments with high level of

uncertainty. You may ﬁnd interesting

adjustable and even random duty circle

of shuing and random clock outputs.

Bonus feature – the module can be used

as a performance time stopwatch.

FEATURES:

Manually and CV adjustable BPM

Clock division and multiplication

External clock input

3 digit BPM indicator

Manually and CV controllable shue

amount

Manual and programmable sequencer

reset output

Sequencer reset output

Adjustable duty circle of shuing and

random clock

Performance time stopwatch

TECHNICAL SPECIFICATIONS:

Max input level ..........................-10V - +10V

Clock signal level ............................. 0 - +5V

Clock rate .............................. 30 – 400BPM

CV input level (full sweep) .......... -5V - +5V

Power consumption .............. 40mA@+12V,

5mA@-12V

Module width ....................................... 10HP

Module depth ....................................25mm

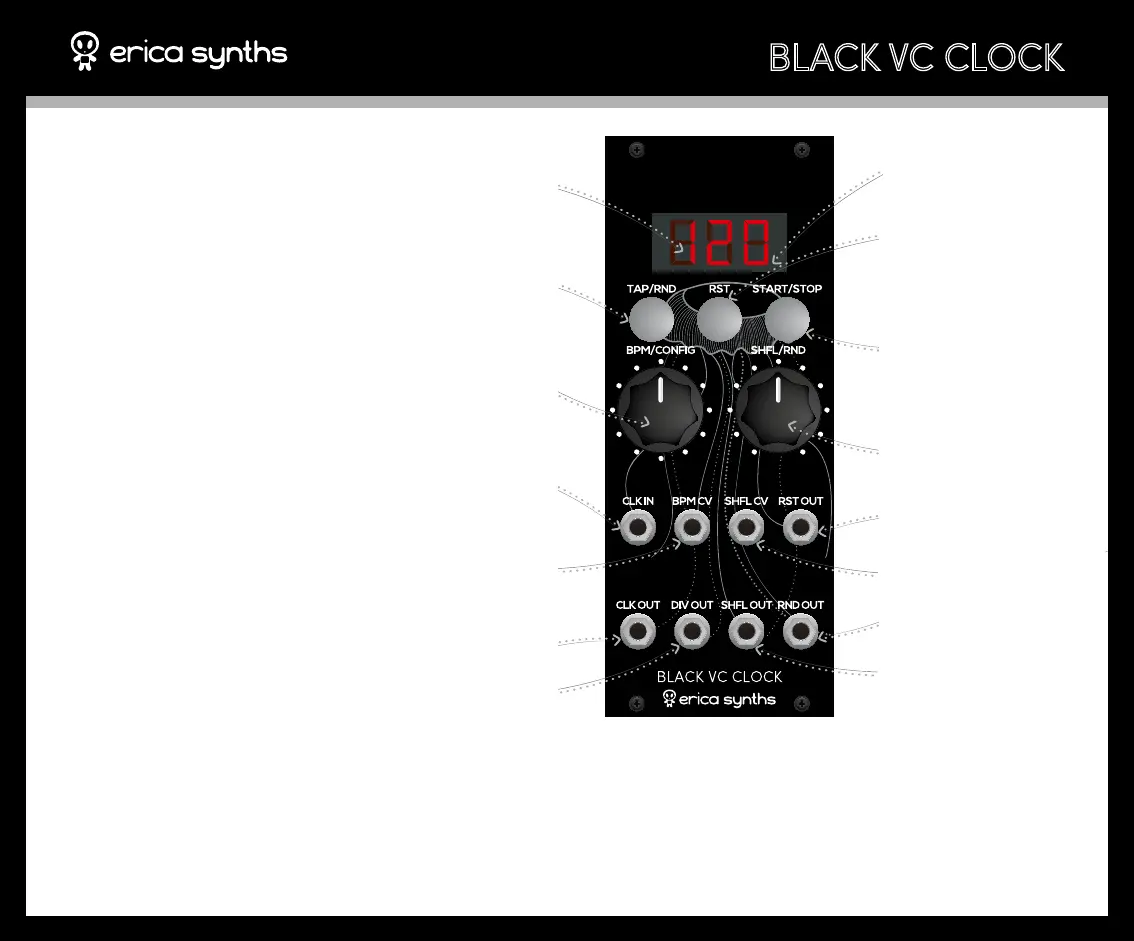

7 segment LED indicators show BPM

of Clock Out

Use Tap tempo button to set BPM.

Push and hold TAP button and rotate

SHFL/RND potentiometer to set clock

output probability on RND OUT

Pushing RST button sends high pulse

on RST output. Use it to reset your

sequencer!

This is sequencer reset output. Each

time the RST button is pushed, high

signal appears here to reset the

sequencer

You can Start and Stop the clock on

the output buy pressing this button.

Stopping the clock will not send

RST signal. Push and hold this knob

to activate the Performance Time

Stopwatch. See it’s functionality

description below!

Small dot next to the last digit gives

visual indication of clock rate

Adjust shue level from 0 CCW to

extreme 90% CW

This is shue CV input

Random clock generates random

clock pulses, relative frequency of

which is set by BPM. You also can

adjust output pulse duty circle

Here’s shuing clock output. Use

it for more human feel of rhythm.

Shuing clock can be multiplied by

rate set by the encoder. You also can

adjust output pulse duty circle

Use encoder to set BPM manually!

Click the encoder to access the

conﬁguration menu. Refer to the

table below for conﬁguration settings.

Rotate the encoder to select desired

setting. Push the encoder to conﬁrm

it, and return to the main menu. when

all settings are completed push RST

button to exit CONFIG menu OR

module will exit it automatically in 3”

Click and hold the encoder and save

your default device setting!

You also may want to alter an

external clock. When external clock is

applied, LED indicators show external

clock rate

Clock rate is CV controlled – apply

any CV here to alter clock rate! LED

indicators will show BPM set by

encoder and will not follow clock

changes

This is output of the regular clock.

BPM is indicated on LED indicators

Here you get divided or multiplied

clock

BLACK VC CLOCK

Indicator

screen

Setting/conﬁguration

DIV Select clock division or multiplication rate for DIV OUT. Available values are /2, /3, /4, /8, x2, x4, x8

SHD Select clock multiplication rate for SHFL OUT. Available values are x2, x4, x8

RND Select clock division or multiplication rate for RND OUT. Available values are /2, /3, /4, /8, x2, x4, x8

RST Conﬁgure RESET feature. The module send reset signal to the sequencer, and it can be sent manually (push RST button any time you wish

to reset the sequencer) or it can send reset signals after certain amount of clock pulses. Available settings are MAN (manual only reset), 16,

32, 48, 64

SHG Adjust clock duty circle for SHFL OUT output pulse. Available settings are from 10 – 90% and random. Default setting is 50%

RNG Adjust clock duty circle for RND OUT output pulse. Available settings are from 10 – 90% and random. Default setting is 50%

PTS Activate or deactivate Performance Time Stopwatch. Performance Time Stopwatch (PTS) allows you to monitor timing of your modular

performances. If PTS is activated, after 5 seconds BPM indicator will change to timer screen that indicates minutes (two digits) passed

from the moment START/STOP button is pushed and module starts to output a clock signal. Pushing START/STOP button will pause the

stopwatch, pushing RST button will reset it.
