THANK YOU FOR ORDERING

ERICA FUSION MODULATOR!

The Erica Synths Fusion series

modules are designed combining

vacuum tubes and semiconductors

therefore they bring warm, powerful

sound and overdrive possibilities of

vacuum tubes into your modular

system. Erica Fusion series consist of

range of modules used in sound

shaping circuit – two types of VCO,

Mixer, real Ringmodulator using audio

transformers and germanium diode

ring, VCF, VCA, Analogue Delay/-

Flanger, Palsma Drive and others. Also

Erica Fusion Systems are available.

Fusion Modulator is complex, all

analogue modulation source with lots

of distinct features. It consists of

several blocks – two EMS Synthi

functionality inspired looping envelope

generators with simultaneous

unipolar (0V-10V) and bipolar

(-5V-+5V), VCA, Noise generator and

Sample&Hold. This makes Fusion

Modulator a versatile modulation

source for advanced modular setups,

especially drone music oriented ones.

Set lopping envelope generators to

high frequencies and have two sub

bass sound sources, use VCA to

control the amplitude of the envelope

signal, modulate the decay time by

random voltages from S&H circuit

and get ever evolving sonic

awesomeness!

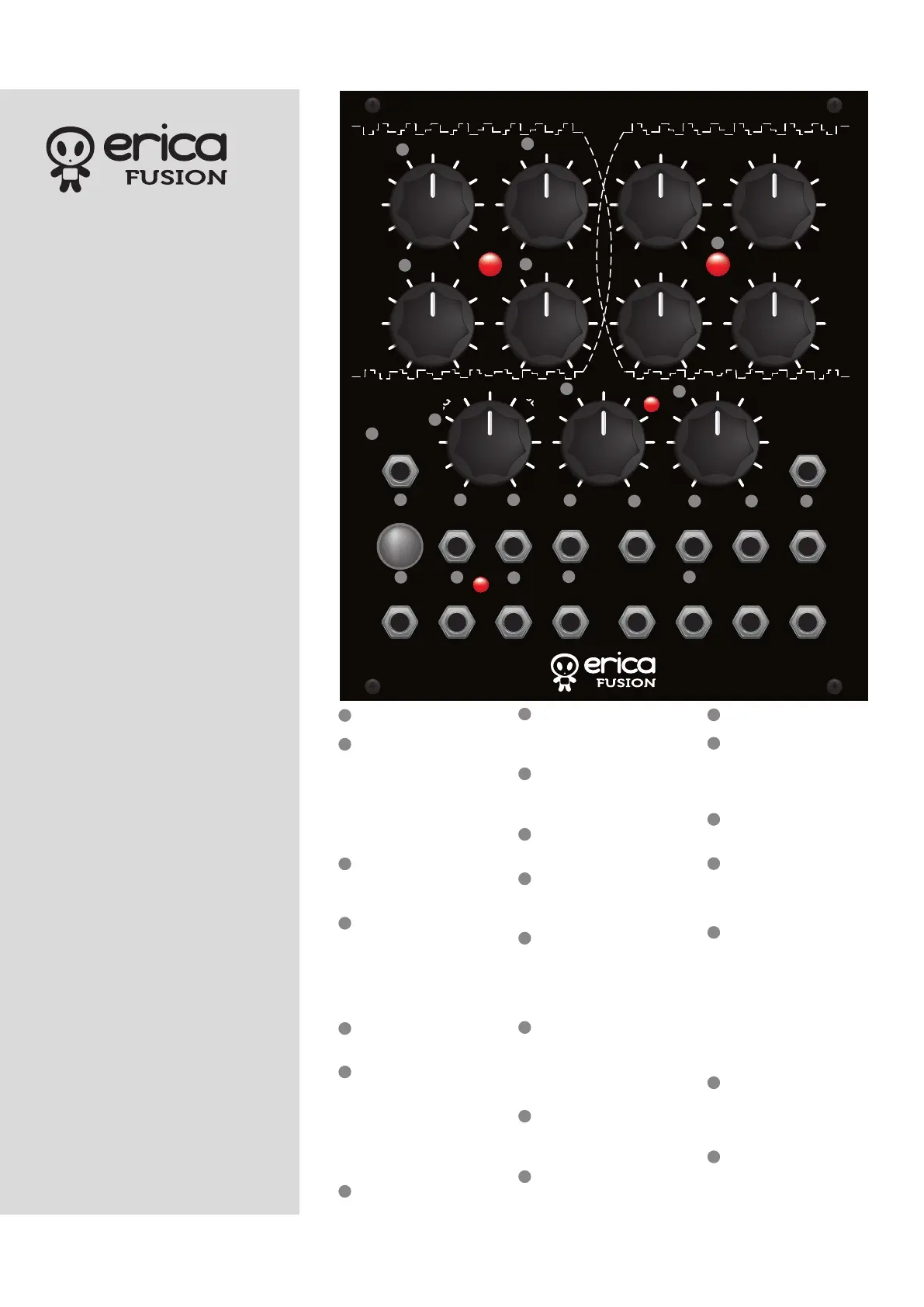

GATE 1 GATE 2 S&H+BP BP2 EG OUT 2EOC BP 1 EG OUT 1

VCA OUT NOISE OUT CLK IN CV IN S&H OUTMANUAL VCA IN VCA CV

DEC CV2DEC CV1

FUSION MODULATOR

1617

7 88 910

Set the desired attack time!

This is very specific looping envelope

generator – you can adjust attack

and decay time like on regular

looping EGs, as well as ON time and

OFF time, which simulate gate on

and off. Please, refer to the

envelope shape diagram below!

Adjust the Decay time manually! The

Decay time is also CV controlled, and

the CV is added to the knob setting.

Adjust the OFF time! If you wish to

use the envelope generator with

external gates only, set the OFF knob

to rightmost position and the looping

will stop! The large LED gives visual

feedback on the envelope status

This is the Decay CV input. The CV

is added to the knob setting

This is the Manual Gate button, it

sets the ON stage of the envelope

high. When released, envelope will

continue looping, unless the loop is

off (OFF knob at 5PM). The manual

button has an effect on the left

envelope generator only

This is an external Gate input. It

works the same as manual button.

This is End Of Cycle output – it outputs

+5V signal when the envelope is in OFF

stage

This is bipolar (-5V - +5V) envelope

output, meaning, you can use the

envelope generator as the LFO

This is the unipolar (0- +10V) envelope

output

Most of controls on the right side

of the module are identical to the

left one

The module has built-in VCA for both

CV and audio processing. Use EG

LVL/VCA OFFSET knob to adjust VCA

CV offset, essentially VCA output

level!

Adjust the internal S&H clock rate! If

an external clock is connected, it

automatically disconnects the internal

one. The LED gives visual feedback on

the clock rate.

This is the S&H input CV attenuator. By

default it’s normaled to the internal

noise generator.

This is the white noise output. The

module has Zener diode based noise

generator that provides nice, full

spectrum white noise

This is the S&H random voltage output

This is the external CV input for S&H

circuit. The external CV automatically

disconnects the internal white noise

form the input.

This is the external S&H clock input!

Try patching the EOC signal here!

This is super-random CV output – a

sum of bipolar envelope generator

output and S&H output

This is the VCA input; it accepts both

audio and CV signals. The input is

normaled to the bipolar output of the

left envelope generator, so you can

use the EG LVL knob to control the LFO

(bipolar envelope generator output)

signal level manually and VCA CV input

to control the LFO level via CV

This is VCA CV input, it’s added to the

CV is added to the VCA offset knob

setting

This is the VCA output. If nothing is

patched into VCA IN, you will get the

LFO signal with adjustable amplitude

here.

20 21 22

FEATURES:

Full analogue design

Two lopping envelope generators with Attack, On, Decay and Off time control

CV control over Decay time

Simultaneous unipolar (0V-10V) and bipolar (-5V - +5V) envelope outputs

Manual trigger button

End of Cycle output

VCA with the offset control

Zener diode based white noise source

Sample&Hold circuit with internal and external clock source

TECHNICAL SPECIFICATIONS:

Attack time 6ms – 850ms

On time 0-1,5s

Decay time 16ms – 2s

Off time 14ms – 1,3s

Sustain level +10V

Panel width 22HP

Module depth: 36mm

Power consumption 125mA@+12V, 74mA@-12V

ATTACK DECAY

OFFON

U(V)

t(s)

You will nd Erica Synths terms of warranty at www.ericasynths.lvﬁ

Items for return, exchange and/or warranty repair have to be sent to:

Erica Synths

Andrejostas Str. 43

Riga

Latvia

LV-1045

User manual by Girts Ozolins@Erica Synths.

Design by Ineta Briede@Black8.

Copying, distribution or any commercial use in any way is prohibited and needs the

written permission by Erica Synths.

Speciﬁcations are subject to change without notice.In case of any questions, feel

free to contact us through www.ericasynths.lv.

SAFETY INSTRUCTIONS

Please follow the instructions for use of the Erica Synths module below, ‘cause only this will guarantee proper operation of the module

and ensure warranty from Erica Synths.

The module has to be shipped in the original packaging

only. Any module shipped to us for return, exchange and/or warranty repair has to

be in its original packaging. All other deliveries will be rejected and returned to you.

Make sure you keep the original packaging and technical documentation.

This device complies to the EU guidelines and is manufactured RoHS conforming

without use of lead, mercury, cadmium and chrome. Nevertheless, this device is

special waste and disposal in household waste is not recommended.

Transport the instrument carefully, never let it drop or fall over. Warranty does

not apply to modules with visual damages.

Water is lethal for most of the electric devices, unless they are made waterproof.

This Erica Synths module is NOT intended for use in a humid or wet environment. No

liquids or other conducting substances must get into the module. Should this

happen, the module should be disconnected from mains power immediately, dried,

examined and cleaned by a quali ed technician. ﬁ

Do not expose the module to temperatures above +50° C or below -20° C. If you have

transported module in extreme low temperatures, leave it in room temperature for an

hour before plugging it in.

FUSION MODULATOR ENVELOPE SHAPE
