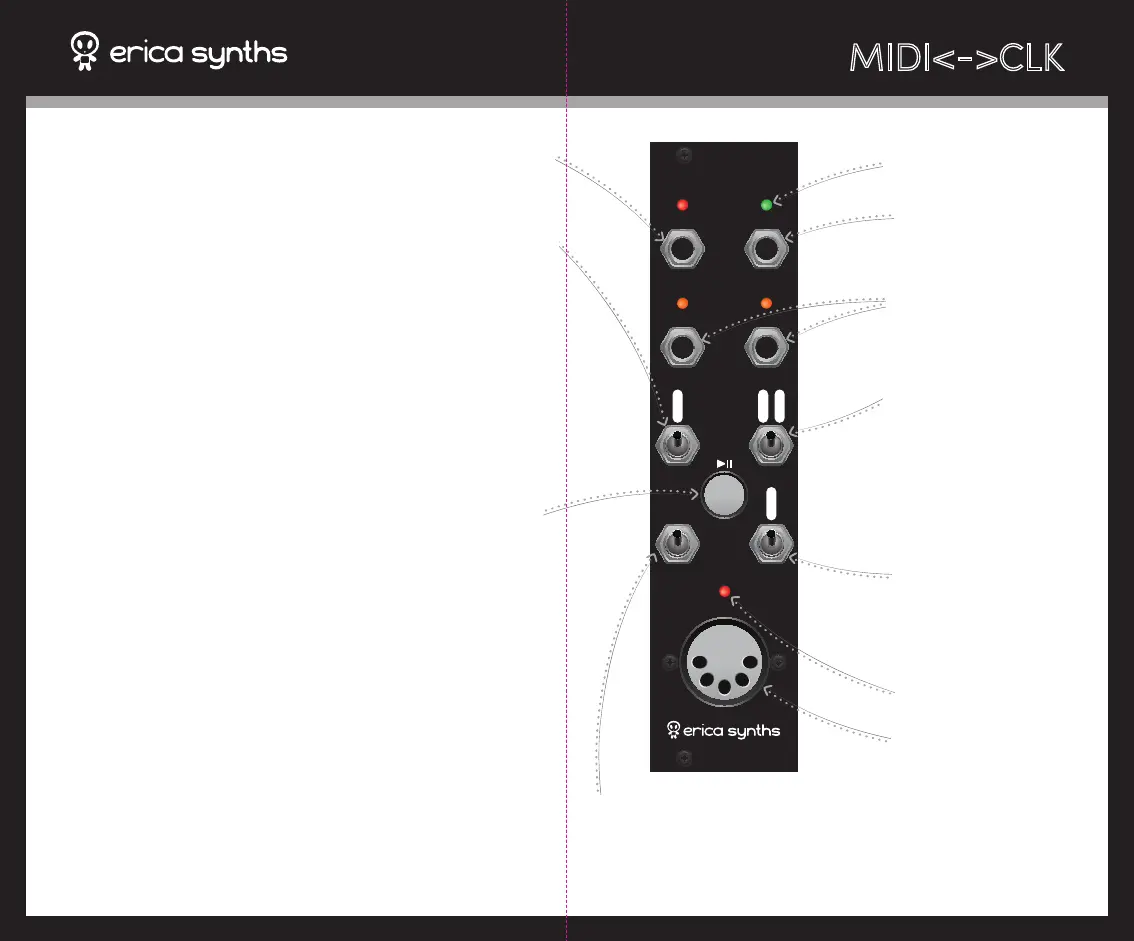

MIDI<->CLK

CLK IN/OUT DIV

MULT 1 MULT 2

PPQ

MULTDIV

MIDI OUT

MIDI IN

Thank you for purchasing

Erica Synths MIDI <-> Clock module!

This is essential module, if you wish

to sync your modular system to

MIDI devices. What sets Erica Synths

MIDI <-> Clock module apart form

others is that it works BOTH WAYS –

it derives analogue clock from MIDI

messages AND, ﬂip a switch, and you

can turn incoming analogue clock

to MIDI clock and sync your MIDI

devices to your modular. For more

versatility the module can be used

with several incoming clock PPQs,

plus, divisions and multiplications

of incoming clock are available

straight away.

FEATURES:

Bidirectional MIDI to clock conversion

1, 4 and 24 PPQ selection

Division by 2, 4, 8

Multiplication by 4, 6, 16

Two simultaneous multiplied clock

outputs

Start/Stop button

MIDI start/stop message

implementation

Incoming/outgoing clock LEDs

TECHNICAL SPECIFICATIONS:

Clock signal level 0 - +5V ......................

CLK signal duty circle ................... 50%

Power consumption ..............................

.......................25mA@+12V, 0mA@-12V

Module width ................................ 6HP

Module depth ............................ 20mm

This in input of the clock in MIDI

OUT mode and output of the

clock in MIDI IN mode.

NB! Do not plug clock signal

here in MIDI IN mode! It’s clock

output now!

LEDs indicate clock rate for each

of clock outputs

These are outputs of multiplied

clock. Multiplication rate is 2, 4,

8 for MULT1 output and 4, 8, 16

for MULT2 output

Select division rate for DIV output!

Note that division is done on

BPM basis

This is output of the divided

clock

This is MIDI activity LED

Connect your MIDI controller

here!

Select multiplication rate for

both MULT1 and MULT2 outputs!

Note that multiplication is done

on BPM basis

This button activates outgoing

clock, in case MIDI device doesn’t

send MIDI start/stop messages.

If the module is in MIDI IN mode:

*The module will start to output

clock signal automatically with

MIDI STRAT message

*Push the button promptly to stop

the clock output to all outputs

on the module, even if the MIDI

controller is running

*Push the button promptly to

resume clock output instantly

*Push the button for 1,5” to resume

clock output in the moment, when

MIDI sequence is on the ﬁrst step

of the sequence

If the module is in MIDI OUT

mode:

*With a clock signal plugged

in CLK IN/OUT, push the button

promptly, and the module will

send MIDI START message and

start to output MIDI clock

*When clock is running, push the

button promptly and the module

will send MIDI STOP message and

a MIDI device (eg. sequencer) will

stop on the current step

*To resume the sequence, push

the button promptly, and the

module will send MIDI CONTINUE

message

*To reset the sequence and start

it from beginning, push and hold

the button for 1,5”, and the module

will send MIDI START message.

In MIDI OUT mode we can’t

output correct 24PPQ MIDI

clock starting form the ﬁrst click,

because we do not know the

period of the incoming clock, yet.

Therefore we need manual start.

Select clock conversion mode!

If you input MIDI CLOCK, set the switch to MIDI IN position, and you will get analogue

clock on CLK IN/OUT jack and divided or multiplied clock on all other jacks. Clock will

appear on the output only, if MIDI Start message will be present.

If you input ANALOGUE CLOCK to CLK IN/OUT jack and want to output MIDI clock, set

the switch to MIDI OUT position! DIV and MULT outputs will as incoming clock dividers or

multipliers.

Depending on direction, this

switch select desired PPQ

of the clock.

If you convert MIDI clock to

analogue clock, you can select

PPQ of outgoing clock. To clock

most of sequencers, select 4PPQ!

If you convert analogue clock

to MIDI clock, you need to

set incoming clock division in

order to get correct 24PPQ

MIDI clock. If you input clock

that corresponds to BPM clicks,

select 1, if you input clock from the

sequencer, select 4.

MIDI<->CLK

SAFETY INSTRUCTIONS

DISPOSAL

Please follow the instructions for use of this

Erica Synths module below, ‘cause only this

will guarantee proper operation of the module

and ensure warranty from Erica Synths.

Water is lethal for most of the electric devices,

unless they are made waterproof. Erica

Synths module is NOT intended for use in

a humid or wet environment. No liquids or

other conducting substances must get into

the module. Should this happen, the module

should be disconnected from mains power

immediately, dried, examined and cleaned by

a qualiﬁed technician.

Do not expose the module to temperatures

above +50° C or below -20° C.

Transport the instrument with modules

installed carefully, never let it drop or fall over.

Warranty does not apply to modules with

visual damages.

The module has to be shipped in the original

packaging only. Any module shipped to us

for return, exchange and/or warranty repair

has to be in its original packaging. All other

deliveries will be rejected and returned to you.

Make sure you keep the original packaging

and technical documentation.

You will ﬁnd Erica Synths terms of warranty at

http://ericasynths.lv/en/terms/

Items for return, exchange and/or warranty

repair have to be sent to: Erica Synths,

Andrejostas Str.12, Riga, Latvia, LV-1045

This device complies to the EU guidelines and is

manufactured RoHS conforming without use of

led, mercury, cadmium and chrome.

Nevertheless, this device is special waste and

disposal in household waste is not

recommended.

Designed and made in Latvia.

User manual by Girts Ozolins@Erica Synths.

Design by Baiba Stelle.

Copying, distribution or any commercial use in

any way is prohibited and needs the written

permission by Erica Synths.

Speciﬁcations are subject to change without

notice.

In case of any questions feel free to contact us

via e-mail info@ericasynths.lv

Check out other Erica Synths modules & devices

at www.ericasynths.lv
