EtherWAN EX17908A Manual

EtherWAN bryter EX17908A

Læs gratis den danske manual til EtherWAN EX17908A (2 sider) i kategorien bryter. Denne vejledning er vurderet som hjælpsom af 5 personer og har en gennemsnitlig bedømmelse på 4.2 stjerner ud af 3 anmeldelser. Har du et spørgsmål om EtherWAN EX17908A, eller vil du spørge andre brugere om produktet?

Download PDF

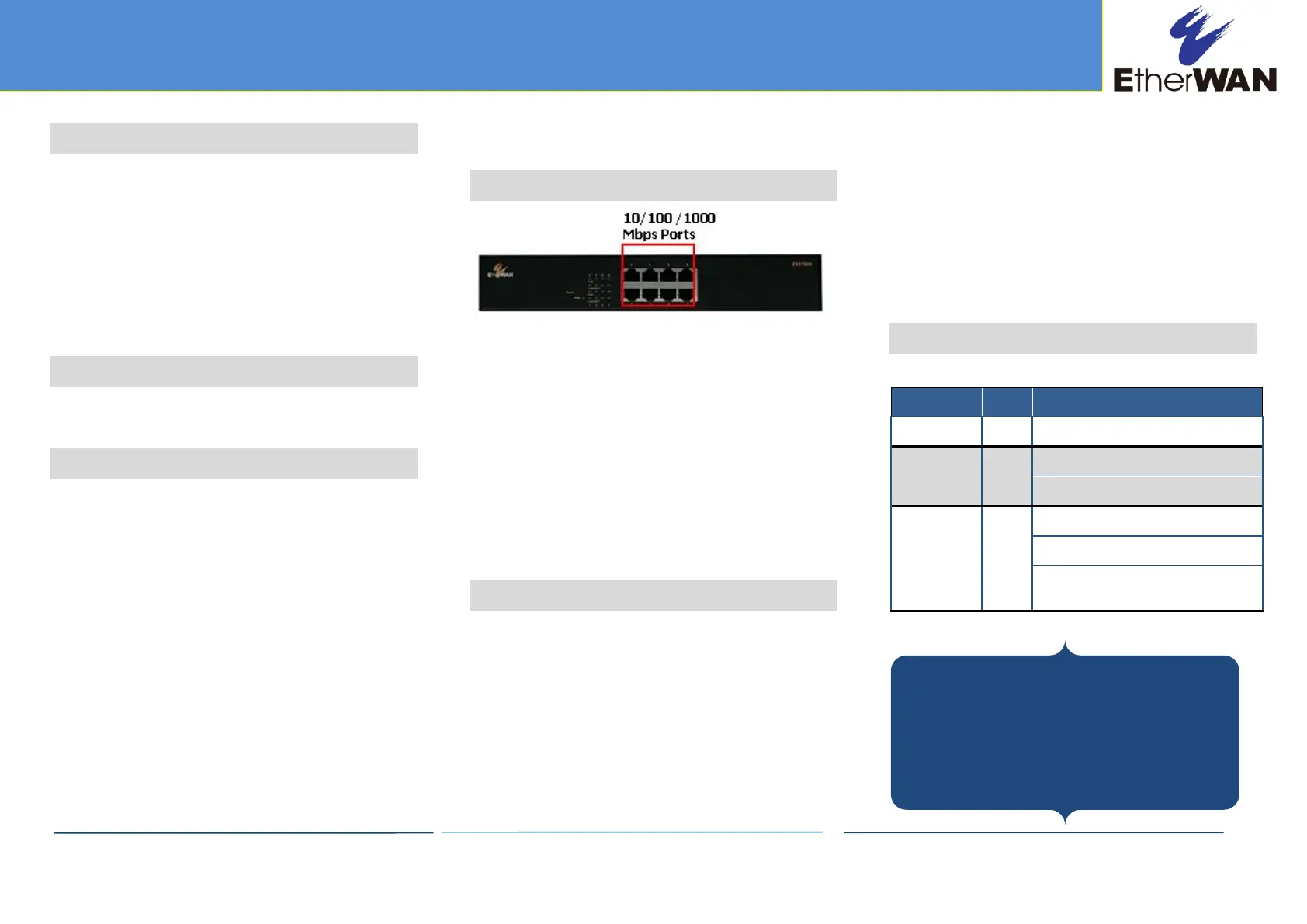

Side 1/2

EX17908A

02/25/2020

W70G-E17908AQ2

1 Unpacking

Unpack the items. Your package should include:

 One EX17908A unmanaged switch

 One external power adapter

 One CD containing this user’s guide

If items are missing or damaged, notify your

EtherWAN representative. Keep the carton and

packing material.

2 What Else You Need

 Category 5 or better Ethernet cables

3 Select a Location

 Desktop installations: Mount on a flat table

or shelf surface.

 Rack installations: Use a 19-inch (48.3-

centimeter) EIA standard equipment rack

that is grounded and physically secure.

 Identify a power source within 6 feet (1.8

meters).

 Choose a dry area with ambient temperature

between 0 and 40ºC (32 and 104ºF).

 Do not cover fans on the rear and side.

 Keep away from heat sources, sunlight, warm

air exhausts, hot-air vents, and heaters.

 Be sure there is adequate airflow.

 Keep the switch at least 6 ft (1.83 m) away

from the nearest source of electromagnetic

noise, such as a photocopy machine.

4 Connect to the Data Ports

The switch provides eight 10/100/1000 Mbps RJ-

45 ports that can connect to Power over

Ethernet (PoE) devices, such as an IP surveillance

camera or a Voice Over Internet Protocol (VoIP)

phone.

A. Insert one end of a Category 5 or better

Ethernet cable into a switch port.

B. Connect the other end into the Ethernet port

of the device.

C. Repeat steps A and B for each additional

device you want to connect to the switch.

5 Apply AC Power

A. Connect the female end of the supplied AC

power adapter cable to the power receptacle

on the switch rear panel. Connect the other

end to a grounded 3-pronged AC outlet.

B. On the switch rear panel, move the ON/OFF

switch to the ON position.

When you apply AC power:

 All green PoE and Link/ACT LEDs blink

momentarily.

 The fans start.

 The yellow Power LED goes ON.

 The Link/ACT LEDs for every port connected

to a device flash, as the switch conducts a

brief Power On Self-Test (POST).

6 Front Panel LEDs

LED

Color

Status

Power

Yellow

ON = switch is receiving power.

PoE

(port number)

Green

ON = Power Device (PD) is connected.

OFF = PD is disconnected.

Link/ACT

(port number)

Green

ON = valid network connection.

OFF = no data transmission on port.

Flashing = port is sending or receiving

data.

Congratulations! You have successfully

installed your switch.

EX17908A Unmanaged Switch Installation Guide
