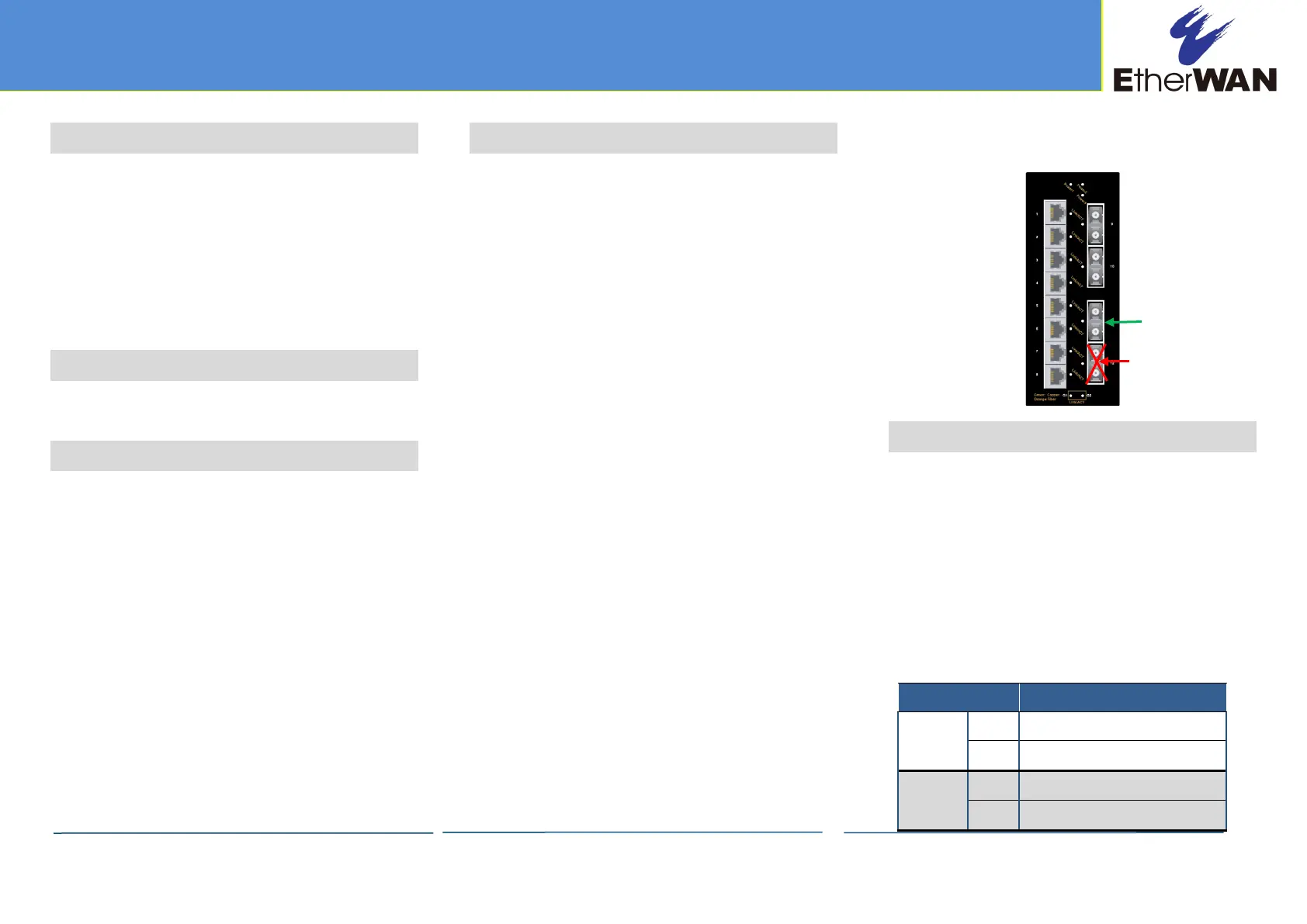

2014 EtherWAN Systems, Inc. Page 1

EX83000 rev. 1.0

12/2/2014

1 Unpacking

Unpack the items. Your package should include:

 One EX83000 Series hardened managed

switch

 Rack-mounting hardware brackets

 One CD containing this user’s guide

If items are missing or damaged, notify your

EtherWAN representative. Keep the carton and

packing material.

2 What Else You Need

 Appropriate cables for data ports

 Personal computer or laptop

3 Select a Location

 Desktop installations: Mount on a flat table

or shelf surface.

 Rack installations: Use a 19-inch (48.3-

centimeter) EIA standard equipment rack

that is grounded and physically secure.

 Identify a power source within 6 feet (1.8

meters).

 Choose a dry area with ambient temperature

between -40 and 75ºC (-40 and 167ºF).

 Keep away from heat sources, sunlight, warm

air exhausts, hot-air vents, and heaters.

 Be sure there is adequate airflow.

 Keep the switch at least 6 ft. (1.83 m) away

from the nearest source of electromagnetic

noise, such as a photocopy machine.

4 Connect to the Data Ports

Depending on the model, your switch can have

the following ports:

 8, 12, or 16 10/100Base-TX ports

 0, 1, 2, or 4 100Base-FX ports

 0, 1, or 2 Gigabit ports

10/100Base and 1000Base-FX Ports

These ports come in 10/100Base-TX/FX/BX/SFP

interfaces. You can connect these ports to

devices such as an IP surveillance camera or a

Voice Over Internet Protocol (VoIP) phone.

A. Insert one end of an appropriate cable into a

switch port.

B. Connect the other end into the Ethernet port

of the device.

C. Repeat steps A and B for each additional

device you want to connect to the switch.

Gigabit Ports

Some switch models have 10/100/1000Base-TX

ports with no Gigabit fiber ports, combo

10/100/1000Base-TX ports with 1000Base-

SX/LX/BX ports, or 1000Base-SFP with

10/100/1000Base-TX ports. You can connect

these ports to network devices such as a

computer, printer, network video recorder

(NVR), network storage, or they can connect to

the network itself.

Combo ports operate in “either/or” fashion. This

means that attaching to a 1 Gbps combo port

renders the equivalent partner combo port

unavailable. See the following example.

5 Apply DC Power

The switch has two pairs of power inputs: a 12-

48VDC terminal block and a 12VDC jack, Only

one power input is required to operate the

switch. However, redundant power supply

functionality is supported.

Terminal Block

The switch provides two power inputs on a 12-

48VDC terminal block. Only one power input is

required to operate the switch. The terminal

block has 8 terminal posts.

Pin Description

Power 2 + 12-48VDC

− Power Ground

Power 1 + 12-48VDC

− Power Ground

EX83000 Managed Switch Installation Guide

Connecting

to this port…

…makes this

port unavailable
