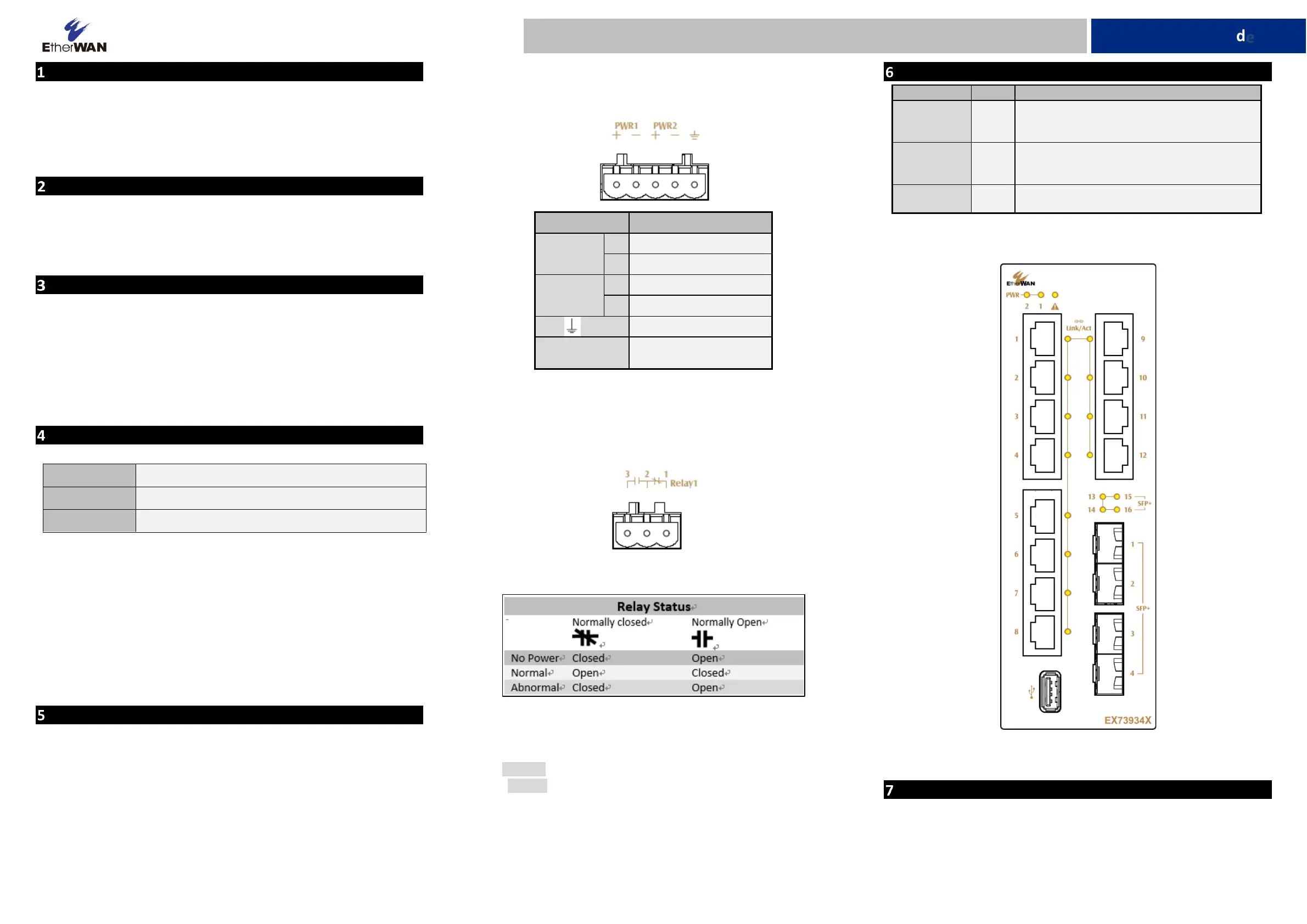

W70G-EX73900XQ2 Page 1

Installation Guide

EX73900X Series | Hardened Managed Ethernet Switch

Switch

Unpacking

Open the carton and unpack the items. Your package should include:

▪ One EX73900X hardened managed switch

▪ One RJ-45 console cable

If any items are missing or damaged, notify your EtherWAN representative. If

possible, save the carton and packing material in case you need to ship or store the

switch in the future.

What Else You Need

▪ Appropriate cables for data ports. To prevent damage to the switch from

electrical surges, it is recommended to use STP (Shielded twisted pair)

cabling.

▪ Personal computer or laptop

▪ Appropriate SFP modules for SFP ports

Select a Location

▪ Installations: DIN-Rail mount.

▪ Select a power source within 6 feet (1.8 meters).

▪ Choose a dry area with ambient temperature between -40 and 75ºC (-40

and 167ºF).

▪ For use at altitudes up to 2000 meters, indoor use only.

▪ Humidity range (Operational): 5% to 95%, non-condensation

▪ For use in Pollution 2 environment.

▪ Do not block the device ventilation holes.

Connect to the Data Ports

Depending on the model, your switch can have the following ports:

EX73934X-0VB

12-port 10/100/1000BASE-T(X) + 4-port 1G/10G SFP+

EX73924X-0VB

8-port 10/100/1000BASE-T(X) + 4-port 1G/10G SFP+

EX73922X-0VB

8-port 10/100/1000BASE-T(X) + 2-port 1G/10G SFP+

10/100/1000BASE-TX Ports

To prevent damage to the switch from electrical surges, it is recommended to use

STP (Shielded twisted pair) cabling.

1G/10G SFP Ports

SFP transceivers can be installed directly into SFP slots. Ensure that the same type

of transceiver is used at both ends of the link and that the correct type of fiber

cable is used.

Connect Power

▪ The switch has two pairs of power inputs.

▪ Only one power input is required to operate the switch. However,

redundant power supply functionality is supported.

▪ Power rating: 12-48VDC, Max. 2.13A.

▪ The power input specification complies with the requirements of SELV

(Safety Extra Low Voltage), and the power supply should comply with UL

61010-1 and UL 61010-2-201.

Terminal Block

The switch provides two power inputs on a terminal block with nominal power of

24VDC. The terminal block has 5 terminal posts.

Description

Power 1

12-48VDC

−

Power Ground

Power 2

12-48VDC

Power Ground

Earth Terminal

Relay Output

Rating

0.6A @30VDC

Relay Output Alarm

The switch provides two relay output contacts. Both Relay 1 and Relay 2 signal

actions from one of the digital inputs. The relay outputs can be connected to an

alarm signaling device. The Current is 0.6A@30VDC at Normal Open or Normal

Close.

3 Normal Open | 2 Ground | 1 Normal Close

Power-Up Sequence

When the switch is powered up:

▪ All Link/ACT LEDs blink momentarily.

▪ The Power 1 LED light goes ON.

▪ LEDs for every port connected to a device will flash, as the switch conducts a

brief Power On Self-Test (POST).

Front Panel LEDs

LED

Color

Status

Power 1 & 2

Green

On: Power on

Off: Power off

Link/Act

Green

On: Network connection established

Flashing: Port sending or receiving data

Alarm

Red

Link down or power down

Digital IO-Setting

Connecting the Digital Inputs

The pin definitions for the digital input module are shown below. Each digital input

consists of two contacts on the 5-pin connector located on the top of the switch. The

inputs can be wired as either dry or wet contacts.
