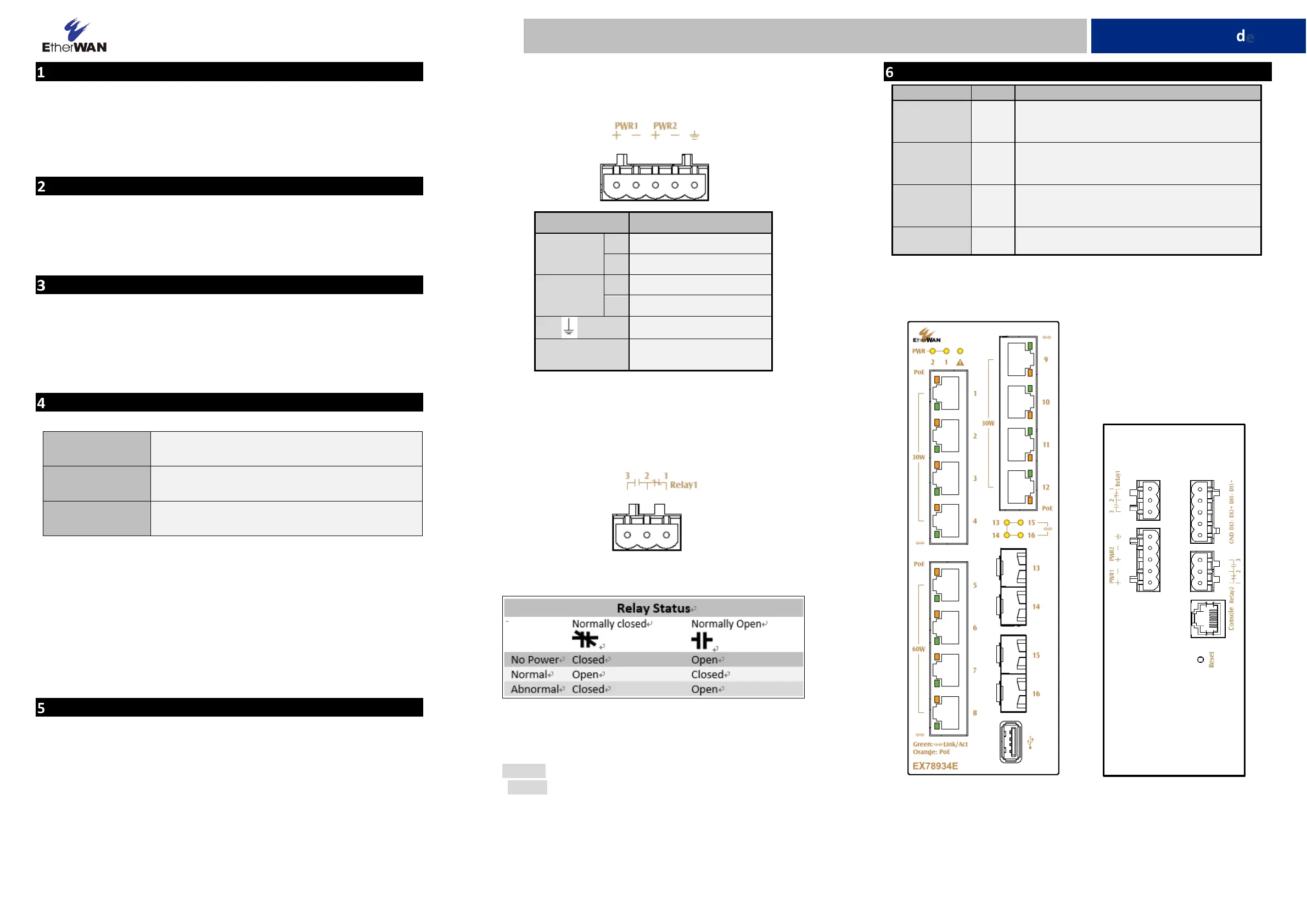

W70G-EX78900EQ4 Page 1

Installation Guide

EX78900E Series | Hardened Managed Ethernet Switch

Switch

Unpacking

Open the carton and unpack the items. Your package should include:

 One EX78900E hardened managed switch

 One RJ-45 console cable

If any items are missing or damaged, notify your EtherWAN representative. If

possible, save the carton and packing material in case you need to ship or store the

switch in the future.

What Else You Need

 Appropriate cables for data ports. To prevent damage to the switch from

electrical surges, it is recommended to use STP (Shielded twisted pair)

cabling.

 Personal computer or laptop

 Appropriate SFP modules for SFP ports

Select a Location

 Installations: DIN-Rail mount.

 Select a power source within 6 feet (1.8 meters).

 Choose a dry area with ambient temperature between -40 and 75ºC (-40

and 167ºF).

 For use at altitudes up to 2000 meters, indoor use only.

 Humidity range (Operational): 5% to 95%, non-condensation

Connect to the Data Ports

Depending on the model, your switch can have the following ports:

EX78922E-0VB

8-port 10/100/1000BASE-T (4 x 30W, 4 x 60W PoE)

2-port 100/1000M SFP

EX78924E-0VB

8-port 10/100/1000BASE-T (4 x 30W, 4 x 60W PoE)

4-port 100/1000M SFP

EX78934E-0VB

12-port 10/100/1000BASE-T (8 x 30W, 4 x 60W) PoE

4-port 100/1000M SFP

10/100/1000BASE-TX (PoE) Ports

Ports that support Power over Ethernet provide power to networked devices such

as IP Phones, Wireless LAN Access Points, and IP security cameras with a power

budget of 240 Watts.

100/1G SFP Ports

SFP transceivers can be installed directly into SFP slots. Ensure that the same type

of transceiver is used at both ends of the link and that the correct type of fiber

cable is used.

Connect Power

 The switch has two pairs of power inputs.

 Only one power input is required to operate the switch. However,

redundant power supply functionality is supported.

 Power rating: 52V/4.97A 57V/4.54A

 Note: Use qualified power supply by SELV or double insulation of UL60950

or UL61010-1 or UL61010-2-201 standards.

Terminal Block

The switch provides two power inputs on a 52-57VDC terminal block. The

terminal block has 5 terminal posts.

Description

Power 1



52-57VDC



Power Ground

Power 2



52-57VDC

Power Ground

Earth Terminal

Relay Output

Rating

0.5A @48VDC

Relay Output Alarm

The switch provides two relay output contacts. Both Relay 1 and Relay 2 signal

actions from one of the digital inputs. The relay outputs can be connected to an

alarm signaling device. The Current is 0.5A@48VDC at Normal Open or Normal

Close.

3 Normal Open | 2 Ground | 1 Normal Close

Power-Up Sequence

When the switch is powered up:

 All Link/ACT LEDs blink momentarily.

 The Power 1 LED light goes ON.

 LEDs for every port connected to a device will flash, as the switch conducts a

brief Power On Self-Test (POST).

Front Panel LEDs

LED

Color

Status

Power 1 & 2

Green

On: Power on

Off: Power off

Link/Act

Green

On: Network connection established

Flashing: Port sending or receiving data

PoE

Amber

On: Powered device is connected

Off: Powered device is disconnected

Alarm

Red

Link down or power down

Front View Top View
