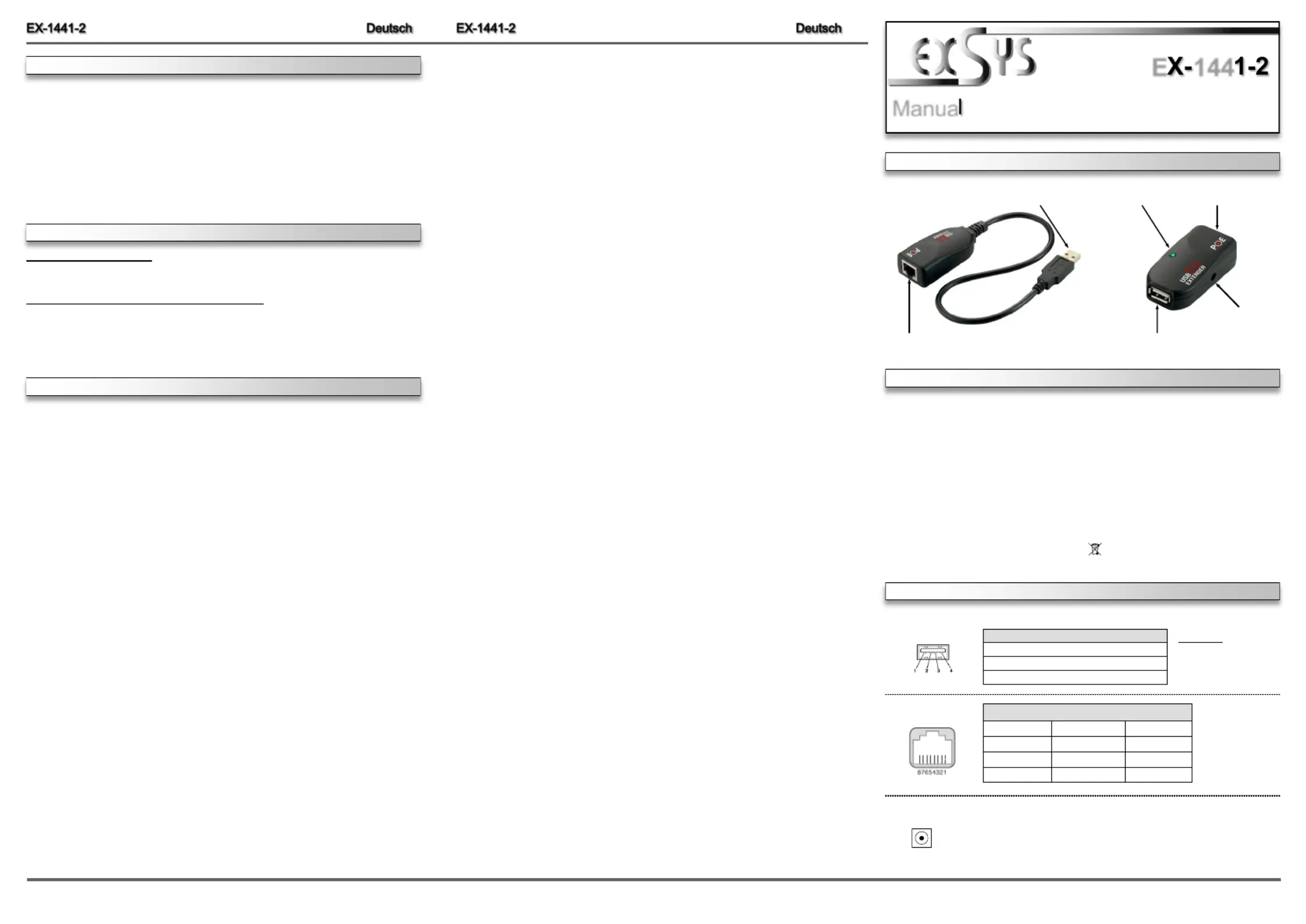

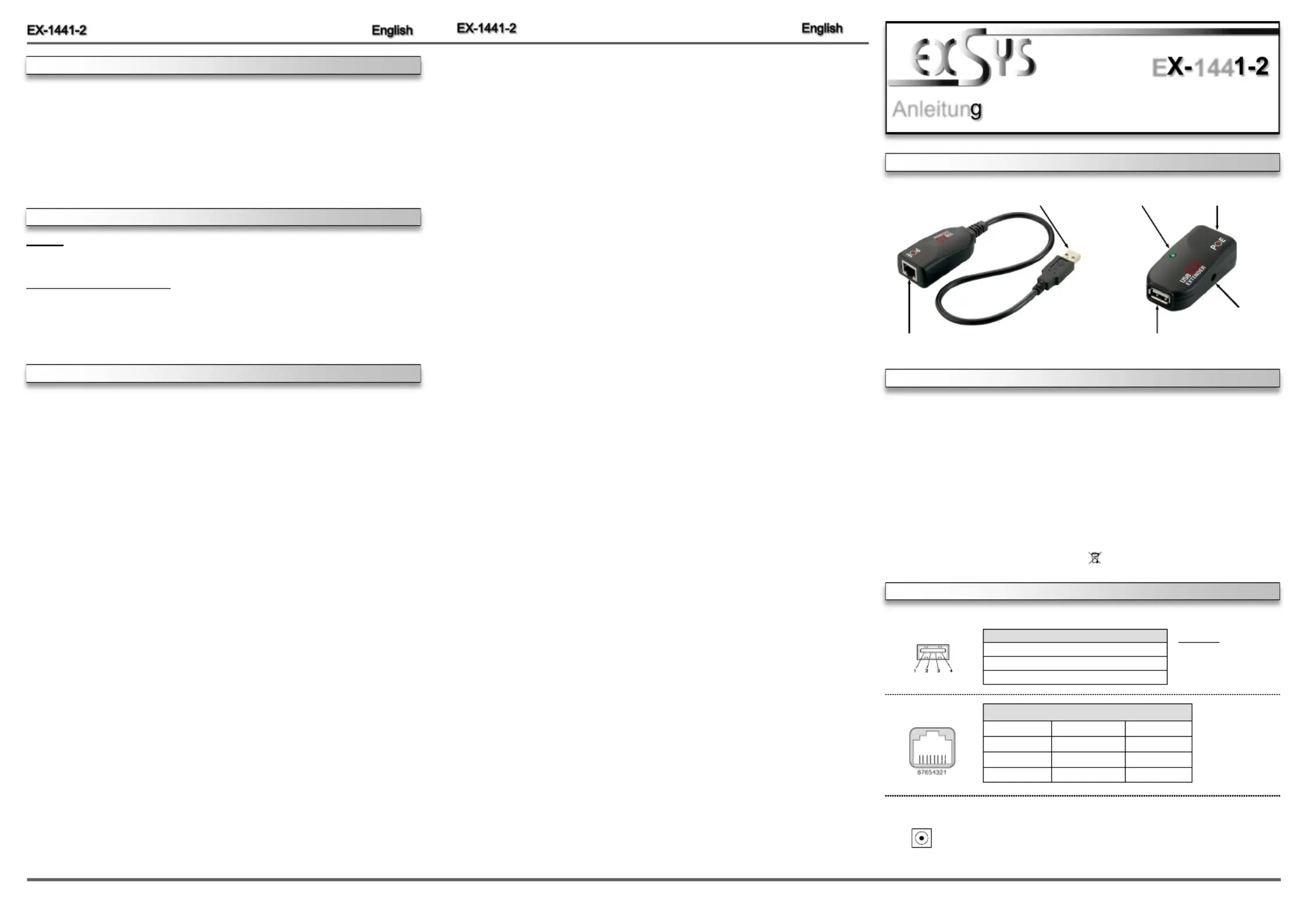

Side 1/2
1 x USB 2.0 A Buchse-
Because there are large differences between PC s and network s, we can give you only a general
installation guide for the EX-1441-2. Please refer your computers reference manual or contact your
network admin whenever in doubt.
1. At first connect the Transmitter via the USB cable to the USB port on your PC.
2. Now connect a RJ45 patch cable (optional) to the RJ45 port of the Transmitter and connect
the other and of the network cable to the RJ45 port of the Receiver.
3. Now connect the included power supply to the 5V connector of the Receiver.
6
5
1
Die EX 2 besteht aus einem Transmitter und Receiver. Der Transmitter ist mit einem -1441-
15cm langen USB Kabel zum Anschluss an den PC und mit einem RJ45 Anschluss ausgestat-
tet. Der Receiver ist mit einer USB 2.0 A Buchse für Endgeräte, einem RJ45 Anschluss und -
einer 5V Buchse ausgestattet. Die EX 2 ermöglicht Ihnen auf einfachste Weise, externe -1441-
USB Festplatten, USB Sticks, USB Scanner, Drucker, Tastaturen etc. über ein Netzwerkkabel
anzuschließen. Sie können 1 USB Geräte an die EX 2 anschließen. Sie ermöglicht Ihnen -1441-
somit eine erweiterte Flexibilität und Reichweite zum Anschluss der USB Geräte. Durch die
externe Stromversorgung per Netzteil wird der Receiver funktionsfähig und es werden an dem
USB Port die vollen 500mA zur Verfügung gestellt. Die Datenübertragungsrate beträgt bis zu
480Mbit/s. Die EX 2 ist Plug and Play fähig. Es wird keine Software oder Treiber benötigt.-1441-
BESCHREIBUNG & TECHNISCHE DATEN
Kompatibilität: USB 1.1, 2.0 & 3.0 Anschluss
Betriebssysteme: Alle Betriebssysteme
Anschlüsse: 1x USB 2.0 A Buchse, 2x RJ45 Ethernet, 1x 5V Buchse -
Lieferumfang: 2, Anleitung, Netzteil EX-1441-
Zertifikate: / FCC / RoHS / WEEE DE97424562
CE
CE
CE
CECE
RJ45 Anschluss:
USB 2.0 A Buchse-
Pin Signal Pin Signal
1 VCC 3 DATA+
2 DATA 4 GND -
USB 2.0 A Buchse:-
ANSCHLÜSSE
RJ45 Anschluss
Pin Signal Pin Signal Pin Signal
1 BI_DA+ 4 BI_DC+ 7 BI_DD+
2 BI_DA 5 BI_DC 8 BI_DD - - -
3 BI_DB+ 6 BI_DB -
RJ45 Anschluss
5V DC Buchse
für Netzteil
Achtung!
Stecker nie umge-
kehrt oder mit
Gewalt einstecken.
USB A–Stecker RJ45 Anschluss Betriebs LED
ACHTUNG!!!
Nur zur Verwendung mit im Lieferumfang enthaltenem Netzteil!!!
5 Volt Buchse:
All OS
After the hardware installation the OS will recognize the device automatically and install the
drivers.
CHECK INSTALLED DRIVER
Open the >Device manager< USB Controller. Now you should see at - the following new
entrys: <Generic USB Hub>.
If you see this or a similar information the device is installed correctly.
DRIVER INSTALLATION
Transmitter Receiver
AUFBAU
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In
the area of the connectors please make sure that no fibres from the cloth remain in the connect-
ors. Attention! Never use a moist or wet cloth for cleaning!
CLEANING
Anleitun
Vers. 1.4 / 16.02.16
E 144


Produkt Specifikationer

Mærke: EXSYS
Kategori: Ikke kategoriseret
Model: EX-1441-2
Type: Netværkssender & -modtager
Produktfarve: Sort
Maksimal overførselsafstand: 50 m
Strøm over Ethernet (PoE): Ja
Understøttede kabeltyper: Cat5, Cat6
