Thank you for purchasing this 2-Port SATA3 RAID/HyperDuo PCIe

Card. It is designed to support up to 2 SATA3 ports in RAID 0 and

RAID 1 modes and HyperDuo modes for SSD (Solid State Drive) and

hard drive combination. It supports SATA3 SSD and hard drives with

up to 6.0Gbps data rate. It is an ideal solution to add new SATA3 SSD

and hard drives for your system.

Features:

 Supports 1-lane 5.0Gb/s PCI Express Gen.2 Data Transfer Rate

 Built-in 2 Internal SATA3 Ports

 Supports RAID 0, RAID 1, HyperDuo (Safe or Capacity) Modes

 Supports Windows based RAID GUI (Marvell Storage Utility, MSU)

 Supports SATA3 transfer rate up to 6.0Gb/s (600Mbytes/sec)

 Supports RAID 1 Rebuild by BIOS Setup Utility

 Supports Windows 2003, 2008, XP, Vista and Win 7

EX-3515

2-Port SATA3 RAID/HyperDuo PCIe Card

1. Introduction

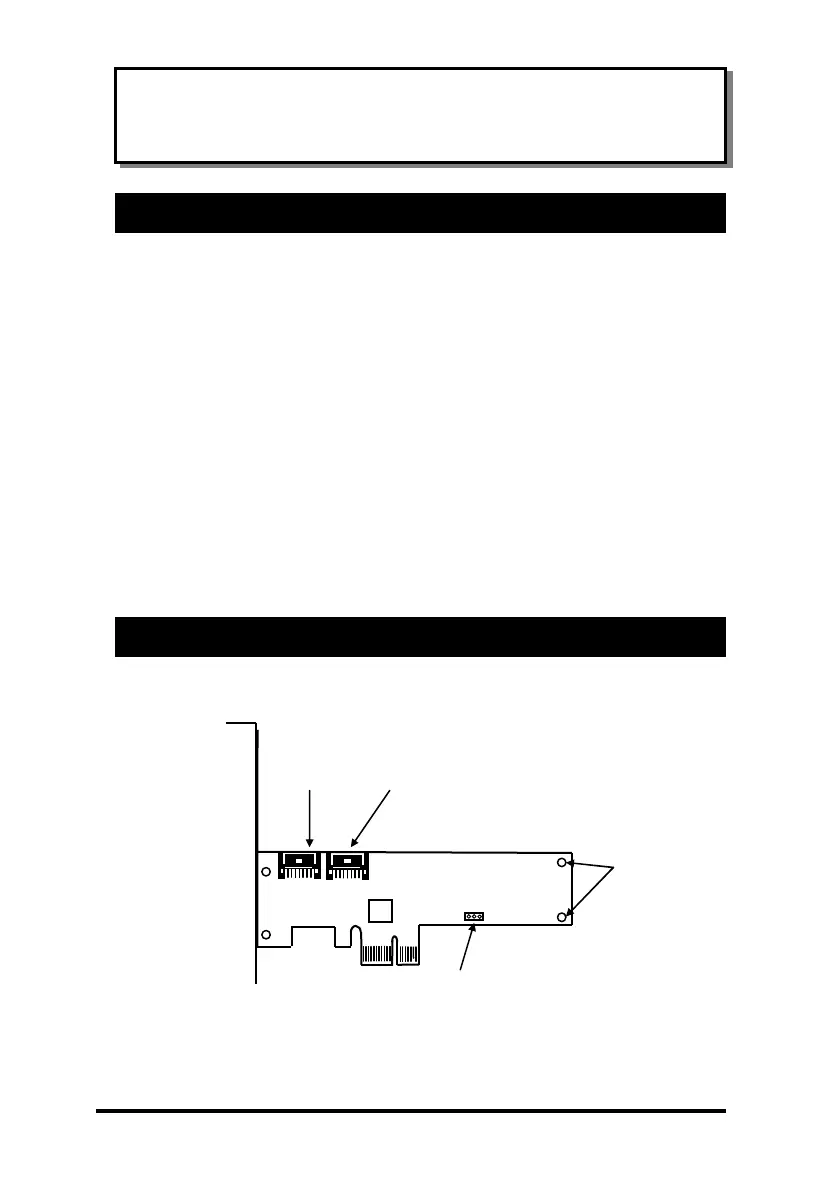

2. Board Layout

JP1 BIOS

Enable/Disable

Jumper

J2:

SATA3

Channel 1

J1:

SATA3

Channel 0

Extra secure

mounting

holes

2-Port SATA3 RAID/HyperDuo PCIe Card

The JP1 can be used to disable the BIOS on the card for some

critical applications, please leave the jumper at “ENA” all the time.

JP1: BIOS Enable/Disable Jumper

1. Power down the computer, remove the computer cover.

2. Choose an unused PCI Express bus slot, unscrew and remove the slot

cover.

3. Place the SATA3 RAID PCIe Card into the slot. Carefully press the

board into the slot until it seats firmly.

4. Secure the SATA3 RAID PCIe Card with the slot cover screw.

5. Install the SATA cables from the SATA connectors to your SATA devices.

6. Carefully reinstall the computer cover. Insert and tighten the

computer cover screws.

7. Power up the PC and observe the monitor. The BIOS lists all Serial ATA

devices attached to the SATA3 RAID/HyperDuo PCIe Card. For

example:

Marvell 88SE91xx Adapter – BIOS Version x.x.x.xxxx

PCIe p2-x1 5.0Gbps

Mode: CPU AHCI

Virtual Disk

No Virtual Disk!

Physical Disk

[ID] [DISK Name] [Size] [Speed]

0 SATA ST32000641AS 1.83TB 6.0G

1 SATA ST32000641AS 1.83TB 6.0G

Press <Ctrl>+<M> to enter BIOS Setup or <Space> to continue

If the information displayed on your monitor is correct (the installed

devices are listed with the correct device name, etc.), congratulations!

You have successfully installed the SATA3 RAID/HyperDuo PCIe Card in

4. Hardware Installation

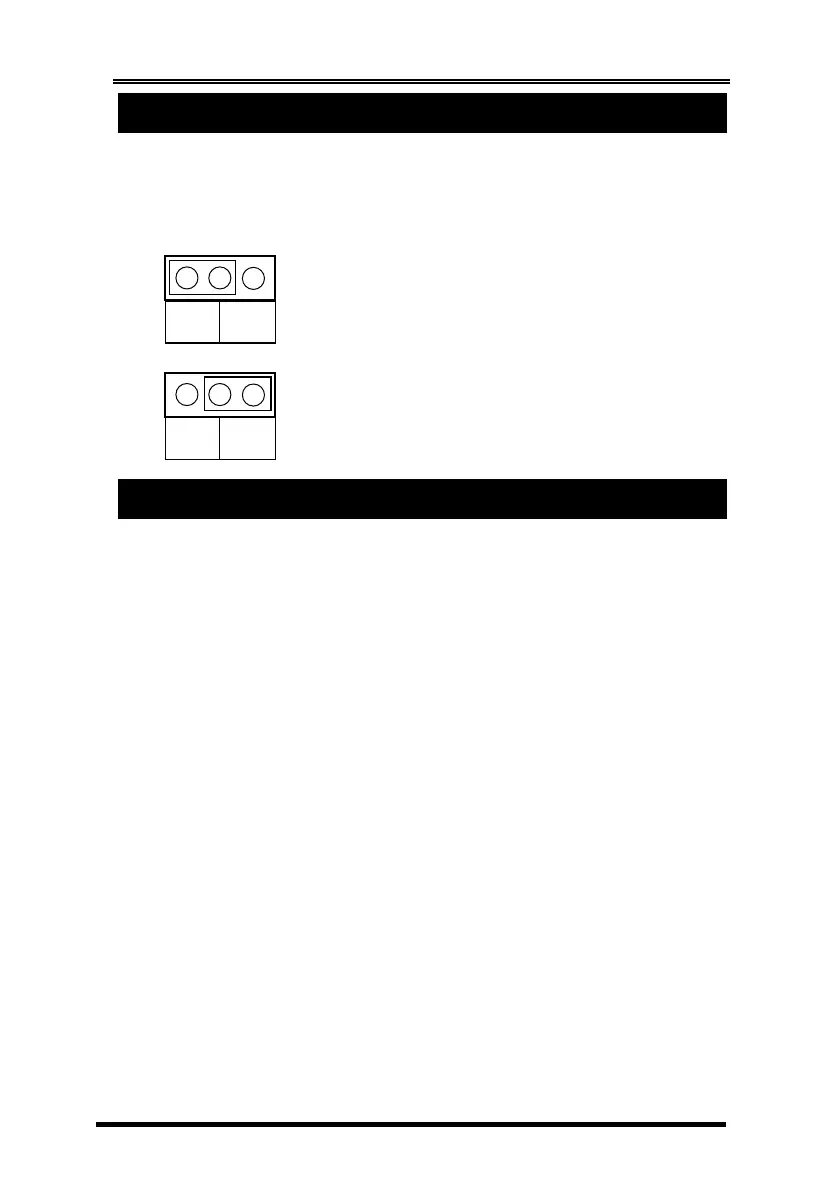

BIOS Enabled:

Jumper Installed at “ENA”

(Default)

BIOS Disabled:

Jumper Installed at “DIS”

3. Jumper Settings

ENA DIS

Produkt Specifikationer

Mærke:	EXSYS
Kategori:	Controller
Model:	EX-3515
Bredde:	115 mm
Dybde:	48 mm
Vægt:	300 g
Opbevaringstemperatur (T-T):	-40 - 75 °C
Relativ luftfugtighed ved drift (H-H):	5 - 95 %
Driftstemperatur (T-T):	0 - 55 °C
Understøttede Windows-operativsystemer:	Ja
Understøttede lagerdrev brugerflader:	Serial ATA III
Understøttelse af SSD:	Ja
RAID-niveauer:	0, 1
Antal interne SATA-porte:	2
