Side 1/4

Thank you for purchasing this 4-Port SATA3 PCI PCIe Card (non-RAID). It is designed

to support up to 4 SATA3 ports with 1 built-in SATA3 Port Multiplier (PM). It

supports 4 SATA3 devices over one single PCI Express Slot and provides an ideal

solution to add more SATA drives for your system.

Features:

✓ Supports 2-lane PCIe Gen 2 up to 10Gb/s

✓ Provides 4 Internal SATA3 Host Ports

✓ 4 Ports with 2 Double Deck Connectors

✓ Supports up to 4 SATA Devices, no RAID Support

✓ Supports Low Profile Form Factor

✓ Supports SATA3 transfer rate of 6.0Gb/s

✓ Supports Native Command Queuing (NCQ)

✓ Supports FIS-based switching with Port Multipliers

✓ Co-resides with Motherboard IDE and SATA devices

✓ Supports AHCI (Advanced Host Controller Interface) Mode

✓ Supports Win 2003, 2008, XP, Vista, Win 7, 8.x, 10,

Linux and Mac OS

EX-3517

4-Port SATA3 PCIe (x2) Card (non-RAID)

1. Introduction

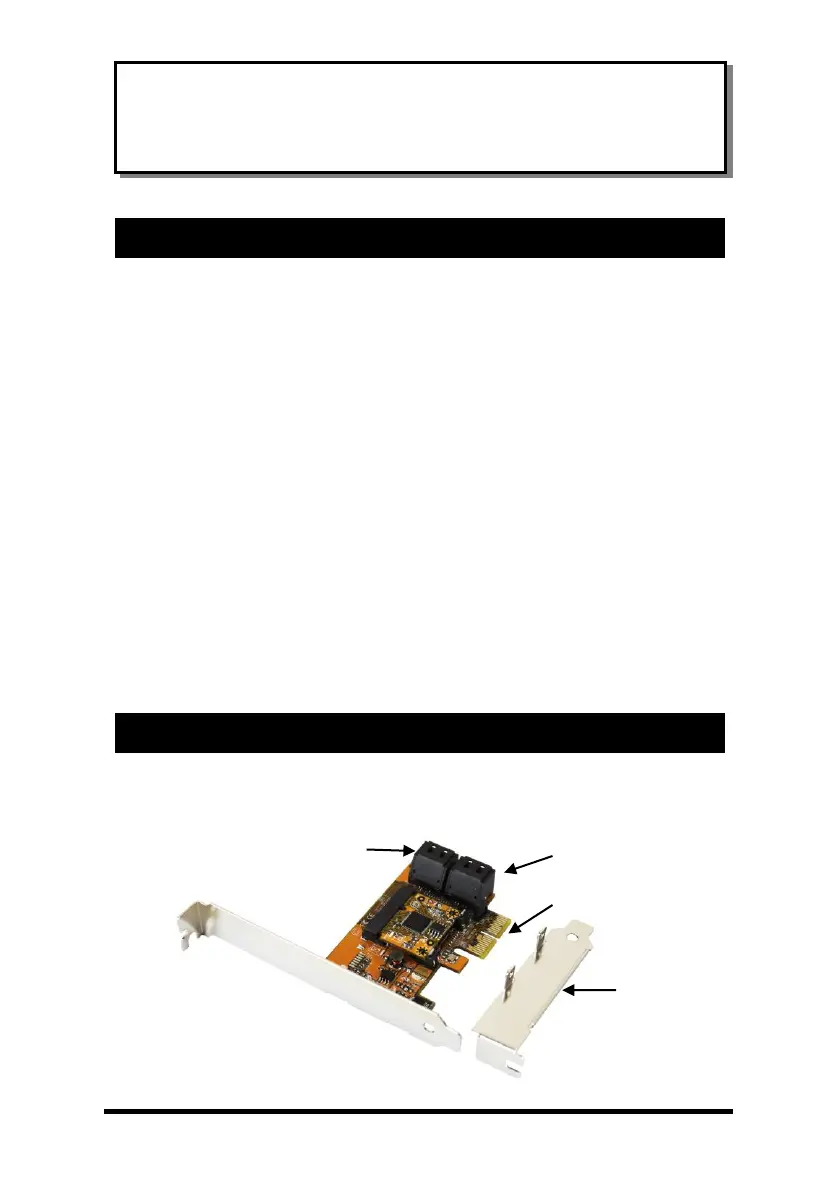

2. Board Layout

Low Profile

Bracket

Up: Port 2

Down: Port 1

Up: Port 4

Down: Port 3

Gen 2 PCIe (x2)

Golden Fingers

4-Port SATA3 PCIe (x2) Card

Note: Due to the limitation of the Port Multipliers, only Port 1

can be the System Boot Drive. Other ports won’t support Boot function.

1. Power down the peripherals, then the computer.

2. Remove the computer cover and save the screws.

3. Choose an unused PCI Express bus slot.

4. Unscrew and remove the slot cover. Retain the screw; you will use it when you install

the SATA3 PCIe Card.

5. Place the SATA3 PCIe Card into the slot. Carefully press the board into the slot until it

seats firmly.

6. Secure the SATA3 PCIe Card with the slot cover screw.

7. Install the internal SATA cables from the SATA connectors to your SATA devices.

8. Carefully reinstall the computer cover. Insert and tighten the computer cover screws.

9. Power up the PC and observe the monitor. The BIOS lists all Serial ATA devices

attached to the SATA3 PCIe Card. For example:

If the information displayed on your monitor is correct (the installed devices are listed

with the correct device name, etc.), congratulations! You have successfully installed the

SATA3 PCIe Card in your computer.

3. Hardware Installation

Asmedia 106x SATA Controller Ver 1.50 AHCI Mode

reserved. S.M.A.R.T. Supported

Using PCIE Gen2 p2-x2

Firmware version 150910_00_00_00

Port PMP Model

0 0 KINGSTON SHFS37A120G SATA3

4 0 KINGSTON SHFS37A120G SATA3

5 0 ST3000DM001-9YN166 SATA3

6 0 ST3000DM001-9YN166 SATA3

Produkt Specifikationer

Mærke:	EXSYS
Kategori:	Controller
Model:	EX-3517
Bredde:	79 mm
Dybde:	48 mm
Vægt:	300 g
Brugervejledning:	Ja
Opbevaringstemperatur (T-T):	-40 - 75 °C
Relativ luftfugtighed ved drift (H-H):	5 - 95 %
Driftstemperatur (T-T):	0 - 55 °C
Certificering:	CE, FCC, ROHS
Mac kompabilitet:	Ja
Understøttede Windows-operativsystemer:	Ja
Understøttede Mac-operativsystemer:	Ja
Understøttede Linux-operativsystemer:	Ja
Værtsgrænseflade:	PCI Express x2
Dataoverførselshastighed:	6 Gbit/sek.
Understøttede lagerdrev brugerflader:	Serial ATA III
Understøttelse af SSD:	Ja
Chipsæt:	ASMEDIA 1062 + JMicro JMB 575S
