APPLICATION AND USE

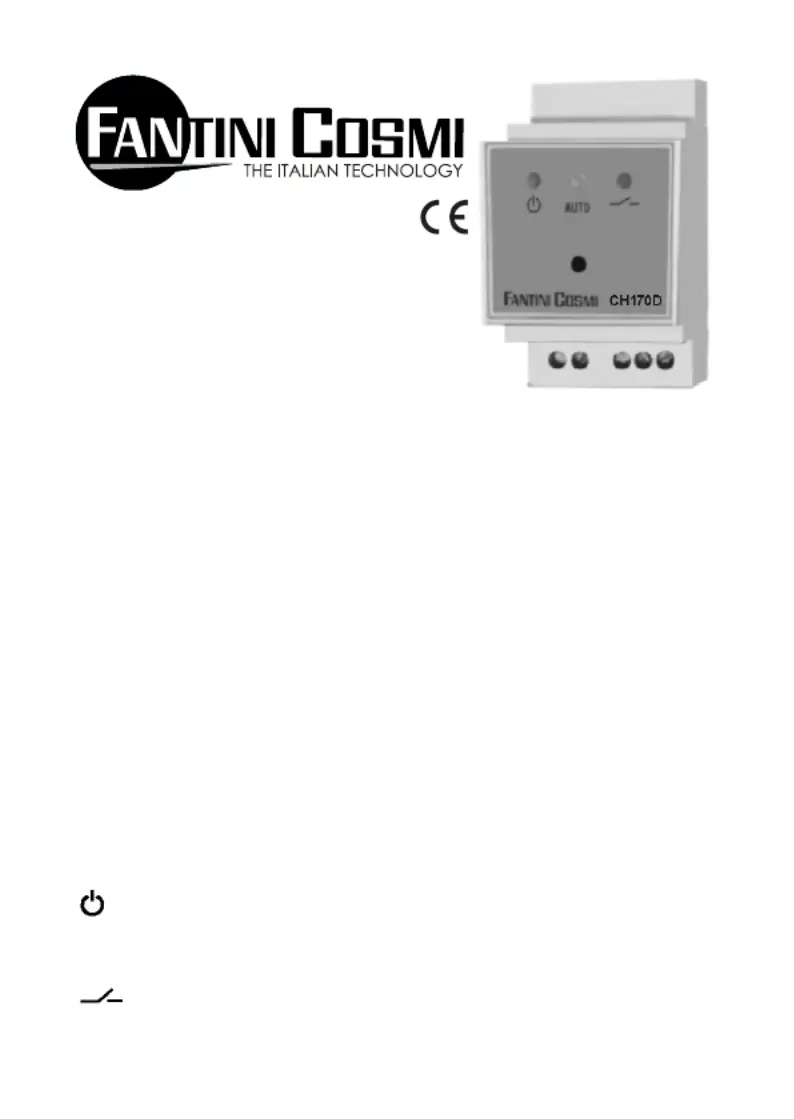

CH170D is a radio receiver (actuator) that coupled to a transmitter of the Fan-

tini Cosmi product line enables to remotely control a preset user (usually a

boiler).

Sent radio signal is free from interference with other device even if the same

frequency is used.

INSTALLATION AND CONNECTIONS

Installation shall be performed according to current CEI Standards.

The distance between actuator and transmitter must not exceed 30 m in closed

spaces and 70 m in open spaces (N.B. Range data could vary according to

environmental conditions). Do not shield the device with metallic parts.

Connect cables to the base terminal board according to the wiring diagrams

shown. Receiver power supply (230 V a.c.) shall be connected to terminals N

and L whereas the user (pump, burner, zone valve, humidistat, etc.) shall be

connected to terminals 1 and 2.

N.B. Several receivers can be connected to one transmitter.

OPERATION

The receiving device features three leds giving the following indications:

POWER ON: when this led is on it indicates that the receiver is properly

powered. The meaning of the different colours of this led is specied below.

AUTO: when this led is on it indicates that the receiver is congured in AUTO-

MATIC MODE. When the led is off the MANUAL MODE is active.

CONTACT STATUS: when this led is on it indicates that the relay contact

is closed, otherwise (led off) it will be open.

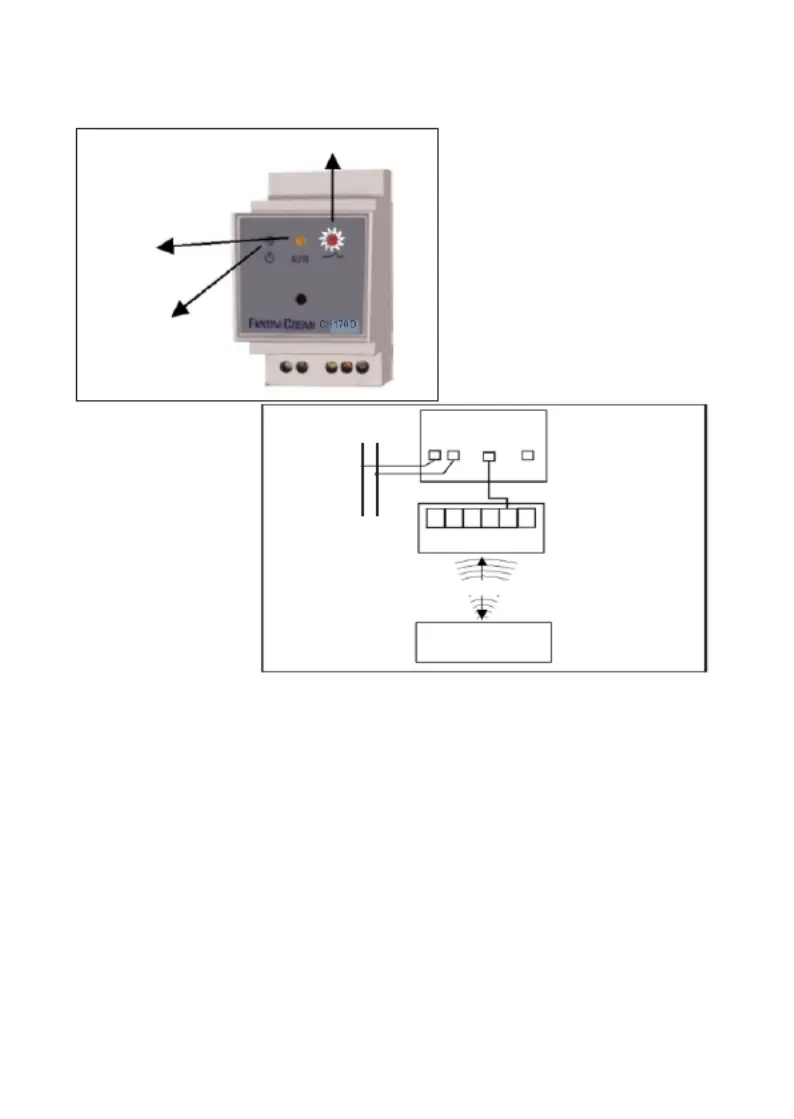

CH170D RADIO ACTUATOR FOR DIN RAIL MOUNTING

CONTACT STATUS

AUTO

POWER ON

Boiler

30 metres max.

Receiver

Transmitter

Chronothermostat/

thermostat

N L 4 1 2

Each time the button is pressed the three operating modes are started in

turns:

AUTOMATIC

(“AUTO” led: ON)

In this operating mode, the receiver receives a radio signal coded by the chron-

othermostat via the transmitter interface and triggers the integral relay. The

“POWER ON” led takes on a different colour according to the quality of the

signal received:

• RED: signal absent or very disturbed

• ORANGE: satisfactory reception

• GREEN: good reception

Fast and brief led ashing indicates the reception of radio data sent by the

transmitter.

230V50Hz
