Side 1/4
5
EV40
Regulation control unit for thermal solar panel systems
and solar cooling
EV40 differential control unit is suitable for the regulation and control of thermal solar panel systems, both of the vacuum tubes and
flat plate types, with fluid forced circulation. It is able to control both heating and cooling of the environment through the management
of the systems with solar cooling. Eight system types are available, according to the specific required application.
ELECTRICAL FEATURES
Consumption: 5VA.
Analog inputs: collector probe, boiler probe and integration probe NTC
1k-200°C (EC21).
2 optoisolated inputs.
Output relays:
1 relay for collector circulation pump;
1 relay for integration pump or for deviation valve;
1 relay with programmable function.
Contacts rating: 5(3)A 230Vac.
Serial port RS232: for remote control with GSM modem
(by means of SMS).

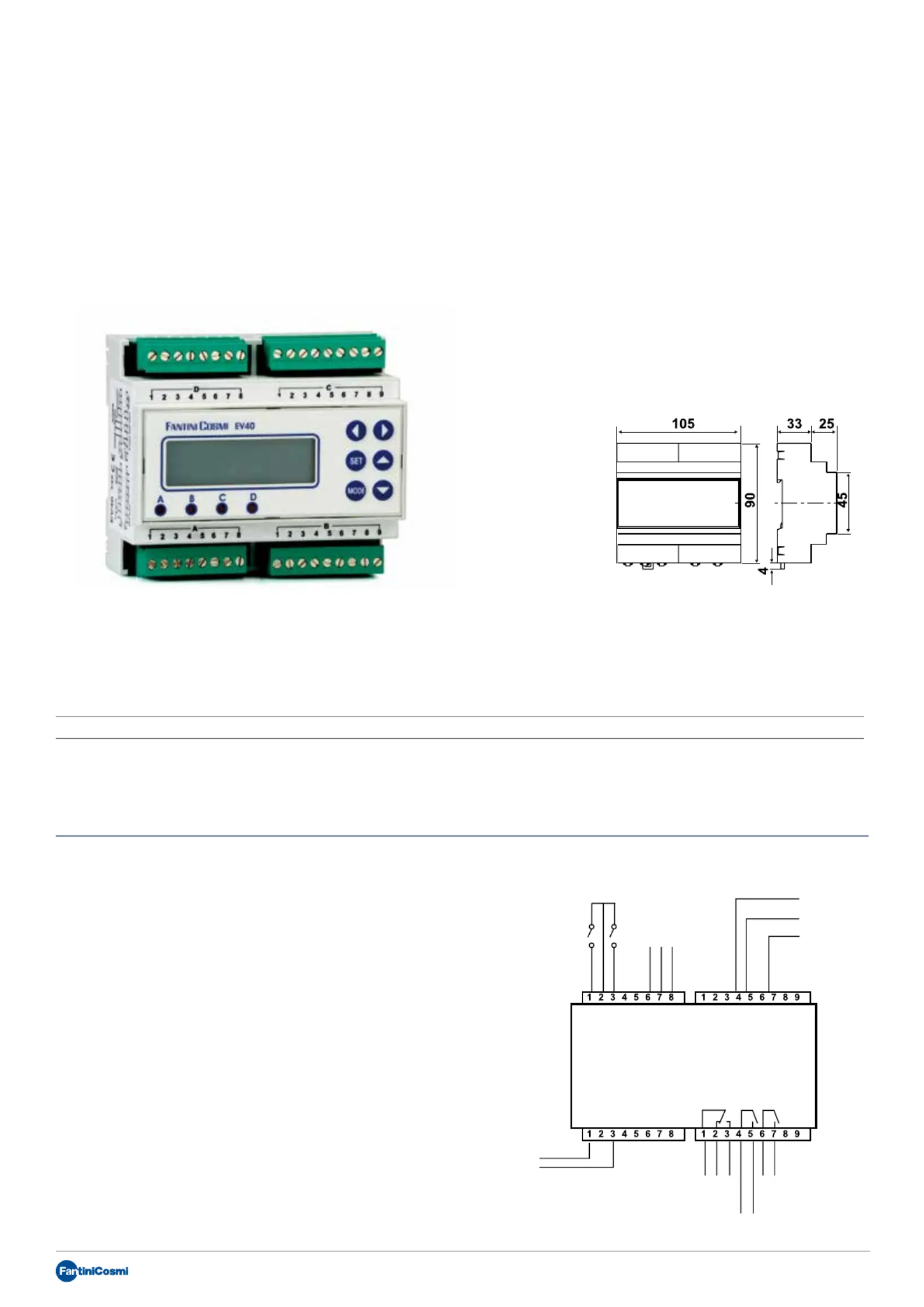

Dimensions (mm)
COM
RX
TX
COM
NA
NC
COM
NA
COM
NA
Input 1 Input 2
Probe 1
Probe 2
Probe 3
Power supply
230Vac
Safety relay
output (D)
Integration relay
output (B)
Solar pump relay
output (C)
SERIAL PORT
RS232C
MODEM EM70
Power
supply
Contacts
rating
Operating
ambient
temperature
Consumption Protection
degree
EV40 230V 50Hz 5(3)A 0 ÷ 50 °C IP40 (back panel)5 VA
GENERAL ELECTRICAL WIRING DIAGRAM
6

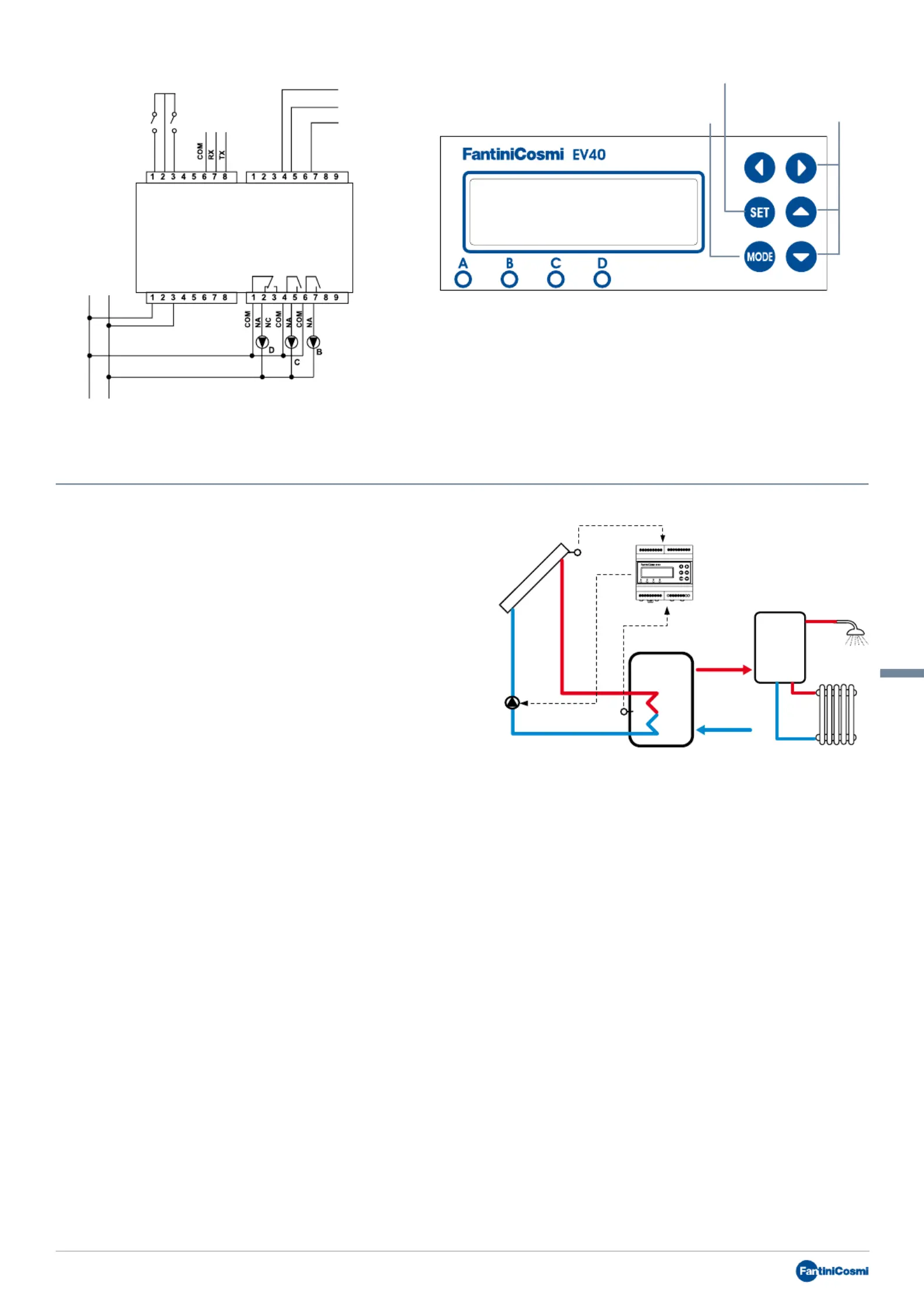

ELECTRICAL DIAGRAM FOR CONNECTION TO THE PUMPS
OPERATION
The EV40 differential control unit is suitable for the regulation
and control of thermal solar panel systems, both of the vacuum
tubes and flat plate types, with fluid forced circulation.
It is able to control both heating and cooling of the environment
through the management of the systems with solar cooling.
Eight system types are available, according to the specific
required application.
The control unit is fitted with three analogue inputs for
temperatures reading (from 0 to 150°C), and with two relays
operating the solar pump. If required, it can be fitted with
another electromechanical actuator which will be different
according to the type of selected system.
A third relay can be programmed to cover different auxiliary
functions, for example, the integration of the boiler electrical
resistance.
Furthermore, EV40 control unit can be linked to an EM70
modem in order to remotely program and manage the system
using SMS messages, or just to know its current status.
8 SYSTEM TYPES SELECTED BY MEANS OF THE
GRAPHICAL MENU:
basic system;
system with heat integration;
system with lower probe;
system with 2 solar collectors;
system with heat exchanger (e.g., for pool);
system with 2 priority tanks: 1 pump and 1 valve;
system with 2 priority tanks: 2 pumps;
drainback system.
This is the forced circulation system as simple as possible:
the solar pump (C) is operated by the control unit when the
temperature difference between the solar collector (T1) and
the accumulator, also called boiler, (T2) reaches the value
specified in the Parameter called T (see next section for
Parameter description) and it turns off when this difference
drops to ΔToff Parameter level. In this simple type of system,
probe 3 is not used for regulation, and therefore it may be
used, for instance like probe for the Thermostat Function of
Relay D.
EXAMPLE OF BASIC SYSTEM
Solar
collector
EV40
Ac rcumulato
Sanitary
hot
water
Cold water
in tle
Hot
water
T1
T2
TC
Boi rle
Power supply
230Vac
Input 1
Probe 1
Probe 2
Probe 3
Input 2
SERIAL PORT
RS232C
MODEM EM70
The indication LED will turn on when the control unit energizes the
corresponding relay:
B = Integration Relay (or secondary relay)
C = Solar Pump Relay (or primary relay)
D = Safety Relay (or auxiliary relay)
operation mode
setting
access to various
configuration menus
modification
of several
controller
parameters
PROGRAMMABLE RELAY HAS THE FOLLOWING FUNCTIONS:
solar fluid cooling command (in case of overheating);
thermostat with Tset programmable from 0 to 144°C, used also for integration of electrical resistance or boiler;
timer: the relay turns on and off at the prescribed times;
“alarm” function: the relay turns on when only one, either or both optoisolated inputs are closed.
REMOTE CONTROL
If the system is connected to a Fantini Cosmi EM70S modem for remote control, is possible to receive an SMS to a specified mobile
phone number in order to change the status of the programmable relay.
By setting the function of this relay is possible to realize, for example, a simple antiintrusion system (alarm function) or an irrigation
control (timer function), or to control the temperature of an environment (thermostat function), etc.
Possibility to monitor the entire system and change all the settings via SMS (with EM70S modem).
Possibility to receive SMS messages to any status variations of the programmable relay (with EM70S modem).
