BK120

SmartTrace

Breaker Finder

Users Guide

9/2023, Rev. 1, 8/24 (English)

Specications are subject to change without notice.

All product names are trademarks of their respective companies.

BK120

Users Guide

Introduction

The BK120 is a system to locate breakers in an electrical installation and

to detect voltage. The system comprises the Transmitter and the Breaker

Finder (the Product).

Contact Fluke

Fluke Corporation operates worldwide. For local contact information, go to

our website: www.uke.com.

To register your product, view, print, or download the latest manual or manual

supplement, go to our website. For service information, contact your nearest

Fluke dealer.

Product Use

Transmitter

1. For best results, unplug all appliances and equipment on the circuit

under test.

2. Plug the Transmitter into the socket and note which indicators light.

3. To determine the wiring, see the diagram on the Product shown for

reference in Figure 1.

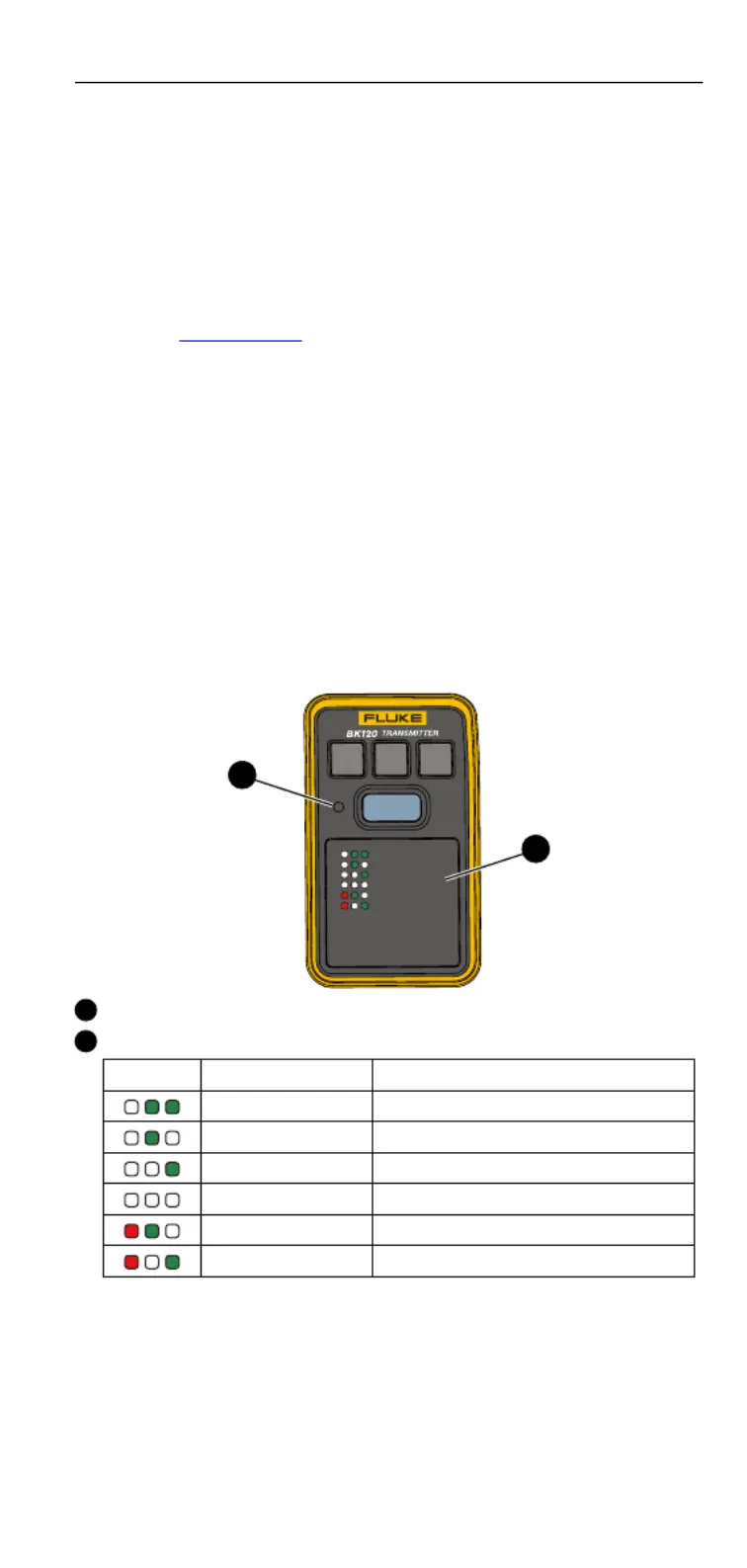

Figure 1. Transmitter

CORRECT

OPEN GROUND

OPEN NEUTRAL

OPEN HOT

HOT / NEUT. REV.

HOT / GRD. REV.

Red LED illuminates when you push the GFCI test button

Receptacle wiring check

lndicator Wiring Scenario Description

CORRECT Receptacle is wired correctly

OPEN GROUND Ground contact is not wired

OPEN NEUTRAL Neutral contact is not wired

OPEN HOT Hot contact is not wired

HOT / NEUT.REV. Hot and neutral wirings are reversed

HOT / GRD.REV. Hot and ground wirings are reversed

W Caution

Use the Product as a simple instrument to detect nearly all

probable common improper wiring conditions. Read the Safety

Information that is provided with the product package.
