Product Mounting Disclaimer

Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage

of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson

products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is

required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications

and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.

Rev.A

INST-857

Product Mounting Disclaimer

Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage

of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson

products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is

required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications

and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.

Dock or

Cradle

Mount

Tablet Keyboard

Motion Attachment

Gamber-Johnson

screws

Keyboard

#8-32 machine

slotted hole

for adjustment

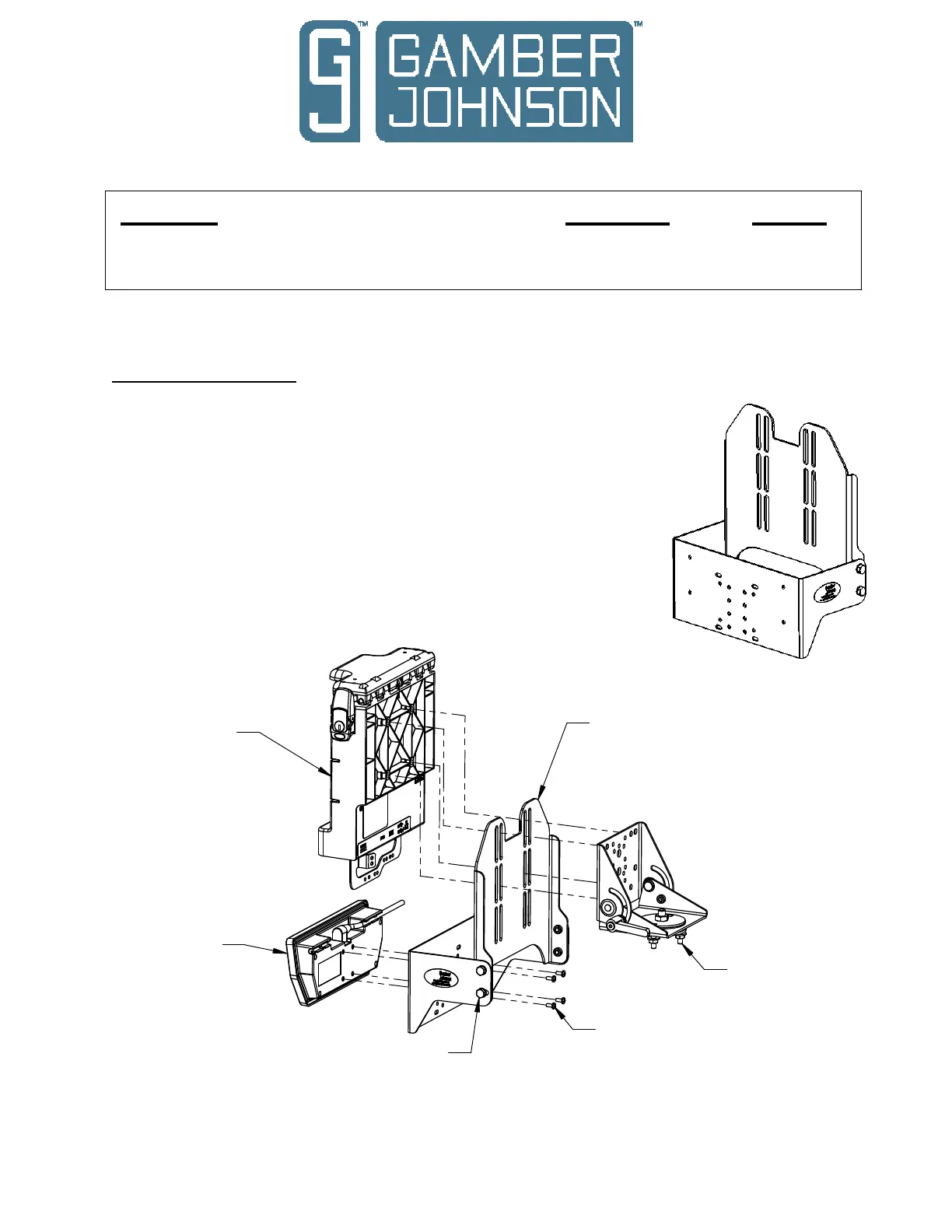

This instruction sheet is for the Vertical Tablet Keyboard Mount only. This mount is

designed to be used with Gamber-Johnson tablet docking stations and cradles.

Attaching the Mount

1. The Tablet Keyboard Mount attaches

between the docking station or cradle and

the motion attachment using the hardware

provided with the dock or cradle.

2. The keyboard attaches using the 8-32 x 3/8"

machine screws provided in hardware bag

7120-0714.

3. The bottom mounting location on each

side of the keyboard tray is a slot which

provides up to 10 deg. of adjustment for the

tray.

Printing Spec:

If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868

Form Revision

PS-001

VERTICAL TABLET KEYBOARD MOUNT

7160-1257

Product

INSTALLATION INSTRUCTIONS

of Keyboard

Tray

applied to bottom

Dual Lock strips

applied to tray

Keyboard

Attaching Keyboard to Tray with Dual Lock Fastener

The Keyboard can be attached to the tray using (4) 8" long pieces of Dual Lock

fastener supplied in hardware bag 7120-0714.

Lock 2 pieces of the Dual Lock fastener together with the release liners toward the

outside.

Remove the release liner from one side and attach the Dual Lock strips to the tray

surface.

Remove the remaing release liner from the Dual Lock strips and place the Keyboard

on the tray surface. The bottom surface of the Keyboard will adhere to the Dual Lock

strips.

To remove the Keyboard from the tray, hold the sides of the Keyboard and pull away

from the tray. The Dual Lock strips will seperate.

To attach the Keyboard to the tray, press the Keyboard onto the tray, aligning the

Dual Lock strips. The Dual Lock strips will mesh holding the Keyboard in place.
