Wireless switching/dimming top unit, 1-gang

Order No. : 5490 ..

Operating instructions

1 Safety instructions

Electrical devices may only be mounted and connected by electrically skilled

persons.

Serious injuries, fire or property damage possible. Please read and follow manual fully.

Danger of electric shock. Always disconnect before carrying out work on the devise or

load. In so doing, take all the circuit breakers into account, which support dangerous

voltages to the device and or load.

Danger of electric shock. The device is not suitable for disconnection from supply

voltage. Depending on the insert used, the load is not electrically isolated from the

mains, even when the device is switched off.

These instructions are an integral part of the product, and must remain with the end

customer.

2 Device components

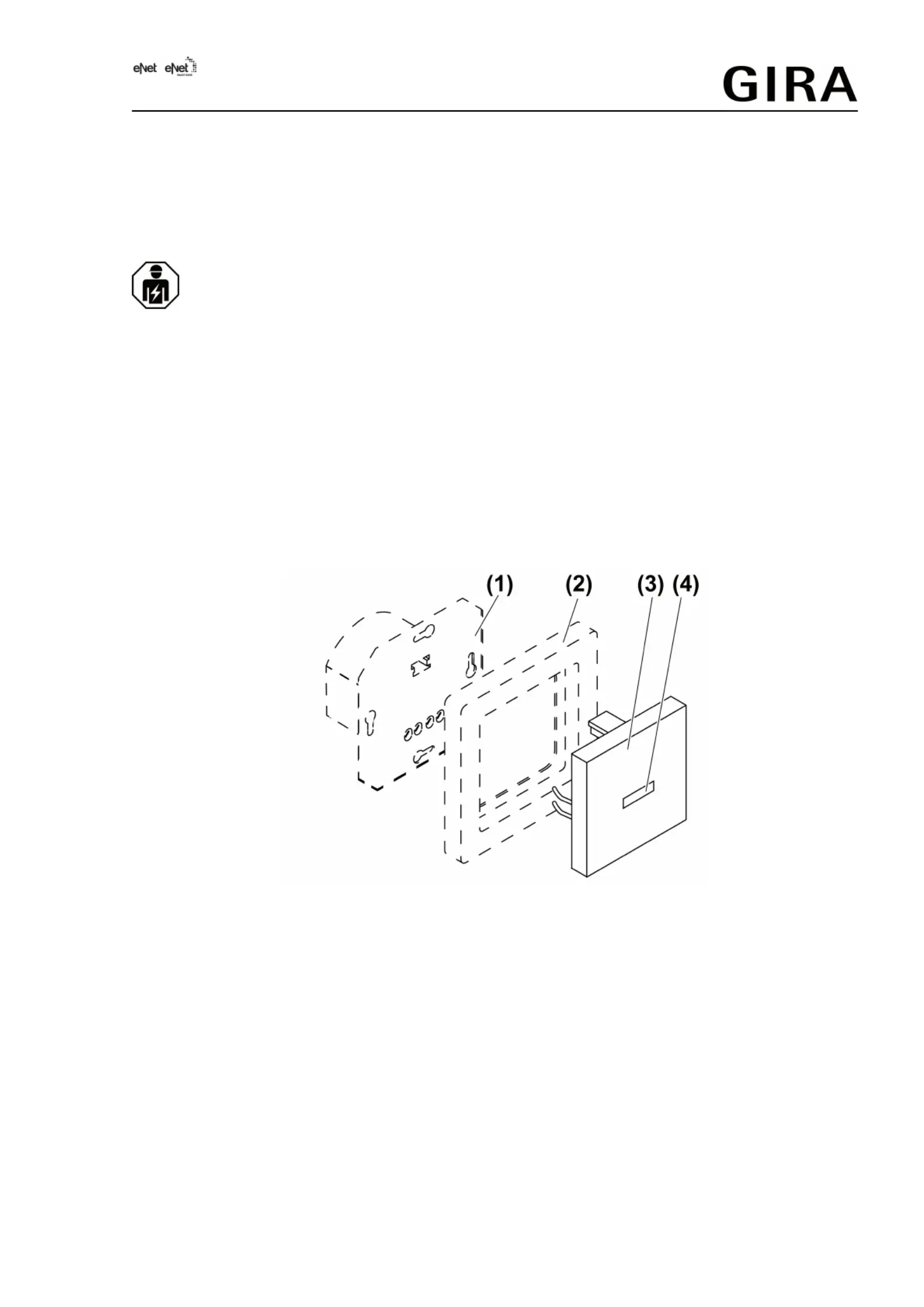

Figure 1: Device components

(1) FM insert

(2) Frame

(3) Radio button

(4) Status LED

3 Function

Intended use

- Manual and radio-controlled operation of suitable flush-mounted inserts for switching or

dimming (see accessories)

- Mounting on flush-mounted insert

- Operation with suitable radio transmitters

iNo operation on pulse insert, 2-wire and 3-wire extension inserts possible.

1/15

32582722 27.04.2017

Wireless switching/dimming top unit, 1-gang

10864994

Product characteristics

- Evaluation of extensions

- Scene operation possible

- Status indication with LED

- Status feedback to radio transmitter

- Switch-on brightness can be saved permanently when combined with flush-mounted

inserts for dimming

Can be set with eNet server:

- Maximum brightness

- Minimum brightness

- Dimming speed

- Switch-on delay / switch-off delay

- Dim up/dim down ramp

- Switch-off warning

- Operation locks

- Continuous on, Continuous off

- Hotel function

- Run-on time

- Light control

Supplementary functions with eNet Server:

- Fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0

- Update of the device software

- Reading of error memory

Response after mains voltage return

The response after mains voltage return can be configured with the eNet Server. Default

setting: Off.

4 Operation

iWhen operating with the eNet Server, operation and signalling could vary from what is

described here.

Operation is performed directly on the device or on a connected extension.

iIf operation takes place with radio transmitters, please observe the radio transmitter

instructions.

Switch light

oPress button for less than 0.4 seconds.

The light is switched on or off. In combination with inserts for dimming, switch-on takes

place at the saved switch-on brightness.

Status-LED (4) lights up: output is switched on.

Status-LED (4) off: output is switched off.

iIn the case of the HVAC insert, only the output is switched, whilst the output Kanal 1 HLK

switches according to the output (see operation manual of the insert).Kanal 1

Adjust the brightness

Button is combined with an insert for dimming.

Light is switched on.

oPress top button for longer than 0.4 seconds.

The light gets brighter up to maximum brightness.

oPress bottom button for longer than 0.4 seconds.

Light gets darker to minimum brightness.

iPush-button: the light becomes brighter up to maximum brightness, remains there briefly

and becomes dimmer down to minimum brightness, remains there briefly and becomes

brighter again. This process repeats for as long as the push-button remains pressed.

Switch light on with minimum brightness

Button is combined with an insert for dimming.

32582722 10864994 27.04.2017

2/15

Wireless switching/dimming top unit, 1-gang

Produkt Specifikationer

Mærke:	Gira
Kategori:	Modtager
Model:	549003
Type:	Lysdæmper & kontakt
Produktfarve:	Hvid
Driftstemperatur (T-T):	-5 - 45 °C
Husmateriale:	Rustfrit stål
Forbindelsesteknologi:	Trådløs
Grænseflade:	RF trådløst
RF-transmissionsfrekvens:	868 MHz
Driftsfrekvens:	868.0 - 868.6 MHz
Justering af lysstyrke:	Ja
Dæmper:	Ja
Gear rækkevidde:	0 - 100 m
Status tilbagemeldinger:	Ja
