Side 1/9

Wireless top unit, blinds control button, 1-gang

Order No. : 5491 ..

Operating instructions

1 Safety instructions

Electrical devices may only be mounted and connected by electrically skilled

persons.

Serious injuries, fire or property damage possible. Please read and follow manual fully.

Danger of electric shock. Always disconnect before carrying out work on the devise or

load. In so doing, take all the circuit breakers into account, which support dangerous

voltages to the device and or load.

These instructions are an integral part of the product, and must remain with the end

customer.

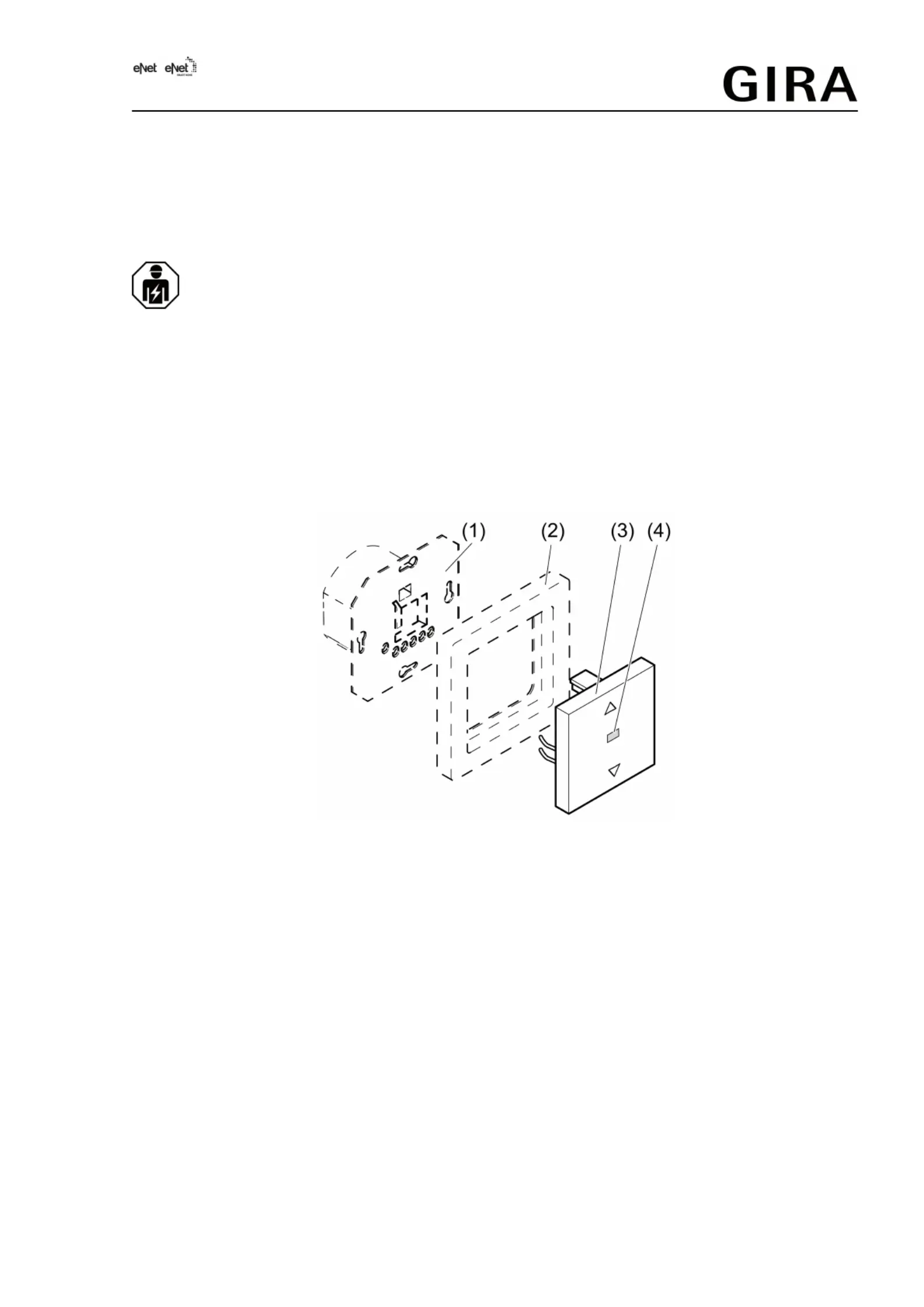

2 Device components

Figure 1: Device components

(1) FM insert

(2) Frame

(3) Radio button

(4) Status LED

3 Function

Intended use

- Manual and radio-controlled operation of electrically-driven Venetian blinds, shutters and

awnings

- Operation with suitable eNet radio transmitters

- Mounting on venetian blind insert (accessories)

Product characteristics

- Positioning of the blind/shutter via scene request

- Position for sun protection and twilight

- Status feedback to radio transmitter

- Blind/shutter running time can be saved

- Status indicator via LED

1/9

32582622 22.03.2017

Wireless top unit, blinds control button, 1-gang

10864996

Can be set with eNet server:

- Slat change-over time/fabric-stretching time

- Change-over-time for direction change

- Running direction invertible

- Operation locks

- Deactivating extension evaluation

- Position for sun protection, twilight, lock-out protection and wind alarm

Supplementary functions with eNet server

- Fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0

- Update of the device software

- Reading of error memory

Behaviour after mains voltage return

The response after mains voltage return can be configured with the eNet server. Default setting:

no action.

4 Operation

iWhen operating with the eNet Server, operation and signalling could vary from what is

described here.

Moving the Venetian blind

oPress top or bottom button for longer than one second.

The blind/shutter moves in the desired direction to the end position or stops when the

button is pressed again.

The status LED (4) lights up as long as the blind/shutter is activated.

Adjusting the slats

oPress top or bottom button for less than one second.

A moving blind/shutter is stopped and a stationary blind/shutter is briefly activated.

5 Information for electrically skilled persons

5.1 Fitting and electrical connection

DANGER!

Electrical shock when live parts are touched.

Electrical shocks can be fatal.

Before carrying out work on the device or load, disengage all the

corresponding circuit breakers. Cover up live parts in the working environment.

Connecting and fitting the device

To ensure good transmission quality, keep a sufficient distance from any possible sources of

interference, e.g. metallic surfaces, microwave ovens, hi-fi and TV systems, ballasts or

transformers.

The flush-mounted insert is correctly fitted and connected (see instructions for flush-mounted

insert).

oFit radio button (3) and frame (2) on flush-mounted insert (1).

oSwitch on mains voltage.

oPerform commissioning.

32582622 10864996 22.03.2017

2/9

Wireless top unit, blinds control button, 1-gang

Produkt Specifikationer

Mærke:	Gira
Kategori:	Modtager
Model:	549103
Produktfarve:	Hvid
Driftstemperatur (T-T):	-5 - 45 °C
Husmateriale:	Rustfrit stål
Forbindelsesteknologi:	Trådløs
Grænseflade:	RF trådløst
Driftsfrekvens:	868.0 - 868.6 MHz
Gear rækkevidde:	0 - 100 m
Status tilbagemeldinger:	Ja
