Side 1/2

General safety instructions

These instructions are part of the product

and must remain with the end customer.

Functional description

The DIN 18040 display module adds the

functions of visual displays for "Speak" and

"Open door" to the Gira door

communication system 106. The display

module meets the criteria for "barrier-free

construction" according to DIN 18040.

Scope of supply

1 x System 106 display module

1 x operating instructions

Check that the package contents are

complete and undamaged. When filing

complaints, see "Warranty".

Necessary accessories

• System 106 intercom module (Item no.

5563 ..) with call-button module (555. ..)

or door station module (Item no.

5565 9..).

• Audio control device (item no. 1287 00).

• Gira home station.

• System 106 surface-mounted housing,

1-gang to 5-gang (Item no. 5501 ...,

5502 ..., 5503 ..., 5504 ..., 5505 ...).

Device description

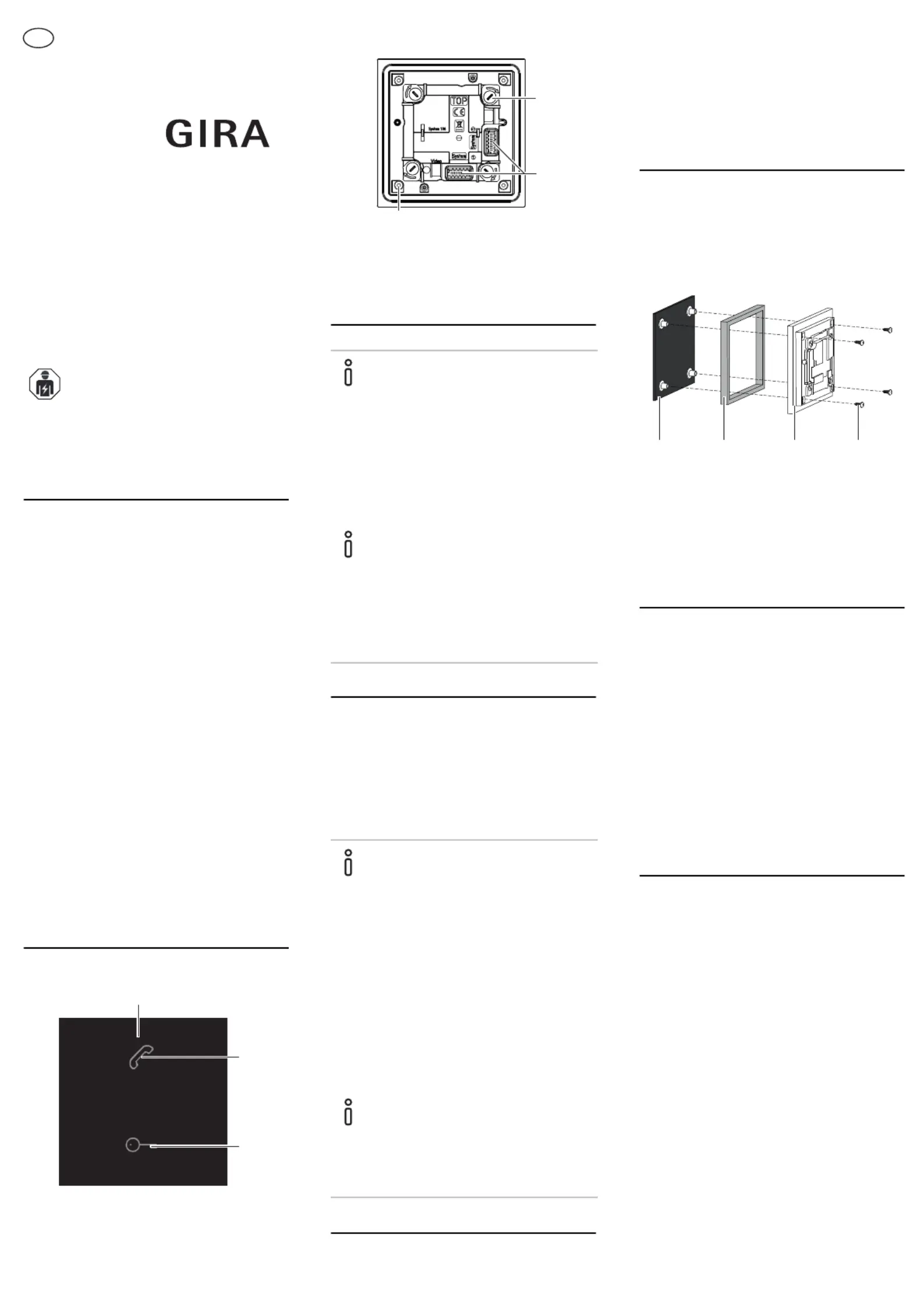

Front view

Electrical devices may only be

installed and connected by a

qualified electrician!

1 Glass front

2 Display: Voice connection active

3 Display: Door opener active

Rear view

Installing the module

Display symbols

Voice communication active

The symbol lights up when voice

communication is activated.

Door opener active

The symbol lights up when the door opener

is activated.

Starting up the module

The display module can only be started up

via the control device when connected to a

1 Turn-type lock (4 x)

2 Slot (2 x): System cable

3 Glass front mounting (4 x)

Installing the module

The installation instructions for the

System 106 surface-mounted 1-gang to 5-

gang housing describes the following

working steps:

• Lock the module on the mounting

frame.

• Plug in the connection cable.

• Place terminating resistors.

Terminating resistor

From the 2-gang surface-mounted housing

up, there are always two terminating

resistors included.

The terminating resistors are always

connected to the first and last module on

the system cable.

Delayed display "door opener ac-

tive"

After a call button has been taught in and

the display module is connected to the

System 106 door station, the display

signals "door opener active" in sync with

the activated door opener.

Changing the door opener interval via the

control device leads to display delays on

the module. Therefore, after changing the

door opener interval, the programming

mode must be activated and then

immediately deactivated again on the

control device for the display module to

adopt the new door opener interval.

Brightness of the display symbols

When active, the brightness of the display

symbols is automatically adjusted via the

door station or intercom module

depending on the ambient brightness.

intercom and call-button module or a door

station module (see installation and

operating instructions of the control device).

For a successful start-up, all components

(System 106 modules, home stations, audio

or video control device, etc.) must have

been installed.previously

Changing the glass front

1. Open the housing and remove the

mounting frame.

2. Unlock the display module and remove it

from the mounting frame.

3. Remove mounting screws and then

remove the glass front including seals.

4. Position new glass front with a new seal

and assemble in reverse order.

Technical data

Warranty

The warranty is provided in accordance with

statutory requirements via the retailer.

Please submit or send faulty devices

postage paid and with an error description

to your sales representative (retailer/

installation company).

The salesperson will forward the devices to

the Gira Service Center.

1 Glass front

2 Seal

3 System 106 DIN 18040 display module

4 Mounting screws (4 x)

Power

supply: Via system (flat

ribbon cable, 10-pin)

Power consumption

Per lit symbol:

250 mW

Stand-by mode: 14 mW

Connections: 2 x system

Ambient

temperature: -25 °C to +70 °C

Protection IP54

Dimensions (W x H): 106.5 x 106.5 mm

1 32 4

10864531 40/16

System 106

DIN 18040 display

module

5567 000

Operating instructions

Gira

Giersiepen GmbH & Co KG

Electrical installation systems

P.O. Box 1220

42461 Radevormwald

Phone: +49 (0) 2195 602 - 0

Fax: +49 (0) 2195 602 - 191

info@gira.de

www.gira.de

Produkt Specifikationer

Mærke:	Gira
Kategori:	Intercomsystem
Model:	5567000
Bredde:	106.5 mm
Højde:	106.5 mm
Produktfarve:	Sort
Produkttype:	Skærm
Driftstemperatur (T-T):	-25 - 70 °C
Materiale:	Glass, Metal
Monteringstype:	Overflade
Mærke kompatibilitet:	GIRA
