Side 1/12

Owner’s Manual

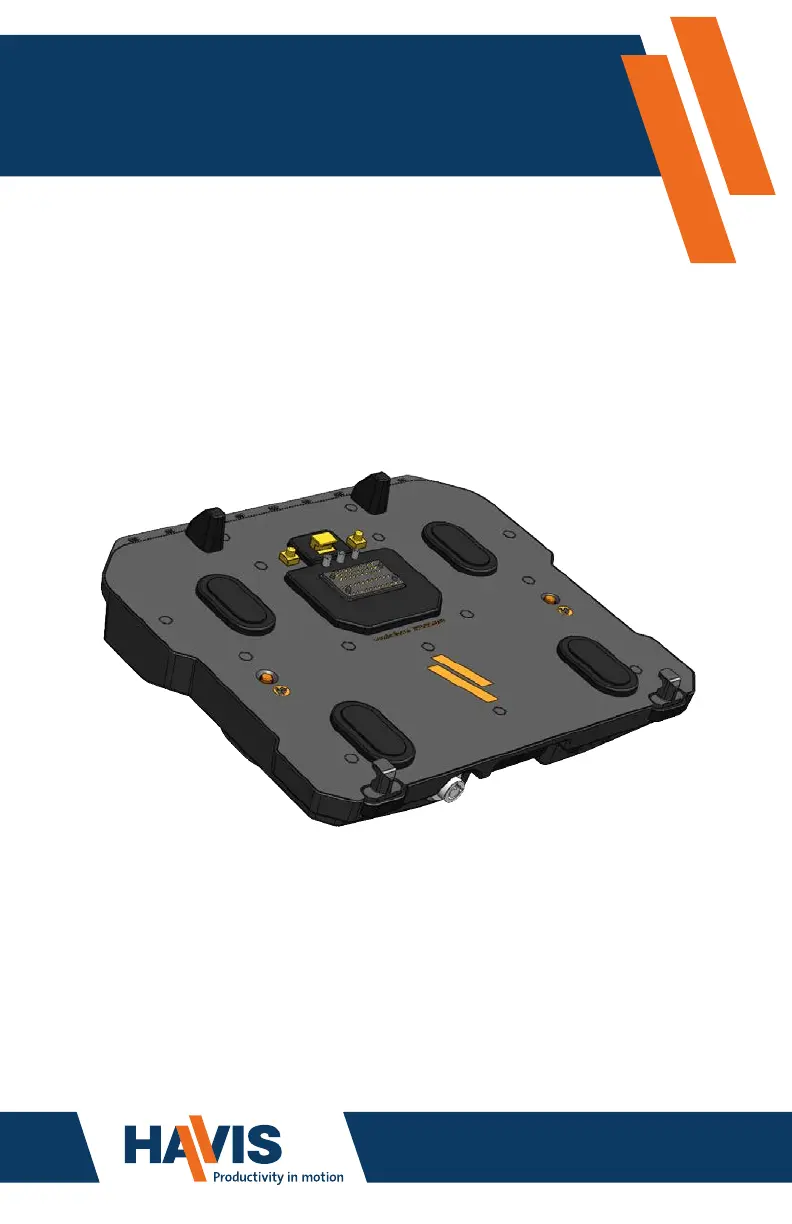

Havis Docking Station for

Dell Latitude Rugged Extreme Notebooks

DS-DELL-400-SERIES_OMN_12-14

www.havis.com

1-800-524-9900

DS-DELL-401

DS-DELL-401-3

DS-DELL-402

DS-DELL-402-3

DS-DELL-403

DS-DELL-405

DS-DELL-405-3

DS-DELL-406

DS-DELL-406-3

DS-DELL-400 Series

Havis, Inc.

75 Jacksonville Road

Warminster, PA 18974

www.havis.com 1-800-524-9900

Related Products

Havis oﬀers a wide variety of accessory products specically for use

with the DS-DELL-400 Series Docking Station. For more information

or to order, please visit www.havis.com.

DS-DA-102

Night Eyes II

In-vehicle night time viewing from six long lasting,

soft true, red LED lights on a exible steel gooseneck.

DS-DA-412

Screen Stiﬀener

Secure your laptop screen to prevent excess wear and

reduce vibration while in use.

LPS-105

90W Power Supply

External power supply and cable for Dell Laptops with

cigarette lighter adaptor.

DS-DA-502

Replacement Keys

Set of two (2) replacement keys for DS-DELL-400

Series Docking Stations.

DS-DELL-401

DS-DELL-401-3

DS-DELL-402

DS-DELL-402-3

DS-DELL-403

DS-DELL-405

DS-DELL-405-3

DS-DELL-406

DS-DELL-406-3

Before Beginning

(Original Instructions)

2 11

• NEVER STOW OR MOUNT THE DOCKING STATION DIRECTLY IN A VEHICLE

AIRBAG DEPLOYMENT ZONE.

• DO NOT USE COMPUTER WHILE DRIVING.

Havis is pleased to provide this Owner’s Manual to aid in the proper

installation and use of the DS-DELL-400 Series Docking Station for

Dell Latitude Rugged Extreme Notebooks

For questions regarding the set-up of your DS-DELL-400 Series Docking Station,

please contact Havis at 1-800-524-9900 or visit www.havis.com for additional

product support and information.

This Owner’s Manual applies to the following Part Numbers:

• FOR DOCKING STATION MODELS EQUIPPED WITH A BUNDLED POWER SUPPLY

(DS-DELL-402, DS-DELL-402-3, DS-DELL-406, DS-DELL-406-3) REFER TO THE SUPPLIED LIND

POWER SUPPLY REFERENCE GUIDE.

Operation - Undocking (continued)

• READ ALL INSTRUCTIONS THOROUGHLY BEFORE BEGINNING INSTALLATION.

• FOR THE DS-DELL-401, DS-DELL-401-3, DS-DELL-402, DS-DELL-402-3, DS-DELL-405,

DS-DELL-405-3, DS-DELL-406, & DS-DELL-406-3 DOCKING STATIONS:

DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: This product requires

a certied, automotive grade, Dell approved 90W power source rated for a

continuous, regulated 19.5VDC output (Havis Part Number LPS-105 or equivalent).

Failure to comply with this requirement will cause product damage that is NOT

repairable and is NOT covered under warranty.

Operation - Undocking

1) If previously locked, unlock Docking Station using supplied key.

2) To release Rear Hook, press in the Lock.

3) Once Rear Hook is released, grab both sides of laptop and lift out

of Docking Station, rear end rst.

5) For theft deterrence, secure laptop by locking Docking Station with

supplied key (Hardware Kit Item 2).

Produkt Specifikationer

Mærke:	Havis
Kategori:	Computertilbehør
Model:	DS-DELL-405
Bredde:	316 mm
Dybde:	276 mm
Højde:	68 mm
Produktfarve:	Sort
Pakkevægt:	3855 g
Ethernet LAN-porte (RJ-45):	1
Antal USB 2.0-porte:	1
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte:	3
Udgange til hovedtelefoner:	1
Ethernet LAN:	Ja
Forbindelsesteknologi:	Docking
Certificering:	MIL-STD 810G 514.5, SAE J1455
Mikrofonindgang:	Ja
Kapabilitet:	Dell Latitude 12 & 14
Mærke kompatibilitet:	Dell
