Owner’s Manual

Havis Docking Station for

Dell Latitude Rugged Extreme Notebooks

DS-DELL-400-SERIES_OMN_8-15

www.havis.com

1-800-524-9900

DS-DELL-401

DS-DELL-401-3

DS-DELL-402

DS-DELL-402-3

DS-DELL-403

DS-DELL-404

DS-DELL-404-3

DS-DELL-405

DS-DELL-405-3

DS-DELL-406

DS-DELL-406-3

DS-DELL-407

DS-DELL-407-3

DS-DELL-400 Series

Havis, Inc.

75 Jacksonville Road

Warminster, PA 18974

www.havis.com 1-800-524-9900

Related Products

Havis oﬀers a wide variety of accessory products specically for use

with the DS-DELL-400 Series Docking Station. For more information

or to order, please visit www.havis.com.

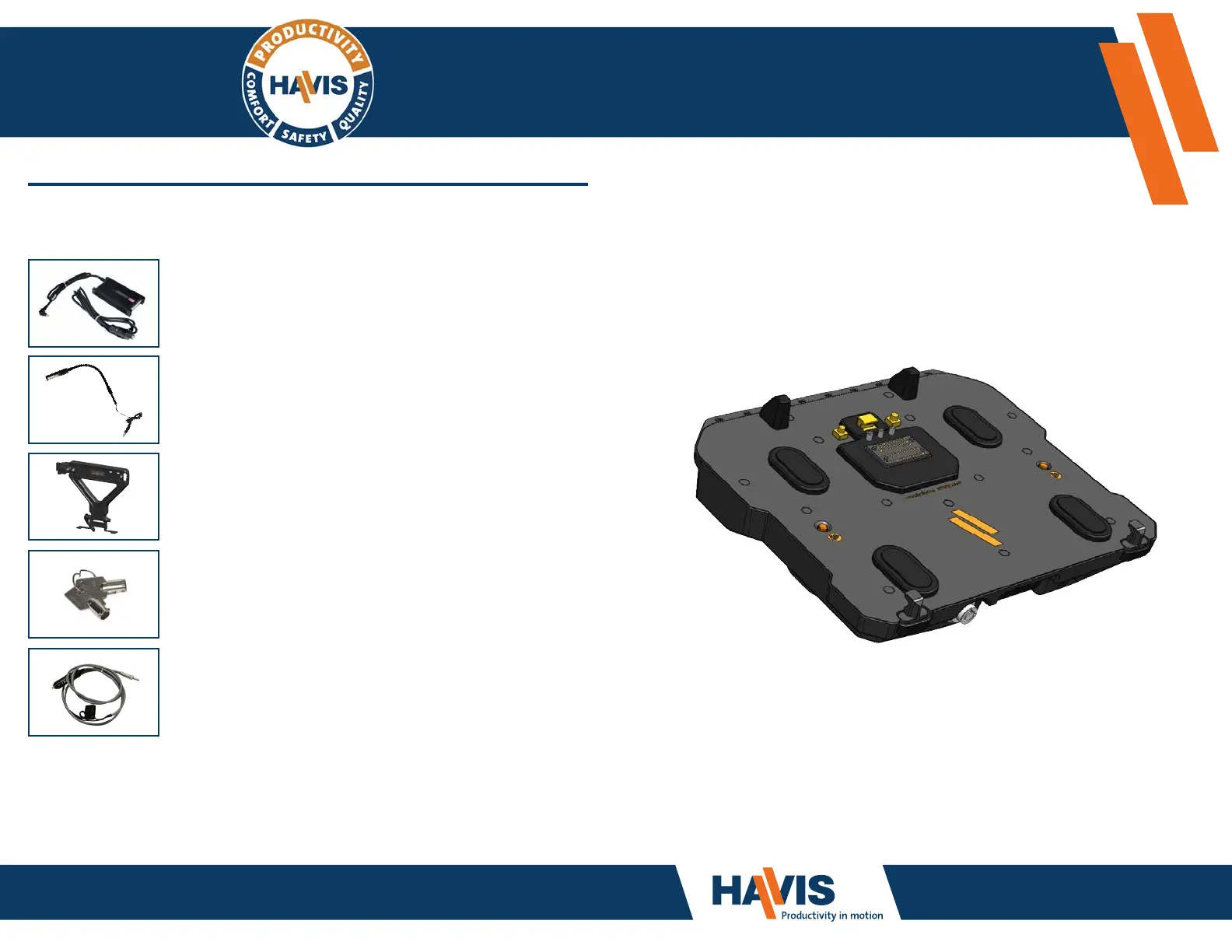

DS-DA-102

Night Eyes II

In-vehicle night time viewing from six long lasting,

soft true, red LED lights on a exible steel gooseneck.

DS-DA-412

Screen Stiﬀener

Secure your laptop screen to prevent excess wear and

reduce vibration while in use.

LPS-105

90W Power Supply

External power supply and cable for Dell Laptops with

cigarette lighter adaptor.

DS-DA-502

Replacement Keys

Set of two (2) replacement keys for DS-DELL-400

Series Docking Stations.

DS-DA-316

Power Cable

Power cable with 15amp fuse for DS-DELL-404,

DS-DELL-404-3, DS-DELL-407, & DS-DELL-407-3

Docking Stations.

DS-DELL-401

DS-DELL-401-3

DS-DELL-402

DS-DELL-402-3

DS-DELL-403

DS-DELL-404

DS-DELL-404-3

DS-DELL-405

DS-DELL-405-3

DS-DELL-406

DS-DELL-406-3

DS-DELL-407

DS-DELL-407-3

Before Beginning

(Original Instructions)

2 11

• NEVER STOW OR MOUNT THE DOCKING STATION DIRECTLY IN A VEHICLE

AIRBAG DEPLOYMENT ZONE.

• DO NOT USE COMPUTER WHILE DRIVING.

Havis is pleased to provide this Owner’s Manual to aid in the proper

installation and use of the DS-DELL-400 Series Docking Station for

Dell Latitude Rugged Extreme Notebooks

For questions regarding the set-up of your DS-DELL-400 Series Docking Station,

please contact Havis at 1-800-524-9900 or visit www.havis.com for additional

product support and information.

This Owner’s Manual applies to the following Part Numbers:

• FOR DOCKING STATION MODELS EQUIPPED WITH A BUNDLED POWER SUPPLY

(DS-DELL-402, DS-DELL-402-3, DS-DELL-406, DS-DELL-406-3) REFER TO THE SUPPLIED LIND

POWER SUPPLY REFERENCE GUIDE.

Operation - Undocking (continued)

• READ ALL INSTRUCTIONS THOROUGHLY BEFORE BEGINNING INSTALLATION.

• FOR THE DS-DELL-401, DS-DELL-401-3, DS-DELL-402, DS-DELL-402-3, DS-DELL-405,

DS-DELL-405-3, DS-DELL-406, & DS-DELL-406-3 DOCKING STATIONS:

DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: This product requires a certied,

automotive grade, Dell approved 90W power source rated for a continuous, regulated

19.5VDC output (Havis Part Number LPS-105 or equivalent). Failure to comply with this

requirement will cause product damage that is NOT repairable and is NOT covered under warranty.

• THE DS-DELL-404, DS-DELL-404-3, DS-DELL-407, & DS-DELL-407-3 DOCKING STATIONS

MUST BE USED WITH POWER CABLE (PART # DS-DA-316). THIS CABLE INCLUDES

A 15AMP PROTECTION FUSE.

Operation - Undocking

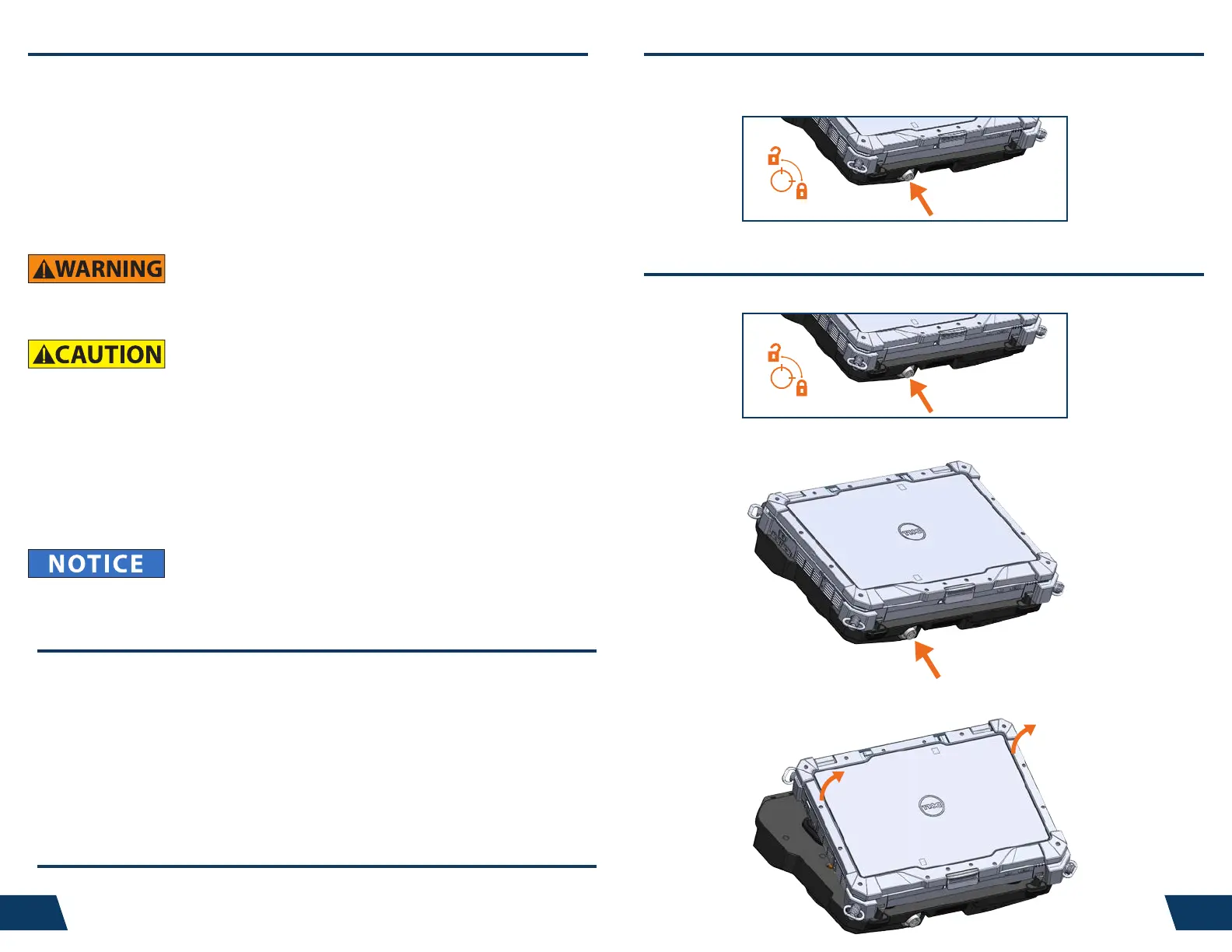

1) If previously locked, unlock Docking Station using supplied key.

2) To release Rear Hook, press in the Lock.

3) Once Rear Hook is released, grab both sides of laptop and lift out

of Docking Station, rear end rst.

5) For theft deterrence, secure laptop by locking Docking Station with

supplied key (Hardware Kit Item 2).

EC DECLARATION OF CONFORMITY in accordance with EN 50498

Manufacturers Name: Havis, Inc.

Manufacturers Address: 47801 Anchor Court, Plymouth Twp, MI 48170 USA

Declares under our sole responsibility that the product:

Product name: Havis Docking Station For Dell Latitude 12 and 14 Rugged Extreme Notebooks

Model: DS-DELL-40X, where ‘X’ may be any alphanumeric character and which describes product options.

May be followed by any alphanumeric characters which describe product options.

Product Options: This declaration covers all options of the above product which bear the CE Marking.

Is in conformity with the following standards or other normative documents:

Automotive EMC Directive EN 50498:2010, Electromagnetic compatibility (EMC) -

2004/108/EC: Product family standard for aftermarket electronic equipment in vehicles

Directive 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)

Supplementary Information:

The product herewith complies with the requirements of the Automotive EMC Directive 2004/108/EC, Annex I, 6.5, 6.6, 6.8,

and 6.9. This product requires the use of a recommended e-Marked automotive power supply when used within vehicles.

Plymouth twp, MI, USA June 10, 2014 Bruce Jonik, Director of Engineering , Havis, Inc.

FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modications

to the model DS-DELL-40X not expressly approved by Havis, Inc. could void

the user's authority to operate this equipment.
