Side 1/4

A-

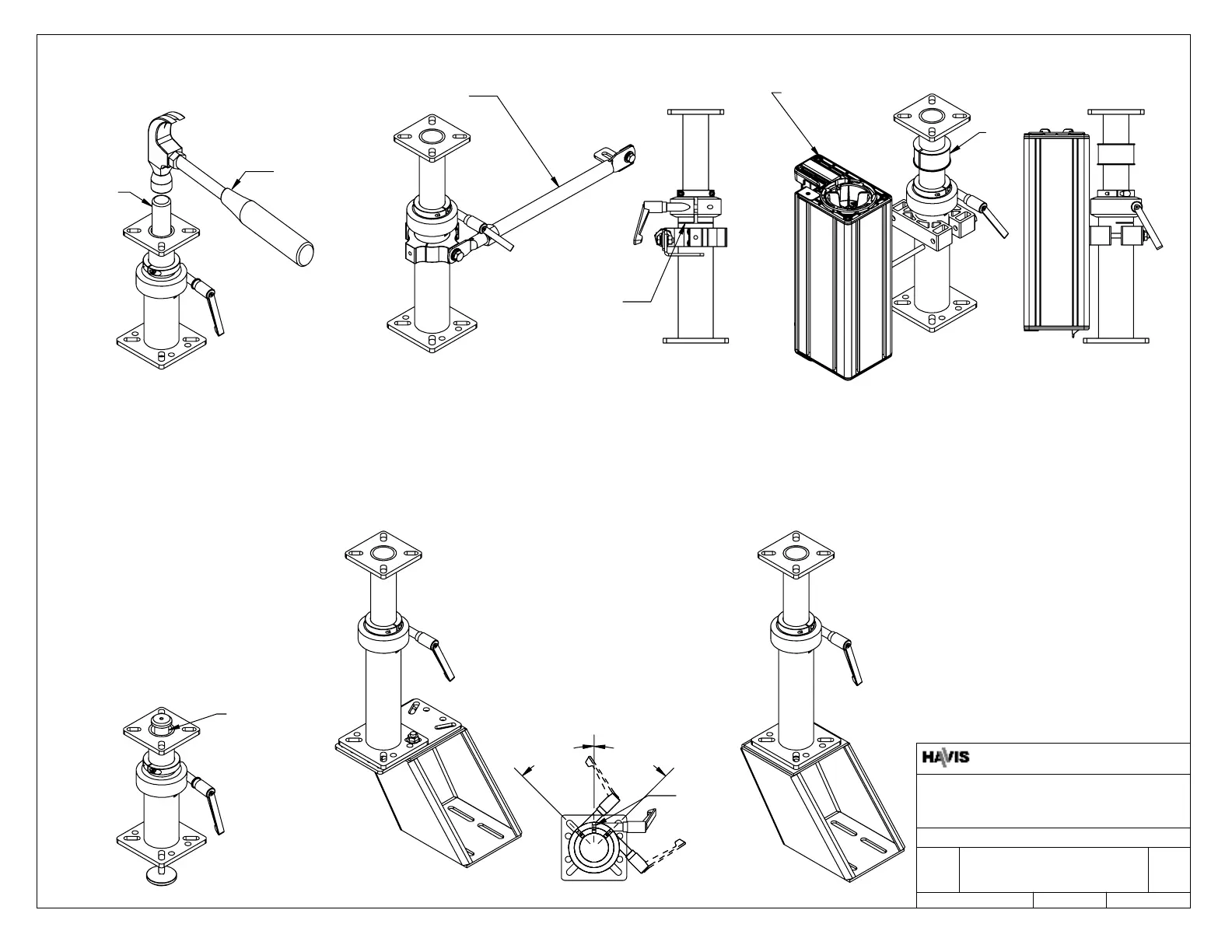

GUIDE RING BUSHING REMOVAL

WE STRONGLY RECOMMEND NOT TO REMOVE THE

GUIDE RING BUSHING, BUT IF REMOVAL OF INNER POLE

IS DESIRED - FOLLOW THIS SIMPLE REMOVAL

INSTRUCTION

INSERT MAXIMUM 1" DIAMETER OBJECT WITH

SUFFICIENT LENGTH AND DROP INSIDE INNER POLE.

MAKE SURE NOTHING PREVENTS GUIDE RING

BUSHING FROM BEING EJECTED UNDERNEATH. HIT

WITH A HAMMER TO FORCE THE GUIDE RING

BUSHING OUT.

7/8" - 1"

DIAMETER

OBJECT

SUPPORT ARM

(OPTIONAL)

B -

INSTALL SPIDER COLLAR (OPTIONAL

COMES WITH C-HDM-401 & 403)

IF MOUNTING THE SPIDER COLLAR TO THE INNER

POLE USE CM003406 REDUCING BUSHING. SPREAD

AND SNAP OVER THE INNER POLE.

LOOSELY ATTACH SPIDER COLLAR TO THE OUTER

POLE OR CM003406. DO NOT MOUNT SPIDER

COLLAR ABOVE OUTER POLE HORIZONTAL CUT.

SPIDER MUST BE

BELOW THIS SLOT

ON THE OUTER POLE

C -

INSTALL OPTIONAL C-HDM-416

IF MOUNTING C-HDM-416 TO THE INNER POLE USE

CM003406. SPREAD THE PIECE AND IT SHOULD SNAP

OVER THE INNER POLE.

ATTACH C-PM-101 TO CLAMP ASSEMBLY USING

LONG CARRIAGE BOLTS INSERTED THROUGH THE

PRINTER AND ONE PIECE OF EXTRUSION.

ATTACH POLE CLAMP TO THE OUTER POLE OR

CM003406. AFFIX SECOND PIECE OF EXTRUSION

AROUND POLE AND LOOSELY TIGHTEN THE

HARDWARE. DO NOT MOUNT CLAMP ABOVE

OUTER POLE HORIZONTAL CUT.

CM003406 REDUCING

BUSHING IS NECESSARY

IF MOUNTING TO

THE INNER POLE.

(USE ONLY ON FIXED

HEIGHT POLES)

C-PM-101

SOLD SEPARATELY

D-

INSTALL GAS SHOCK (OPTIONAL)

(SKIP IF GAS SHOCK IS NOT IN USE)

UNSCREW SMALL PLASTIC DISC FROM SHOCK

INSERT GAS SHOCK ASSEMBLY UPWARD FROM

THE BOTTOM OF HDM POLE ASSEMBLY WITH GAS

SHOCK'S ROD FACING DOWNWARD. GAS

SHOCK WILL SANDWICH BETWEEN MOUNTING

BASE C-HDM-100 SERIES (NOT SHOWN) AND

ACTION ADAPTER C-HDM-300 SERIES (NOT

SHOWN).

ONCE GAS SHOCK SITS PROUD OF THE INNER

POLE REATTACH SMALL PLASTIC DISC

GAS SHOCK

(OPTIONAL)

E -

INSTALL C-HDM-409 OPTIONAL

& COLLAR CLAMP ALIGNMENT

THIS CAN BE DONE EITHER AT THIS POINT OR ONCE

THE C-HDM-100 SERIES BASE IS ALREADY IN THE

VEHICLE. YOU WILL NEED THE OFFSET THAT WAS

WIITH THE C-HDM-100 BASE IF APPLICABLE.

DECIDE ON THE ORIENTATION OF THE C-HDM-409.

ENSURING THAT IF THE HANDLE VERSION OF THE

POLE IS BEING USED THE TWO SLOTS ARE NO MORE

THAN 45 DEG APART IF THIS IS THE CASE ROTATE THE

POLE TO THE CORRECT POSITION.

IF NO HANDLE IS BEING USED ENSURE THE OUTER

POLE SLOT AND THE CLAMP COLLAR SLOT LINE UP.

TIGHTEN ALL THE HARDWARE.

F -

INSTALL C-HDM-410-412 OPTIONAL

THIS CAN BE DONE EITHER AT THIS POINT OR ONCE

THE C-HDM-100 SERIES BASE IS ALREADY IN THE

VEHICLE. YOU WILL NEED THE OFFSET THAT WAS

WIITH THE C-HDM-100 BASE IF APPLICABLE.

DECIDE ON THE ORIENTATION OF THE OFFSET.

ENSURING THAT IF THE HANDLE VERSION OF THE

POLE IS BEING USED THE TWO SLOTS ARE NO MORE

THAN 45 DEG APART IF THIS IS THE CASE ROTATE THE

POLE TO THE CORRECT POSITION.

IF NO HANDLE IS BEING USED ENSURE THE OUTER

POLE SLOT AND THE CLAMP COLLAR SLOT LINE UP.

TIGHTEN ALL THE HARDWARE.

45°

MAX.

45°

MAX.

SLOTS IN TUBE

AND CLAMP

ALIGNED

HAMMER

75 JACKSONVILLE RD,

WARMINSTER, PA. 18974

1-800-524-9900

SIZE

SCALE: 1:8

SHEET 1 OF 4

DO NOT SCALE DRAWING

WEIGHT (LB): 12.109

TITLE:

DWG. NO.

C-HDM_INST

REV

02/20/13

HAVIS, INC.

INSTALLATION INSTRUCTIONS, C-

HDM MOUNTING BASES

C-HDM-204 SHOWN

STANDARD FLAT SURFACE

MOUNTING

FOR FLAT SURFACE MOUNTING OF C-HDM-

204, 205, 212, 213, 214, 215, 216 AND 217

(INCLUDING HAVIS CONSOLES WHICH DO

NOT HAVE HOLES PRE-DRILLED)

POSITION POLE MOUNT IN DESIRED

LOCATION

MARK AND DRILL 1/4" HOLES INTO THE

MOUNTING SURFACE (SEE NOTES FOR

DRILLING)

THROUGH-BOLT USING 1/4" HARDWARE

PROVIDED WITH THE MOUNT OR

EQUIVALENT HARDWARE IF

NECESSARY.

C-HDM-204 SHOWN

STANDARD CONSOLE SIDE

MOUNTING

FOR CONSOLE SIDE MOUNTING OF C-

HDM-204, 205, 212, 213, 214, 215, 216 AND

217 (WHERE CONSOLE HAS PRE-INSTALLED

NUTS IN CONSOLE RAIL)

TO ATTACH C-HDM-204, 205, 214, 215

LOOSEN THE RETAINING SET SCREW TO

ALLOW THE NUTS TO BE POSITIONED AS

DESIRED IN THE TRACK.

LINE UP THE MOUNT WITH THE NUTS IN

THE CONSOLE,

ATTACH USING HARDWARE

PROVIDED WITH THE MOUNT, OR

EQUIVALENT 1/4-20 X 1/2" LONG

(MAX.) BOLTS AND FLAT WASHERS.

C-HDM-204 SHOWN

PRE-DRILL;ED CONSOLE SIDE

MOUNTING

FOR CONSOLE SIDE MOUNTING OF C-

HDM-204, 205, 212, 213, 214, 215, 216 AND

217 (WHERE CONSOLE HAS PRE-INSTALLED

NUTS IN CONSOLE RAIL)

TO ATTACH C-HDM-204, 205, 214, 215

LINE UP THE MOUNT WITH THE

PREDRILLED HOLES IN THE CONSOLE,

ATTACH USING HARDWARE

PROVIDED WITH THE MOUNT, OR

EQUIVALENT 1/4-20 BOLTS.

DEPENDING ON THE DESIRED

POSITION, HOLES MAY NEED TO BE

DRILLED, OR ONE (1) BOLT CAN USE

THE NUT TRACK WITH A 1/4-20 X 1/2"

LONG BOLT.

FOR VEHICLE MOUNTING THAT REQUIRES DRILLING

INSPECT ALL AREAS BEFORE DOING ANY DRILLING

ENSURE NO SERIOUS DAMAGE HAPPENS TO THE

VEHICLE.

SECURE THE MOUNT WITH SUPPLIED HARDWARE KIT.

NOTE:

MOST C-VS (VEHICLE SPECIFIC)

SERIES CONSOLES HAVE HOLES FOR

AN HDM-204 OR 214 PRE-DRILLED.

IF ANOTHER LOCATION IS DESIRED,

HOLES MAY NEED TO BE DRILLED

75 JACKSONVILLE RD,

WARMINSTER, PA. 18974

1-800-524-9900

SIZE

SCALE: 1:8

SHEET 2 OF 4

DO NOT SCALE DRAWING

WEIGHT (LB): 0.00

TITLE:

DWG. NO.

C-HDM_INST

REV

02/20/13

HAVIS, INC.

INSTALLATION INSTRUCTIONS, C-

HDM MOUNTING BASES
