Hella marine LED Navigation Lamps offer many advantages over conventional bulb lamps.

Signicantly reduced power consumption, ultra long life and high tolerance to shock and

vibration make the LED lamps the ideal choice for the harsh marine environment.

The Hella marine NaviLED

PRO series are Precision Optical Instruments, tested and type

approved to comply with international maritime regulations. They are covered by a 5 year

warranty.

Warranty Statement

Dimensions

Electromagnetic Compatibility (EMC)

This LED lamp is an electronic device. The electrical circuits contain components that

suppress possible interference, both emission as well as susceptibility, to the limits

prescribed in international regulations.

Protection against damage due to voltage spikes

This lamp is protected against reverse polarity connection and negative voltage spikes of

up to 700 volts.

For general comments about Hella's products please e-mail techfeedback@hellamarine.com

Congratulations! The product you have selected comes from Hella - one of the world's

leading manufacturers of lighting products. The product comes with a 5 year warranty

from end user purchase covering faults in materials, components or workmanship.

In the unlikely event that you should experience a conrmed warranty related problem with your

purchase, Hella will, at its discretion, either repair, replace or refund the purchase price of the

product.

Warranty services may be obtained by returning the product within the warranty period to the

Hella Dealer where the product was originally purchased.

This warranty is in addition to and does not preclude any other rights or remedies available to the

consumer under any local legislation related to the provision of goods or services.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.

You are entitled to a replacement or refund for a major failure and for compensation for any other

reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or

replaced if the goods fail to be of acceptable quality and the failure does not amount to a major

failure.

This warranty does not cover:

1.) Claim/s as a result of normal wear and tear or of any modications and / or alterations to the product in any

shape or form.

2.) Claim/s as a result of non-compliance of the assembly, service and operating instructions and/or any unt or

improper use.

3.) Any expenses incurred in the process of making the claim.

Note: For lamps sold in Australia warranty services are provided by

Hella Australia Pty Ltd, 54-76 Southern Rd, Mentone VIC 3194.

Customer Service 1800 061 729 custservice@ha.hella.com,

http://www.hella.com/hella-au/21.html

Dimensions

a = 87mm / 3.43”

b = 90mm / 3.54”

c = 57mm / 2.25”

d = 50mm / 1.97”

959 149-64 V04 (ENG-GER-FR)

NaviLED

PRO 2 Nautical Mile

Port / Starboard / Stern Lamp

Material Description UV resistant lens, high impact shroud

Minimum Visible Distance 2 Nautical Miles

Cable Pre-wired with 2.5m of marine cable

Operating Voltage Multivolt 9-33V DC

Voltage Protection Spike protected to +500 volts

Reverse polarity protected to -700 volts

Power Consumption Less than 2W (0.14A@12V/0.08A@24V)

Degree of Protection IP67 - Completely sealed

Weight 150g (including cable)

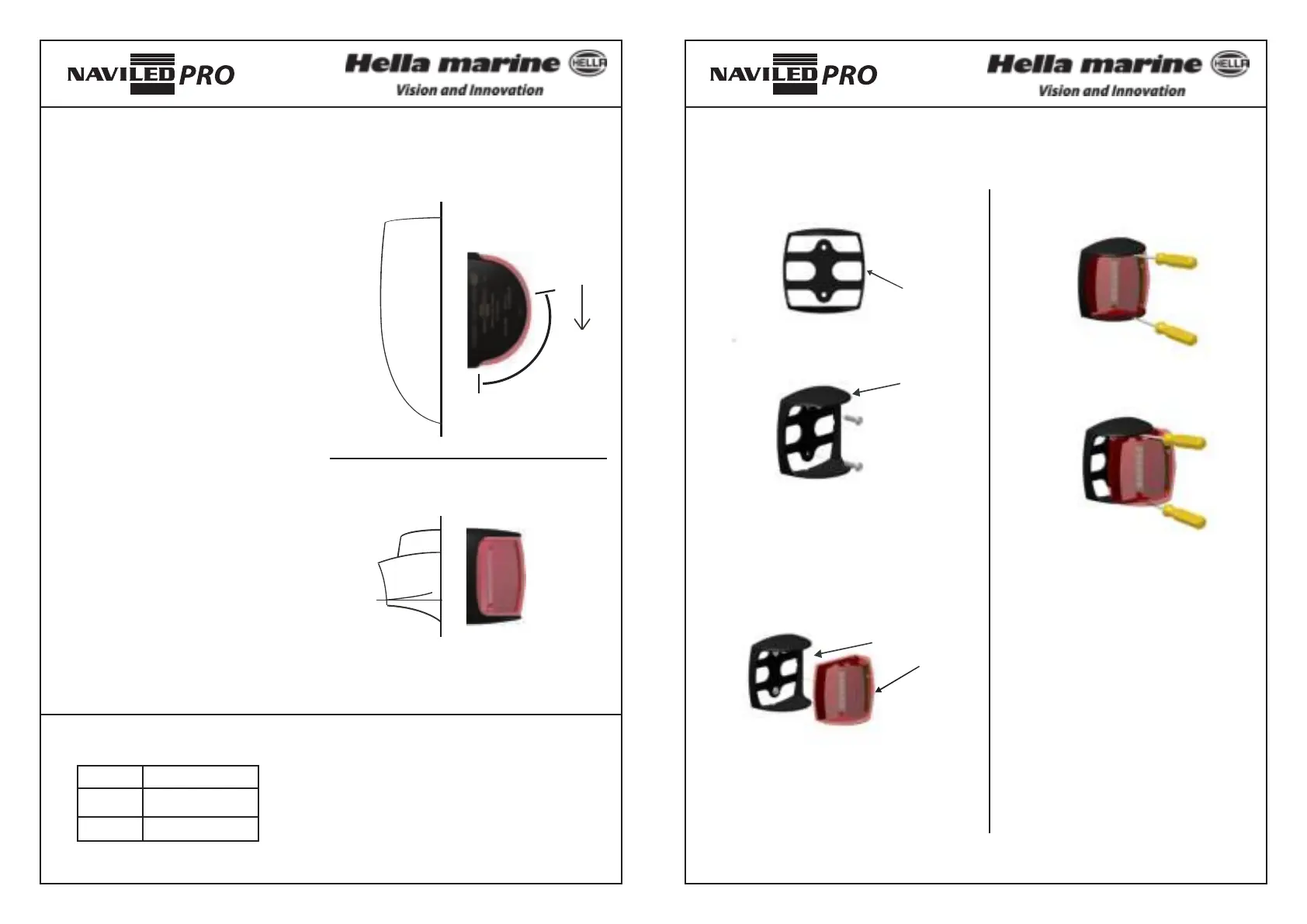

Assembly and Removal Instructions

LED modules are polarity conscious.

Reverse polarity will not damage this product but will

inhibit its function.

Hella recommends wire connections be soldered, and heat

shrink tubing applied to seal the joint.

Note: Lamp must be protected by a fuse rated at 5

amperes maximum.

Wiring Colour Coding

Assembly

Shroud

Optic Assembly

Step 3 - Insert the Optic Assembly

Note - Arrow on top of shroud and arrow on top of

optic assembly must point in the same direction

3.1 Feed power cable

3.2 Push optic assembly into shroud

3.3 Connect power

Step 2 - Mount the Shroud

2.1 Shroud must be installed with markings on

the TOP horizontal surface.

2.2 Arrow on top of shroud must point straight

ahead for port, starboard, masthead and

bi-colour lights and aft for stern lights.

Markings

Step 1

Make Provision for the power cable

Allow for

cable

Step 2

Pull optic assembly out

Step 1

Insert screw driver between optic

assembly and shroud

Removal

www.hellamarine.com

Colour Connect to

Black Negative (-ve)

Red Signal (+ve)

Note: Do not open. No servicable

parts inside.

E.g. - Port Lamp

Port and Starboard Lamps:

Parallel to the vessels centre line. (see Fig.1)

Vertical to the vessels centre line. (see Fig.2)

Stern Lamps:

Right angles to the vessels centre line.

Vertical to the vessels centre line. (see Fig.2)

Signal direction arrow:

The arrow should point -

- right ahead for port / starboard lamps (side lamps)

- right astern for stern lamps.

Obstructions to the light output:

When the lamp is operating, the light should not

be obstructed or concealed by superstructures or

other objects.

Port / Starboard (Side Lamps):

Must be mounted in the same thwartships position

and at the same height above the construction

water line (CWL), but at least 1 metre lower than

the masthead lamp and mark the effective beam

of the vessel.

If this is not possible, the distance between the

side lamps should not be less than 85% of the

maximum beam of the vessel.

Fig. 1 Parallel to the vessels centre line.

Fig.2 Vertical to the vessels centre line.

E.g. - Port Lamp

Top

view

Bow on view
