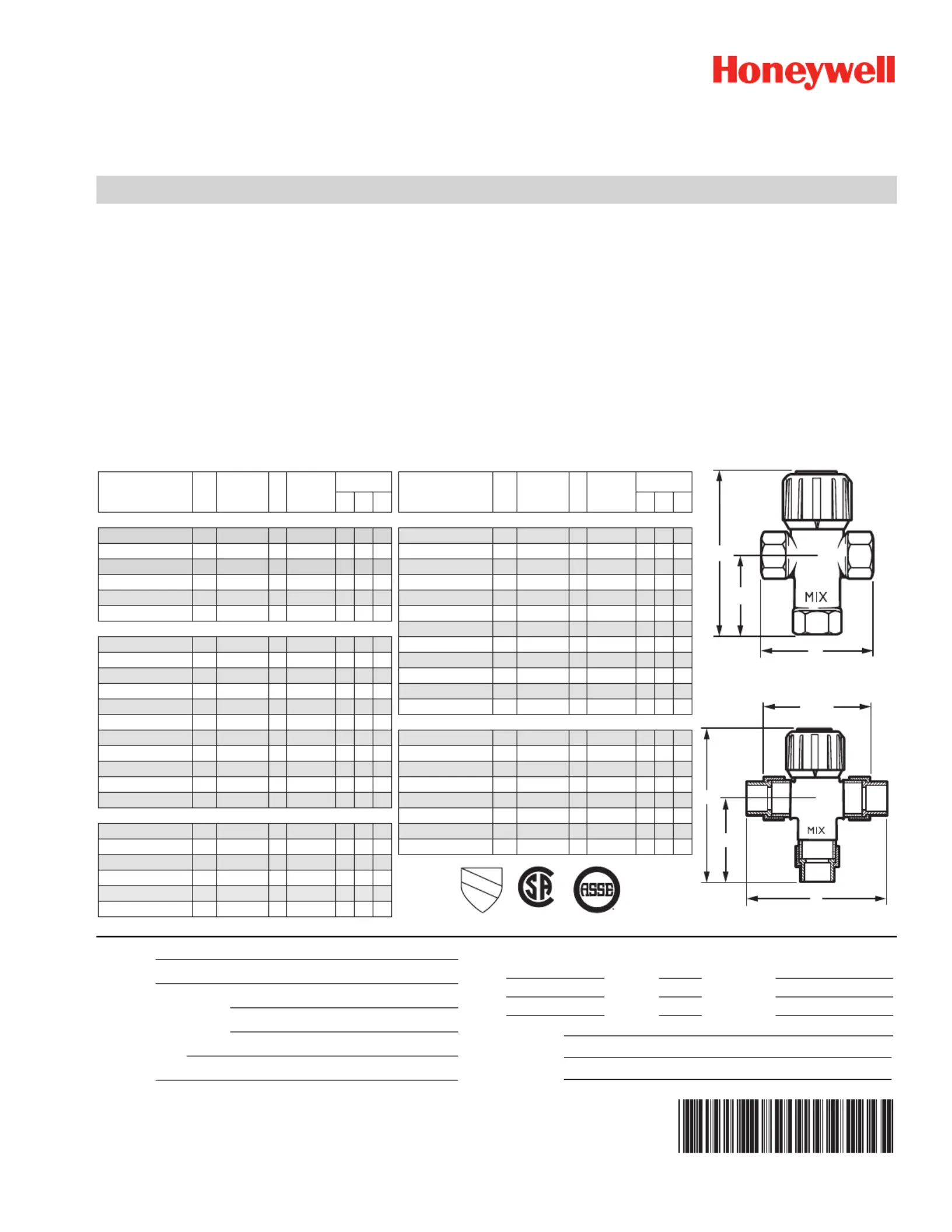

AM-1 Series

™

THERMOSTATIC MIXING VALVES

SUBMITTAL SHEET

APPLICATION

The Honeywell AM-1 series accurately adjusts, maintains, and limits the hot water temperature to a desired setting selected by

the user. By installing a Honeywell AM-1 mixing valve, raising water heater storage temperature setting, and limiting mixed outlet

water temperature to a safe temperature, more usable hot water is available.

Specications

Design: Straight-Through (hot and cold at the same level)

Maximum Pressure: 150 psi (1034 kPa)

Certications: ASSE, CSA and IAPMO listed

Patent Information: U.S. Patent No. 6,079,625

Warranty: 1 year limited warranty

Materials

Body: Teon

-Coated, Nickle-Plated Brass

Shuttle: Teon

-Coated Brass

O-Rings: EPDM RUbber

**Lead free models available, add LF to the end of the part

(Example, AM100-1LF)

Model Number

Pipe

Size

Operating

Temp

ASSE

Certs.

Dimensions

ABC

NPT

AM100-1 1/2” 70°F - 145°F 3.2 1017 5.8 2.7 3

AM101-1 3/4” 70°F - 145°F 3.8 1017 5.8 2.7 3

AM102-1 1” 70°F - 145°F 4.3 1017 5.8 2.7 3

AM100C-1 1/2” 70°F - 120°F 3.2 1017 5.8 2.7 3

AM101C-1 3/4” 70°F - 120°F 3.8 1017 5.8 2.7 3

AM102C-1 1” 70°F - 120°F 4.3 1017 5.8 2.7 3

Union Sweat

AM100-US-1 1/2” 70°F - 145°F 3.9 1017 5.7 2.7 4.4

AM101-US-1 3/4” 70°F - 145°F 3.9 1017 5.7 2.9 4.9

AM102-US-1 1” 70°F - 145°F 3.9 1017 5.7 3.5 6.1

AM100C-US-1 1/2” 70°F - 120°F 3.9 1017 5.7 2.7 4.4

AM101C-US-1 3/4” 70°F - 120°F 3.9 1017 5.7 2.9 4.9

AM102C-US-1 1” 70°F - 120°F 3.9 1017 5.7 3.5 6.1

AM100R-US-1 1/2” 70°F - 180°F 3.9 N/A 5.7 2.7 4.4

AM101R-US-1 3/4” 70°F - 180°F 3.9 N/A 5.7 2.9 4.9

AM102R-US-1 1” 70°F - 180°F 3.9 N/A 5.7 3.5 6.1

AM100C1070-US-1 1/2” 70°F - 120°F 1.8 1017, 1070 5.7 2.7 4.4

AM101C1070-US-1 3/4” 70°F - 120°F 1.8 1017, 1070 5.7 2.9 4.9

Union CPVC

AM100-UCPVC-1 1/2” 70°F - 145°F 3.9 1017 5.8 2.8 4.7

AM101-UCPVC-1 3/4” 70°F - 145°F 3.9 1017 5.8 2.8 4.7

AM100C-UCPVC-1 1/2” 70°F - 120°F 3.9 1017 5.8 2.8 4.7

AM101C-UCPVC-1 3/4” 70°F - 120°F 3.9 1017 5.8 2.8 4.7

AM100C1070-UCPVC-1 1/2” 70°F - 120°F 1.8 1017, 1070 5.8 2.8 4.7

AM101C1070-UCPVC-1 3/4” 70°F - 120°F 1.8 1017, 1070 5.8 2.8 4.7

Model Number

Pipe

Size

Operating

Temp

ASSE

Certs.

Dimensions

ABC

Union Threaded

AM100-UT-1 1/2” 70°F - 145°F 3.9 1017 5.9 2.9 4.9

AM101-UT-1 3/4” 70°F - 145°F 3.9 1017 6.6 3.8 6.5

AM102-UT-1 1” 70°F - 145°F 3.9 1017 6.8 3.9 7

AM100C-UT-1 1/2” 70°F - 120°F 3.9 1017 5.9 2.9 4.9

AM101C-UT-1 3/4” 70°F - 120°F 3.9 1017 6.6 3.8 6.5

AM102C-UT-1 1” 70°F - 120°F 3.9 1017 6.8 3.9 7

AM100R-UT-1 1/2” 70°F - 180° 3.9 N/A 5.9 2.9 4.9

AM101R-UT-1 3/4” 70°F - 180° 3.9 N/A 6.6 3.8 6.5

AM102R-UT-1 1” 70°F - 180° 3.9 N/A 6.8 3.9 7

AM100C1070-UT-1 1/2” 70°F - 120°F 1.8 1017, 1070 5.9 2.9 4.9

AM101C1070-UT-1 3/4” 70°F - 120°F 1.8 1017, 1070 6.6 3.8 6.5

AM102C1070-UT-1 1” 70°F - 120°F 1.8 1017, 1070 6.8 3.9 7

Union PEX

AM100-UPEX-1 1/2” 70°F - 145°F 3.9 1017 6.0 3.0 5.1

AM101-UPEX-1 3/4” 70°F - 145°F 3.9 1017 6.0 3.0 5.1

AM100C-UPEX-1 1/2” 70°F - 120°F 3.9 1017 6.0 3.0 5.1

AM101C-UPEX-1 3/4” 70°F - 120°F 3.9 1017 6.0 3.0 5.1

AM100R-UPEX-1 1/2” 70°F - 180°F 3.9 N/A 6.0 3.0 5.1

AM101R-UPEX-1 3/4” 70°F - 180°F 3.9 N/A 6.0 3.0 5.1

AM100C1070-UPEX-1 1/2” 70°F - 120°F 1.8 1017, 1070 6.0 3.0 5.1

AM101C1070-UPEX-1 3/4” 70°F - 120°F 1.8 1017, 1070 6.0 3.0 5.1

Job Name

Engineer

Mechanical Contractor

Contractor’s P.O. No.

Representative

Notes

Model(s)

Qty. Notes

Approval

Service

Tag No.

M33965

3-5/32

(80)

NPT

UNION

68-3098-01

C U

Dimensions

Automation and Control Solutions

Honeywell International Inc.

1985 Douglas Drive North

Golden Valley, MN 55422

customer.honeywell.com

® U.S. Registered Trademark

68-3098—01 M.S. 11-12

Printed in United States
