Owner’s Manual
for Cruiser Bicycles
Please read and fully understand this
manual before operation.
Save this manual for future reference.
This manual contains important safety,
assembly, operation and maintenance
information.
HCB EN 100512 m0001
Copyright Huffy Corporation 2012
2
Owner’s Manual Index
Your Bike
• Owner’s Bicycle Identifi cation Record ................................3
• Fitting the Rider to the Bicycle ............................................3
• Warning and Safety Information .........................................4
• Rules of the Road ...............................................................4
• The Owner’s Responsibility ................................................5
Bicycle Assembly
• Parts Assembly View ..........................................................6
• Parts Assembly List.............................................................7
• Introduction .........................................................................8
• Tools Needed ......................................................................8
• Front Fender Installation .....................................................9
• Assemble the Front Wheel to the Fork ..............................10
• Rear Fender Assembly ......................................................11
• Handlebar and Stem Installation ........................................12
• Testing Stem and Handlebar Tightness .............................13
• Seat Installation .................................................................14
• Testing Seat Clamp and Post Clamp Tightness .................15
• Front Refl ector Bracket Installation ....................................16
• Rear Refl ector Bracket Installation ....................................16

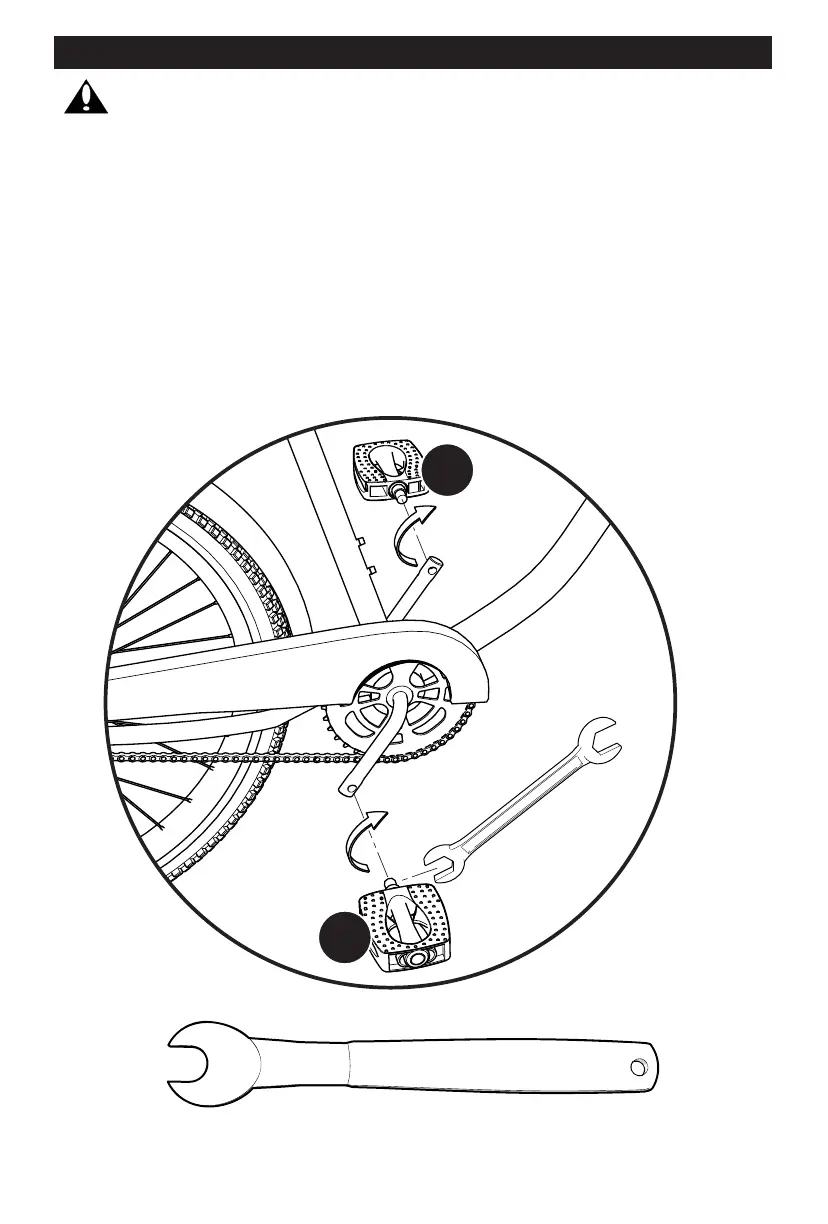

• Pedal Installation................................................................17
Maintenance and Service
• Brake System.....................................................................18
• Chain Adjustment ...............................................................18
• Tires ...................................................................................19
• Repair and Service ............................................................20
• Lubrication .........................................................................20
• Lubrication Table ................................................................20
• Inspection of the Bearings .................................................21
• Refl ectors ...........................................................................21
Huffy Warranty
• Huffy Corporation Limited Warranty ...................................22
3

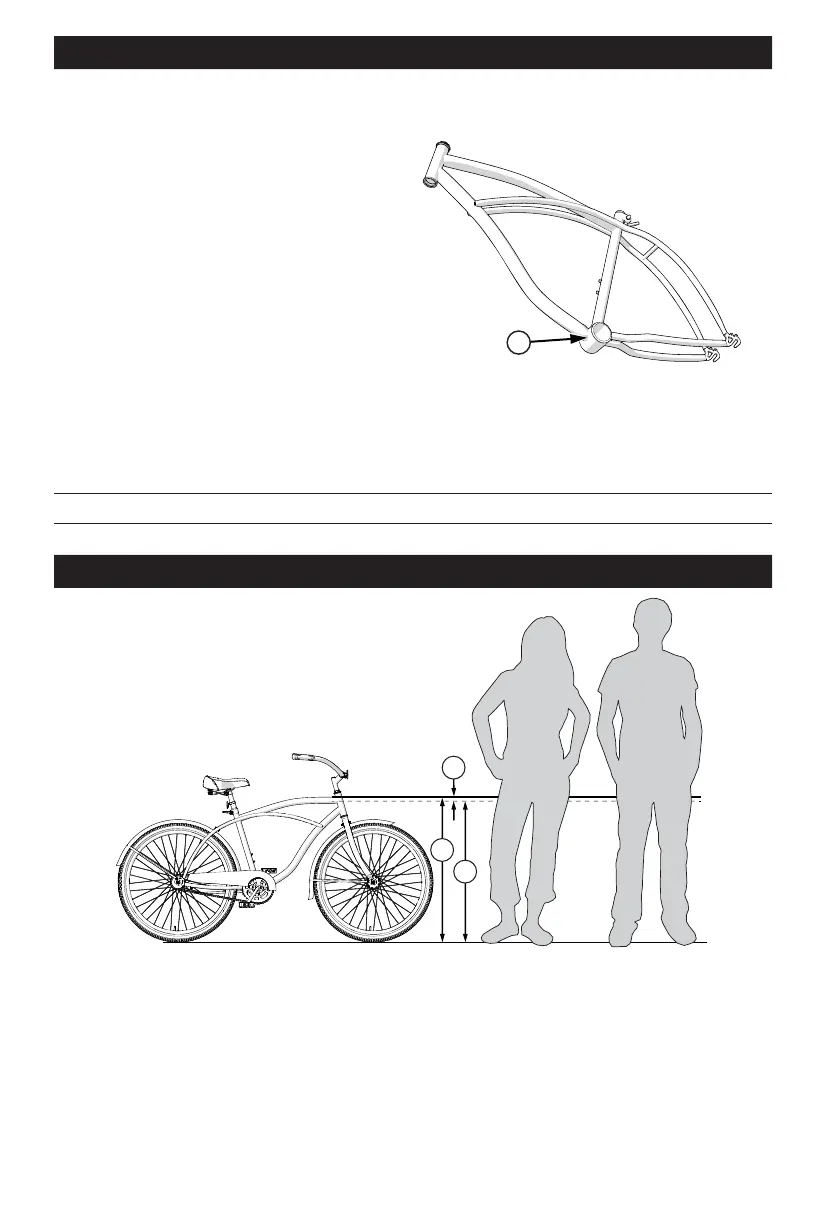

Owner’s Bicycle Identifi cation Record
NOTE: This information is only available on the bicycle itself. It is not available
from Huffy.
Each Huffy bicycle has a Serial
Number stamped into the frame.
The Serial Number (1) can be found
on the bottom of the crank housing
as shown.
x
x
x
x
x
x
x
x
1
Write this number below to keep it for future reference.
If the bicycle is stolen, give this number and a description of the bicycle to the
police. This will help them fi nd the bicycle.
Model / Serial Number:
Purchase Date:
Model Name:
Fitting the Rider to the Bicycle
3
1
2
To determine the correct size of bicycle for the rider:
• Straddle the assembled bicycle with feet shoulder width apart and fl at on
the ground.
• There must be at least 1 inch (2.5 cm) of clearance (1) between the high-
est part of the top tube (2) and the crotch of the rider with tires properly
infl ated.
• The minimum leg-length for the rider is the highest part of the top tube plus
one inch (3).
4
Rules of the Road
WARNING: Failure of the rider to obey the following “Rules of the Road”
can result in injury to the rider or to others.
• Obey all traffi c regulations, signs, and signals.

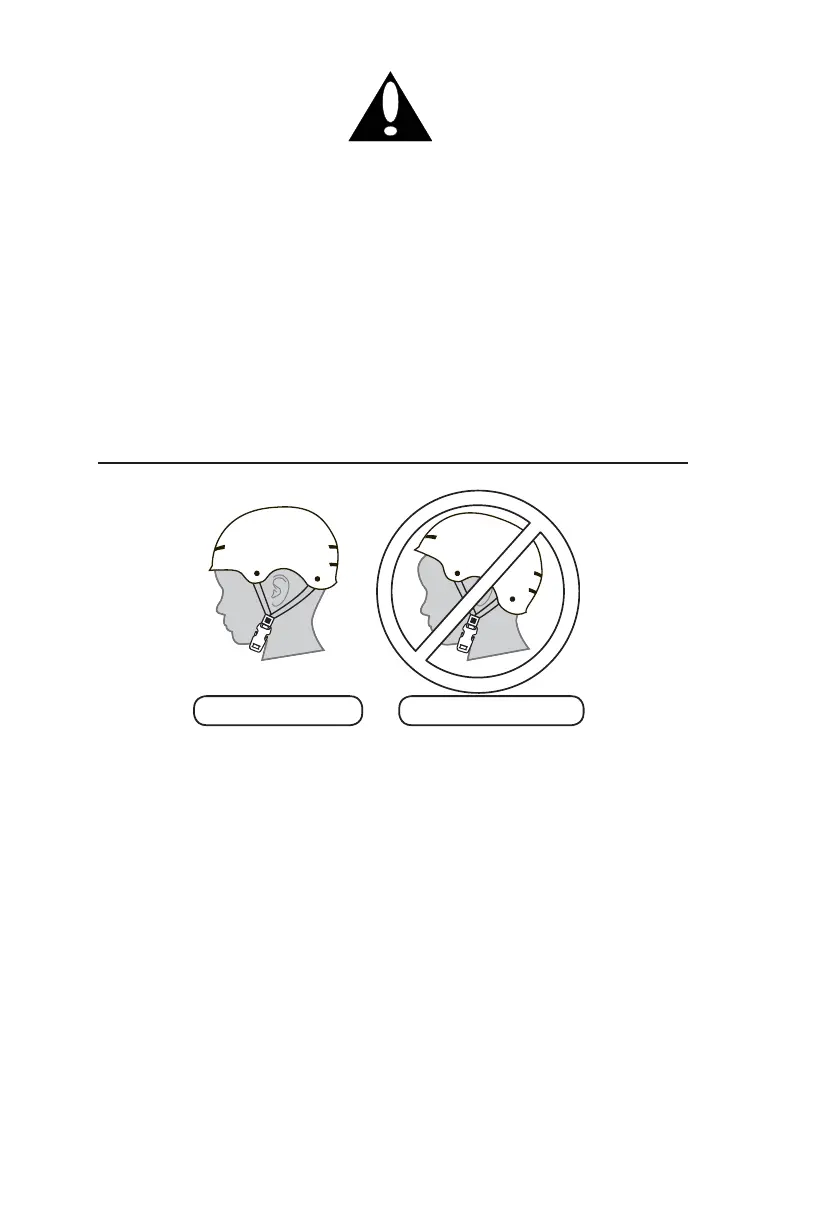

• Always wear a bicycle helmet that meets safety standards, as well as local
safety standards.
• Ride on the correct side of the road, in a single fi le, and in a straight line.
• If possible, avoid riding at night, dusk, dawn and any other time of poor
visibility.
• If you must ride at night or at time of poor visibility:
• Purchase, install, and use a headlight and taillight.
• Headlights are required by all states for nighttime riding and taillights
are required in some states.
• Battery-powered lights or fl ashing safety lights are also recommended.
• Make sure the refl ectors of your bicycle are correctly positioned. Do not
remove the refl ector or replace the refl ectors with lighted devices that
look similar to refl ectors.
• Make yourself more visible to motorists.
• Wear light-colored or refl ective clothing, such as a refl ective vest and
refl ective bands for your arms and legs.
• Use refl ective tape on your helmet.
Warning and Safety Information
Meanings of Warnings:
a This symbol is important. See the word “CAUTION” or “WARNING”
which follows it.
The word “CAUTION” is before mechanical instructions. If you do not obey
these instructions, mechanical damage or failure of a part of the bicycle can
occur.
The word “WARNING” is before personal safety instructions. If you do not
obey these instructions, injury to the rider or to others can occur.
• Do not add a motor to the product.
• Do not tow or push the product.
• Do not modify the product.
• Replace worn or broken parts immediately.
• If anything does not operate properly, discontinue use.
5
• Do not let anything cover the refl ectors.
• Use extra caution in wet weather:
• Ride slowly on damp surfaces because the tires will slide more easily.
• Avoid these hazards to prevent loss of control or damage to your
wheels:
• Be aware of drain grates, soft road edges, gravel or sand, pot holes or
ruts, wet leaves, or uneven paving.
• Cross railroad tracks at a right angle to prevent the loss of control.
• Avoid unsafe actions while riding.
• Do not carry any passengers.
• Do not carry any items or attach anything to your bicycle that could
hinder your vision, hearing, or control.
• Do not ride with both hands off the handlebar.
The Owner’s Responsibility
WARNING: This bicycle is made to be ridden by one rider at a time for
general transportation and recreational use. It is not made to withstand the
abuse of stunting and jumping.
If the bicycle was purchased unassembled, it is the owner’s responsibility to fol-
low all assembly and adjustment instructions exactly as written in this manual,
and any “Special Instructions” supplied and to make sure all fasteners and
components are securely tightened.
NOTE: Periodically check that all fasteners and components are securely
tightened.
If the bicycle was purchased assembled, it is the owner’s responsibility, before
riding the bicycle for the fi rst time, to make sure the bicycle has been assem-
bled and adjusted exactly as written in this manual, and any “Special Instruc-
tions” supplied and to make sure all fasteners and components are securely
tightened.
NOTE:
If product is assembled, please proceed to pages 13 and 15: Testing
Stem, Handlebar and Seat Clamp tightness.
6

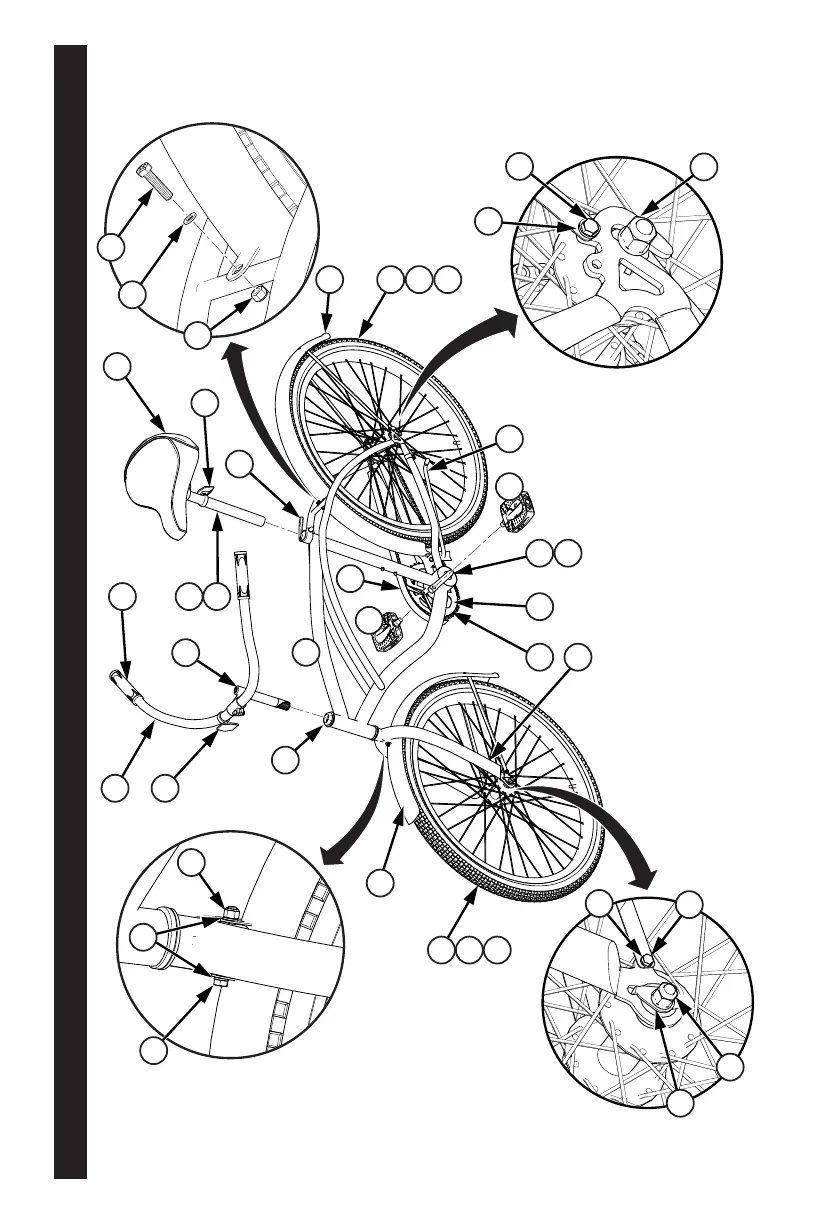

Parts Assembly View
14
10
15
11
9
10
31
21
25
27
26
30
1
20
19 28
6
4
5
7
16
29
6
7
5
18
24
34
13
33
17
12
3
32
2
22
23
22
23
9
8
9

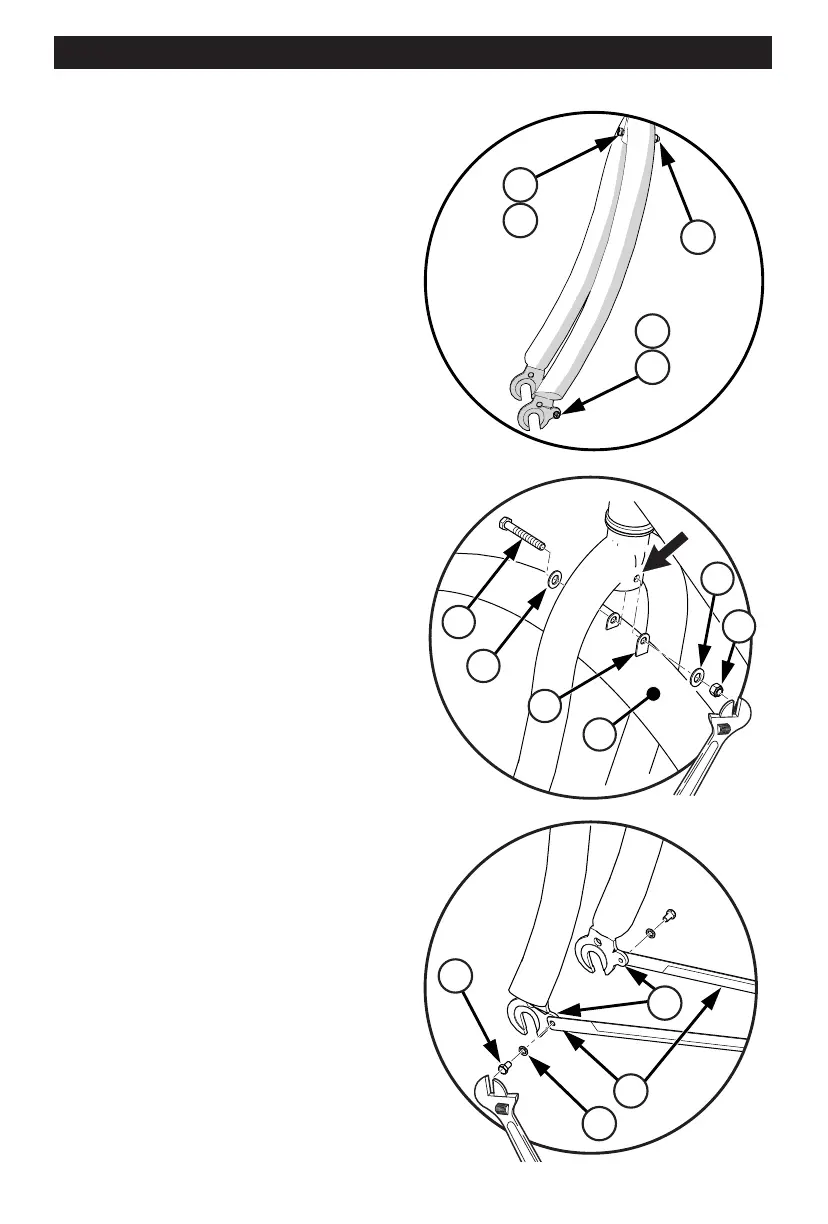

Front Fender Installation
Use Screw Driver and Wrench:
1. Front fender attaching hardware
has been pre-assembled onto the
fork. Remove the Bolt (8) and
Washer (9) and Nut (10) from the
fork crown.
2. Remove lower mounting Bolts (7)
and Washers (6) from the dropout
before starting (fi g 01).
g 01
7
6
8
9
10
3. Place the Fender (3) in the fork
with the longer fork mounting tab
(A) on the rear side of the fork (fi g
02).
4. Insert the Bolt (8) through the
Washer (9) and Fender tabs and
fork mounting hole.
5. Install Washer (9) and Nut (10)
onto Bolt (8) and tighten securely.
g 01
g 02
8
9
A
10
9
3
6. Line up the lower Fender Braces
(B) with the Fork Mounting Tabs
(C) (fi g 03).
7. Insert each lower mounting Bolt
(7) and Washer (6) into the Fork
Mounting Tabs (C) and tighten
securely.
g 03
7
6
B
C
10
Assemble the Front Wheel to the Fork
1. If the Axle Nuts (5) are already attached to the front wheel axle, begin by
removing them with an open end wrench or adjustable wrench.
2. Set the wheel into the front fork (21) (fi g 04).
3. Install wheel retainers (4) making sure the tabs are in the fork (D) tab
holes.
4. Attach the front wheel with the Axle Nuts (5).
5. Tighten Axle Nuts to 21 ft-lbs.
g 04
21
4
4
5
5
D
Note: Ensure wheel spins freely without contacting fork or fender.
WARNING: Do not use Nuts (5) without serrations to attach the front
wheel.
WARNING: Put the wheel in the center of the fork and tighten
both nuts to the recommended torque of 21 ft.-lbs.
WARNING: Failure to obey these steps can allow the front wheel to
loosen while riding. This can cause injury to the rider or to others.
11

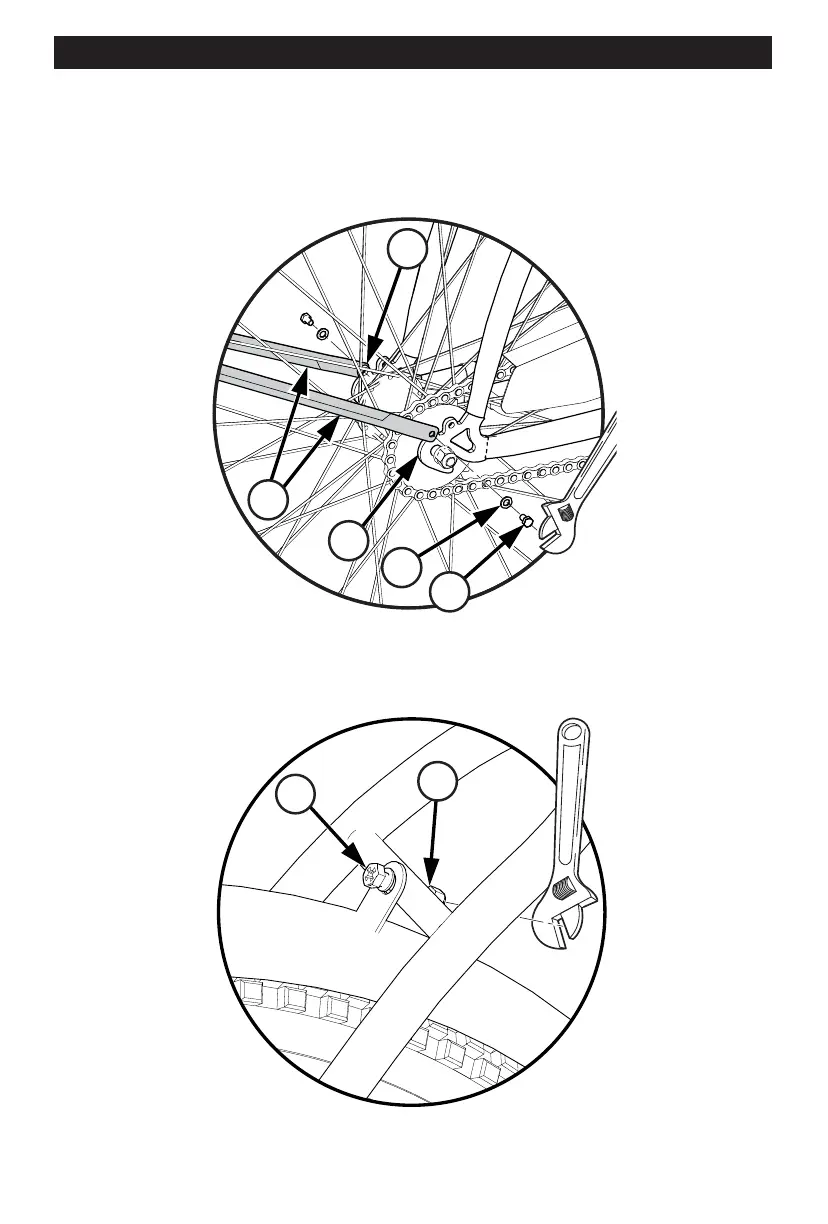

Rear Fender Assembly
Note: Top Fender mount is loose (fi g 06) to allow installation.
1. Line up the Rear Fender Braces (A) with the Frame Mounting Tabs (B) (fi g
05).
2. Insert each lower mounting Bolt (7) and Washer (6) into the Frame Mount-
ing Tabs (B) and tighten securely. Make sure fender is centered over tire.
g 05
6
7
B
B
A
Tighten Top Fender Mount:
3. Tighten Bolt (11) and Nut (10) securely. Make sure fender is centered over
tire (fi g 06).
g 06
11
10
Note: Ensure wheel spins freely without contacting frame or fender.
13

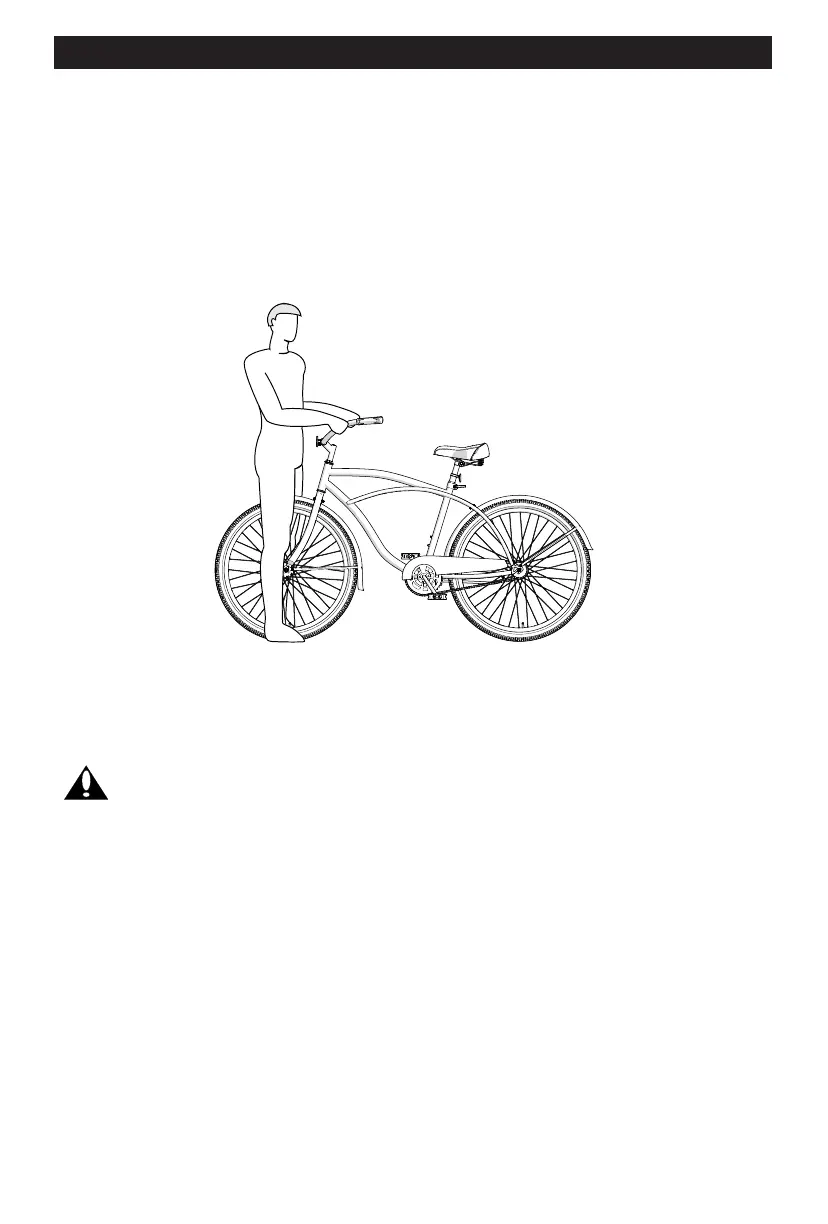

Testing Stem and Handlebar Tightness
To test the tightness of the stem:
• Straddle the front wheel between your legs.
• Try to turn the front wheel by turning the handlebar.
• If the handlebar and stem turn without turning the front wheel, realign the
stem with the wheel and tighten the stem bolt(s) tighter than before (about
1/2 revolution only at a time).
• Do this test again, until the handlebar and stem do not turn without turning
the front wheel.
To test the tightness of the handlebar clamp:
• Hold the bicycle stationary and try to move the ends of the handlebar up
and down.
CAUTION: Do not exceed 100 lbs downward force.
• If the handlebar moves, loosen the bolt(s) of the handlebar clamp.
• Put the handlebar in the correct position and tighten the bolt(s) of the
handlebar clamp tighter than before.
• If the handlebar clamp has more than one bolt, tighten the bolts equally.
• Do this test again, until the handlebar does not move in the handlebar
clamp.
14

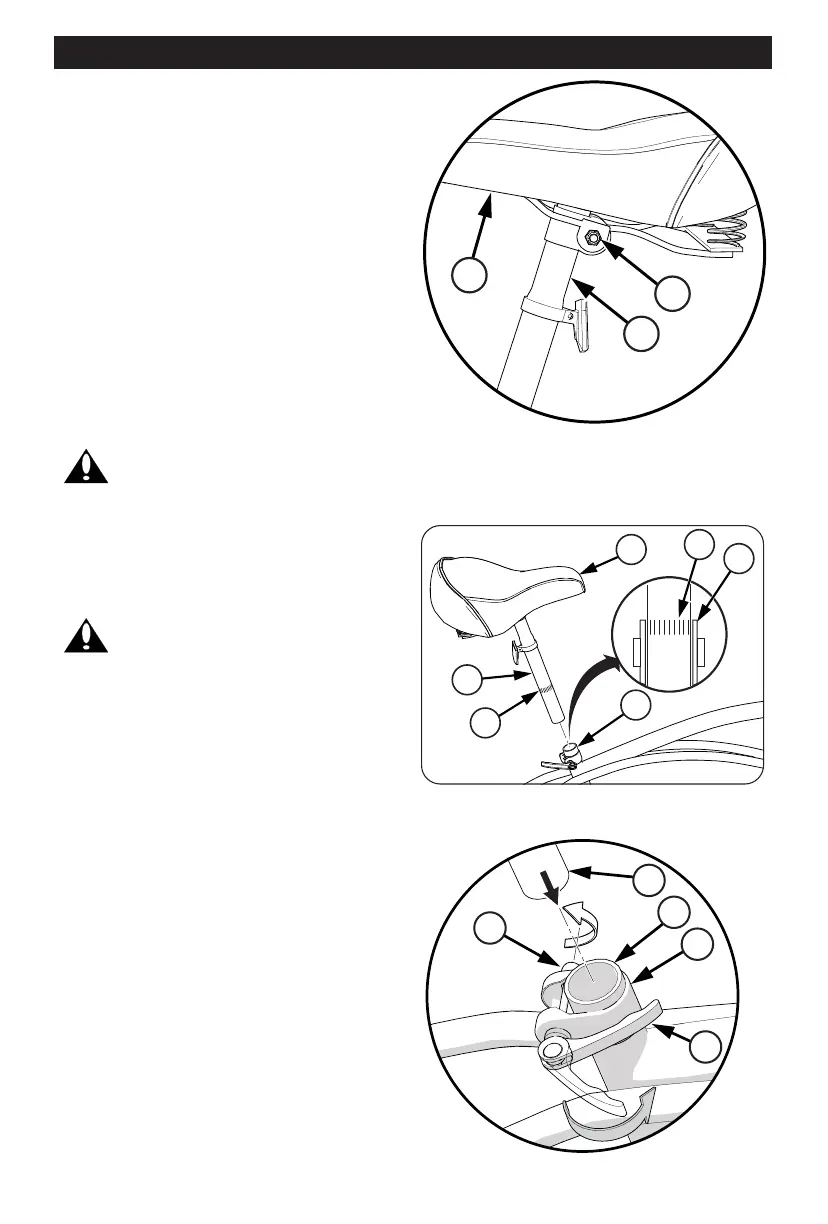

Seat Installation
Attach Seat to Seat Post (fi g 09):
(pre-assembled on some models)
• Loosen nuts on Seat Clamp (A)
and rotate Seat (14) into riding
position.
• Put the Seat Post (33) fully
through the Seat Clamp.
• Tighten the Seat Clamp so the
Seat stays on the seat post.
• If the Seat Clamp has a nut on
each side, tighten both nuts
equally.
g 09
A
33
14
CAUTION: If you accidentally drop the seat post into the seat tube, it
may be diffi cult to remove it.
• Point the Seat forward and put the
Seat Post into the Seat Tube (B)
(fi gs 10, 11).
WARNING: To prevent the seat
coming loose and possible loss of
control, the “MIN-IN” (minimum inser-
tion) mark (C) on the seat post must
be below the top of the Seat Tube.
g 10
14
C
B
33
B
C

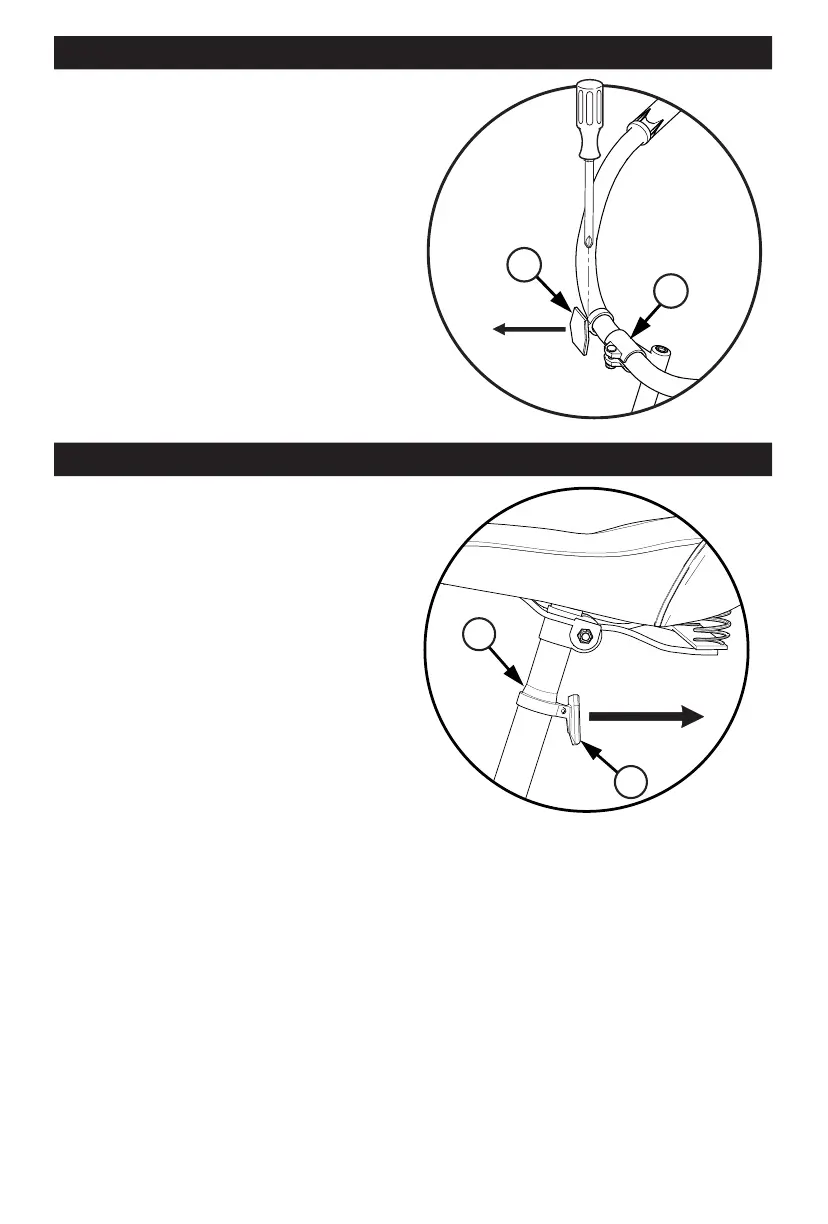

Tighten the quick release lever (fi g 11):
• Move the Quick Release Lever (D)
to the “open” position so the word
“open” is pointing away from the
Seat Post Clamp (E).
NOTE: The words “open” and “close”
are on opposite sides of the quick
release lever.
g 11
E
B
F
33
D
15
CAUTION: Operate the Quick Release Lever by hand only. Do not use a
hammer or any other tool to tighten the quick release lever.
You must use strong force to move the quick release lever to the “close” posi-
tion. If you can easily move the lever to the “close” position, the clamping force
is too light.
WARNING: If the clamping force of the Quick Release Lever is too light,
the seat post can loosen while riding. This can cause injury to the rider or to
others.
Tighten the quick release lever (continued):
• Open and close the Quick Release Lever with one hand while you turn the
Adjusting Nut (F) with the other hand (fi g 11).
• Tighten or loosen the adjusting nut by hand, so that you fi rst feel resistance
to the quick release lever when it perpendicular to the bicycle frame.
• Push the Quick Release Lever to the “close” position (fi g 11).
• When in the “close” position, make sure the Quick Release Lever lays
against the Seat Post Clamp (E).
• The tightening torque of the Quick Release Lever should be tight enough
so that the seat does not move during normal operation.
Testing Seat Clamp and Post Clamp Tightness
To test the tightness of the seat clamp and the post clamp:
WARNING: Every time the quick release mechanism is loosened, make
sure the red refl ector is correctly positioned.
• Try to turn the seat side-to-side and to move the front of the seat up and
down.
• If the seat moves in the Seat Clamp (A) (fi g 09):
• Loosen the Seat Clamp.
• Put the seat in the correct position and tighten the Seat Clamp tighter
than before.
• Do this test again, until the seat does not move in the Seat Clamp.
• If the Seat Post (33) moves in the Seat Tube (B):
• Move the Quick Release Lever to the “open” position.
• Put the seat in the correct position and tighten the Quick Release Lever
tighter than before.
• If necessary, loosen Quick Release Lever , tighten Adjusting Nut and
re-tighten Quick Release Lever .
• Do this test again, until the seat post does not move in the seat tube.
16
Front Refl ector Bracket Installation
1. Position Refl ector (17) so it points
straight forward (fi g 12).
2. Tighten Clamp Screw.
NOTE: Do not over-tighten. This will
damage the Clamp.
g 12
17
A
Rear Refl ector Bracket Installation
1. Position Refl ector (18) to it points
straight backwards (fi g 13).
2. Tighten Clamp Screw.
NOTE: Do not over-tighten. This will
damage the Clamp.
g 13
18
A
17
Pedal Installation
CAUTION: There is a right pedal marked “R” and a left pedal marked “L”.
• The pedal marked “R” has right-hand threads. Tighten it in a clockwise
direction.
• The pedal marked “L” has left-hand threads. Tighten it in a counterclock-
wise direction (anti-clockwise).
• Turn the right pedal marked “R” into the right side of the crank arm, and the
left pedal marked “L” into the left side of the crank arm.
Tighten the pedals (fi g 14):
• Make sure the threads of each pedal are fully into the crank arm.
• The recommended torque (tightness) for each pedal is 30 ft.-lbs.
g 14
R
L
Note: A Pedal Wrench is preffered for attaching Pedals. An open-end
wrench can also be used as shown.
18

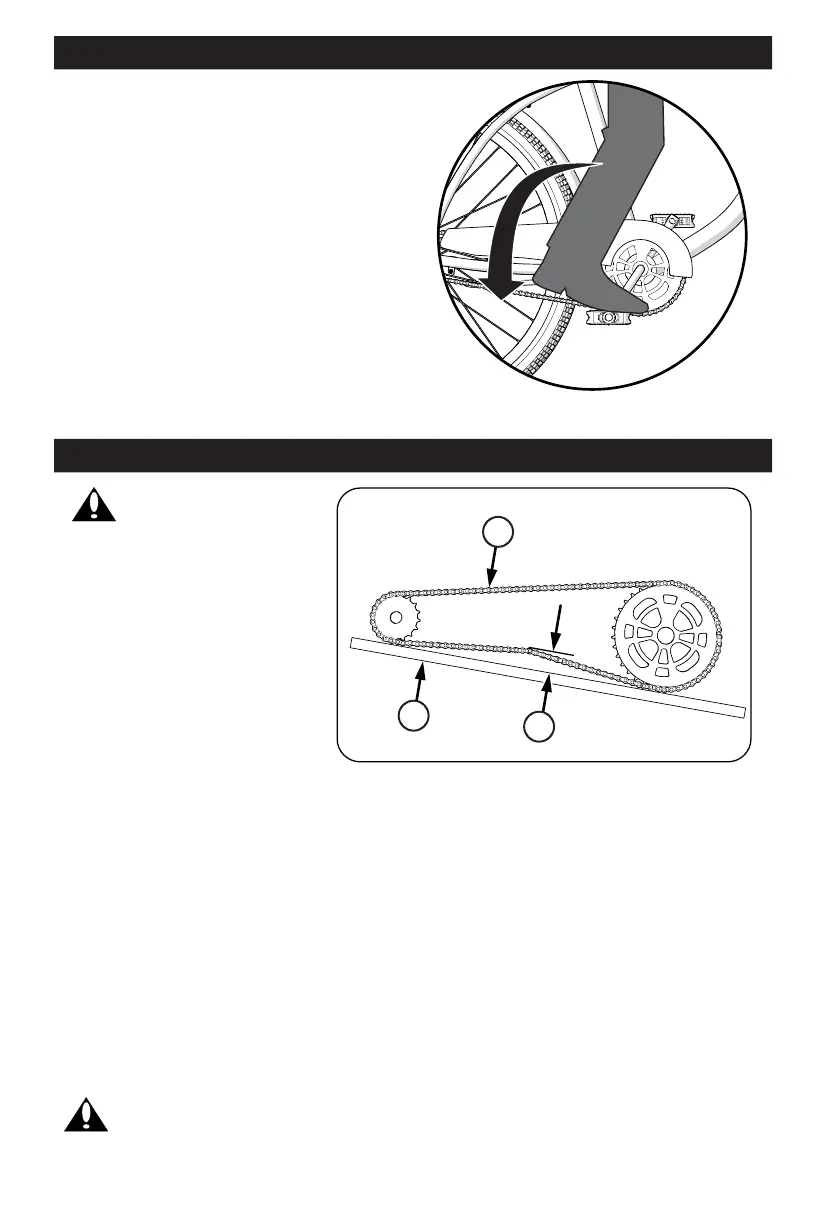

Brake System
These models are equipped with a
rear ‘coaster’ brake that is operated by
rotating the crank backwards (fi g 15).
g 15
Chain Adjustment
g 16
30
B
A
Adjustment (fi g 16):
The chain must be at the correct tightness. If too tight, the bicycle will be dif-
fi cult to pedal. If too loose, the chain can come off the sprockets.
When the chain (30) is at the correct tightness, you can rotate the crank freely
and you can pull it no more than one-half inch (A) away from a straightedge (B)
as shown.
Adjust the tightness of the chain as follows:
• Loosen the axle nuts of the rear wheel.
• Move the rear wheel forward or backward as necessary.
NOTE: Make sure the rear wheel is in the center of the bicycle frame.
• Hold the wheel in this position and tighten the axle nuts to 21 ft.-lbs.
WARNING: Do not attempt chain repairs. If there is a problem with the
chain, have a bicycle service shop make any repairs.
WARNING: The chain
must remain on the sprock-
ets. If the chain comes off
the sprockets, the coaster
brake will not operate.
19
Tires
Maintenance:
• Frequently check the tire infl ation pressure because all tires lose air slowly
over time. For extended storage, keep the weight of the bicycle off the tires.
• Do not use unregulated air hoses to infl ate the inner tubes. An unregulated
hose can suddenly over infl ate bicycle tires and cause them to burst.
• Replace worn tires.
WARNING: Do not ride or sit on the bicycle if a tire is under infl ated. This
can damage the tire and inner tube.
Infl ating the Tires:
• Use a hand or a foot pump to infl ate the tires.
• Service station meter-regulated air hoses are also acceptable.
• The maximum infl ation pressure is shown on the tire sidewall.
• If two infl ation pressures are on the tire sidewall, use the higher pressure
for on-road riding and the lower pressure for off-road riding.
• The lower pressure will provide better tire traction and a more comfortable
ride.

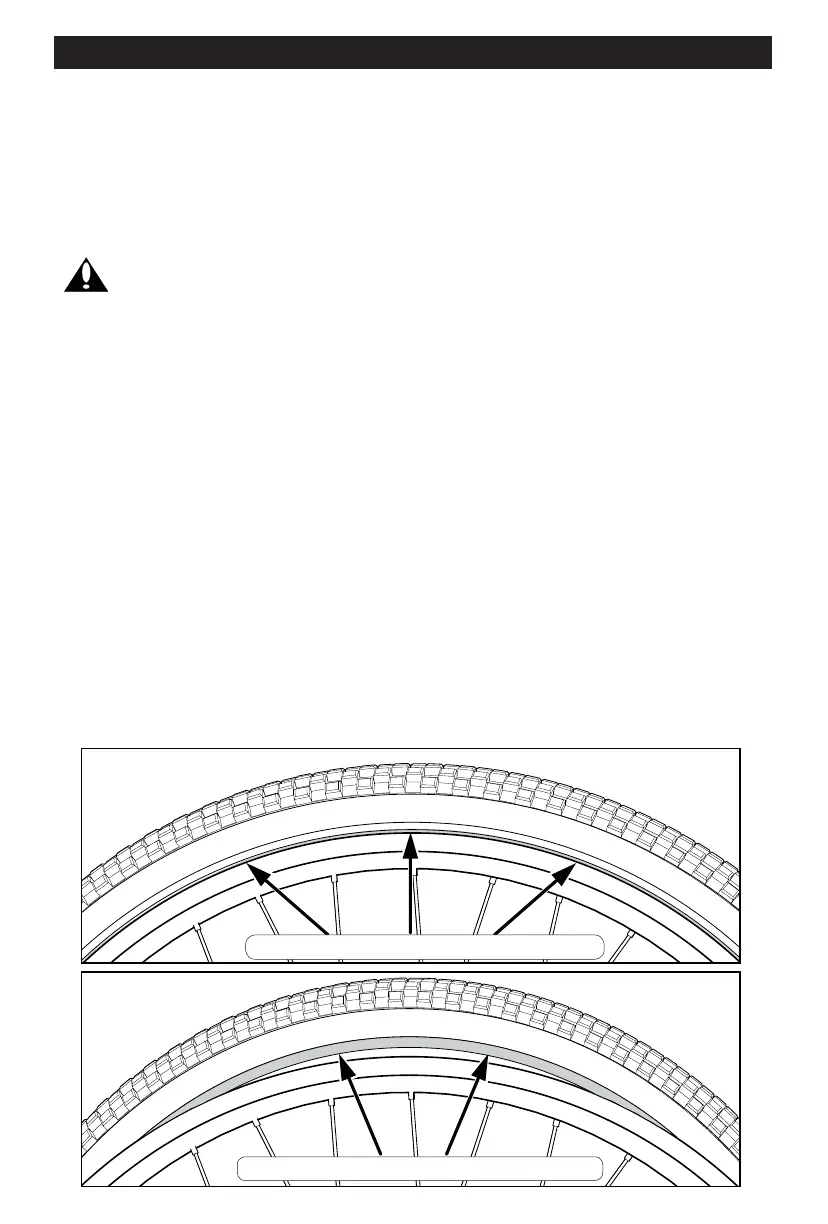

Before adding air to any tire, make sure the edge of the tire (the bead) is the
same distance from the rim, all around the rim, on both sides of the tire. If the
tire does not appear to be seated correctly, release air from the inner tube until
you can push the bead of the tire into the rim where necessary. Add air slowly
and stop frequently to check the tire seating and the pressure, until you reach
the correct infl ation pressure. See fi g 17.
g 17
Tire Bead Seated Correctly
Tire Bead NOT Seated Correctly
21
Inspection of the Bearings
Maintenance
Frequently check the bearings of the bicycle. Have a bicycle service shop lubri-
cate the bearings once a year or any time they do not pass the following tests:
Head Tube Bearings
The fork should turn freely and smoothly at all times. With the front wheel off
the ground, you should not be able to move the fork up, down, or side-to-side
in the head tube.
Crank Bearings
The crank should turn freely and smoothly at all times and the front sprockets
should not be loose on the crank. You should not be able to move the pedal
end of the crank from side-to-side.
Wheel Bearings
Lift each end of the bicycle off the ground and slowly spin the raised wheel by
hand. The bearings are correctly adjusted if:
• The wheel spins freely and easily.
• The weight of the spoke refl ector, when you put it toward the front or rear of
the bicycle, causes the wheel to spin back and forth several times.
• There is no side-to-side movement at the wheel rim when you push it to the
side with light force.
Refl ectors
WARNING: For your own safety, do not ride the bicycle if the refl ectors
are incorrectly installed, damaged, or missing. Make sure the front and rear re-
fl ectors are vertical. Do not allow the visibility of the refl ectors to be blocked by
clothing or other articles. Dirty refl ectors do not work well. Clean the refl ectors,
as necessary, with soap and a damp cloth.
22
Huffy Corporation Limited Warranty
• Part or model specifi cations are subject to change without notice.
• This Limited Warranty is the only warranty for your Huffy Corporation
(“Huffy”) product. There are no other expressed or implied warranties.
• This Limited Warranty extends only to the original consumer and is not
transferable to anyone else.
• Warranty registration is not required.
• The only uses for this product are described in this manual.
What does this Limited Warranty cover?
This Limited Warranty covers all parts of the bicycle.
What must you do to keep the Limited Warranty in effect?
This Limited Warranty is effective only if:
• Bicycle is completely and correctly assembled.
• Bicycle is used under normal conditions for its intended purpose (see the
following section for excluded activities).
• Bicycle receives all necessary maintenance and adjustments.
• Bicycle is used for general transportation and recreational use only.
What is not covered by this Limited Warranty?
• This Limited Warranty does not cover normal wear and tear, normal main-
tenance items, or any damage, failure, or loss that is caused by improper
assembly, maintenance, adjustment, storage, or use of the bicycle.
This Limited Warranty will be void if the bicycle is ever:
• Used in any competitive sport
• Used for stunt riding, jumping, aerobatics or similar activity
• Installed with a motor or modifi ed in any other way
• Ridden by more than one person at a time
• Rented
• Used in a manner contrary to the instructions and warnings in this Owner’s
Manual
Huffy will not be liable for incidental or consequential loss or damage, due
directly or indirectly from use of this product. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so the above
limitation may not apply to you.
23
For how long does this Limited Warranty last?
• The frame is warranted for life except aluminum frames which are war-
ranted for ten (10) years, from the date of purchase.
• The fork is warranted for life except for shock forks which are warranted
one (1) year from date of purchase.
• All other components are warranted for six (6) months from the date of
purchase.
What will Huffy do?
Huffy will replace, without charge to you, the component found to be defective
by Huffy. The original owner must pay all labor and transportation charges
connected with the repair or warranty work.
How do you get service?
Contact Huffy Consumer Service.
See included list for Customer Contact information.
What rights do you have?
This warranty gives you specifi c legal rights. You may also have other rights
which vary from state to state.
H Helmet EN 100212 i0027
• Helmet should sit level on your head and low on your forehead
• Adjust the strap sliders below the ear on both sides.
• Buckle the chin strap. Adjust strap until it is snug.
• No more than two fi ngers should fi t between the strap and your chin.
• A proper fi tting helmet should be comfortable and not rock forward/back-
ward or side to side.
• Always read the user manual that comes with your helmet to make sure it
is fi tted and attached properly to the wearer’s head according to the fi tting
instructions described in the user manual.
CORRECT INCORRECT
Check www.Huffy.com for the current contact information
WARNING:
ALWAYS WEAR YOUR
HELMET WHEN RIDING
THIS PRODUCT!
Produkt Specifikationer
| Mærke: | Huffy |
| Kategori: | Cykel |
| Model: | 26 Nassau |
Har du brug for hjælp?
Hvis du har brug for hjælp til Huffy 26 Nassau stil et spørgsmål nedenfor, og andre brugere vil svare dig
Cykel Huffy Manualer
15 August 2025
15 August 2025
12 November 2024
2 September 2024
2 September 2024
2 September 2024
2 September 2024
2 September 2024
2 September 2024
2 September 2024
Cykel Manualer
- Mongoose
- E-plus
- Sensa
- Jetson
- TranzX
- Inmotion
- Yamaha
- Be Cool
- Cannondale
- Puch
- Biltema
- Popal
- Ideal
- Kettler
- Coboc
Nyeste Cykel Manualer
1 September 2025
1 September 2025
1 September 2025
1 September 2025
29 August 2025
28 August 2025
28 August 2025
28 August 2025
27 August 2025
26 August 2025
