Side 1/21

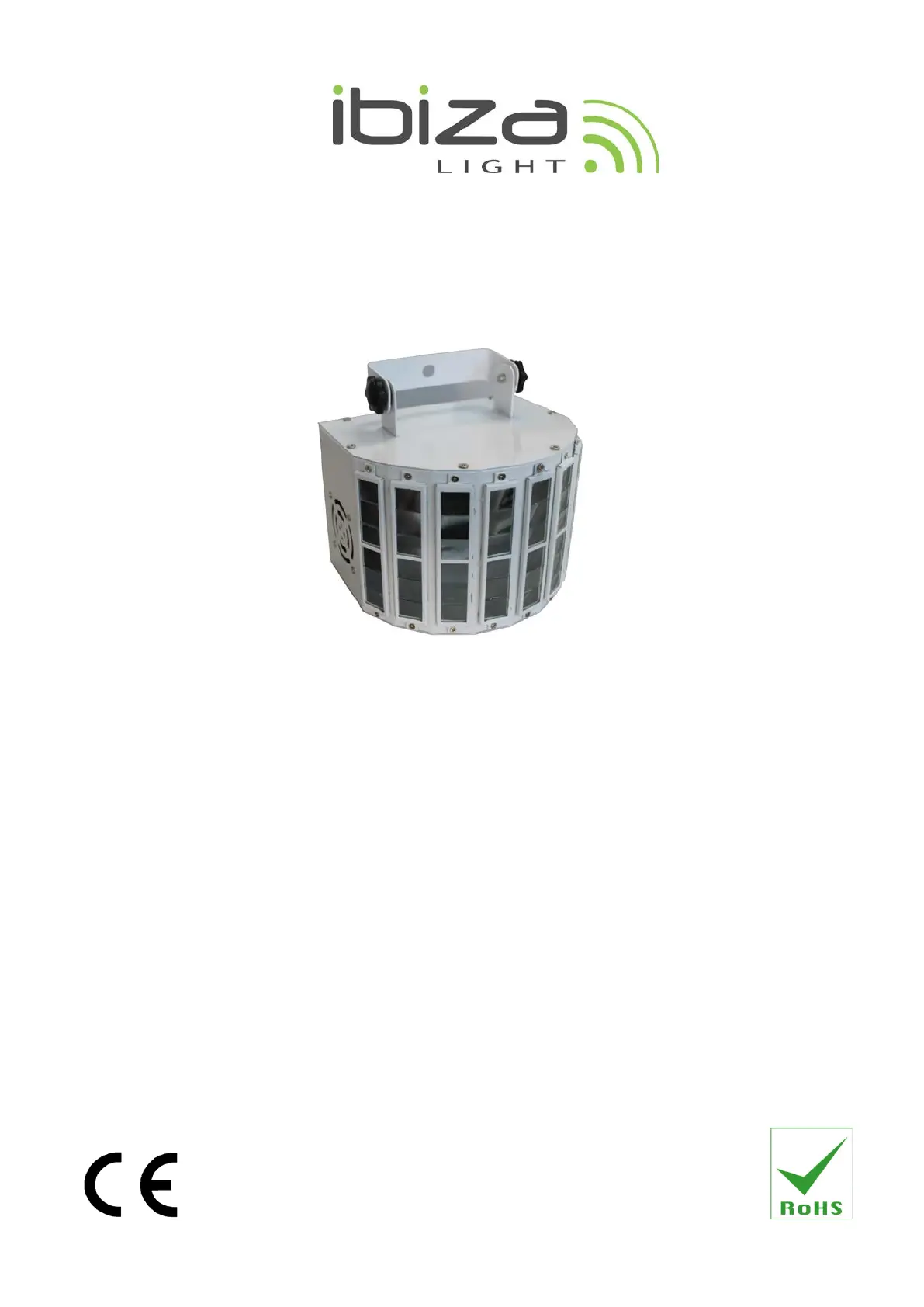

©Copyright LOTRONIC 2012 LED-DERBY 1
LED Derby Light effect
Code 15-1371
User Manual
Manuel d’Utilisation
Bedienungsanleitung
Handleiding
Manual de utilizare
Instrukcja obsługi
Manual de Instruções
Navodila za uporabo
©Copyright LOTRONIC 2012 LED-DERBY 2
1. Safety Instructions
• Please keep this User Manual for future reference. If you sell the unit to another user, be sure that he also receives
this instruction booklet.
• Unpack and check the unit carefully that it has not been damaged during transport before using the unit.
• Before operating, ensure that the voltage and frequency of power supply match the power requirements of the unit.
• It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
• The unit is for indoor use only in a dry location.
• The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent surfaces. Be sure that
no ventilation slots are blocked.
• Disconnect mains power before fuse replacement or servicing.
• Replace fuse only with the same type.
• Make sure there are no inflammable materials close to the unit during operation.
• Use safety cable when fixing this unit.
• In the event of serious operating problem, stop using the unit immediately.
• Never try to repair the unit by yourself. Repair carried out by unskilled people can lead to damage or malfunction.
Please contact the nearest authorized technical assistance center and always use the same type of spare parts.
• Do not touch any wires during operation as high voltage might be causing electric shock.
2. Features
The LED Derby can be DMX512 controlled or work as a stand-alone unit. Several units can be linked together in
master/slave mode or perform the built-in light show program triggered by music.
3. Specifications
Supply Voltage: ................................................................................................ 220-240Vac 50/6 0 H Z
Power: ........................................................................................................................................ 30W
Light source: ............................................................................................. 2pcs x 10Watt RGBW LED
Fuse: .............................................................................................................................................. 3A
Control Signal： .......................................................................................................... DMX512 signal
Channel： ........................................................................................................................ 8x Channels
Operating modes： ............................................... DMX512, Auto-run, Sound Control, Master-Slave
Dimensions: ....................................................................................................... 220 x 275 x 235mm
Weight: ..................................................................................................................................... 2.1kg
4. Installation
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid
vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and
able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times the weight
of the unit when installing the fixture.
The equipment must be fixed by professionals at a place where is out of the reach of people and where nobody can pass
by or under it.
GB
