DL-2

UTENSIL/CAN

WASHER & SANITIZER

INSTALLATION GUIDE

For Design and Installation Assistance

Call: 800-221-5644

info@imcteddy.com

50 Ranick Drive East Amityville, NY 11701

(P) 800-221-5644 (F) 631-789-8881

www.imcteddy.com

Project Name:

Item #:

Model #:

INTRODUCTION

Installing the IMC Teddy Utensil/Can Washer and Sanitizer is a straightforward procedure that can be

accomplished with normal construction materials and techniques. Installation procedures may vary due to eld

conditions and state regulations. Please note that the following instructions are recommendations only. The

installer is responsible for proper setting and making sure the appropriate codes are followed. Please contact

the IMC Teddy Engineering Department (800-221-5644) prior to considering retrot installations.

Please read the attached information carefully, as much of the information provided is reecting proven

installation techniques used in previous installations.

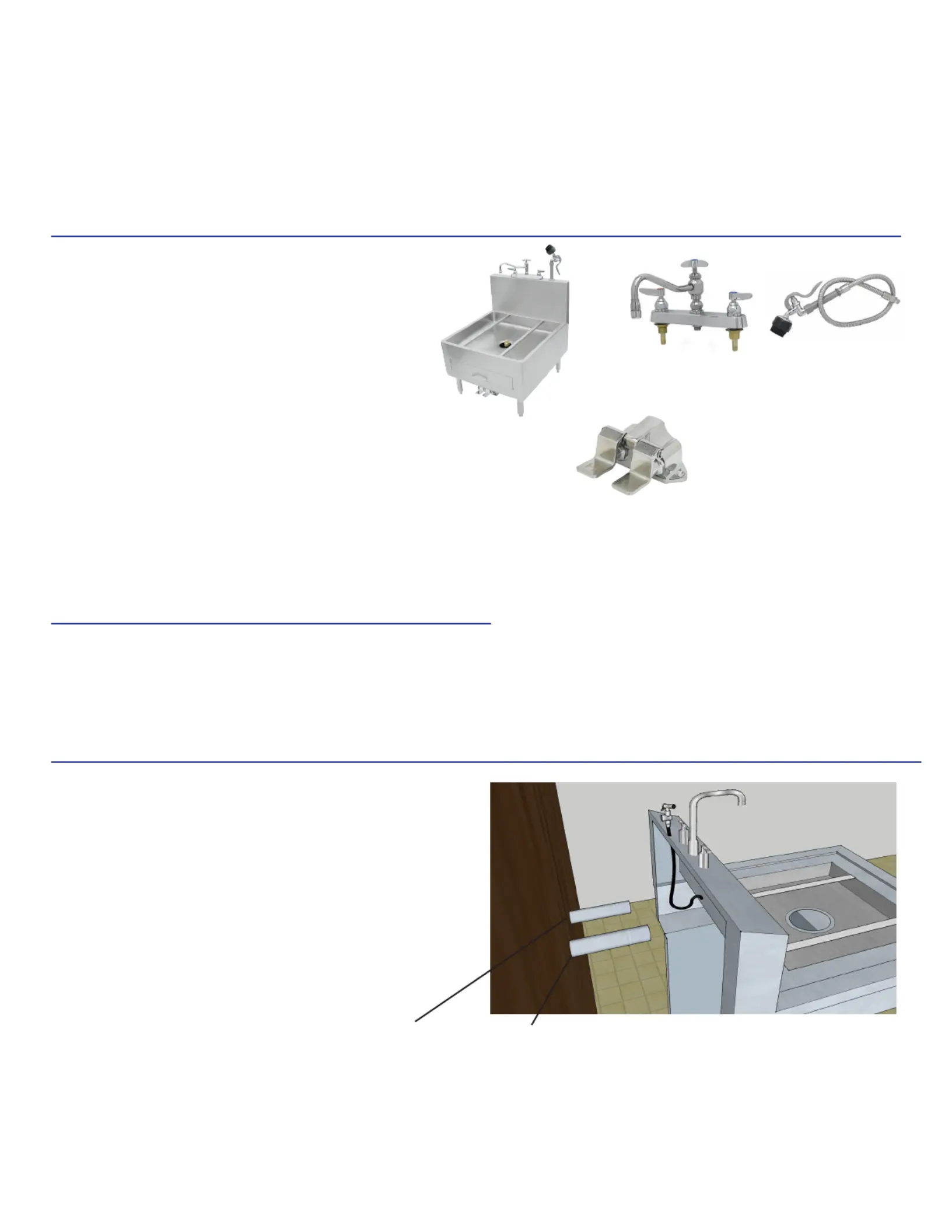

Parts Included

• DL-2 Utensil/Can Washer and Sanitizer

• Workboard Faucet, Deck Mount, 8”

Centers, 8” Swing Nozzle w/ Angled

Spray Valve with Brush

• Double Pedal Valve, Inlets 2 ½”

Centers, NPT Inlets & Outlet½”

Drainage Guide

Workboard Faucet &

Spray Valve w/ Brush

Double Pedal Valve

DL-2

Tools/Materials Needed

• Standard Adjustable Wrench • Plumber’s Putty

• Teon Tape • Flex Hoses

• ½” NPT Brass Pipe Adapters

Note: All drainage methods

are subject to plumbers/

installers discretion.

Faucet Plumbing

Note: All plumbing connections of our

equipment are subject to plumbers/

installers discretion.

Make all necessary plumbing

connections to faucet and waste

drain. Unit has open back for

access to plumbing.

Plumbing Pipes
