1.23.14 05469E © Inovonics, 2014 - www.inovonics.com
EN1262 EchoStream® Passive Infrared Motion
Detector
Installation and Operation Manual
1 Overview
The EN1262 is a low-current motion detector highly sensitive to moving
heat (infrared radiation) sources.
1.1 Inovonics Contact Information
If you have any problems with this procedure, contact Inovonics technical
services:
• E-mail: support@inovonics.com
• Phone: (800) 782-2709; (303) 939-9336
1.2 What’s in the Carton
• One Duracell DL123A 3.0V battery
• Two selection jumpers
• Two mounting drywall anchors
• Two mounting screws
• Two housing screws
• One tamper wall anchor
• One tamper rivet
1.3 Passive Infrared Motion Detector Internal
Components

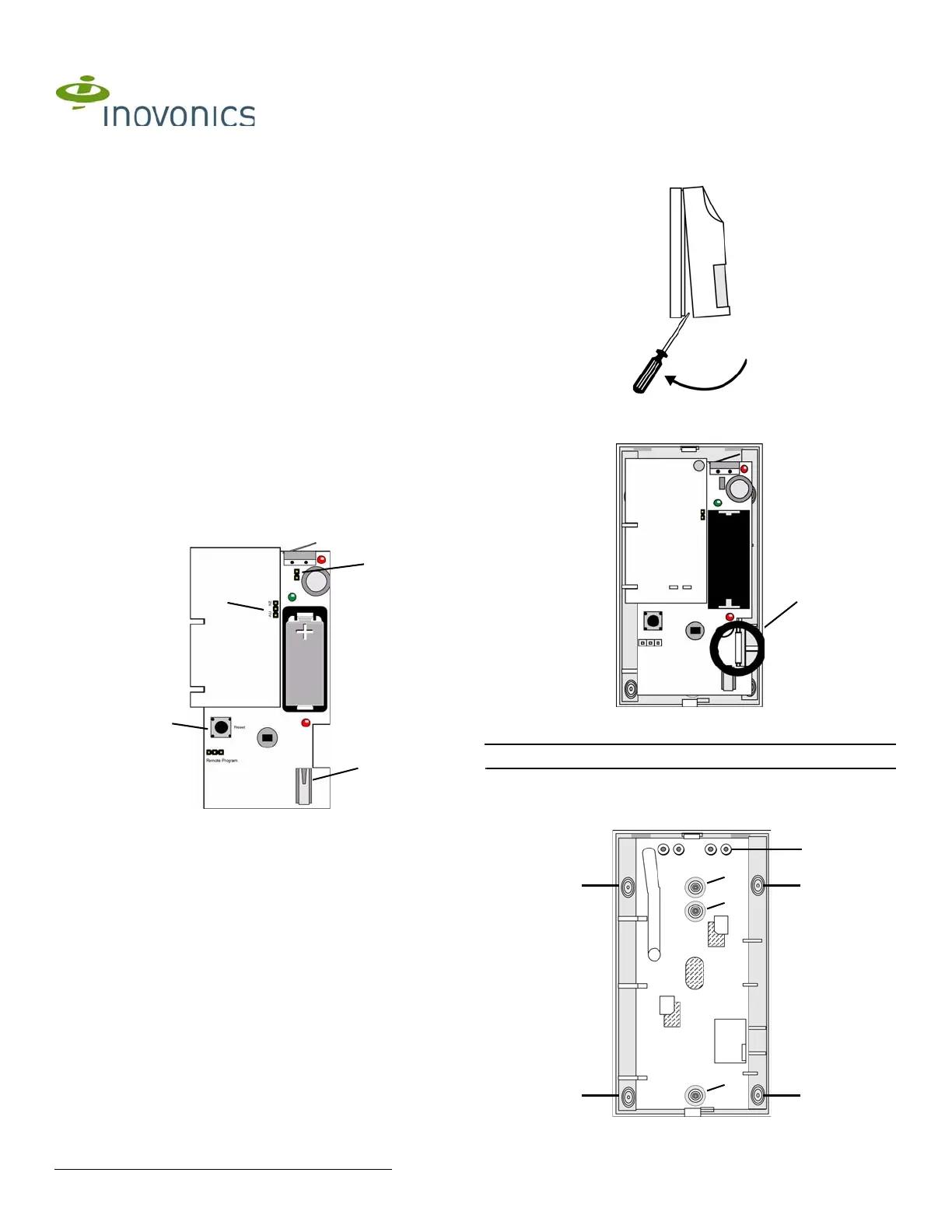

Figure 1 EN1262 Components
2 Installation and Startup
2.1 Installation Notes
• These products are designed to be maintained by professional
security technicians
• Products are tested for indoor use
• All products should be manually tested weekly
2.2 Mount the Housing
1. Insert a small at-blade screwdriver at the tab on the bottom of the unit.
The screwdriver will enter the slot at about a 45° angle. Press
downward on the handle of the screwdriver until the latch holding the
cover to the housing base releases.
Figure 2 Open the housing
2. Pull the circuit board attachment latch and lift the circuit board out of the
housing.
Figure 3 Circuit board attachment latch
3. As desired install the wall tamper rivet.
Note: Wall tamper installation is required for BSI Class VI.
a. Use a 3/16” (4.8mm) bit to drill out the tamper rivet hole index.
b. Install the tamper wall anchor in the wall where you will be mounting
the motion detector’s tamper rivet.
c. Use a hammer to tap a rivet into place in the tamper wall anchor.
Figure 4 Mounting hole indices
AWall tamper
selection pins
BHousing tamper
switch
CFrequency band
selection pin
DReset button
C
A
B
D
ATamper rivet index BCorner mount index CWall mount index
Circuit board
attachment
latch
A
BB
B
B
C
B
B
C
C
1.23.14 05469E © Inovonics, 2014 - www.inovonics.com 2
4. Mount the housing, using either the three wall-mount holes or the four
corner-mount holes.
a. Use a 5/32” (4 mm) bit to drill out the appropriate housing hole
indexes.
b. Use the included screws and anchors to mount the housing.
5. If using the wall tamper, ensure the wall tamper rivet depresses the wall
tamper switch arm.
Figure 5 Wall tamper switch
2.1 Set Parameters
6. If using the wall tamper, remove the shunt from the wall tamper
selection pins.
7. Install the Duracell DL123A 3.0V battery into the battery holder.
8. EchoStream devices are able to use a range of radio frequencies, and
must be configured for your geographic area. This device ships with a
default frequency range of 902-928 MHz for use in North America. If
you are using the device in North America, skip to 2.2, “Set Zones”; if
you are using the device in Australia or New Zealand, you will need to
configure it.
• Place the jumper on the top two pins to select 921-928 MHz for New
Zealand.
• Place the jumper on the bottom two pins to select 915-928 MHz for
Australia.
9. Press the reset button.
Caution: When pressing the reset button, make sure you don’t also touch
the frequency band selection pins. Touching the frequency band selection
pins while pressing the reset button can inadvertently set the EN1262 to
the wrong frequency band.
2.2 Set Zones
10. If masking is required, use the PIR zone diagram and the lens inside
view diagram to choose the appropriate zones to be masked. Use
opaque masking material, such as electrical tape.
Figure 6 Mask zones
11. As desired enable the look down zones by peeling the mask from the
look down lens.
Figure 7 Enable look down zones
2.3 Register the Transmitter
The EN1262 must be registered with the system receiver in order to be
monitored and supervised. Each EN1262 has a unique factory-
programmed identification number. Refer to the receiver, network
coordinator or control panel installation instructions for details on
registering a transmitter.
12. When prompted to reset the EN1262, press the reset button.
13. Replace the housing cover.
14. If using the optional housing screws for added security, use a 7/64”
(2.78 mm) bit to drill out the housing hole indexes on the top and bottom
of the housing.
15. Use the included screws to secure the housing.
Caution: The EN1262 should be tested after registration to ensure
operation. To test the EN1262, activate each of the conditions and ensure
an appropriate response.
3 Testing
Once the battery is installed, the unit enters a three-minute non-alarming
stabilization period indicated by the LED flashing once per second. After
the stabilization period, the unit requires two seconds of quiet. After that
two seconds, the unit will remain in walk test mode until it is left untripped
for 120 seconds.
1. During the three minute stabilization period, press and release the
housing tamper switch to cause a tamper transmission.
2. When the stabilization period is complete, replace the housing and walk
in front of the lens to create an alarm.
4 US Patent Numbers
• 7,154,866
• 7,554,932
• 7,746,804
• Other patents pending
5 Specifications
Dimensions: 11.4 cm x 6.4 cm x 4.1 cm (4.5”H x 2.5”W x 1.6”D)
Operating temperature: -4° to 140°F (-20° to 60°C)
Humidity: 0 - 90% (non-condensing)
Battery (BAT604): CR123A or equivalent
Typical battery life: Two years
Tamper: Housing and/or Wall (optional)
PIR: Detection Systems RF940U
PIR RF interference immunity: Greater than 30 v/m 26 MHz - 1 GHz
Detection zone: 12.2m x 12.2 m (40’ x 40’) with lookdown zone
Alarm Lockout Time: Three minutes
Mounting height: 2.1 to 2.7 m (7 to 9 feet)
6 Television and Radio Interference
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
Wall tamper
rivet Wall tamper
switch arm
PIR
zone
diagram
Lens
inside
view
diagram
