EN1266 360° Ceiling Mount Motion Detector
Installation and Operation Manual
1 Overview
The EN1266 360° ceiling mount motion detector is a four-element passive
infrared intrusion detector for use in electronic security systems in ceiling
mount applications. The EN1266 reduces false alarms to a minimal level
due to its elimination of background noises and nuisance stimuli, employs
automatic pulse count to make it adaptable to various environments, and
uses sophisticated signal processing to make it virtually free of false
alarms. The lens provides wide coverage patterns, even at low mounting
heights, and is especially immune to sunlight, as well as halogen and
fluorescent lights.
1.1 Inovonics Contact Information
If you have any problems with this procedure, contact Inovonics technical
support:
• E-mail: support@inovonics.com.
• Phone: (800) 782-2709; (303) 939-9336.
2 Installation and Startup
2.1 Installation Notes
• These products are designed to be installed and maintained by
professional security technicians.
• Products are tested for indoor use.
• All products should be manually tested weekly.
2.2 Install the Batteries
The EN1266 uses two batteries for extra battery life.
Note: When installing batteries, it is recommended that batteries are
replaced in new pairs from the same manufacturer.
To install batteries:
1. Remove the housing cover from the base.

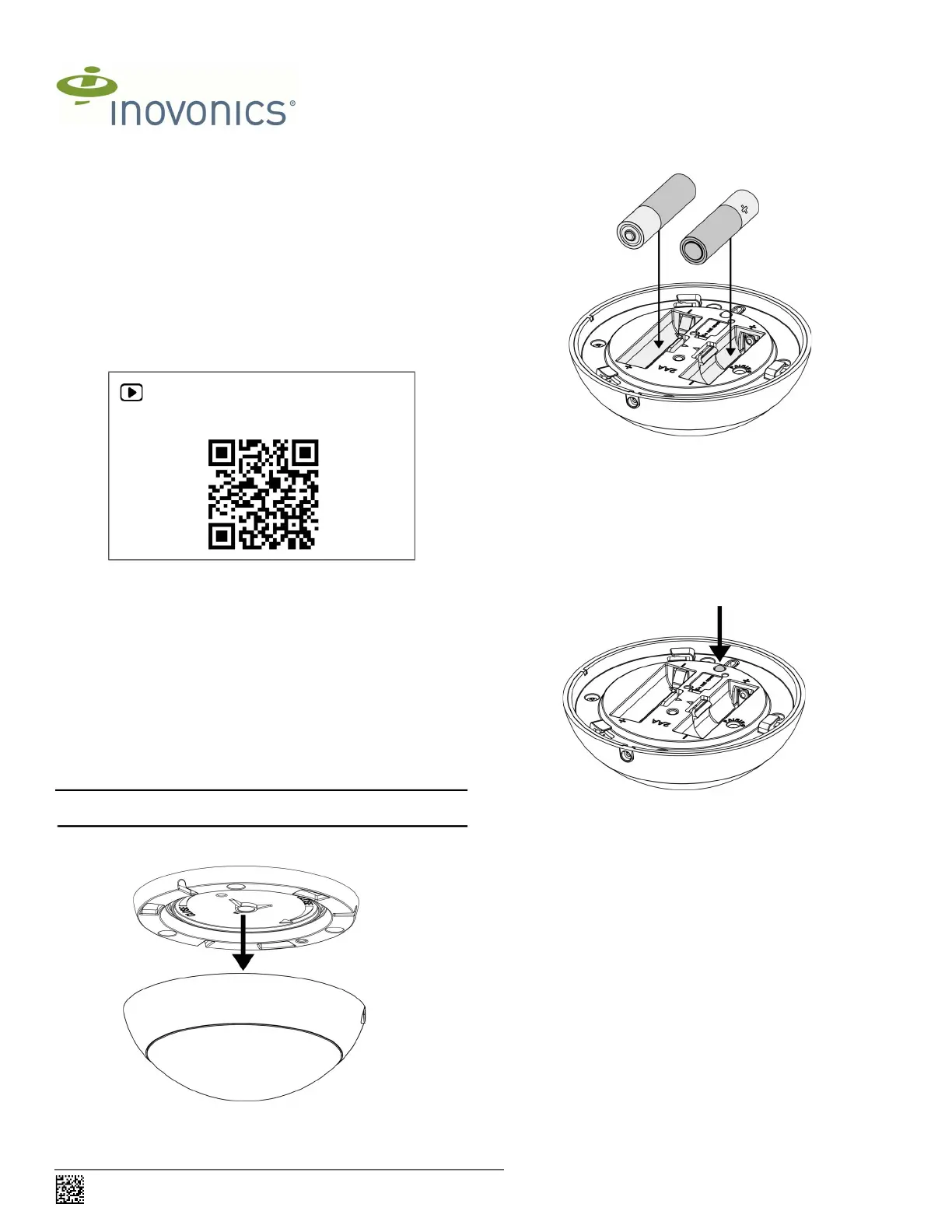

Figure 1 Remove the housing cover.
2. Install the batteries included with the unit.
Figure 2 Install the batteries
2.3 Select Pulse Count
The pulse count options provides control for difficult operating
environments. Automatic pulse count is recommended for reliable
operation in environments subject to temperature fluctuation that can
cause false alarms. The single pulse count mode is more sensitive to minor
temperature variations, and should be used in sites where variant heat
sources will not cause alarms. Automatic pulse count is the factory default
because it allows more reliable operation in environments subject to
temperature fluctuation. To select pulse count:
1. Press the tamper button five times within three seconds.
Figure 3 Press the tamper button
2. Wait for the green LED to blink five times, then:
• Press the tamper button one time within three seconds to select single
pulse count.
• Press the tamper button two times within three seconds to select
automatic pulse count.
3. Confirm your selection.
• The green LED will blink once to indicate single pulse count has been
selected; twice to confirm automatic pulse count has been selected.
2.4 Select Fixed/Variable Sleep Time
The sleep time setting provides control for normal or high-traffic operating
environments. When set to fixed, if the EN1266 senses motion, it will
transmit an alarm, then enter sleep mode for 180 seconds; if motion is
sensed when the sleep time has expired, the EN1266 will transmit another
alarm. Fixed sleep time is recommended for normal operating
environments, and is the default setting as shipped from the factory. When
set to variable, if the EN1266 senses motion, it will transmit an alarm, then
enter sleep mode for 180 seconds; if motion is sensed before the sleep
time has expired, the EN1266 will restart the 180 second interval. Variable
sleep time is recommended for high-traffic operating environments. To
select sleep time:
1. Press the tamper button four times within three seconds.
2. Wait for the green LED to blink four times, then:
• Press the tamper button one time within three seconds to select fixed
sleep time.
For product and installation videos visit us at
www.inovonics.com/videos or use the QR
code below.
3.28.22 357-00047-04 Rev A © Inovonics, 2022 - www.inovonics.com 2
• Press the tamper button two times within three seconds to select
variable sleep time.
3. Confirm your selection.
• The green LED will blink once to indicate fixed sleep time has been
selected; twice to confirm variable sleep time has been selected.
2.5 Register the EN1266
The EN1266 must be registered. Refer to receiver, network coordinator or
control panel installation instructions to register the EN1266.
1. When prompted to reset the transmitter, remove and replace the
batteries.
Caution: The EN1266 should be tested after registration to ensure
operation. To test the EN1266, activate each of the conditions and ensure
an appropriate response.
2.6 Mount the EN1266
1. Use the included four mounting screws to mount the EN1266 mounting
base to the ceiling.
Note: The screw in the middle of the mounting base activates the tamper
function if the EN1266 is removed from the ceiling.
Figure 4 Mount the EN1266
• The EN1266 can be mounted to a maximum height of approximately
12 feet (3.6 meters). As mounting height increases, distance between
detection zones also increases toward the perimeter, and the effects
of factors such as floor surface temperature and intruder direction and
speed are intensified. This can contribute to reducing speed of
detection. Every installation should include a walk test of detection
zones, including intrusion paths crossing the edges of the zones.
Figure 5 EN1266 detection area
2. When the housing base has been attached to the ceiling, attach the
housing cover.
3 Test the EN1266
3.1 Walk Test
When in walk test mode the test LED will light red every time the EN1266
senses motion. The unit will not transmit alarm signals during this test
period. After ten minutes the EN1266 will automatically return to normal
operation. To initiate a walk test:
1. Press the tamper button three times within three seconds.
4 Operation
The EN1266 contains a tamper switch on the back of the device to alert the
user if the housing cover is removed from the base.
5 Specifications
Dimensions: 4.33” x 1.77” (110mm x 45mm).
Weight: 4.37 oz. (123g).
Detection method: Quad-element PIR.
Operating temperature: 32°F to 120°F (0°C to 49°C).
Humidity: Up to 93% non-condensing.
Battery: Two Energizer Ultimate Lithium 1.5V AA.
Note: Battery is supervised.
Typical battery life: Two years in location with low to moderate activity.
Visible light protection: Stable against halogen light 8 feet (2.4m) or
reflected light.
Temperature compensation: Yes.
Pulse count: Selectable single pulse or multiple pulse.
Installation Height Detection Diameter
8 feet (2.4 meters) 31 feet (9.5 meters)
10 feet (3.0 meters) 40 feet (12 meters)
12 feet (3.6 meters) 45.9 feet (14 meters)
