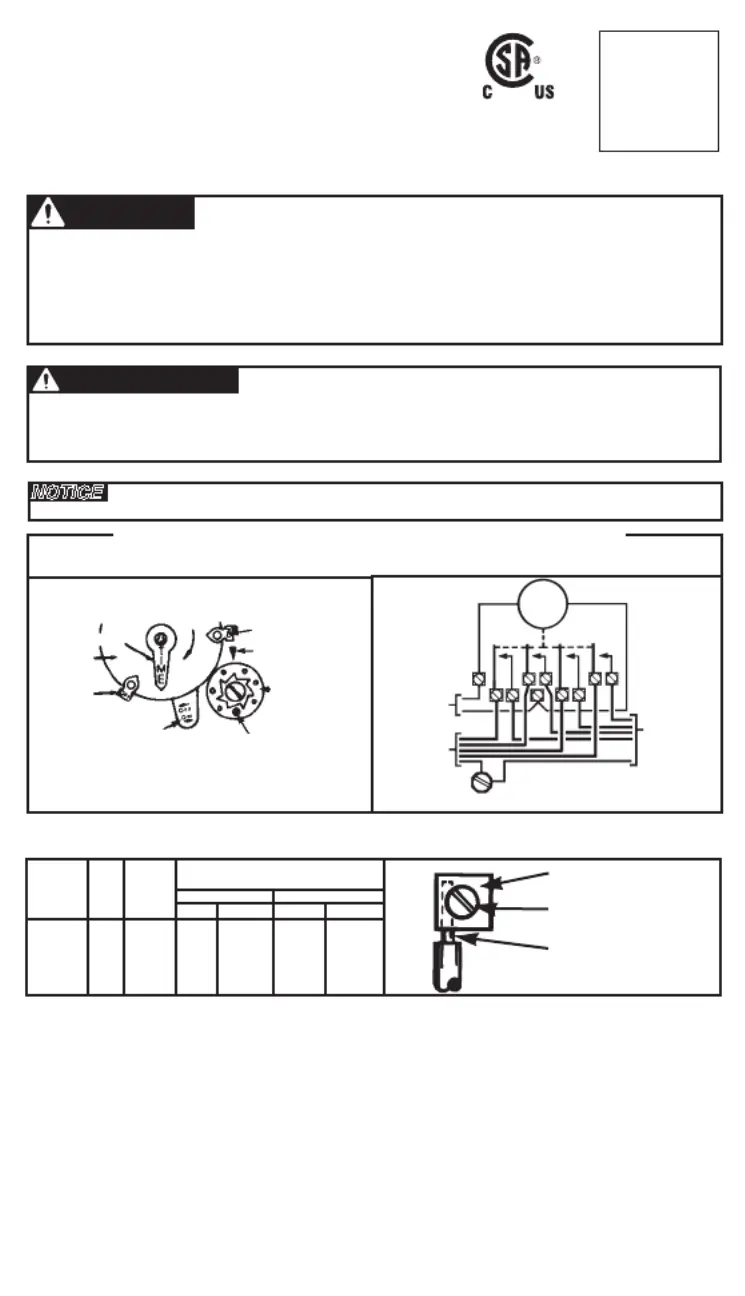

MODEL: T1471BR

24 HOUR DIAL TIME SWITCH WITH “SKIPPER ’’

FOUR POLE SINGLE THROW

TYPE 3R RAINPROOF ENCLOSURE

SUITABLE FOR POOL EQUIPMENT CONTROL IF INSTALLED 5 FT. OR MORE FROM EDGE OF POOL.

40 A RESISTIVE, EACH POLE 120 - 480 VAC, 40 A INDUCTIVE, TUNGSTEN OR

1000 VA PILOT DUTY POLE - 120-277 VAC; 2 HP (24 FLA) - 120 VAC; 5 HP (28 FLA) EACH

240 VAC SINGLE PHASE, 7 1/2 HP (28 FLA) - 208 VAC; 10 HP (28 FLA) - 240 VAC; THREE PHASE,

16 A ELECTRONIC BALLAST, 277 VAC

INDEPENDENTLY WIRED CLOCK MOTOR: 120 VAC, 60 HZ.

CLOCK MOTOR VOLTAGE AND CYCLE MUST BE AS SPECIFIED. TO ORDER

REPLACEMENT, INDICATE PART NO. (WG--) ON MOTOR COVER.

TIME

POINTER

TIME

DIAL

OFF

TRIPPER

MANUAL

LEVER

SKIPPING

SCREW

SKIPPER

WHEEL

DAY

ARROW

ON/CUTOUT

TRIPPER

120 V

60 HZ

LOADS

SUPPLY

(4PST)

WIRING DIAGRAM

GROUND

SCREW

CLOCK

MOTOR

WARNING

Risk of Fire or Electric Shock

• Disconnect power at the circuit breaker(s) or disconnect switch(es) before installing or servicing.

• Installation and/or wiring must be in accordance with national and local electrical code requirements.

• Use wires rated at least 90°C - COPPER conductors ONLY.

• For outdoor locations, raintight, or wet location, conduit hubs that comply with requirements of UL514B (standard

for ﬁttings for conduit and outlet boxes) are to be used.

• Replace plastic insulator covering terminals before powering ON.

• KEEP DOOR CLOSED AT ALL TIMES when not servicing.

NOTICE

• Rotate timer dial clockwise only.

• Do not move the clock hands on the timer. Moving the clock hands can damage the timer.

AVERTISSEMENT

Risque d’incendie ou de choc électrique

• Utiliser des ﬁls classés 90°C minimum - Conducteurs en CUIVRE UNIQUEMENT.

• Pour les emplacements extérieurs, étanches à la pluie ou les emplacements mouillés, des entrées de conduit qui

sont conformes aux exigences de UL514B (norme pour les pièces de ﬁxation pour conduit et boîtes de sortie)

doivent être utilisées

LR3730

HOLOGRAM

LABEL

WIRING INSTRUCTIONS: Remove 1/2 inch of insulation from wire ends. Tighten terminal screws firmly

(2-18 in-lbs). Use solid or stranded COPPER only. May use two wires of the same size and type.conductors

PRESSURE PLATE

TERMINAL SCREW

MAKE SURE WIRE

INSULATION CLEARS

PRESSURE PLATE

MINIMUM

COPPER

WIRE SIZE

(AWG)

MAX.

LOAD

(AMP)

MIN.

INSUL-

ATION

TEMP(°C)

75°C INSULATION MAX. MOTOR

LOAD (HP)

SINGLE PHASE

3 PHASE

120 V. 240 V. 208 V.

240 V.

1/2

2 1/2

N/A

INTERMATIC INCORPORATED

SPRING GROVE, ILLINOIS 60081-9698

154--02056

PROGRAMMING INSTRUCTIONS

1. TO SET “ON” AND “OFF” TIMES: Hold trippers against edge of CLOCK-DIAL, pointing to time (AM or PM) when ON and

OFF operations are desired, tighten tripper screws firmly. See caution below. For additional tripper pairs on CLOCK-

DIAL order 156T1948A.

2. TO SET TIME-OF-DAY: Pull CLOCK-DIAL outward. Turn in either direction and align the exact time-of-day on the

CLOCK-DIAL (the time now, when switch is being put into operation) TO TIME POINTER. DO NOT MOVE THE POINTER.

3. TO SKIP OPERATION(S) ON SELECTED DAY(S): Insert SKIPPING SCREW(S) in SKIPPER WHEEL for day(s) automatic

operation(s) is/are NOT required. Tighten screws firmly. Move MANUAL LEVER to “OFF” and rotate SKIPPER WHEEL to

locate correct day-of-week opposite DAY ARROW--”YESTERDAY” if ON/CUTOUT TRIPPER has not yet advanced wheel

“TODAY” if it has.

OPERATING INSTRUCTIONS

• TO OPERATE SWITCH MANUALLY: Move MANUAL LEVER below CLOCK-DIAL left or right as indicated by arrows. This

will not effect next operation.

• CAUTION: TO AVOID SLOW TRIPPER ACTION FAILURE, DO NOT OPERATE SWITCH MANUALLY NOR PLACE A TRIPPER 4

HOURS PRIOR TO ON/OFF CUTOUT TRIPPER SWITCHING.

IN CASE OF POWER FAILURE, reset CLOCK-DIAL to proper time-of-day. See programming instructions.
