PRO POWER
TM
Automotive Amplifier Owner’s Manual A302GTi A601GTi A1201GTi
Thank you for purchasing a JBL
GTi Series amplifier. In order that
we may better serve you, should you
require warranty service on your new
amplifier, please retain your original
purchase receipt and return the
enclosed warranty registration card.
Warning: Playing loud music in
an automobile can hinder your
ability to hear traffic as well as
permanently damage your hearing.
We recommend listening at low
levels while driving. JBL accepts no
liability for hearing loss, bodily injury
or property damage resulting from
use or misuse of this product.
Important: Installation of
automotive stereo components
can require extensive experience in
performing a variety of mechanical
and electrical procedures. Although
these instructions explain how to
install GTi Series amplifiers in a
general sense, they may not show
the exact installation methods for
your particular vehicle. If you feel
you lack the tools or experience
necessary, ask your authorized JBL
car audio dealer about professional
installation options.
Installation Warnings and Tips
•Always wear protective eyewear
when using tools.
•Turn off all audio systems and
other electrical devices before you
start. Disconnect the (–) negative
lead from your vehicle s battery.’
•Check clearances on both sides
of a planned mounting surface
before drilling any holes or
installing any screws. Remember
that the screws can extend
behind the surface.
•At the installation sites, locate and
make a note of all fuel lines,
hydraulic brake lines, vacuum lines
and electrical wiring. Use extreme
caution when cutting or drilling in
and around these areas.
•Before drilling or cutting holes, use
a utility knife to remove unwanted
fabric or vinyl to keep material
from snagging in a drill bit.
•When routing cables, keep input
signal cables away from power
cables and speaker wires.
•When making connections, ensure
that they are secure and properly
insulated.
• ’If the amplifier s fuse must be
replaced, use only the same type
and rating as a replacement. Do
not substitute another kind.
Choosing a Location and
Mounting the Amplifier
Amplifiers need air to stay cool.
Suitable mounting locations are
under seats (provided the amplifier
doesn’t interfere with the seat
adjustment mechanism), in the trunk
or in any other location that provides
enough air for the amp to cool itself.
Do not mount the amplifier with the
heatsink facing downward, as this
makes convection cooling of the
amplifier impossible.
Mount the amplifier so that it is not
damaged by the feet of back-seat
passengers or by the shifting of cargo
in the trunk. Mount the amplifier so
that it remains dry never mount an–
amplifier outside the car or in the
engine compartment.
Using the amplifier as a template,
mark the location of the mounting
holes on the mounting surface, drill
pilot holes, and attach the amplifier
to the mounting surface using
screws. Make sure the amplifier
is mounted securely.
02
The Official Brand of Live Music

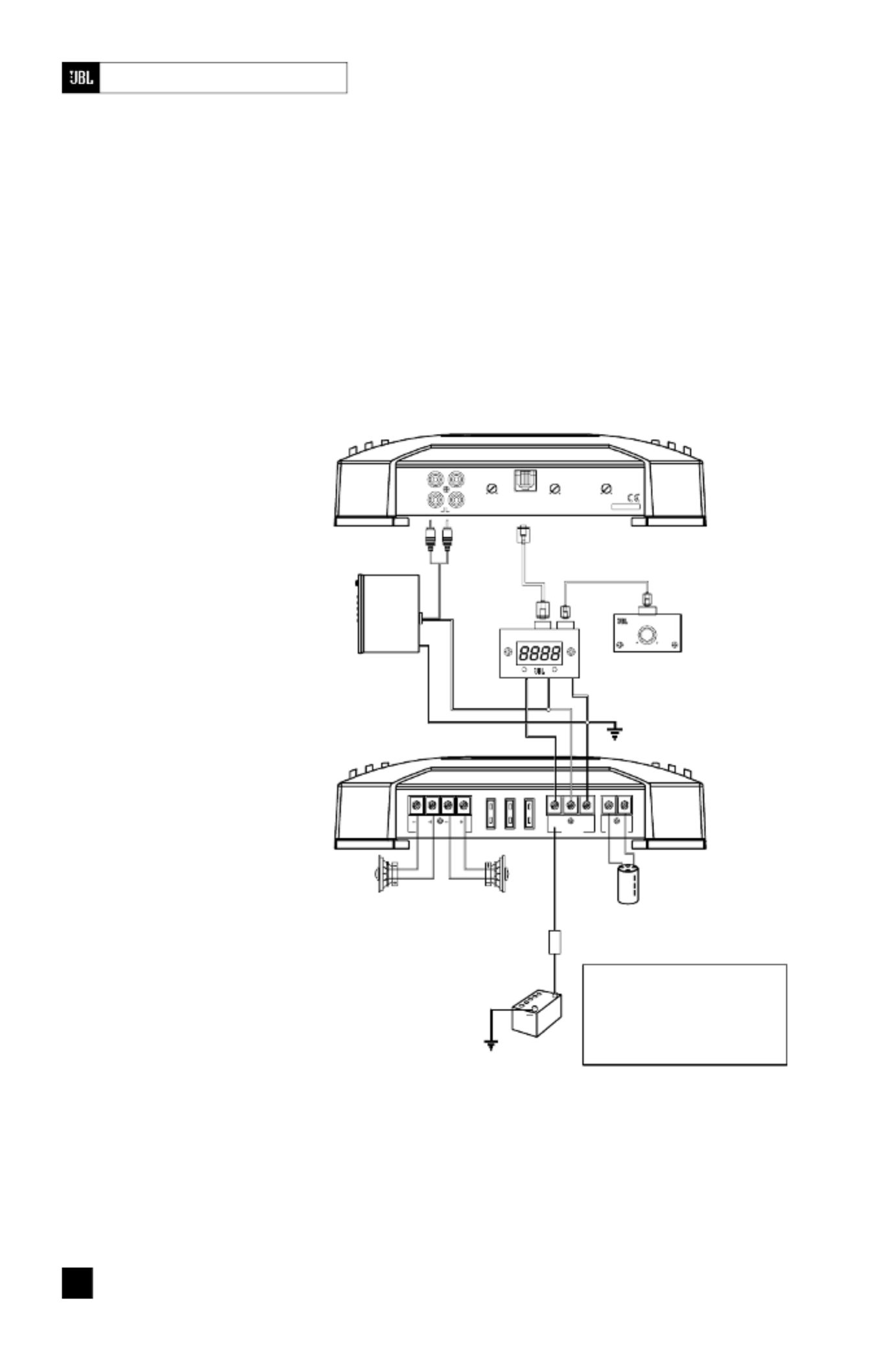

SPEAKER OUTPUTS +BATT REM
POWER
GND +
CAPTAP
FUSES 40A x 3
—
A1201GTi
R
L
INPUT
LEVEL
4V 55mV REMOTE
LPF
FREQ
30Hz 320Hz
BASS
BOOST
0dB +6dB
HEAD
UNIT
STATUS
MONITOR
REM
(GRN)
+BATT
(RED)
GND
(BLK)
CAR BODY
(GROUND)
CAR
BATTERY +
CAR BODY
(GROUND)
+—
EXTERNAL
CAPACITOR
(OPTIONAL)
SUBWOOFER
FUSE/CIRCUIT
BREAKER
FUSE/CIRCUIT BREAKER
AND WIRE SIZE MUST BE
APPROPRIATELY SIZED FOR
THE ELECTRICAL LOAD OF
THE SYSTEM. INSTALLATION
SHOULD BE WITHIN 18 INCHES
OF THE BATTERY + TERMINAL.
SUB LEVEL
CONTROL
SUB LEVEL
MIN MAX
LEFT SIDE
OF
AMPLIFIER
R
L
FRONT INPUTS REAR INPUTS
RIGHT SIDE
OF
AMPLIFIER
SUBWOOFER
Figure1. Connecting the A1201GTi and A601GTi
