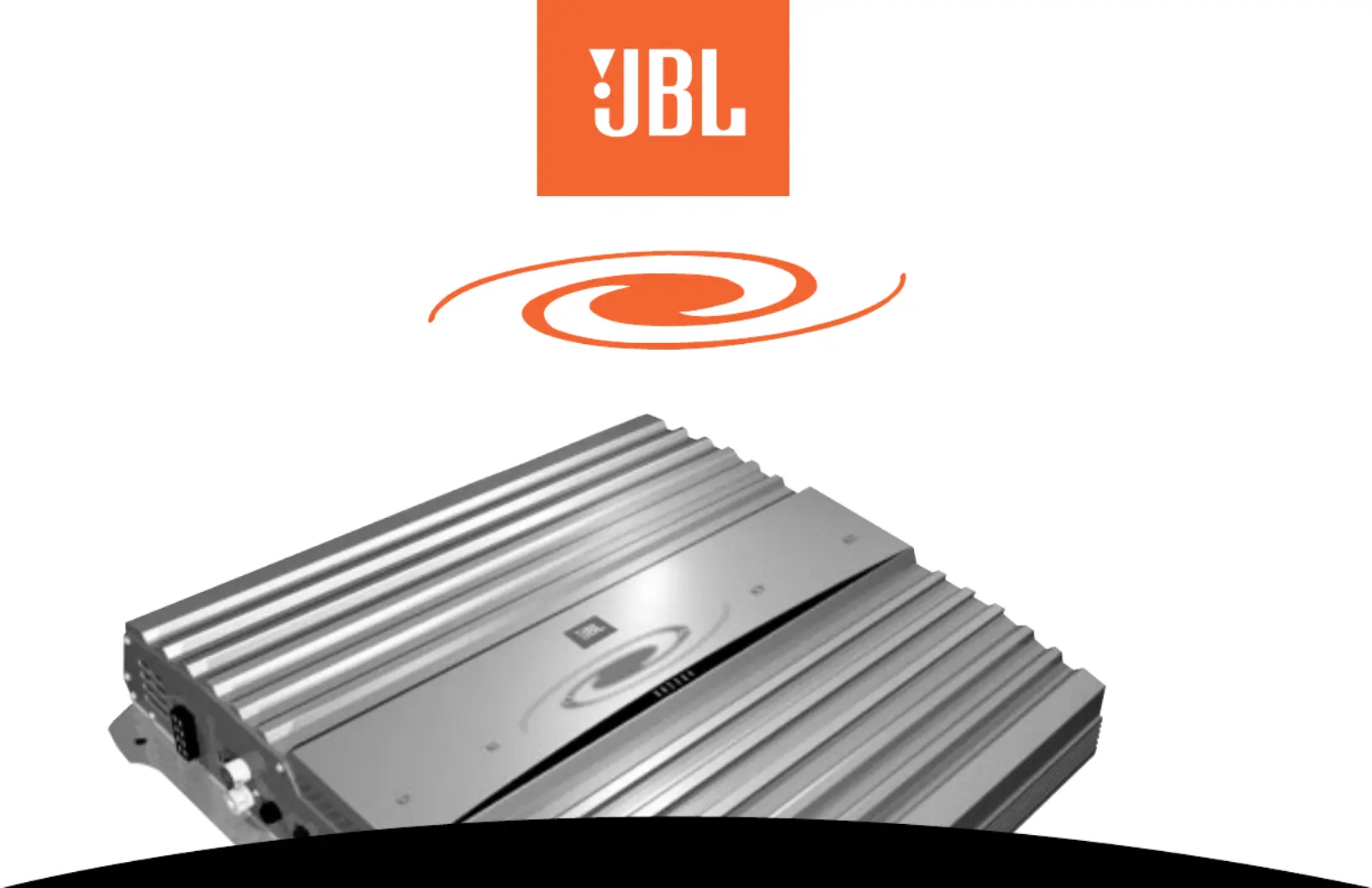

D E C A D E

™

A M P L I F I E R S D A 4 0 0 2 , D A 6 5 0 2 , D A 3 5 0 4 , D A 1 0 0 2

G E N U I N E J B L

Amplifier Features

• 4-, 3- or 2-channel operation (DA3504)

2- or 1-channel operation (DA4002,

DA6502, DA1002)

• Simultaneous stereo and mono

operation

• Built-in 12dB/oct electronic crossover

• Oversized Floating Rail Mosfet Power

Supply

• Floating Ground Factory-Head-Unit

Speaker-Level Input

• Variable input sensitivity (250mV-4V)

• Fully complementary output stage with

Class-A voltage amplification

• Gold-plated power, input and output

connectors

• 2-Ohm stable (stereo)

• Power-on indicator badge

About This Manual

To attain maximum amplifier perfor-

mance, we encourage you to read the

remaining pages before installing and

operating your new JBL Decade power

amplifier. Especially review the Appli-

cations section for ideas on designing

and expanding your system. Also, save

these instructions for future reference.

Important:Installation of automotive

stereo components can require extensive

experience in performing a variety of

electrical and mechanical procedures.

Although these instructions explain how

to install a JBL Decade power amplifier in

a general sense, they do not show the

exact installation methods for your partic-

ular vehicle. If you do not have the expe-

rience, do not attempt the installation

yourself; instead ask your Authorized JBL

Car-Audio Dealer about professional

installation options.

Installation Precautions and Notes

• The JBL Decade Power amplifiers have

five levels of circuit protection that mon-

itor the amplifier and will shut it down if

the electrical system voltage drops

below 5Vdc or exceeds 18Vdc, tempera-

tures are above 194° F (90° C), short cir-

cuits occur or current draw exceeds

product specifications. For best perfor-

mance, check the intended mounting site

to make sure the operating environment

does not create conditions that will trigger

circuit protection.

• Prior to installation, turn off all audio

systems and other electrical devices.

Also disconnect the (–) negative lead

from the vehicle’s battery.

• At the installation site, locate and make

a note of all fuel lines, hydraulic brake

lines and electrical wiring. Use extreme

caution when cutting or drilling in and

around these areas.

• Check clearances on both sides of a

planned mounting surface before

drilling any holes or installing any

screws. Remember that mounting

screws can extend behind the mount-

ing surface.

• Always wear protective eyewear when

using tools.

• When routing cables, keep input signal

cables away from power cables and

speaker wires.

• When making connections, make sure

that each connection is clean, insulated,

and properly secured. Observe the

polarity markings on the rear panel.

Refer to the application drawings to set

up the amplifier for operation in stereo,

bridged-mono, bi-amp or tri-mode con-

figurations.

• If the amplifier’s fuse must be replaced,

use only the same rating and type as a

replacement. Do not substitute another

kind.

Thank you for purchasing your new

JBL Decade

™Series power amplifier.

Decade Series power amplifiers feature

the latest advances in discrete circuit

topology ensuring low distortion and

superbly clean and clear sound quality.

In addition to RCA-type pre-amp inputs,

Decade Series amplifiers feature Floating

Ground Factory-Head-Unit Interface

™,

designed to facilitate integration with fac-

tory-installed audio systems for distor-

tion-free performance. All JBL Decade

Series power amplifiers feature built-in

electronic crossovers for easy system

expansion without additional outboard

processors.
