Owner’s Manual

GTO-5eZ/GTO-3eZ

power ampliﬁer

why yOu shOuld Pay aTTenTiOn TO This Owner’s Manual

The performance of your vehicle’s audio system depends as much on quality installation and setup as it does on

quality gear. Of course, these new JBL® GTO amplifiers are bulletproof performers that are built using the highest

quality components, and will outperform any competing product on the test bench. To make sure you extract all

the performance possible from your new amp, whether you install it yourself or have a professional install it for you,

we’ve incorporated some new features that make setup simple and precise and ensure you get all the power and

performance you’ve paid for.

WHAT MAKES THESE AMPLIFIERS DIFFERENT

All amplifiers include some signal processing functions, level setting controls and other switches and connectors that

make it possible to hook the amp up to just about any existing system. However, with many amplifiers, considerable

technical expertise is required to make the best use of those connectors, switches and controls to get powerful noise-

free sound. JBL GTO amplifiers include Simple Setup designed to make it easy for you to get all the noise-free power

your amp is capable of delivering.

WHAT MAKES INPUT SETUP EASY

GTO Amplifiers include adapters for connecting almost any analog signal and feature built-in Gain Indicator LEDs and

a setup CD that makes precision adjustment simple, no matter your level of experience. The setup of GTO amplifiers is

a little different than amplifiers you may have installed in the past, so please read this owner’s manual before you

begin. If you’re an experienced installer, skipping ahead is OK, but please don’t skip on Setup Procedure,

page 8.

So we can better serve you should you require warranty service, please retain your original sales receipt and register

your GTO-5EZ or GTO-3EZ online at www.jbl.com.

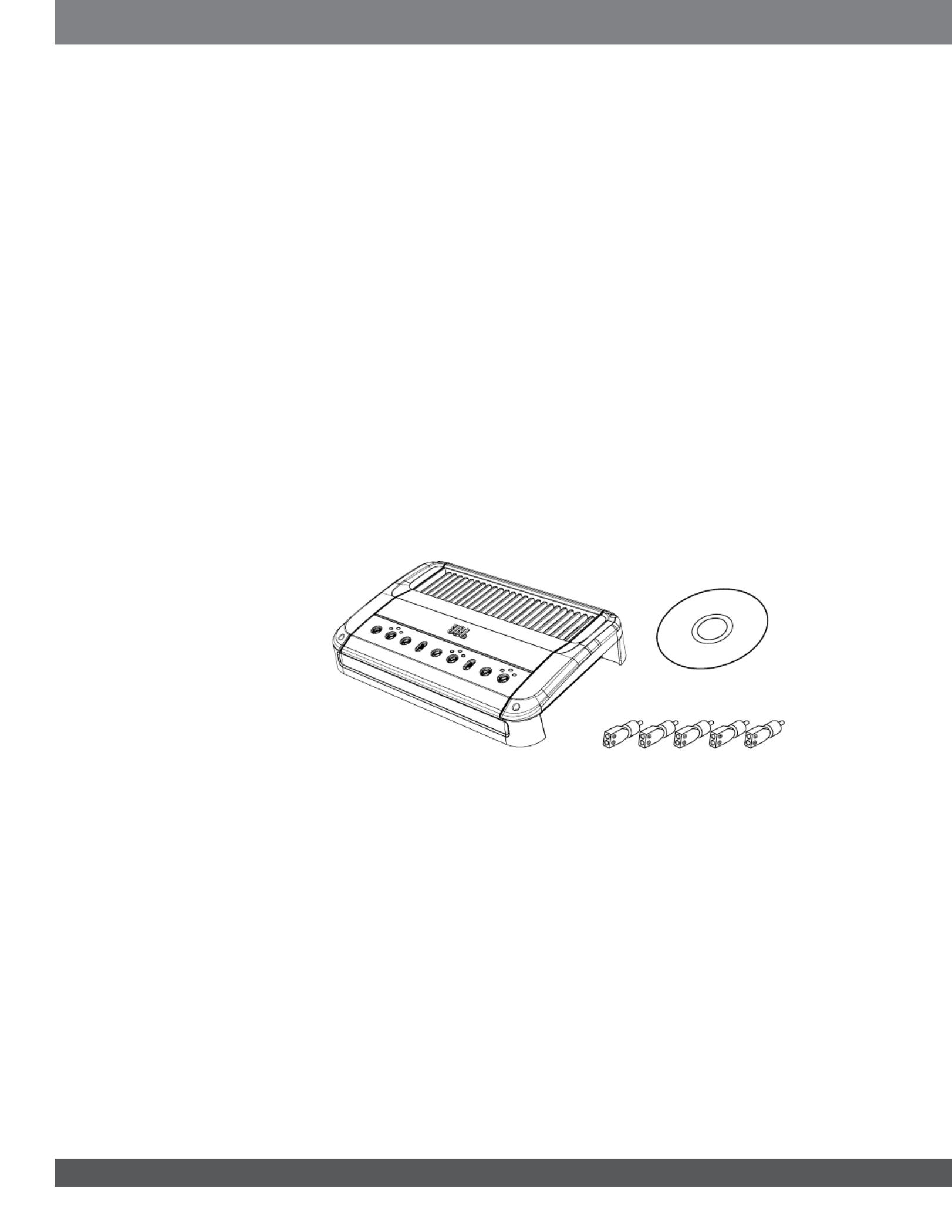

included iTeMs

The following items are included in the packaging. If any of these items are missing, please contact your authorized

JBL dealer, or JBL customer service at www.jbl.com.

Setup CD

GTO Series

Ampliﬁer

Bare Wire-to-RCA Adapters

(5 in GTO-5EZ; 3 in GTO-3EZ)

lOcaTiOn and MOunTinG

INSTALLATION WARNINGS AND TIPS

IMPORTANT: Disconnect the vehicle’s negative (–) battery terminal before beginning the installation.

• Always wear protective eyewear when using tools.

• Check clearances on both sides of a planned mounting surface. Be sure that screws or wires will not puncture

brake lines, fuel lines or wiring harnesses, and that wire routing will not interfere with the safe operation of the

vehicle.

• When making electrical connections, make sure they are secure and properly insulated.

• If you must replace any of the GTO-5EZ/GTO-3EZ’s fuses, be sure to use the same type of fuse and current rating

as that of the original.

INSTALLATION LOCATION

Amplifiers need air circulation to stay cool. Select a location that provides enough air for the amp to cool itself.

• Suitable locations are under a seat (provided the amplifier doesn’t interfere with the seat adjustment mechanism),

in the trunk, or in any other location that provides enough cooling air.

• Do not mount the amplifier with the heatsink facing downward, as this interferes with the amplifier’s convection

cooling.

• Mount the amplifier so that it will not be damaged by the feet of backseat passengers or shifting cargo in the trunk.

• Mount the amplifier so that it remains dry – never mount an amplifier outside the car or in the engine compartment.

Produkt Specifikationer

Mærke:	JBL
Kategori:	Modtager
Model:	GTO-5EZ
Bredde:	373 mm
Dybde:	246 mm
Højde:	66 mm
Vægt:	5100 g
Produktfarve:	Sort
Frekvensområde:	50 - 280 Hz
Forbindelsesteknologi:	Ledningsført
Lyd-output kanaler:	5.0 kanaler
Formål:	Bil
DC indgangsspænding:	14.4 V
klirfaktor (THD):	1 %
Signal/støjforhold:	- dB
Spidseffekt pr. kanal:	- W
Højttalere tilslutningstype:	RCA
RMS udgangseffekt pr. kanal (4 Ohm):	350 W
RMS udgangseffekt pr. kanal (2 ohm):	1075 W
Bas-boost:	0 - 12 dB
