IR Blocking

Cover

INCREASING THE WIRE LENGTH

If the connecting wire is too short to reach the IR

Connecting Blocks, an additional length of wire

may be spliced in to extend it. Cut the emitter wire

approximately six inches from the plug end, strip off

1/4", and connect your additional wiring between

the ends of the original emitter wire. For distances

between 10 and 20 feet upgrade the original wire to

an 18 gauge 2-conductor wire. For distances of up

to 200 feet a 16 gauge two-conductor wire should

be used.

Be sure to observe proper polarity when extending

the emitter wire.

The wire lead marked with a gray stripe is positive

(+); the unmarked lead is negative (-).

USING THE IR

BLOCKING COVER

To prevent A/V components from receiving IR

commands from sources other than the IR-E1 and

IR-E2, the IR Blocking Cover should be used. The IR

Blocking Cover is designed to cover both the IR-E1

and IR-E2 and the IR Receiver window of the

component. The IR Blocking Cover serves two

functions:

1. It ensures that a component receives IR signals

solely from the IR-E1 and IR-E2.

2. It prevents the IR output of the IR-E1 and IR-E2

from radiating to other components or IR

receivers.

FEATURES

n Infrared pass through housing

n Miniature size and shape

Installation friendly design:

n 10' of cable with 3.5mm plug

n Reliable adhesive backing

n Includes IR blocking cover

PACKAGE CONTENTS: IR-E1

n IR-E1 Emitter x 1

n 10 Feet of Connecting Wire x 1

n IR Blocking Cover x 1

n Extra Emitter Adhesive strips x 2

PACKAGE CONTENTS: IR-E2

n IR-E2 Emitter x 1

n 10 Feet of connecting wire x 1

n IR Blocking Covers x 2

n Extra emitter adhesive strips x 4

1 45

Infrared

Transparent

Housing

10 feet of

2-conductor

24 gauge

connecting

wire

3.5mmmo

no mini-

plug

Self-adhesive tape

23 6

MOUNTING THE

IR BLOCKING COVER

Make sure the mounting surface is clean before

installing the blocking cover. You may improve

the appearance by trimming the cover with

scissors to exactly cover the remote receiver

window. Mount the blocking cover (using the

self-adhesive tape) so that the IR-E1 and IR-E2

and the IR remote receiver window of the

component are completely covered. See figure 4.

TROUBLESHOOTING

Testing the Remote Control

Test to see that the hand-held remote control

operates the component when you point it at the

front panel (check the batteries if it does not).

IR Connecting Blocks Power Supply

Check that the red power light on the IR

Connecting Blocks is lit (the in-line power supply

should be plugged into an active AC wall outlet

and supplying 12V DC).

Over Please

Figure 1

PREPARING FOR

INSTALLATION

The IR-E1 and IR-E2 are typically mounted to the

infrared remote receiver windows of audio/video

components, using the attached self-adhesive

tape. The emitter directs its infrared output

toward the component, not out into the room. If

the component has a tray or door that opens, you

may have to route the emitter wire from the top

or the side of the component. Make sure the

mounting surface is cleaned and degreased

before installation.

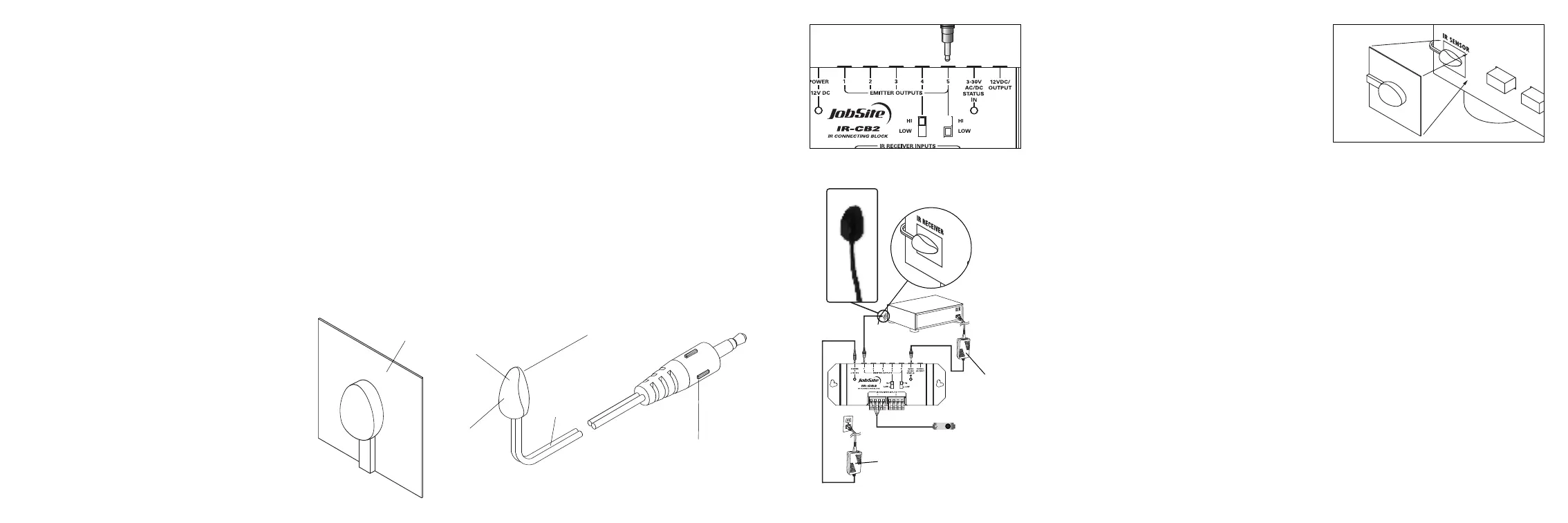

PRODUCT OVERVIEW

Infrared

LED

Figure 2 Connecting the emitter to the main

system unit’s emitter low outputs.

Figure 4 Mounting the IR Blocking Cover.

12V DC

Power Supply

(Not Supplied)

plugged into the

Switched Outlet

12V DC Power Supply

Plugged into an

Unswitched AC Outlet

Powers the System

IR-CB2

JobSite

IR-E1/E2

Emitter

IR-SMR

Stereo Receiver

IR-E1/E2

Figure 3

INSTALLATION

1. Locate the IR remote receiver window of each

component to control. The receiver is usually

located behind its own plastic window, on the

front of the component.

2. Make sure the mounting surface is clean.

3. Attach the IR-E1/E2 directly over the IR remote

receiver windows of the components using its

self-adhesive tape.

4. Route the connecting two-conductor wire to

the IR Connecting Block and plug it into an

Emitter output.

5. Coil any excess wire and tie it in place.

6. On IR Connecting Blocks with selectable

Emitter outputs, make certain the HI-LOW

SWITCH is placed in the LOW position. See

figure 2 and 3.

JOBSITE: Include your name, address, telephone

number, model number and serial number of your

unit, and a brief description of the problem.

A factory Return Authorization Number will be sent

to you. DO NOT RETURN ANY UNIT WITHOUT FIRST

RECEIVING WRITTEN AUTHORIZATION AND

SHIPPING INSTRUCTIONS FROM JOBSITE.

If the above conditions are met, the purchaser’s sole

remedy shall be to return the product to JOBSITE, in

which case JOBSITE will repair or replace, at its sole

option, the defective product without charge for

parts or labor. JOBSITE will return the unit repaired

or replaced under warranty by shipping it by its usual

shipping method from the factory (only) at its

expense within the United States of America. THERE

ARE NO OTHER WARRANTIES, INCLUDING,

WITHOUT LIMITATION, EITHER EXPRESS OR

IMPLIED WARRANTIES OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE, WITH

RESPECT TO THE PRODUCT.

REPAIR OR REPLACEMENT AS PROVIDED UNDER

THIS WARRANTY IS THE EXCLUSIVE REMEDY OF

THE CONSUMER/PURCHASER. NILES SHALL NOT

BE RESPONSIBLE FOR ANY INCIDENTAL OR

CONSEQUENTIAL DAMAGES EXCEPT TO THE

EXTENT PROVIDED (OR PROHIBITED) BY

APPLICABLE LAW.

Some states do not allow the exclusion or limitation

of incidental or consequential damages, so the

above limitation may not apply to you. This warranty

gives you specific legal rights, and you may also

have other rights, which vary from state to state.

For the name of the nearest authorized JOBSITE

wholesale distributor, contact:

JobSite Systems

12331 S.W. 130 Street, Miami, Florida 33186

WWW.JOBSITESYSTEMS.COM

LIMITED WARRANTY

JobSite Systems (“JOBSITE”), a Niles Audio

Corporation company, warrants its passive products

(those not requiring AC or battery power) to the

original purchaser to be free of manufacturing

defects in material and workmanship for a period of

ten years from date of purchase.

JOBSITE warrants its passive loudspeaker products

(those not requiring AC or battery power) to the

original purchaser to be free of manufacturing

defects in material and workmanship for a period of

five years from date of purchase.

JOBSITE warrants its indoor/outdoor loudspeaker

products to the original purchaser to be free of

manufacturing defects in material and workmanship

for a period of two years from date of purchase.

JOBSITE warrants its all weather rock loudspeaker

products to the original purchaser to be free of

manufacturing defects in material and workmanship

for a period of five years from date of purchase.

JOBSITE warrants its active products (those

requiring AC or battery power) to the original

purchaser to be free of manufacturing defects in

material and workmanship for a period of two years

from date of purchase.

This Warranty is subject to the following additional

conditions and limitations. The Warranty is void and

inapplicable if JOBSITE deems that the product has

been used or handled other than in accordance with

the instructions provided by the manufacturer,

including, but not limited to, damage caused by

accident, mishandling, improper installation, abuse,

negligence, or normal wear and tear, or any defect

caused by repair to the product other than by

JOBSITE or an authorized JOBSITE wholesale

distributor.

To obtain warranty service, you must write to

Solution

You can eliminate optical feedback by covering

all emitters with the supplied IR Blocking Covers.

There are many methods for reducing

interference. Which solution is best for you

depends on your situation.

SPECIFICATIONS

IR system

Works with practically all brands of

IR remote controls

IR transmitting

Up to 4' (line of sight)

Emitters mount directly to the IR window of a

component

Wiring requirements

10" of 2-conductor 24-gauge wire with a 3.5mm

plug is supplied

Use 18-gauge for distances up to 20' and 16-

gauge for up to 200’

Mounting

Self-adhesive, surface mount

Dimensions

5/16" wide x 3/16" high x 1/2" deep

IR Blocking Cover Dimensions

2" wide x 2" high x 1/4" deep

Warranty: 2 year limited

910 1211

IR Saturation

Sometimes the emitter output can saturate the IR

receiving window of a component. When this

occurs, the IR command will not be executed.

This can occur anytime the output level of the

emitters exceeds the input capability of the IR

receiving circuit. Having a Plasma TV in the

system can cause this to occur on an intermittent

basis.

Solution

1. Remove the IR Blocking Cover if you

are using one.

2. Turn on the Plasma TV, because this may be

contributing to the problem.

3. Relocate the IR Emitter approximately 1/2"

away from the IR Receiving window. Some

experimentation will be required to determine

the best location for emitter.

4. Test system. Do not use an IR Blocking Cover if

a component is sensitive to IR saturation.

Optical Feedback Loop

If you have an IR Receiver in the same room as

an emitter, and you have some low-level noise or

interference, an optical feedback loop can occur

which will interfere with proper operation.

Symptoms can include: poor range, intermittent

operation or no operation.

INSTALLATION & USER GUIDE

For Transmitting

Infrared Commands to

Audio/Video Components

IR-E1/E2

SINGLE/DUAL IR EMITTER

JOBSITE SYSTEMS

12331 S.W. 130 STREET, MIAMI, FLORIDA 33186

P 866.4JB.SITE (866.452.7483) – F 305.238.0185

WWW.JOBSITESYSTEMS.COM

Custom and Niles are registered trademarks of Niles Audio

Corporation and the JobSite Logo is a trademark of Niles Audio

Corporation. All other trademarks are the property of their

respective owners. Some JobSite products (or components

thereof) are manufactured under one or more U.S. Patents,

foreign equivalents and/or pending patents (see product for

details). Because we constantly strive to improve our products,

JobSite reserves the right to change product specifications,

descriptions, and prices without notice. The technical and other

specifications of information contained herein are not intended to

set forth all technical and other specifications of JobSite

products. Additional information can be obtained at

WWW.JOBSITESYSTEMS.COM or by calling JobSite at

866.452.7483. Printed in China. 7/04 DS00392BCN

Produkt Specifikationer

Mærke:	JobSite
Kategori:	Ikke kategoriseret
Model:	IR-E1

Har du brug for hjælp?

Hvis du har brug for hjælp til JobSite IR-E1 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Ikke kategoriseret JobSite Manualer

JobSite IR-E1 Manual

9 September 2025

JobSite IR-E2 Manual

9 September 2025

JobSite S-4 Manual

8 September 2025

JobSite V-12M/AWE Manual

8 September 2025

JobSite V-12/AWE Manual

8 September 2025

JobSite S-4VC Manual

8 September 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

GW Instek GPE-2323A Manual

9 September 2025

Camille Bauer SINEAX G536 Manual

9 September 2025

Bioogród 730718 Manual

9 September 2025

Seagate Video 3.5 HDD Manual

9 September 2025

Camille Bauer KINAX WT720 Manual

9 September 2025

Grunkel ASM-22ULTRASLIM Manual

9 September 2025

Celly SmartBike Finder Manual

9 September 2025

Yato YT-84850 Manual

9 September 2025

Dasqua SB-046 Manual

9 September 2025

70mai Dash Cam A510 Manual

9 September 2025
