IR Blocking

Cover

INCREASING THE WIRE LENGTH

If the connecting wire is too short to reach the IR

Connecting Blocks, an additional length of wire

may be spliced in to extend it. Cut the emitter wire

approximately six inches from the plug end, strip off

1/4", and connect your additional wiring between

the ends of the original emitter wire. For distances

between 10 and 20 feet upgrade the original wire to

an 18 gauge 2-conductor wire. For distances of up

to 200 feet a 16 gauge two-conductor wire should

be used.

Be sure to observe proper polarity when extending

the emitter wire.

The wire lead marked with a gray stripe is positive

(+); the unmarked lead is negative (-).

USING THE IR

BLOCKING COVER

To prevent A/V components from receiving IR

commands from sources other than the IR-E1 and

IR-E2, the IR Blocking Cover should be used. The IR

Blocking Cover is designed to cover both the IR-E1

and IR-E2 and the IR Receiver window of the

component. The IR Blocking Cover serves two

functions:

1. It ensures that a component receives IR signals

solely from the IR-E1 and IR-E2.

2. It prevents the IR output of the IR-E1 and IR-E2

from radiating to other components or IR

receivers.

FEATURES

n Infrared pass through housing

n Miniature size and shape

Installation friendly design:

n 10' of cable with 3.5mm plug

n Reliable adhesive backing

n Includes IR blocking cover

PACKAGE CONTENTS: IR-E1

n IR-E1 Emitter x 1

n 10 Feet of Connecting Wire x 1

n IR Blocking Cover x 1

n Extra Emitter Adhesive strips x 2

PACKAGE CONTENTS: IR-E2

n IR-E2 Emitter x 1

n 10 Feet of connecting wire x 1

n IR Blocking Covers x 2

n Extra emitter adhesive strips x 4

1 45

Infrared

Transparent

Housing

10 feet of

2-conductor

24 gauge

connecting

wire

3.5mmmo

no mini-

plug

Self-adhesive tape

23 6

MOUNTING THE

IR BLOCKING COVER

Make sure the mounting surface is clean before

installing the blocking cover. You may improve

the appearance by trimming the cover with

scissors to exactly cover the remote receiver

window. Mount the blocking cover (using the

self-adhesive tape) so that the IR-E1 and IR-E2

and the IR remote receiver window of the

component are completely covered. See figure 4.

TROUBLESHOOTING

Testing the Remote Control

Test to see that the hand-held remote control

operates the component when you point it at the

front panel (check the batteries if it does not).

IR Connecting Blocks Power Supply

Check that the red power light on the IR

Connecting Blocks is lit (the in-line power supply

should be plugged into an active AC wall outlet

and supplying 12V DC).

Over Please

Figure 1

PREPARING FOR

INSTALLATION

The IR-E1 and IR-E2 are typically mounted to the

infrared remote receiver windows of audio/video

components, using the attached self-adhesive

tape. The emitter directs its infrared output

toward the component, not out into the room. If

the component has a tray or door that opens, you

may have to route the emitter wire from the top

or the side of the component. Make sure the

mounting surface is cleaned and degreased

before installation.

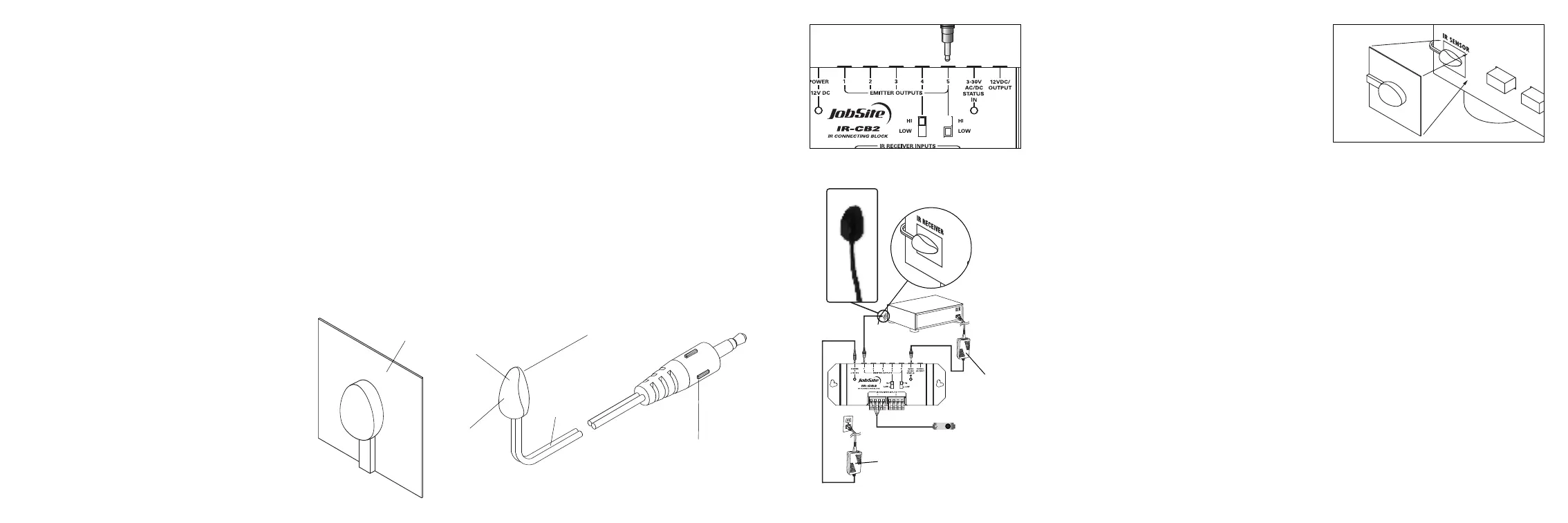

PRODUCT OVERVIEW

Infrared

LED

Figure 2 Connecting the emitter to the main

system unit’s emitter low outputs.

Figure 4 Mounting the IR Blocking Cover.

12V DC

Power Supply

(Not Supplied)

plugged into the

Switched Outlet

12V DC Power Supply

Plugged into an

Unswitched AC Outlet

Powers the System

IR-CB2

JobSite

IR-E1/E2

Emitter

IR-SMR

Stereo Receiver

IR-E1/E2

Figure 3

INSTALLATION

1. Locate the IR remote receiver window of each

component to control. The receiver is usually

located behind its own plastic window, on the

front of the component.

2. Make sure the mounting surface is clean.

3. Attach the IR-E1/E2 directly over the IR remote

receiver windows of the components using its

self-adhesive tape.

4. Route the connecting two-conductor wire to

the IR Connecting Block and plug it into an

Emitter output.

5. Coil any excess wire and tie it in place.

6. On IR Connecting Blocks with selectable

Emitter outputs, make certain the HI-LOW

SWITCH is placed in the LOW position. See

figure 2 and 3.
