INSTALLATION & USER GUIDE

NCB-5 /6/8

For Installing

In-Ceiling Speakers

in New Construction

5-1/4", 6-1/2" AND 8" CEILING BRACKETS

DS00379BCN_NCB-5_6_8.qxp 6/27/05 2:32 PM Page a

NCB-5/NCB-6/NCB-8

5-1/4", 6-1/2" AND 8" CEILING BRACKETS

PRODUCT OVERVIEW

Figure 1

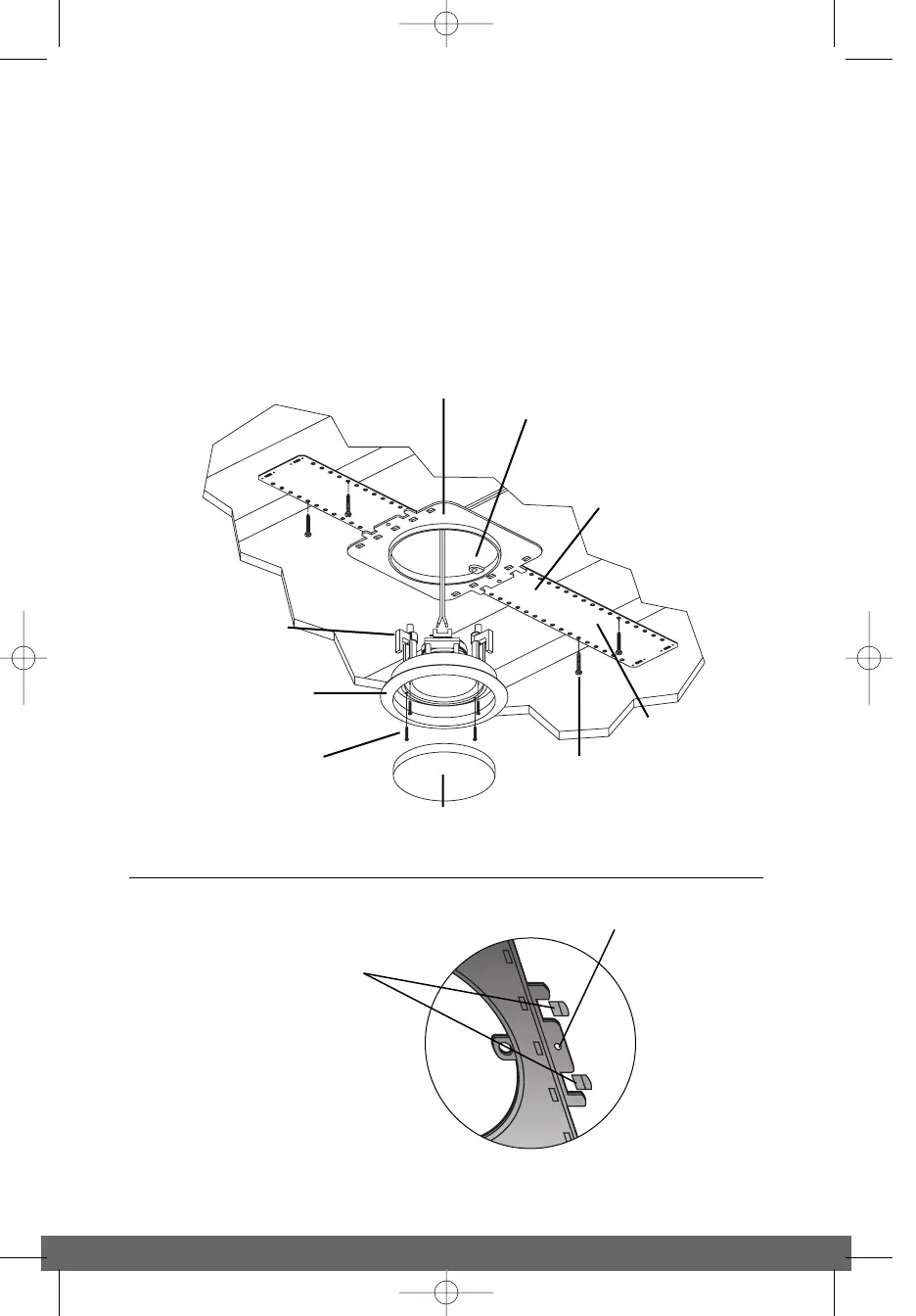

The illustration shows how a

typical In-Ceiling loudspeaker

mounts into a ceiling.

Ceiling Bracket serves as a “hole saver”

when drywall has not been applied.

Knockout wire tie allows the wire to

be secured to the bracket throughout

the new construction process. It

knocks out cleanly when the speaker

is installed.

Wings instantly snap

into the bracket

without screws.

Wings are scored for

easy size trimming.

Brackets and wings attach

to the ceiling joists with nails

or screws.

Dogs swivel 90°, then

clamp the speaker

frame to the drywall.

Frames are molded with a

slight texture to assure

good paint adhesion.

Mounting screws tighten the

“dogs”, clamping the speaker

to the drywall.

Rust-proof aluminum grilles make the

speaker suitable for moist environments.

Figure 2

Break away two of the outer

mounting tabs on the side you

wish to affix.

Emergency

screw hole

for butting

bracket

against

joist.

NOTE: Ceiling Bracket is designed to be used in New Construction ONLY. Cannot be used in retrofit applications.
