FILTER 8

MULTIMODE 8-PHASE FILTER/

OSCILLATOR

INTRODUC TIO N

Representing the cutting edge in modular

analogue voltage controlled filter (VCF) design,

Filter s 8 offer more possibilities and higher

fidelity in 12 HP than ever before.

Starting from the classic OTA-style 4-pole

cascaded lowpass (LP) topology, Filter 8 features

separate LP outputs, each with their own

character. Additional filter responses are

achieved by pole mixing: 1-pole highpass, a

special band boost and notch response, phase

shifter and 4-pole bandpass. All outputs are

available simultaneously.

Key to Filter 8's performance is the innovative

resonant feedback circuit. By increasing the

resonance, all outputs will resonate at the filter

frequency, without any low frequency response

loss. At higher resonance levels, self-oscillation is

achieved, turning the module into an excellent

8-phase sine wave voltage controlled oscillator

(VCO) with temperature and switchable gain

compensation, low distortion, constant

amplitude and accurate frequency tracking over

at least octaves. At sub audio frequencies, 5 -

Filter -8 can function as an 8 output voltage

controlled slew modifier or 8-phase low

frequency oscillator (LFO).

Simultaneous exponential and linear frequency

modulation is possible, for classic FM tones or

chaotic modulation. A hold feature is also

provided, 'freezing' the output voltages manually

or under gate control. This is useful for halting

modulations, or as a sync-like effect at audio

frequencies. The dedicated ‘ping’ input allows

you to easily create crisp percussive sounds with

different timbres.

While rooted in the legacy of classic synthesisers,

Filter 8 provides a new approach to musical

signal generators and modifiers: instead of

simply a VCF, VCO, slew modifier or VCLFO, a

single analogue module can now be any of those,

and anything in between.

CONTENTS

In the Filter find: 8 box, you’ll

 Product card, stating serial number and

production batch.

 16- -10-to pin Eurorack power cable.

 Mounting hardware: two black M3 x 6 mm

hex screws, two black nylon washers and a

hex key.

 T 8 he Filter module itself, in a protective

cotton bag.

If any of these items are missing, please contact

your dealer or support@joranalogue.com.

FILTER 8

MULTIMODE 8-PHASE FILTER/

OSCILLATOR

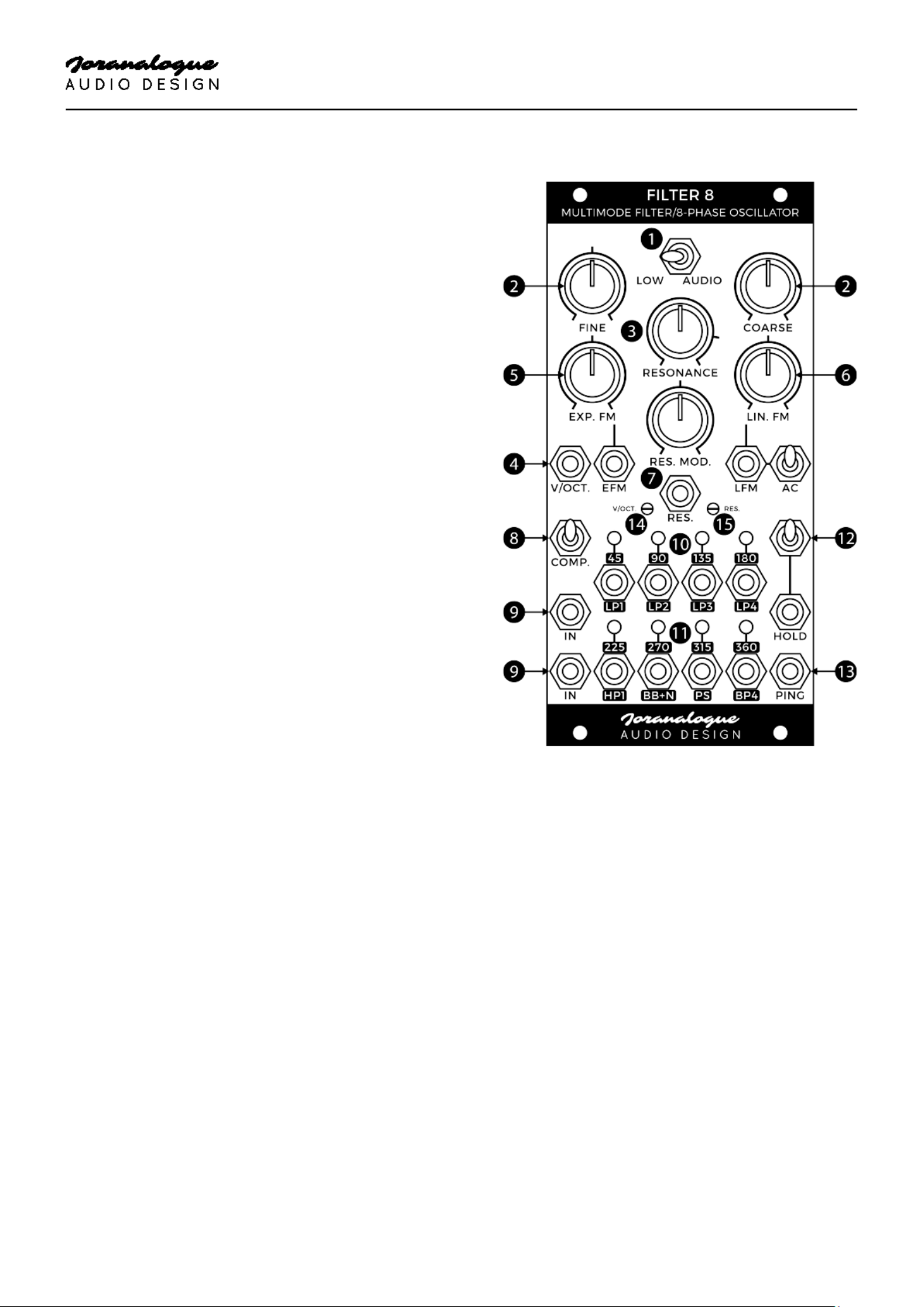

CONTROLS & CONNECTI ONS

1 SWITCH FREQUENCY RANGE

This switch determines over which frequency

range Filter frequency (slew 8 will operate: low

modifier/VCLFO) or audio frequency (VCF/VCO).

2 COARSE AND FINE FREQUENCY KNOBS

The filter/oscillator frequency is determined by

these knobs. In standard audio mode, with the

fine knob centred, the coarse knob has a range

of 22 Hz to 22 kHz. The fine knob’s range is 5 % of

the coarse knob (6 semitones . in audio mode)

In low frequency mode, the total range is

2.8 6 180 mHz (a period of minutes) to Hz, with

1 Hz when both knobs are centred.

3 RESONANCE KNOB

The resonance knob controls a feedback path

from the filter output back to the input, causing

the filter frequency to be emphasised. Filter 8’s

design includes an innovative resonance circuit:

by increasing this parameter, all outputs will start

to resonate at the filter frequency, without any

low frequency response loss.

At higher feedback levels, self-oscillation will be

achieved, turning the module into an excellent

8- phase sine wave VC(LF)O.

4 VOLT PER OCTAVE FM INPUT

This input is used to modulate the frequency in

an exponential fashion, with a standard 1 volt per

octave response. This enables accurate audio

pitch in filter or oscillator mode. In the low range,

the sensitivity is increased to approximately 0.66

volt per octave.

5 EXPONENTIAL FM INPUT AND KNOB

This second exponential FM input includes a

polariser knob to set the modulation depth, with

0 in the centre, +1 volt per octave maximum and

−1 volt per octave minimum in audio mode. In

low mode, the sensitivity is increased to

approximately 0.66 volt per octave.
