Side 1/3

Headset User Guide

Warranty

Your TT3 headset has been carefully manufactured

and 100% tested using high quality assured

components. It is protected by warranty against

faulty workmanship and materials for a period of

24 months from the date of purchase. In the unlikely

event that a failure should occur, the unit will be

repaired or replaced free of charge when returned

postage paid to the address below, within the

24 month warranty.

This warranty does not cover damage or failure

resulting from misuse. Failure to comply with the

warnings, care and safety advice listed in this user

guide will void the warranty. This warranty does

not cover goods damaged in transit. Removing the

warranty tab thread on the headset cable will also

void warranty. Your statutory rights are in no way

aected by this warranty.

For service in or out of warranty please return the

unit postage paid to:

JPL Limited, Unit 1, Church Close Business Park,

Church Close, Todber, Sturminster Newton,

Dorset, DT10 1JH, ENGLAND.

When returning your unit please ensure that the

package contains a covering letter stating when and

where you purchased the unit and a description of

the problem encountered. If the unit is within the

warranty period please enclose proof of purchase.

Repair or replacement is at the discretion of the

manufacturer. In accordance with its policy of

progressive design, JPL reserves the right to alter

product specications at any time, without prior

notice.

Limited Warranty

Consequential and incidental damages, including

without limitation, loss of property and those arising

from breach of any express or implied warranty, are

not the responsibility of the retailer and to the extent

permitted by law, are excluded.

JPL Limited, Unit 1, Church Close Business Park,

Church Close, Todber, Sturminster Newton,

Dorset, DT10 1JH, ENGLAND.

Telephone: +44 (0)1258 820100

www.jpltele.com

7 9 108

Adjusting the Microphone Boom

To avoid low or distorted sound, and to provide

clear and crisp telephone calls, the microphone

should be positioned within 30-40mm of your

mouth (2 ngers width). The microphone boom

arm will move in a variety of directions to ensure

the best t. See g.5.

30 - 40mm

from mouth

(2 ngers width)

Adjusting the Headband

Place the headset receiver to your ear(s),

if using a single ear headset you should set

the T-bar above your other ear. Adjust the

headband until it is comfortable, ideally

ensuring there is virtually no pressure felt on

the ear(s).

Most headsets can be worn on either side.

To change the microphone side, simply rotate

the microphone boom 180° to the other

side. The microphone boom will not rotate a

complete 360°. See g.3.

Microphone

housing -

120° rotation

Microphone boom

- 280° rotation

The microphone housing/ear cushion can

rotate 120° to enable individual comfort on

ear(s). See g.4.

Removing the Microphone Boom

To remove the microphone boom from the

headband, carefully and gently push inside the

ear cushion on the speaker material for approx.

3mm - 5mm. The microphone housing will

then come away easily. See g.8a & 8b.

DO NOT pull on the

microphone boom

to remove it from the

headband.

14/04/005.V2

NOTE:

Disconnect the Quick Disconnect cable, See g.7,

before separating the microphone boom from

the monaural/binaural headand.

g.7

g.3

g.4

g.5

g.8a

g.8b

To adjust the microphone boom to the shape of

your face, hold the boom arm as shown in g. 6.

Do not hold the microphone end to shape boom.

g.6

Designed and Engineered in the UK

Assembled in China

Contents

Introduction 2

Connecting boom to headband 4

Features 5

Connection to your desk phone 6

Adjustment 7

Notes 9

Warranty 10

Introduction

Thank you for purchasing this product.

Your new headset has been developed using

the latest technology, designed for comfort

and freedom of movement.

This headset is very easy to use and setup,

although to get the best from your new

purchase, we recommend you read this user

guide carefully before using the headset for the

rst time.

Unpacking

Remove your headset from its packaging and

ensure that along with this user guide, you

have the correct specied accessories.

Retain the headset box for storage of your unit,

and also in the unlikely event that it needs to

be returned for servicing or repair.

Compatibility Guide

Please check that you have the correct bottom

cable to connect your new headset to your

desk phone. You can check with your supplier

or visit www.jpltele.com and follow the links in

the compatibility menu.

Warning

Ensure that all electrical connections (including

extension leads and interconnections between

pieces of equipment) are properly made and

in accordance with the relevant manufacturers

instructions.

Do not continue to operate the equipment if you

are in any doubt about it working normally, or if

it is damaged in any way. Disconnect from your

telephone equipment and consult your dealer.

Do not allow electrical equipment to be exposed

to rain or moisture.

Never push anything into holes, slots or any other

opening on your headset as this could result in

fatal electrical shock.

Do not open the headset housing as doing so will

void the warranty.

Never guess or take chances with electrical

equipment.

Telephone headsets are capable of producing

high levels of sound. Prolonged exposure to high

sound levels can cause damage to hearing.

3 4 5

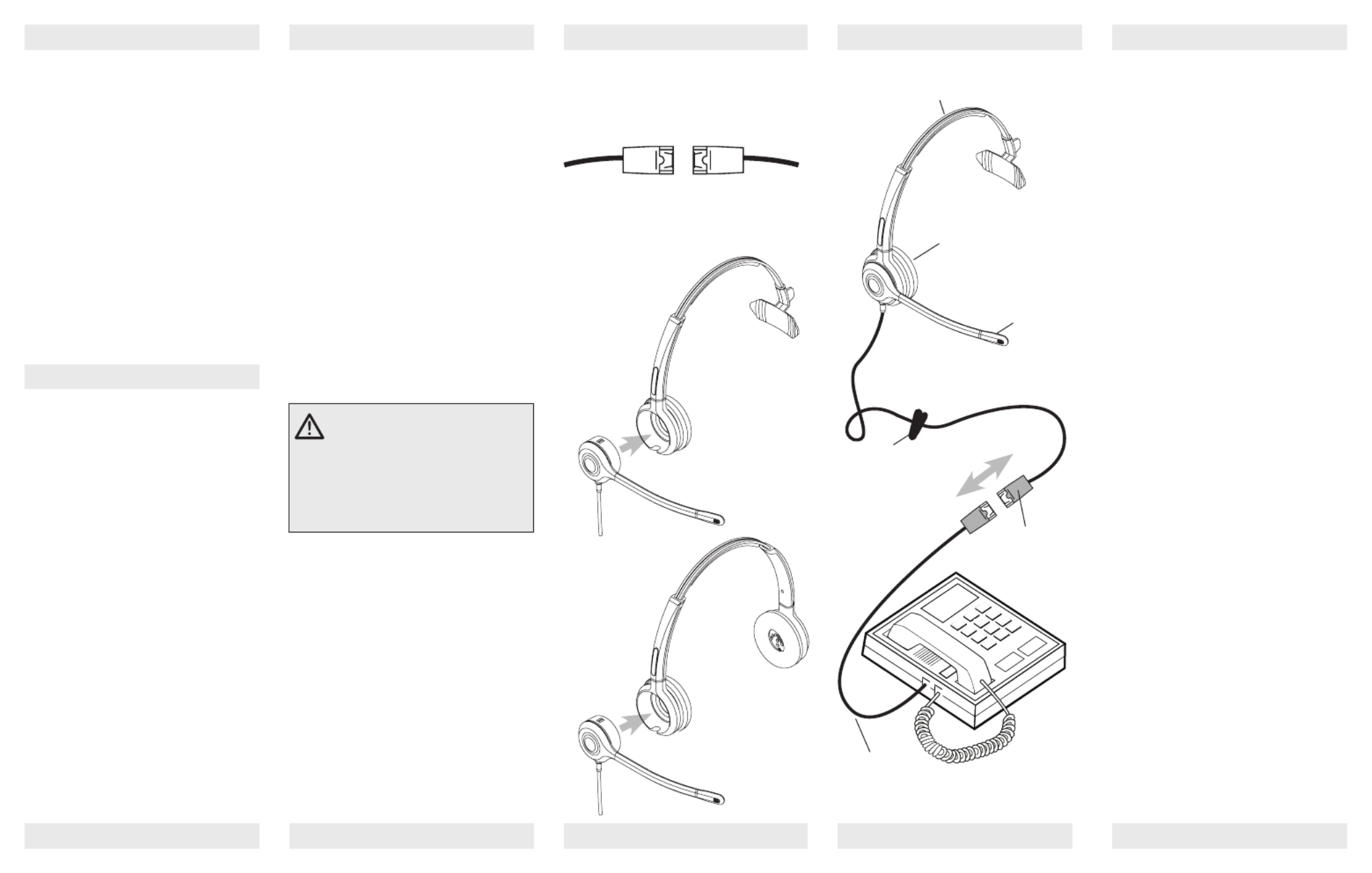

Headset Features

Adjustable Headband

Ear Cushion

Microphone

Clothing Clip

Quick Disconnect

(QD)

Connecting Your Headset

Does your desk phone have a dedicated

headset connection port?

If it does, simply connect your headsets Quick

Disconnect cable to your chosen bottom lead

(not supplied), then connect the bottom lead

to the dedicated port on your desk phone.

If you nd that when the headset is connected

to the phone it is not working as expected then

it is very likely you are using an incompatible

bottom lead. There are various bottom leads

available, these are all designed to connect

your headset to specic brands of desk phone,

ensuring whatever your setup, your headset

will be compatible.

Please contact your dealer to attain the correct

bottom lead for your desk phone.

Note: All bottom leads are supplied as an

accessory at additional cost.

What to do if your desk phone does not

support a dedicated headset connection

port:

Your desk phone requires an external headset

amplier. If you already have a headset

amplier, read through the units setup guide

and connect your headset accordingly.

Using the Quick Disconnect Lead

Your headset may be equipped with a Quick

Disconnect allowing you to move away from

your desk (disconnecting the 2 connectors)

without losing the call.

To separate the 2 connectors, simply make a

straight pull, pulling the lehand connector to

the le and the righthand connector to the right.

DO NOT attempt to bend or leaver the

connectors apart.

In the event that you do not have a headset

amplier, please contact the supplier of this

headset (details found on rear of user guide).

They will be able to provide the correct

amplier for your headset and desk phone.

Connecting the Microphone Boom to

the Headband

Gently push the microphone boom into the

headband until it clicks. See g.2a & 2b.

Safety

For your own safety, this product should only be

used with CE ACA and RoHS approved equipment.

Using this headset with non approved equipment

can void this products warranty.

Maintenance

To gain optimal performance, hygiene and life-

span from you headset, replace all consumable

items; - ear foam cushion, microphone foam (if

applicable) and microphone lter every 6 months.

Environmental Notice

This headset has been made to CE, RoHS and

WEEE standards. In the interest of recycling raw

materials, please do not dispose of this headset

in the household waste at the end of its useful

life. Disposal can take place at approved recycling

or disposing locations in accordance with local

regulations.

Bottom Cable

(Not included)

NOTE:

Before connecting the Quick Disconnect cable to

bottom lead, make sure the microphone See g.1,

boom is securely fastened onto the monaural/

binaural headband.

g.1

g.2a

g.2b

Warning: Before connecting the

Quick Disconnect cable, make sure

the microphone boom is securely fastened

onto the monaural/binaural headband!

Also, before separating the microphone

boom from the monaural/binaural headband,

make sure the Quick Disconnect cable is

disconnected from the bottom lead rst!

Produkt Specifikationer

Mærke:	JPL
Kategori:	Headset
Model:	Element TT3-AVANT-B
Bredde:	170 mm
Dybde:	210 mm
Højde:	55 mm
Vægt:	98 g
Produktfarve:	Sort, sølv
Produkttype:	Headset
Bluetooth:	Ingen
Opbevaringstemperatur (T-T):	-25 - 50 °C
Driftstemperatur (T-T):	-25 - 50 °C
Husmateriale:	Plast
Antal:	1
Hurtig start guide:	Ja
Pakketype:	Polybag
Anbefalet brug:	Kontor/Callcenter
Impedens:	32 ohm (Ω)
Forbindelsesteknologi:	Ledningsført
Certificering:	UKCA, CE, FCC, EAC, RoHS, REACH
Harmoniseret systemkode (HS):	8518300090
Bæremåde:	Headset
Headset type:	Binaural
3,5 mm stik:	Ingen
USB-tilslutning:	Ingen
Hovedtelefon frekvens:	100 - 5000 Hz
Mikrofontype:	Boom
Bæretaske:	Ja
Hovedkassen højde (udvendigt):	410 mm
Hovedkassens længde (udvendigt):	390 mm
Hovedkassens bruttovægt (udvendigt):	93000 g
Hovedkassens bredde (udvendigt):	550 mm
Oprindelsesland:	Kina
Mikrofonindgangsimpedans:	2200 ohm (Ω)
Mikrofon frekvens:	100 - 10000 Hz
Mikrofon sensitivitet:	-49 dB
Produkter pr. hovedkasse (udvendigt):	40 stk
Ørekobling:	Supraaural
Ørepuder:	Ja
Kabelfarve:	Sort
6,35 mm stik:	Ingen
Justerbar hovedbøjle:	Ja
Aftagelige mikrofon:	Ja
Folde mikrofon:	Ja
Vejledningssprog:	Engelsk
Ørepude størrelse:	50 mm
Ydre emballage volumen:	87945 cm³
2x 3,5 stik:	Ingen
Hovedkasse emballagetype (ydre):	Kasse
Ørepudemateriale:	Kunstlæder
Hovedbåndspude:	Ja
Bæretaskens vægt:	216 g
Aftageligt hovedbånd:	Ja
Modulære dele, der nemt kan udskiftes:	Ja
Reparationsvenlig:	Ja
Støjreducerende mikrofon:	Ja
